Feature:

1. Brand new and high quality.
2. Heavy duty fixed key battery isolator switch.
3. Copper terminals M10 thread.
4. Ideal for Marine, Commercial u0026 Heavy Plant Use.
5. brass terminals and heavy-duty plastic construction making it ideal for marine applications
6. Suitable For Two Batteries
7. Battery Master Switch, Style with 4 Positions

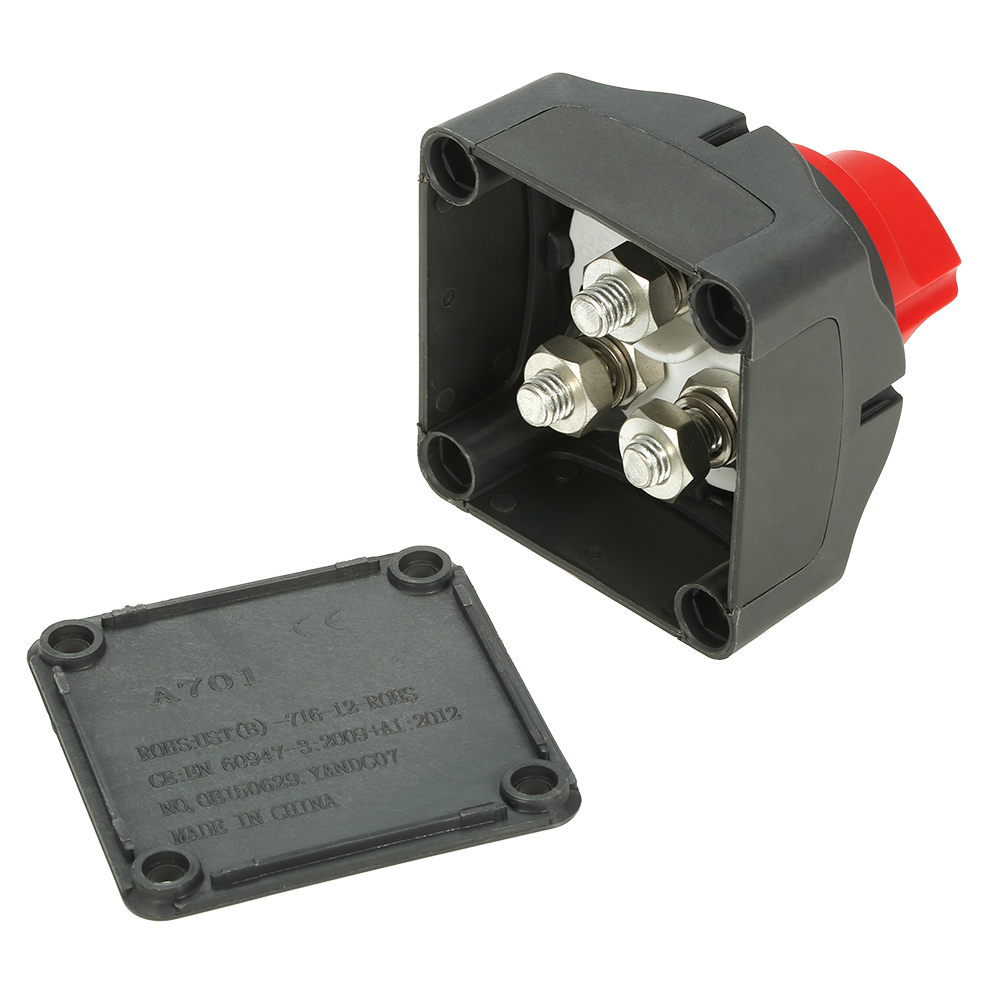

8. Removable rear cover insulates the rear terminals against any short circuits
9. Battery Master Switch, Style with 4 Positions.
10. Suitable For Two Batteries.
11. Removable rear cover insulates the rear terminals against any short circuits.
12. Removable side plates on four sides provide access for heavy duty battery cables.
13. Brass terminals and heavy-duty plastic construction making it ideal for marine applications.

Specification:

Features:
Battery Master Switch, Style with 4 Positions
Suitable For Two Batteries
Removable rear cover insulates the rear terminals against any short circuits
Removable side plates on four sides provide access for heavy duty battery cables
Brass terminals and heavy-duty plastic construction making it ideal for marine applications
Only suitable for 200A continuous power supply OR  300A indirect power supply


Specification:
Suitable for applications up to 48VDC
1500A at 12V for 10 seconds
750A at 24V for 10 seconds
300A at 12V continuous load maximum
150A at 24V continuous load maximum
Package weight:225g
Color:as shown

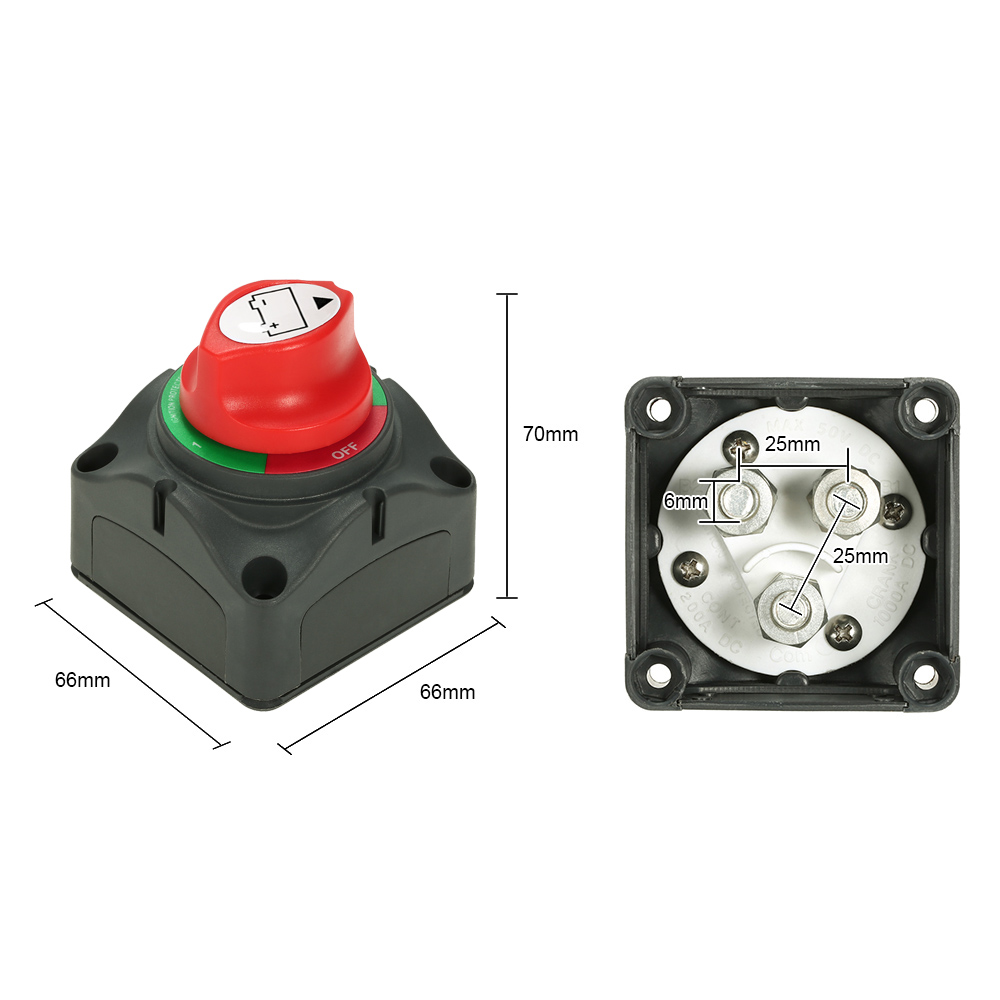

Dimensions: 68 x70 (mm)
Operation: On/Off

Package List:
1 x Switch with cover

Package List:


1 x Switch with cover
