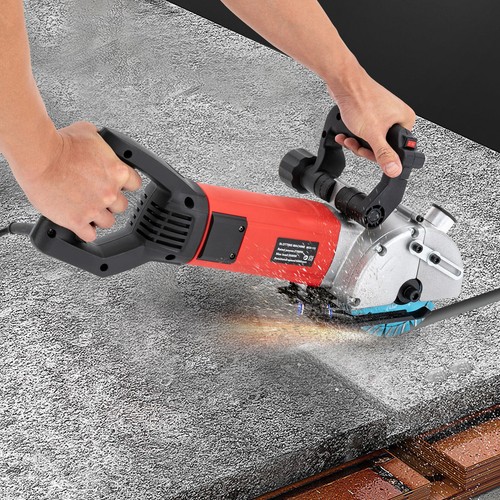

Wall Chaser Concrete Chasing Machine Wall Slotted Machine with Laser 42mm Depth

Description

Our slotting machine is a professional electric tool that can cut precise slots. High-quality materials make it sturdy and durable. The powerful pure copper motor allows you to easily complete slotting work. The adjustable slot depth and cutting width can meet your different usage needs. In short, it has become one of the indispensable tools for professional cutting operations due to its high efficiency and precision.



Key Features

Made to Last: Made of diamond, aluminum, and ABS, this product is wear-resistant, corrosion-resistant, and durable, ensuring your long-term use.



Dust-free Slotting: It can be connected to a water pump or vacuum cleaner (not included) to reduce dust splashing during slotting, protecting your health. The front protective cover also prevents the dust from splashing.



Efficient Slotting: With a rated power of 2700W, a pure copper motor, a speed of 5000rpm, and sharp diamond saw blades, you can easily complete slotting work. The rotatable protective cover allows for easy slotting of wall corners. In addition, laser positioning makes slotting more precise and clear in direction.



Easy to Adjust: You can freely adjust the slotting depth by adjusting the bottom plate (maximum cutting depth: 1.65 inches). You can adjust the cutting width (maximum cutting width: 1.57 inches) by changing the number of blades to meet the different needs of your daily work. In addition, you can also rotate the handle to gain a more comfortable working position.



High Safety: Multiple heat dissipation holes ensure timely heat dissipation, avoiding damage to this product due to high temperatures.



Easy to Carry and Store: This product is equipped with a toolbox, which is convenient for you to store your tools as well as to take them out for work.



Simple Cleaning: It has a smooth surface and a simple structure, so you only need to wipe the dust with a dry towel after use.



Good Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.



Details

Comfortable Handle: The ergonomic handle provides you with a comfortable grip, even if working for a long time without getting tired.



External Carbon Brush Port: It makes carbon brush replacement more convenient and efficient.





Application

It is widely used on construction sites, decoration companies, etc. It is used for cutting concrete, marble, granite, lightweight bricks, and other materials.



How to Install Saw Blade

1. Remove the front cover before installation.

2. Remove the three screws and move the front cover away.

3. Insert the saw blade, with a spacer in the middle between each blade.

4. Insert fixing screws and nuts.

5. Tighten the cover plate screws with a wrench.

6. Move the front cover back into position and tighten the screws.



Specification

Color: Red, Black, Silver

Material: Diamond, Aluminum, ABS, Copper

Assembly Required: Yes

Power Source: Corded Electric

Plug Type: AU Standard

Water Pump Input: 90-240V 50/60Hz

Water Pump Output: 12V 2A

Voltage: 220V

Rated Power: 2700W

Max. Load: 3500W

Speed: 5000rpm

Maximum Cutting Depth: 42mm/1.65in

Maximum Cutting Width: 40mm/1.57in

Blade Diameter: 133mm/5.24in

Product Size: 57*19*17cm/22.44*7.48*6.69in

Carrying Case: 60*19*30cm/23.62*7.48*11.81in

Package Size: 61*27*19cm/24.02*10.63*7.48in

Gross Weight: 10kg/22.05lbs

Net Weight: 8.5kg/18.74lbs



Package Included

1* Slotting Machine

1* Water Pump

1* Water Pipe

1* Carrying Case

1* English Manual

Other Accessories for Assembly



Notes



  • When using water for slotting, the machine head should be facing downwards to prevent water from entering the body.
  • When using a vacuum cleaner to slot, when the bottom plate is adjusted to the bottom position, the front protective cover is completely attached to the wall (ground) for a better vacuum suction effect.
  • Please regularly check the carbon brush, and replace them in a timely manner when there is a large spark.
  • When cleaning the machine head, avoid water from entering the body through the ventilation port.



Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
