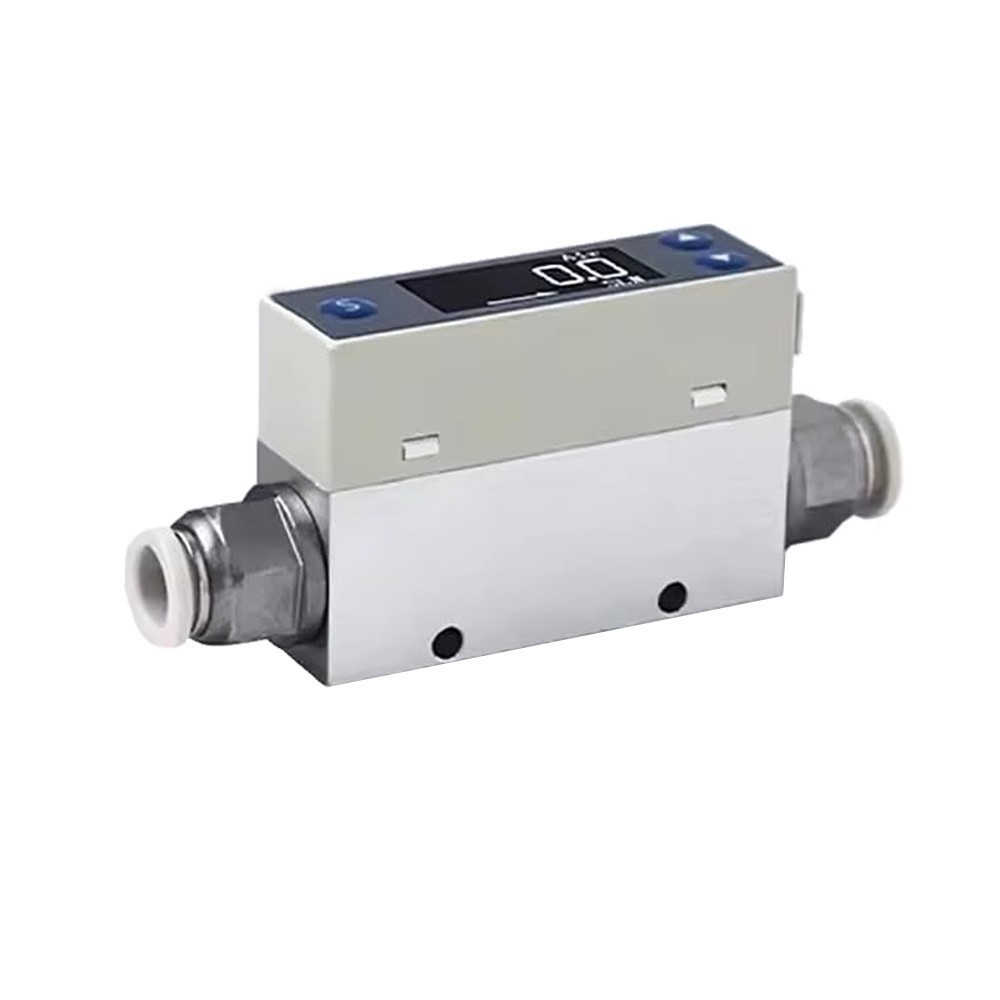

DC 24V Lab Digital Thermal Gas Mass Flow Meter & Controller, 0-200 ml/min Sensor

Product

Safely & securely packaged before leaving our warehouse.
All products listed ready for dispatch from our warehouse.

Shipping

Orders are dispatched within handing time of payment Monday-Friday.
Using delivery services via Economic, Standard or Express couriers.

Contact

We encourage you to Contact us. via ebay messages with any questions or concerns about an order.
All messages will be responded to within 24-48 hours Monday-Friday.

Item description：

Applications:

Ideal for use in photovoltaic equipment, analytical instruments, vacuum pumps, anesthesia delivery systems, spectrometers, communication systems, environmental climate control, and more

Features:

High-Precision Measurement: Accuracy up to ±2.0% F.S ensures reliable monitoring of low flow rates, ideal for demanding applications

Stable Performance Across Temperatures: Operates consistently from 0°C to 50°C without the need for additional temperature calibration

Compact & Integrated Design: Space-saving internal structure suitable for installations with limited space

Fast Response: Response time of less than 10 ms enables real-time flow monitoring and control

Multi-Gas Compatibility: Supports quick switching between air, oxygen, nitrogen, carbon dioxide, and argon for enhanced operational flexibility

Specifications:

Name: Gas Mass Flow Sensor

Pipe Diameter: DN8

Compatible Gases: Air, Oxygen, Nitrogen, Carbon Dioxide, Argon

Flow Range: 0-200mL/min

Pressure Rating: ≤1.0MPa

Turndown Ratio: 1:100

Connection Thread: G1/4

Input Voltage: AC 100-240V

Operating Voltage: DC 9-24V

Accuracy: ≤±2.0% F.S

Repeatability: ≤1.0% F.S

Zero Drift: ≤0.5% F.S

Response Time: <10ms

Max Pressure: 1MPa

Communication: RS485

Output Signal: 4-20mA

Display: Instantaneous Flow / Total Accumulated Flow

Operating Temperature: 0-50°C

Package includes:

1 x Lab Digital Thermal Gas Mass Flow Meter
