Summary

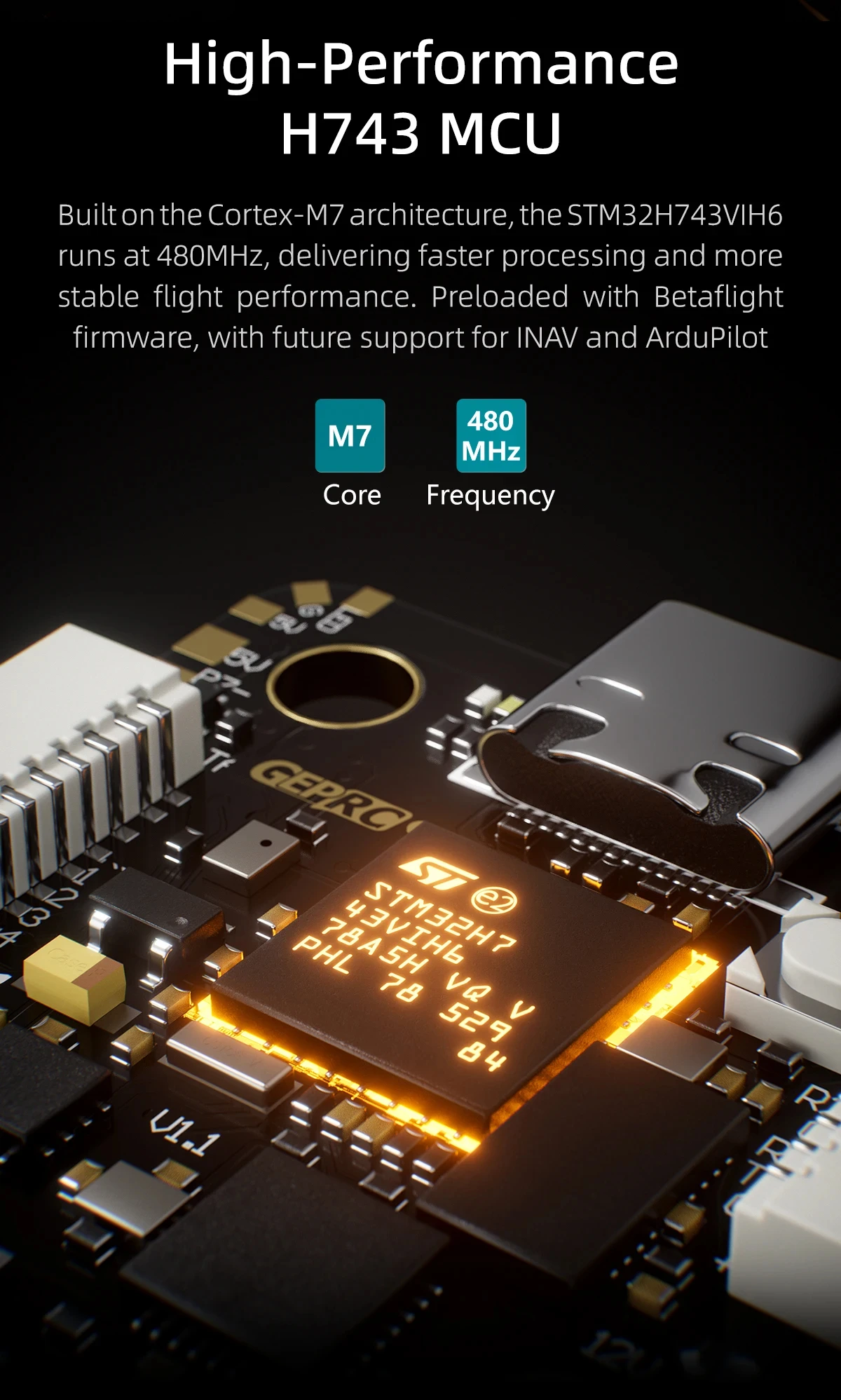

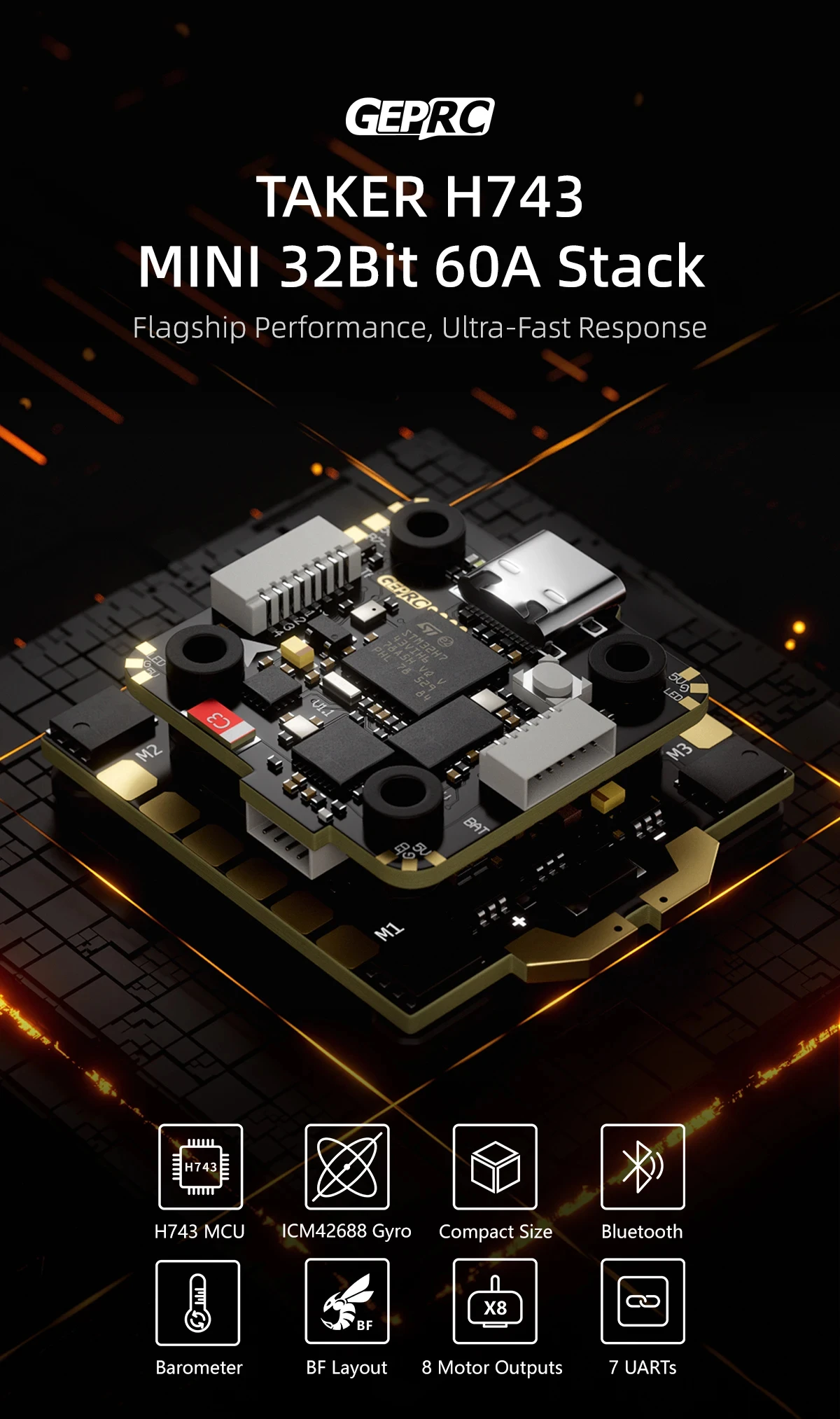

TAKER H743 MINI 32Bit 60A Stack is GEPRC’s next-gen mini flight stack, powered by an STM32H743VIH6 (Cortex-M7) MCU and ICM42688-P gyro. With high PSRR LDO filtering and external gyro clock support, it delivers stable and precise flight performance.

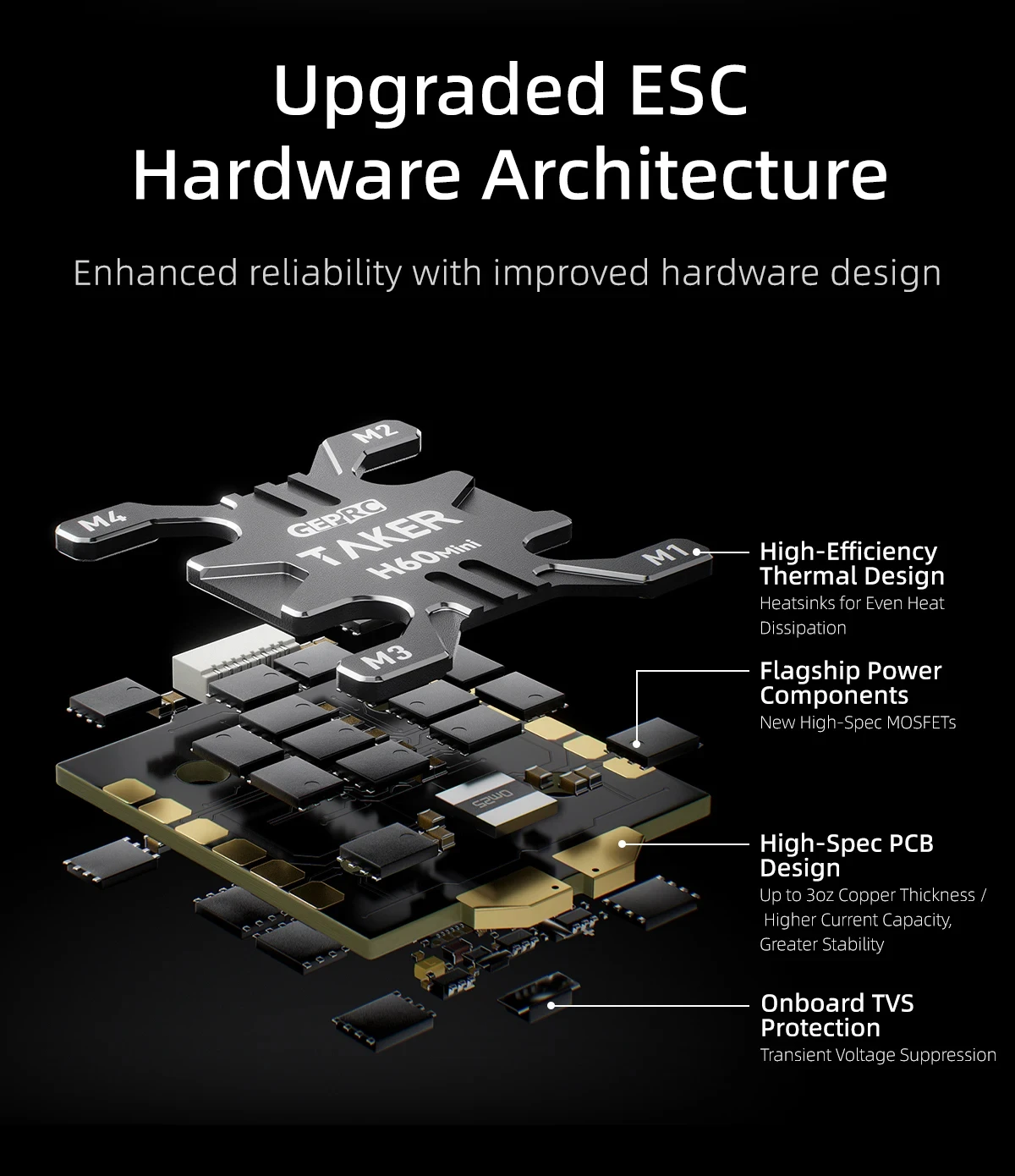

Paired with the TAKER H60 MINI 60A 4-in-1 ESC (AM32 pre-installed), supporting 3–8S LiPo input. High-spec MOSFETs and TVS protection ensure reliable power and fast response for smooth, controlled flight.

Feature

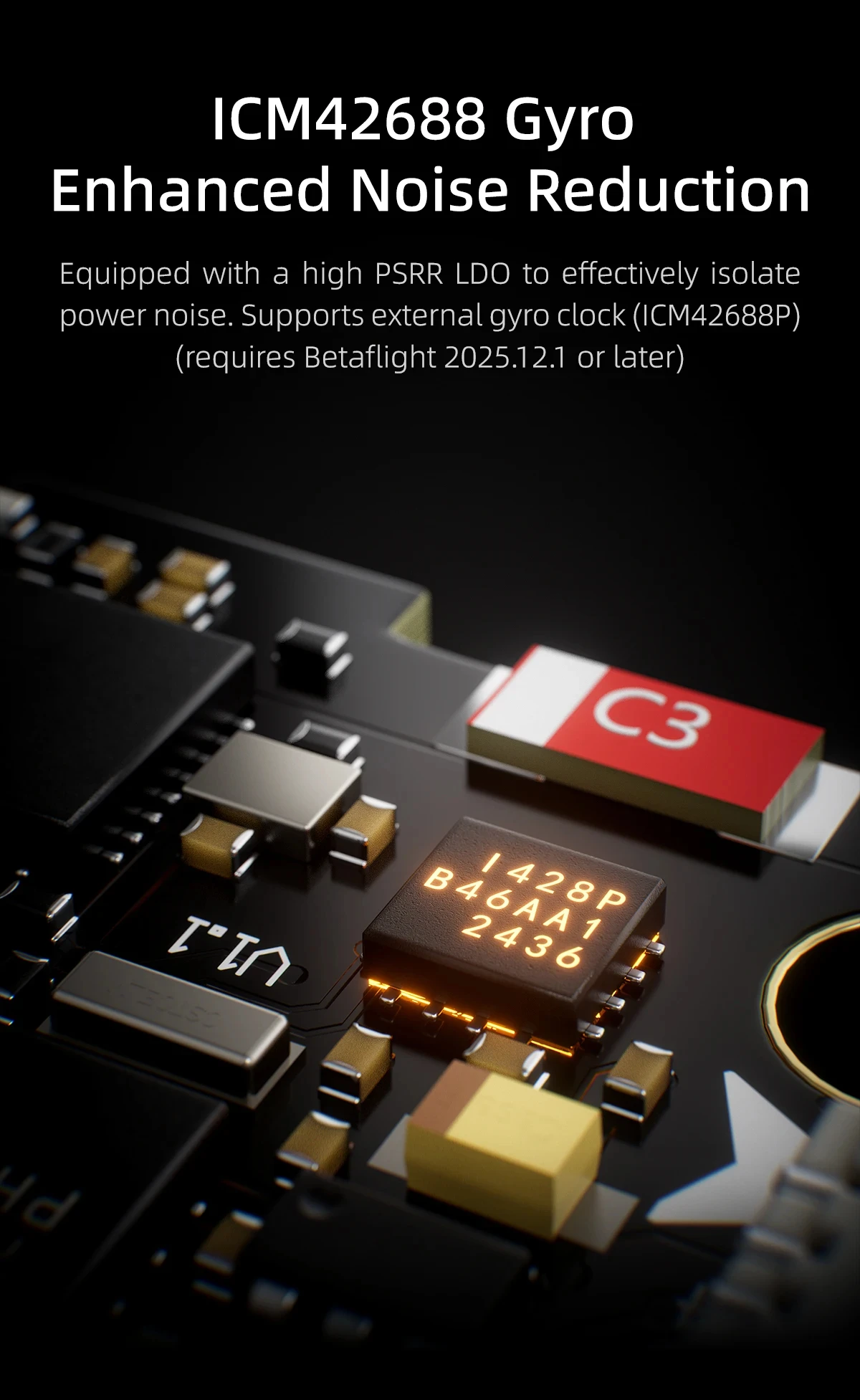

Equipped with ICM42688-P gyroscope
Supports external gyro clock input

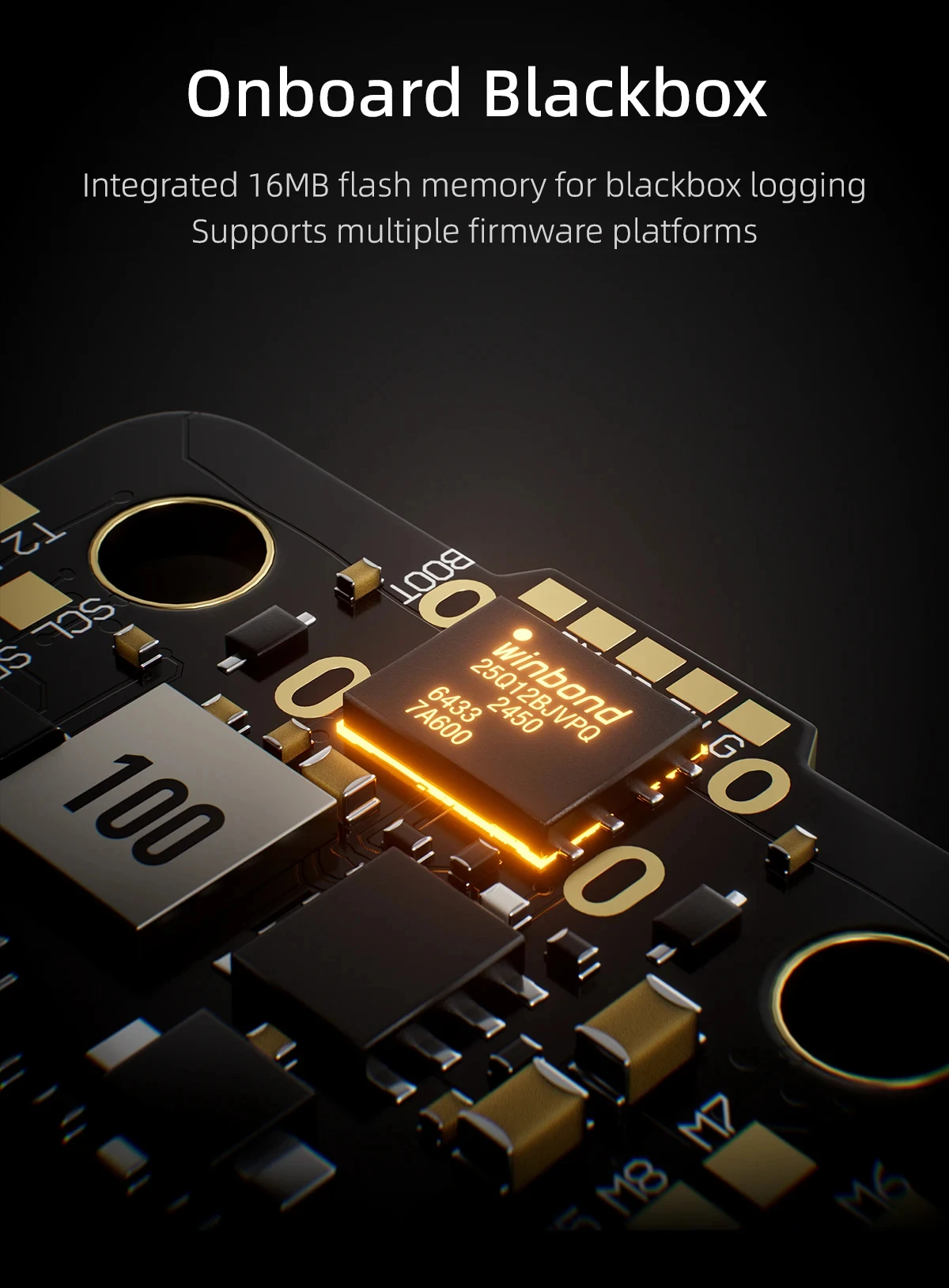

Built-in 16MB Blackbox storage

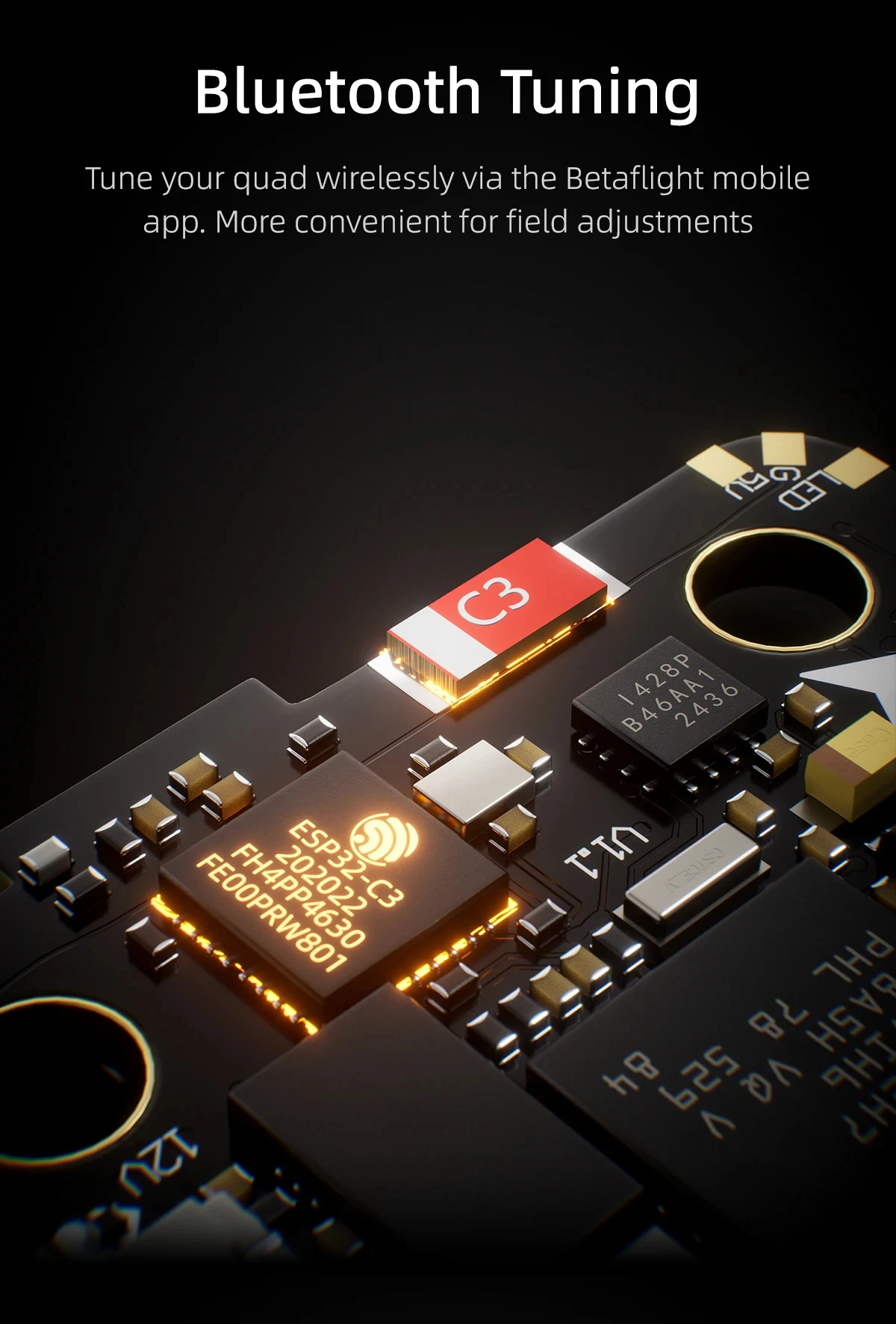

Bluetooth wireless tuning supported

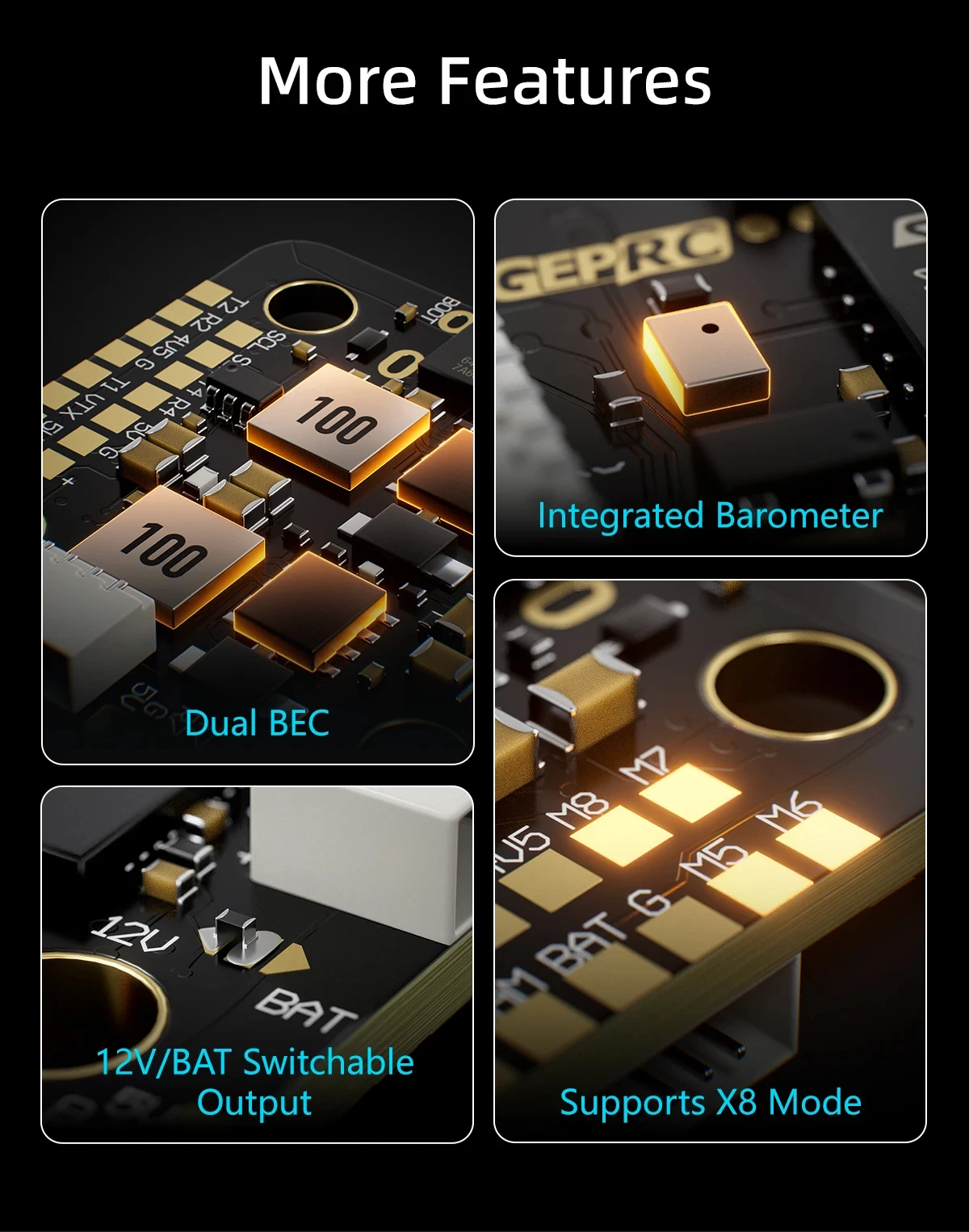

Integrated barometer
8 motor outputs, supports X8 configuration

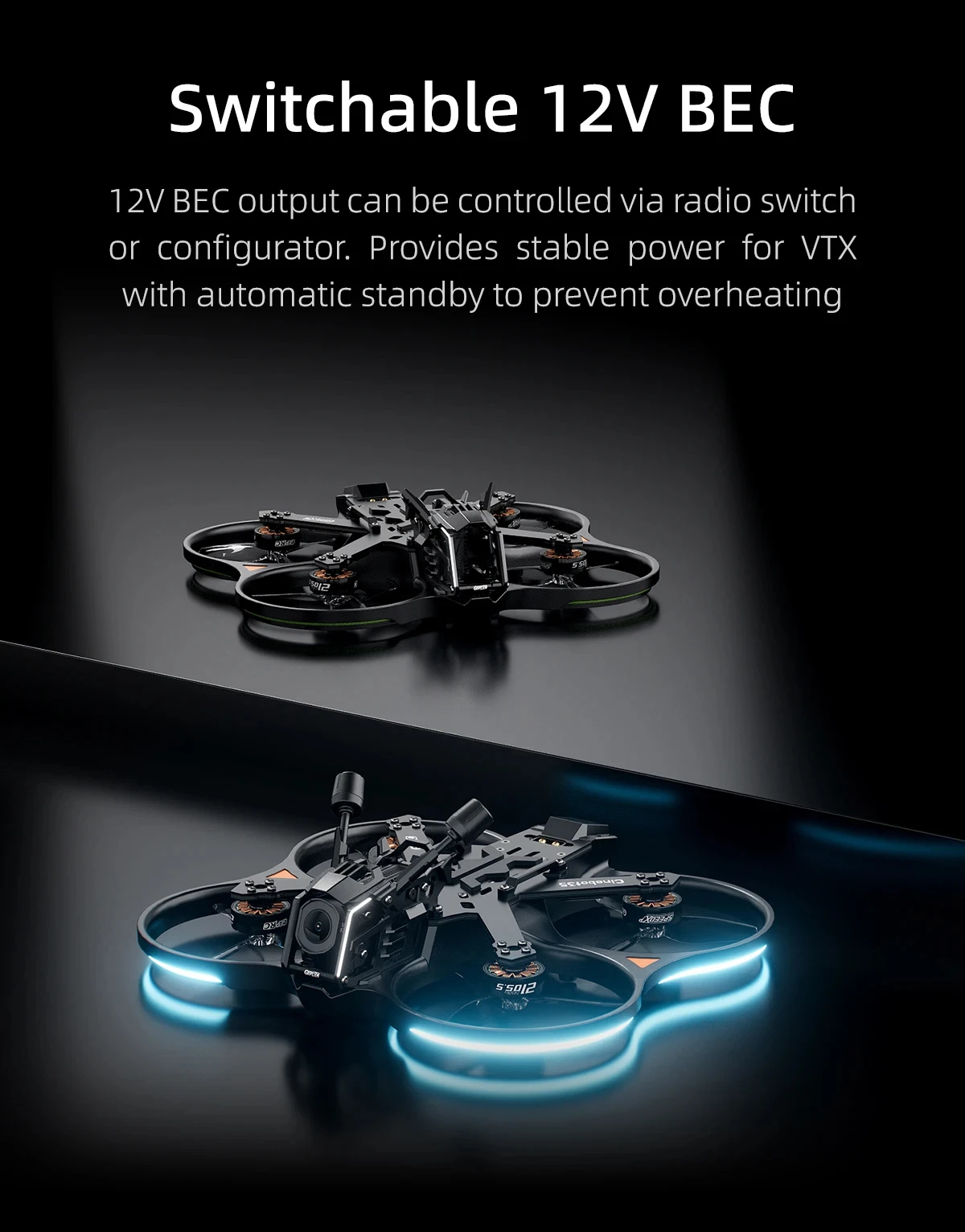

Dual independent BEC: 12V@2.5A + 5V@3A
Onboard TVS spike protection design

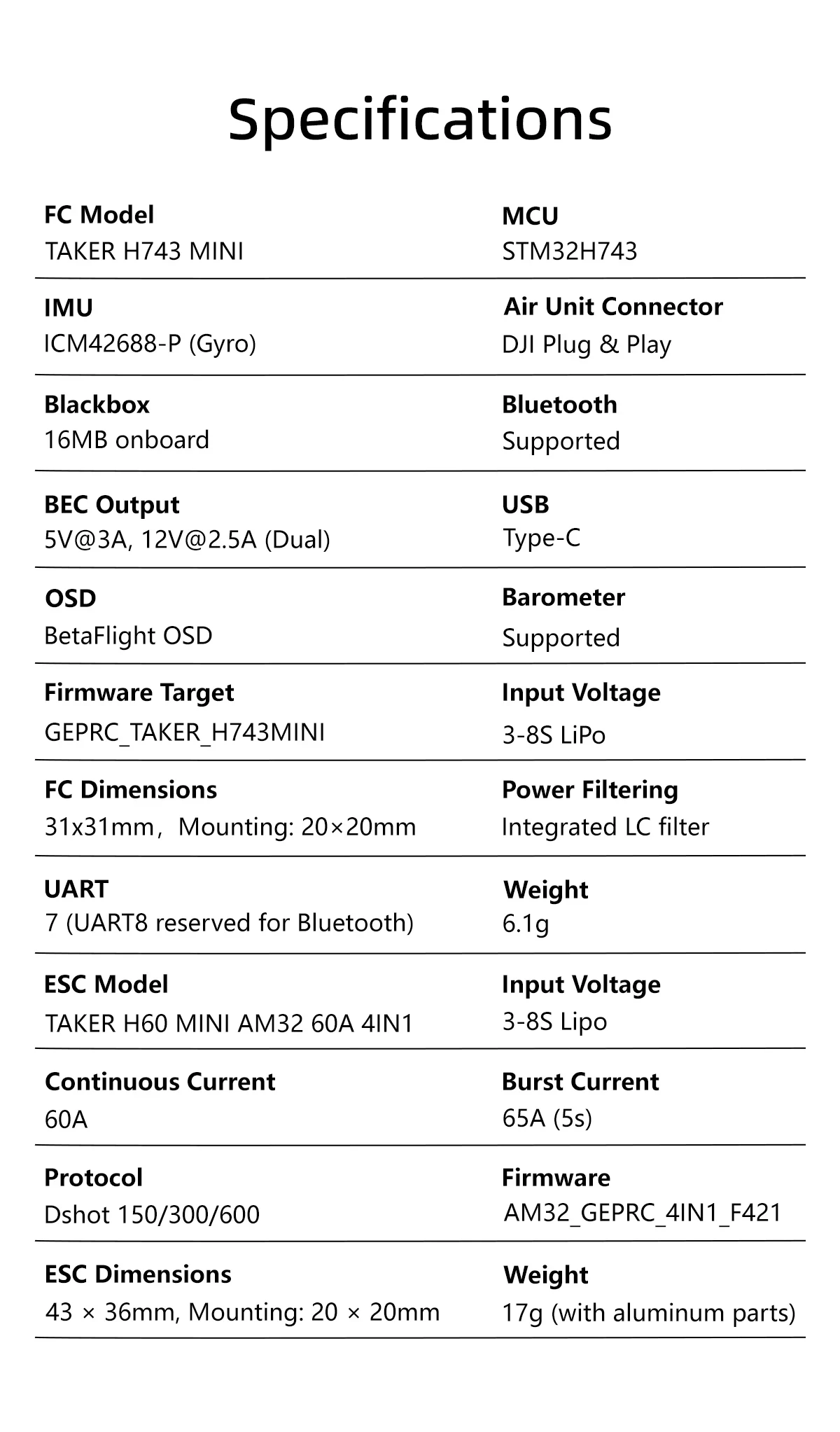

Specifications

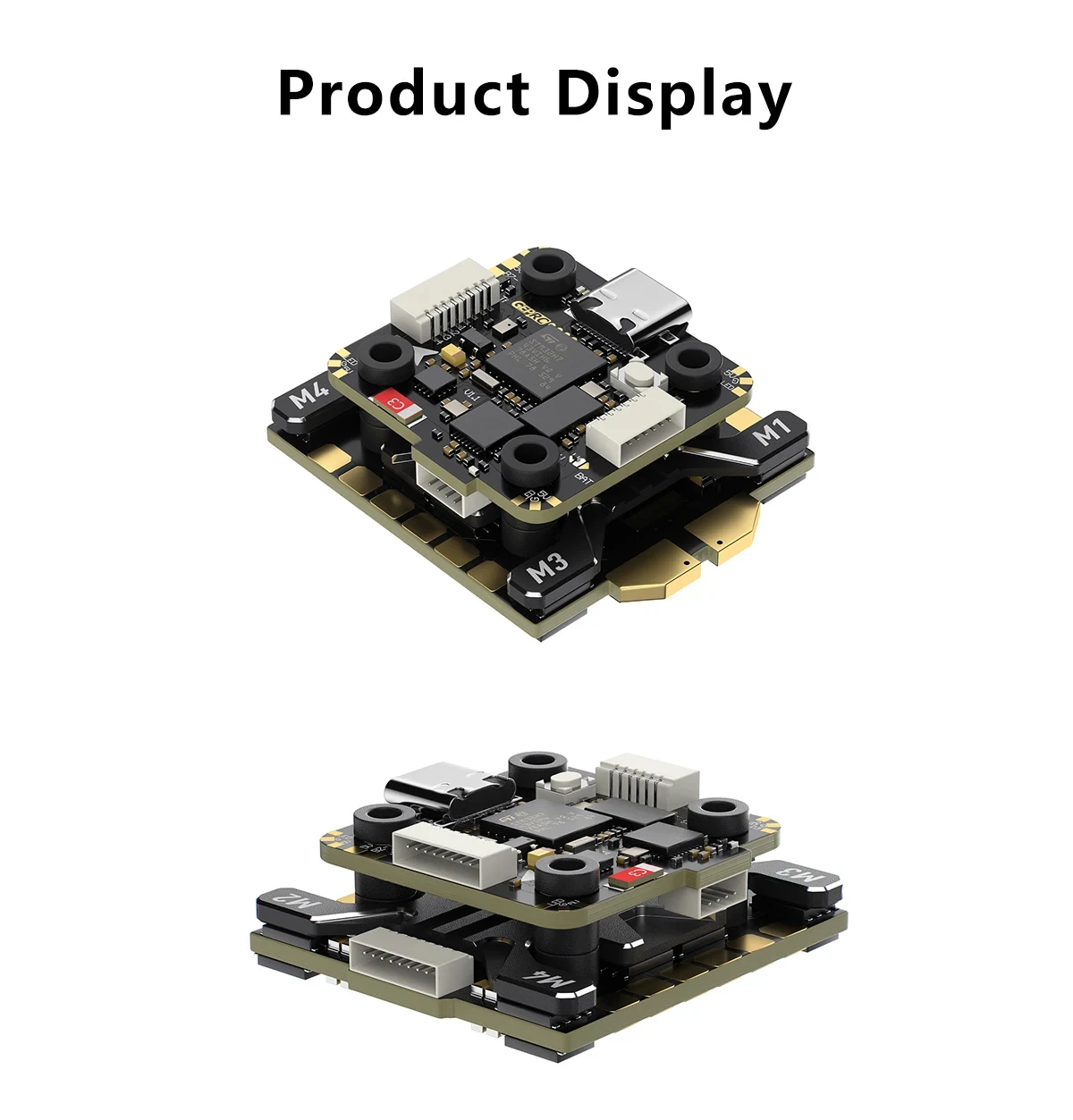

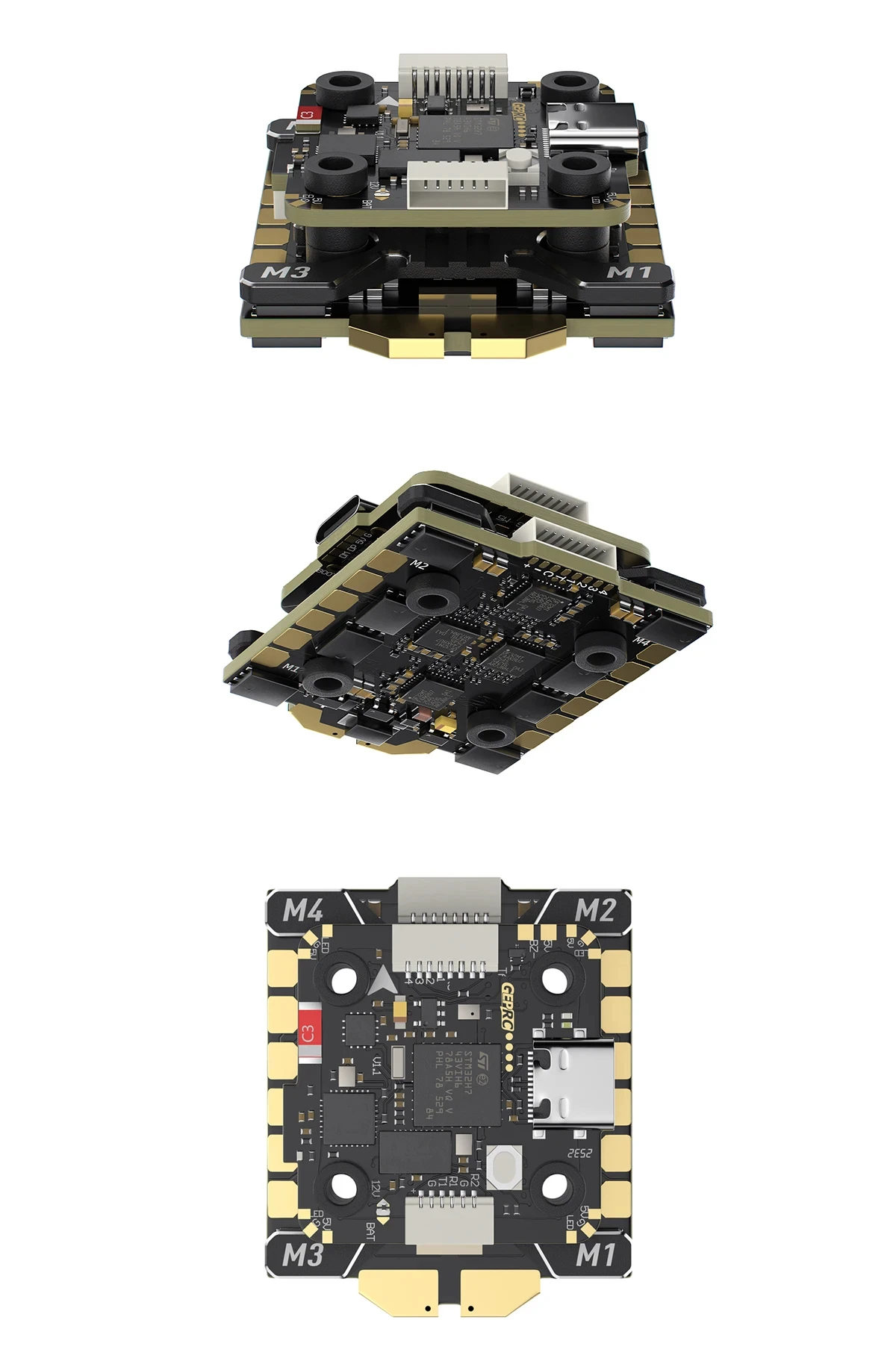

GEPRC TAKER H743 MINI 32Bit 60A STACK
FC model: TAKER H743 MINI Flight Controller

FC Model: TAKER H743 MINI
MCU: STM32H743
IMU: ICM42688-P (Gyro)
Air Unit Connector: DJI Plug & Play
Blackbox: 16MB onboard
Bluetooth: Supported
BEC Output: 5V@3A, 12V@2.5A (Dual)
USB: Type-C
OSD: Betaflight OSD AT7456E
Barometer: Supported
Firmware Target: GEPRC TAKER H743 MINI
Input Voltage: 3–8S LiPo
FC Dimensions: 31×31mm
Mounting: 20×20mm
Power Filtering: Integrated LC filter
UART: 7 (UART8 reserved for Bluetooth)
Weight: 6.1g

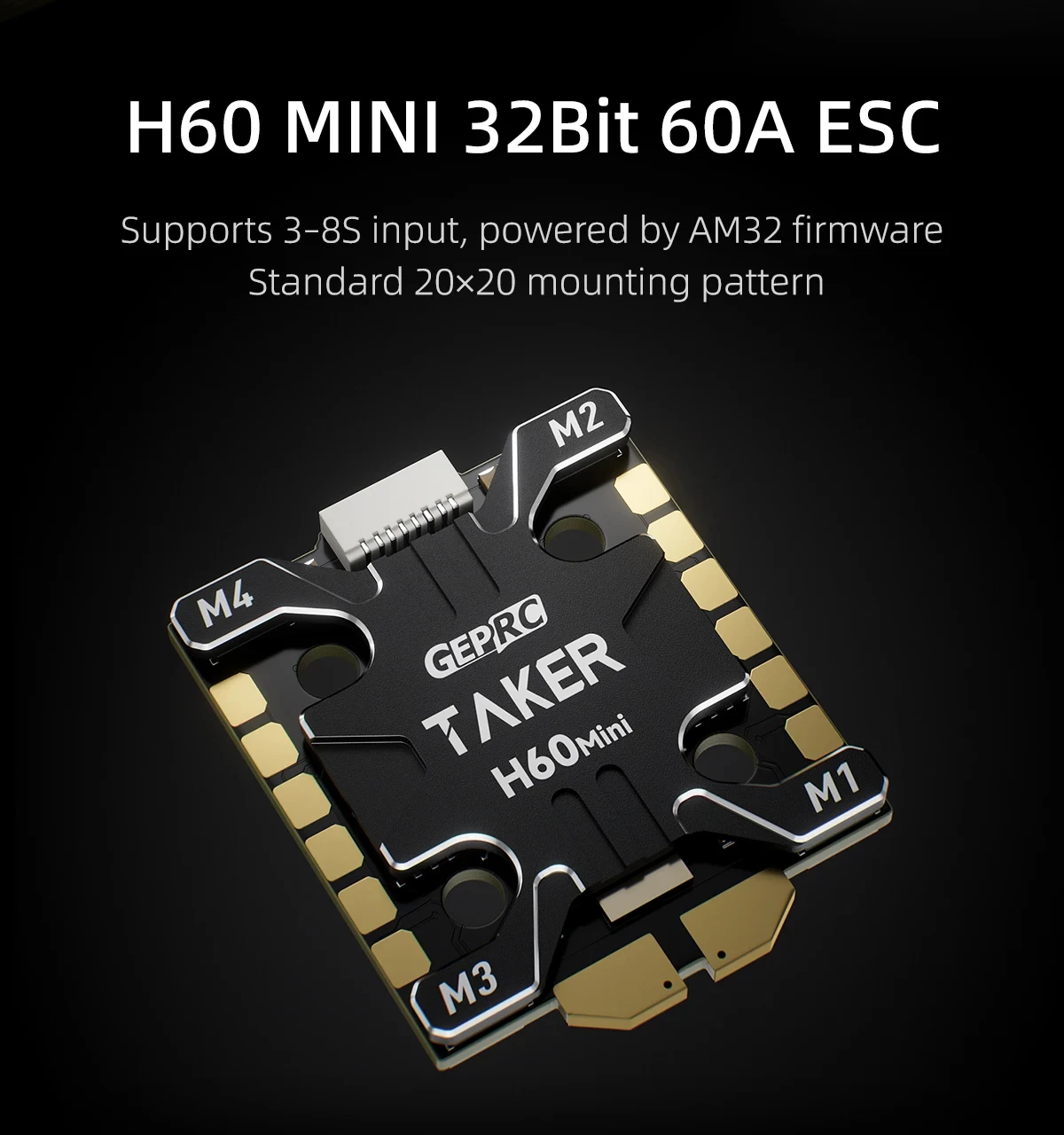

ESC Model: TAKER H60 MINI AM32 60A 4IN1 ESC

Input Voltage: 3–8S LiPo
Continuous Current: 60A
Burst Current: 65A (5s)
Protocol: DShot150/300/600
ESC Dimensions: 43×36mm
Weight: 17g (with aluminum heat sink)
Mounting: 20×20mm
Firmware: AM32 GEPRC 4IN1 F421

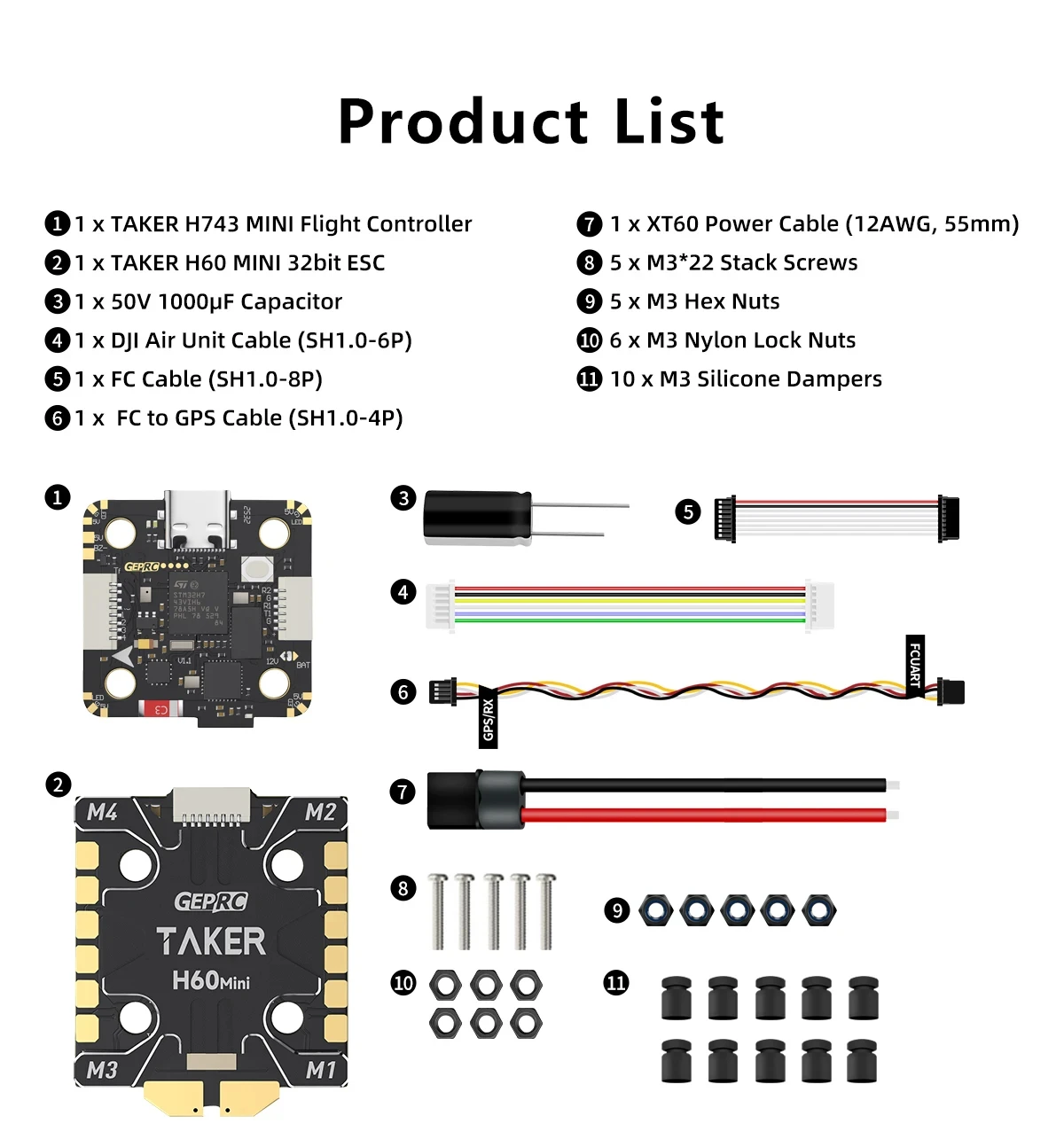

Includes
1× TAKER H743 MINI Flight Controller
1× TAKER H60 MINI 32bit ESC
1× 50V 1000µF Capacitor
1× DJI Air Unit Cable (SH1.0-6P)
1× FC Cable (SH1.0-8P)
1× FC to GPS RX Cable (SH1.0-4P)
1× XT60 Power Cable (12AWG, 55mm)
10× M3 Silicone Dampers
5× M3*22 Stack Screws
6× M3 Nylon Lock Nuts
5× M3 Hex Nuts
