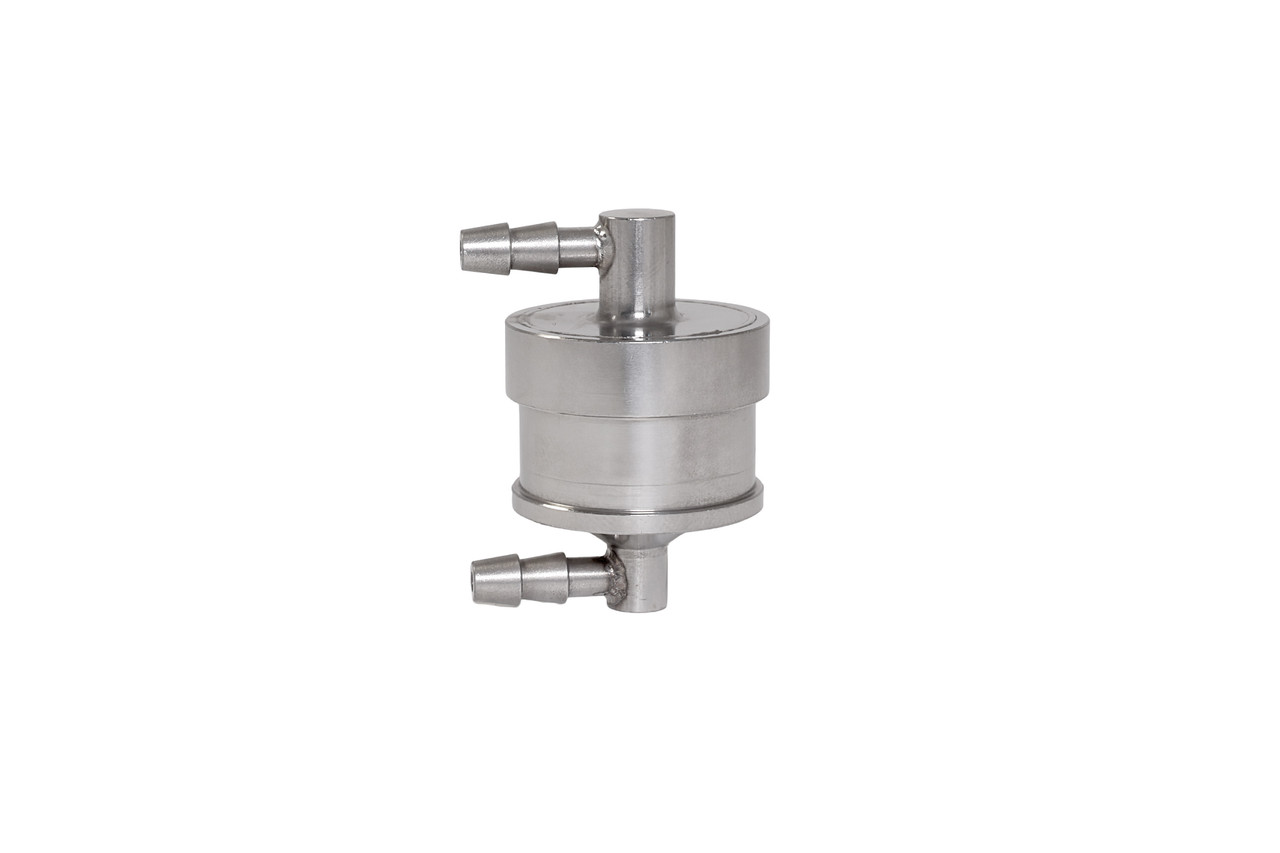

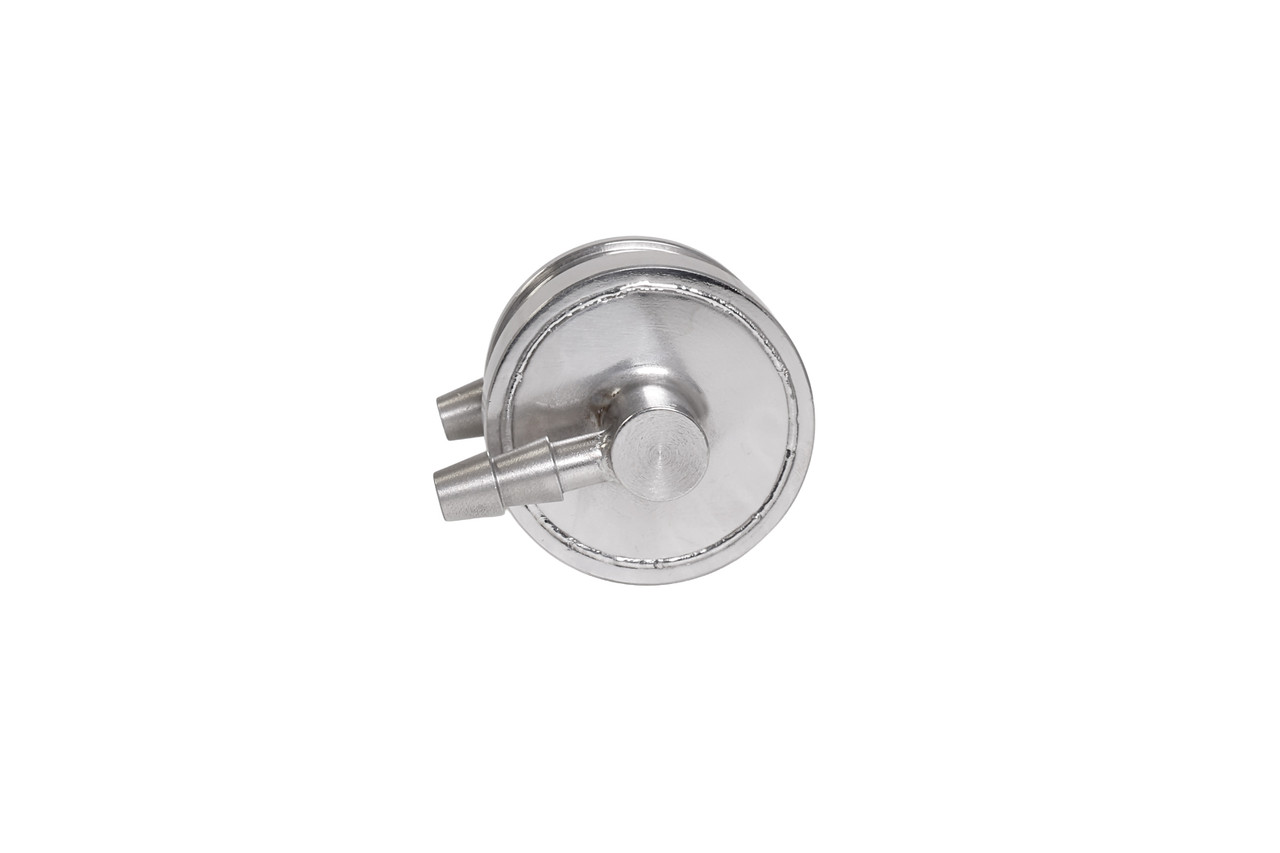

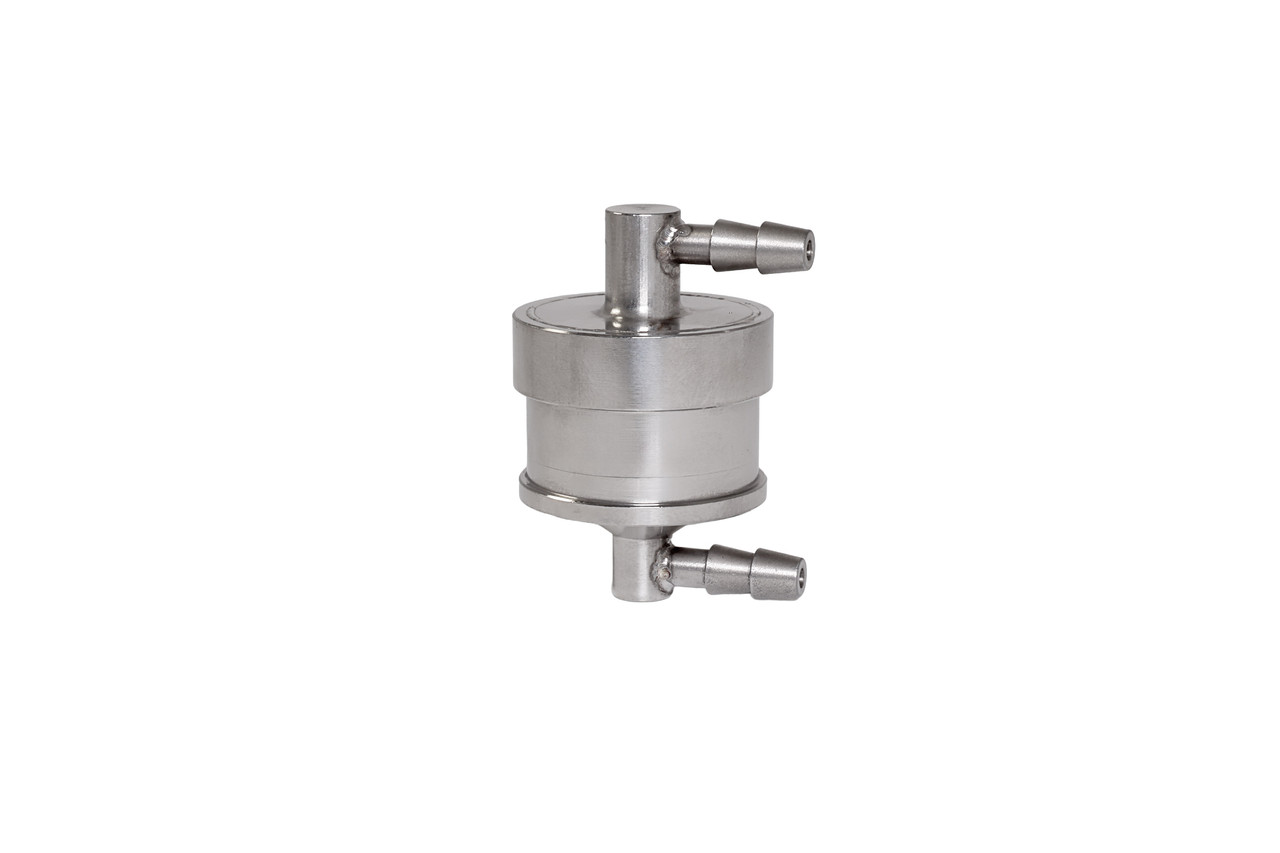

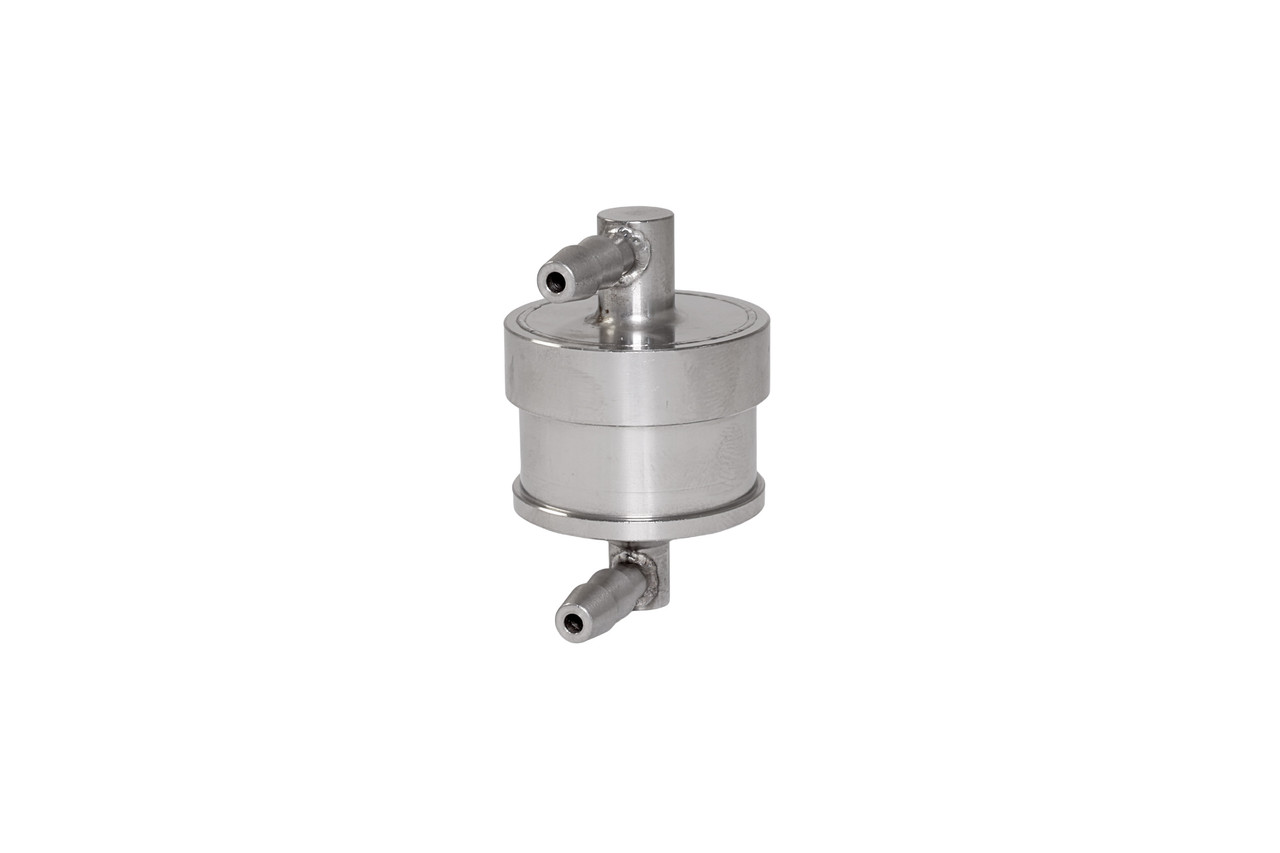

Steel Turbo Boost MAP Sensor Filter suitable for Landcruiser 70 100 200 Series

This is a new quality Aftermarket branded Stainless Steel Heavy Duty Turbo Boost MAP Sensor Filter.
Also known as a Gas Filter No.1, Oil Separator Filter or Vacuum Gas Filter.

This modified heavy duty stainless steel filter is fitted in the Vacuum line which attaches to the Turbo Boost Sensor.

Suitable for:

• Toyota Landcruiser 70, 78, 79 Series, HDJ78, HDJ79, fitted with the 1HDFTE 4.2 litre 6 cylinder turbo diesel engine, built from 08/2001 to 12/2006 runout.
• Toyota Landcruiser 70, 76, 78, 79 Series, VDJ76, VDJ78, VDJ79, fitted with the 1VDFTV 4.5 litre V8 turbo diesel engine, built from 01/2007 to 08/2025 runout.
• Toyota Landcruiser Prado, 90, 95 Series, KZJ95, fitted with the 1KZTE 3.0 litre 4 cylinder turbo diesel engine, built from 10/1999 to 08/2002 runout.
• Toyota Landcruiser 100 Series, HDJ100, fitted with the 1HDFTE 4.2 litre 6 cylinder turbo diesel engine, built from 08/2000 to 07/2007 runout.
• Toyota Landcruiser 200 Series, VDJ200, fitted with the 1VDFTV 4.5 litre V8 turbo diesel engine, built from 09/2007 to 04/2021 runout.
• Toyota Hilux, KZN165, fitted with the 1KZTE 3.0 litre 4 cylinder turbo diesel engine, built from 08/1999 to 08/2000 only.
• Toyota Hilux, KUN16, 2WD, KUN26, 4WD, fitted with the 1KDFTV D4D 3.0 litre 4 cylinder turbo diesel engine, built from 02/2005 to 08/2006 only.
• Toyota HiAce, KDH201, KDH221, KDH223, fitted with the 1KDFTV 3.0 litre 4 cylinder turbo diesel engine, built from 10/2006 to 11/2013 only.
• Toyota Dyna, BU300, BU340, fitted with the 15BFTE 4.1 litre 4 cylinder turbo diesel engine, built from 12/2002 to 11/2003 only.
• Toyota Coaster Bus, BB50, fitted with the 15BFTE 4.1 litre 4 cylinder turbo diesel engine, built from 11/2002 to 07/2006 only.
• Lexus, LX450D, LX460, LX570, VDJ201, fitted with the 1VDFTV 4.5 litre V8 turbo diesel engine, built from 09/2015 onwards.

Important information: Toyota have installed these (Manifold Absolute Pressure Sensor) MAP Sensor Filters to keep Oil and Carbon out of the MAP Sensor.

They are made out plastic and have a reputation of blocking or cracking due to age and boost pressure.

If cracked or blocked, power and torque will be compromised if the MAP Sensor can't measure the boost correctly, as fuel delivery is based on boost pressure.

For Toyota CRD (Common Rail Diesel) engines, fitted with this filter and a (Variable Nozzle Turbine) VNT Turbo, it is vital there is no leak in the line between the Manifold and MAP Sensor.

If the ECU is unable to correctly read Manifold pressure, the VNT Turbos Variable Vanes will be closed to assist in building desired boost pressure - this can cause catastrophic turbocharger or engine damage.

This modified heavy duty stainless steel filter is the perfect replacement for the fragile factory fitted type.

Item Specifics

Additional Information

• All Four x 4 Spares are an independent supplier of aftermarket, original equipment, and genuine parts. We are in no way related to genuine or original part manufacturers, distributors, or dealers. The warranty of any OEM genuine part is solely provided by All Four x 4 Spares
• This is an aftermarket product. Equivalent original equipment part number(s) are provided for reference purposes only.

eBay vehicle compatibility: Please check All Four x 4's notes and description for important part details(eBay only).

It has come to All Four x 4 Spares attention that some trademarks and images owned by Toyota may have been incorrectly used. All Four x 4 Spares has no affiliation with, or sponsorship or approval from Toyota. Unless otherwise stated, the parts and accessories offered for sale are aftermarket parts suitable for the vehicles indicated in the descriptions (eBay only).
