All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Application

For NISSAN  KA24 KA24DE
Pin Type: Floating Pin Piston

For KA24E Engine
For     Nissan 240SX 1989 – 1990
For     Nissan Stanza 1990 – 1992
For     Nissan Access / Nissan Prairie 1989 – 1995
For     Nissan Pathfinder 1990 – 1995
For     Nissan Terrano II 1993 – 1996
For     Nissan Pintara / Ford Corsair     1989 – 1992
For     Nissan Hardbody 1990 – 1997

For KA24DE Engine
For     Nissan 240SX 1991 – 1998
For     Nissan Bluebird 1993 – 1997
For     Nissan Altima    1993 – 2001
For     Nissan Bassara 1999 – 2001
For     Nissan R’nessa 1997 – 2000
For     Nissan Presage 1998 – 2001
For     Nissan Frontier 1998 – 2008
For     Nissan Xterra    2000 – 2004

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

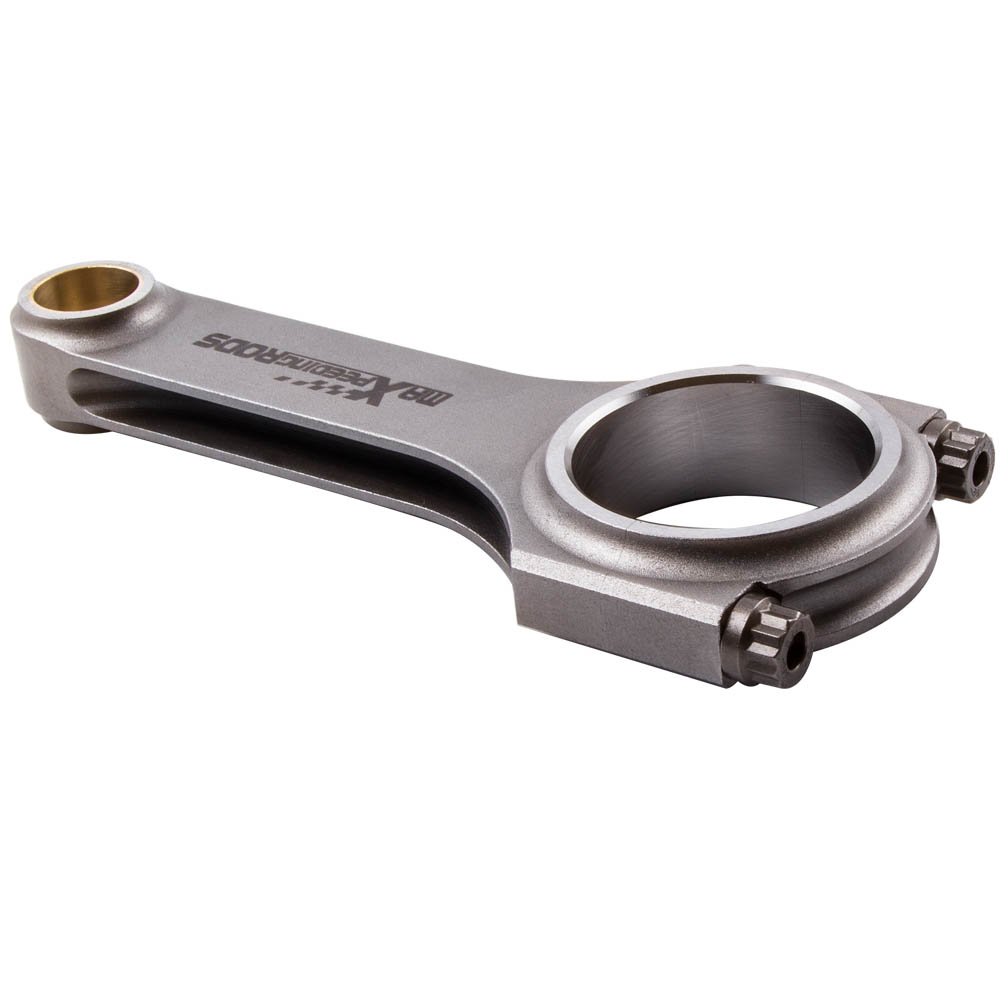

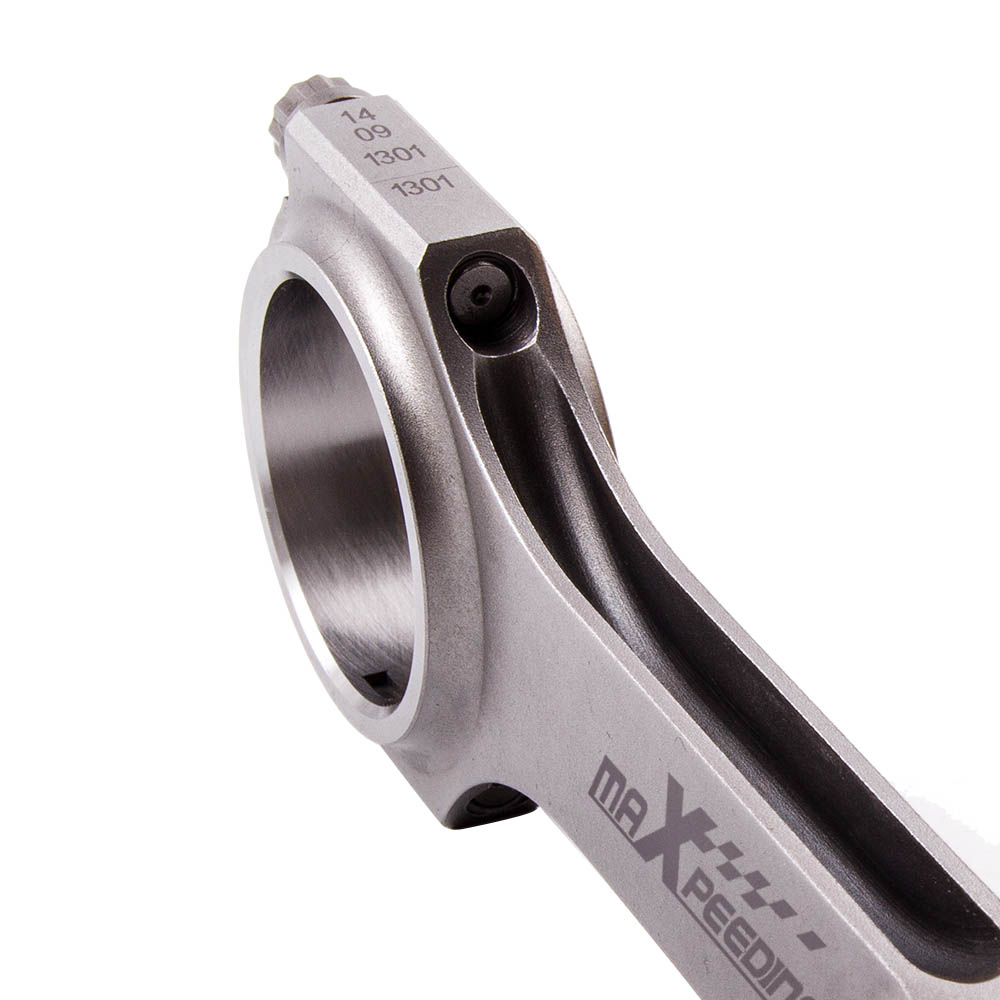

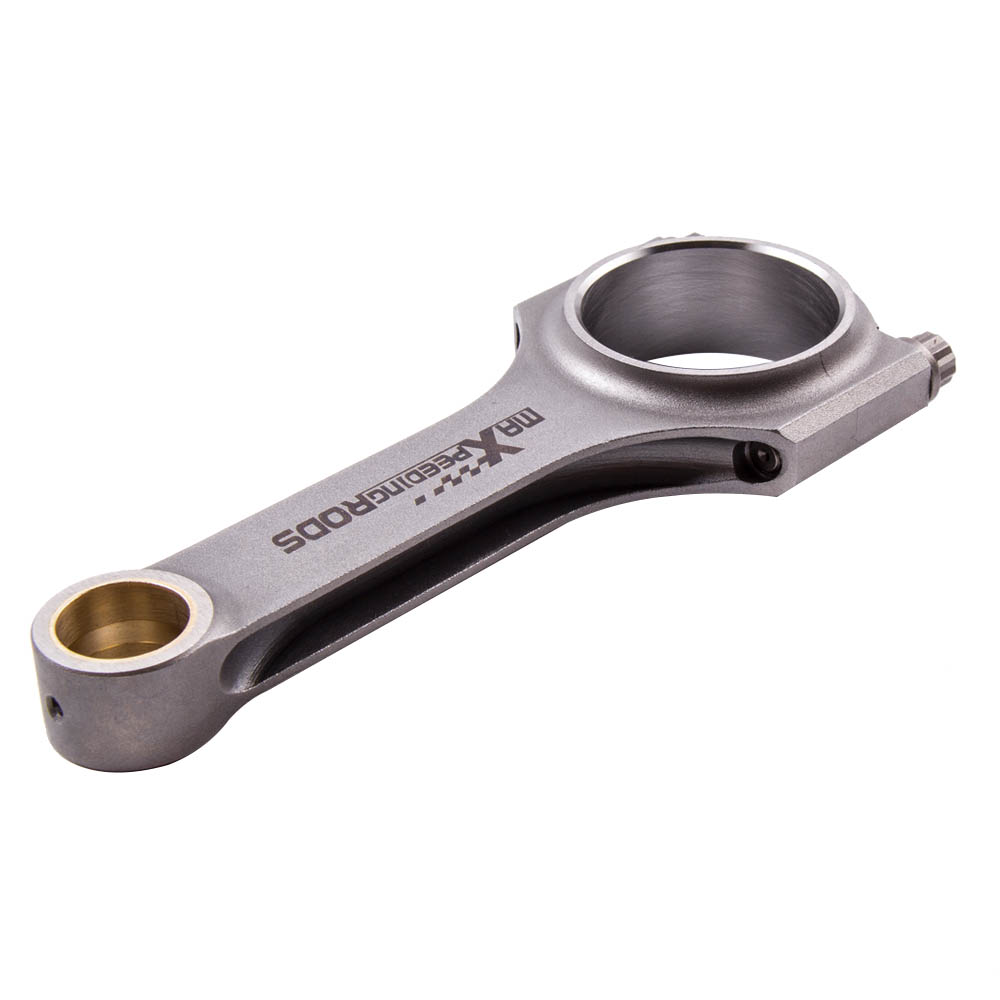

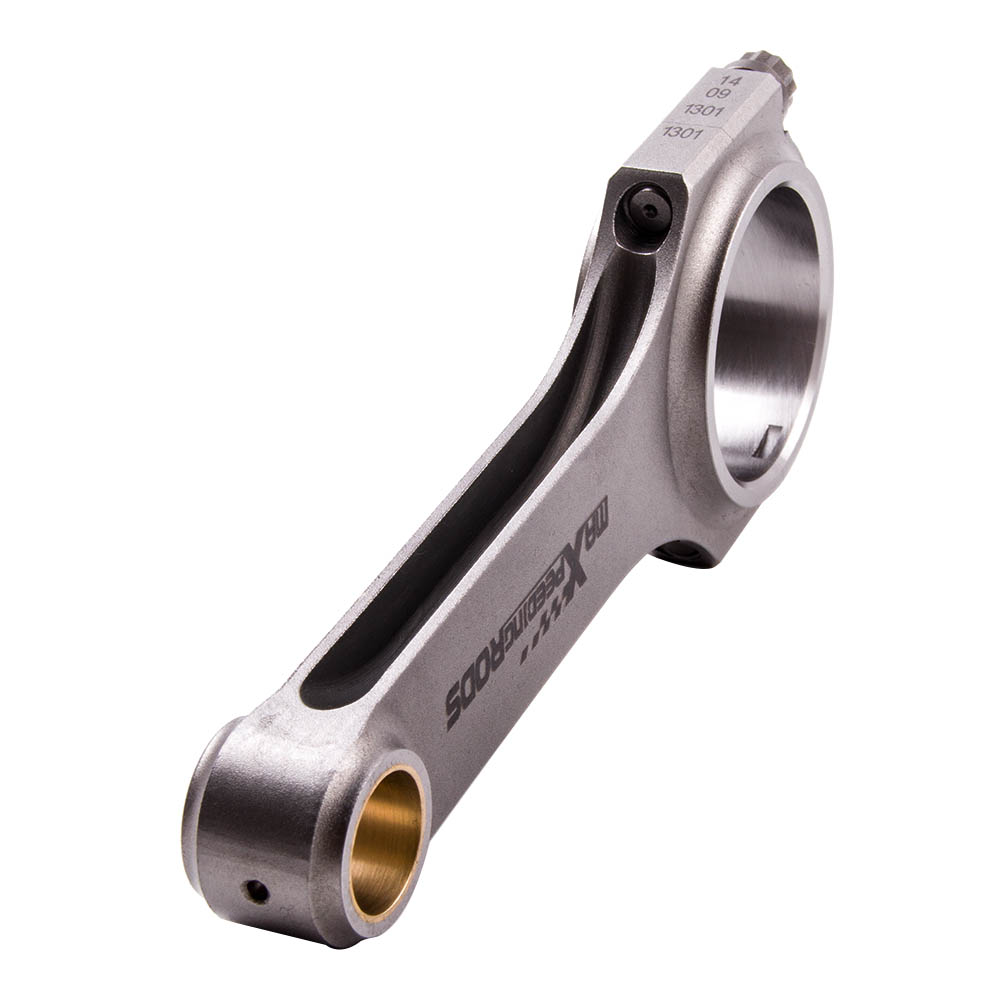

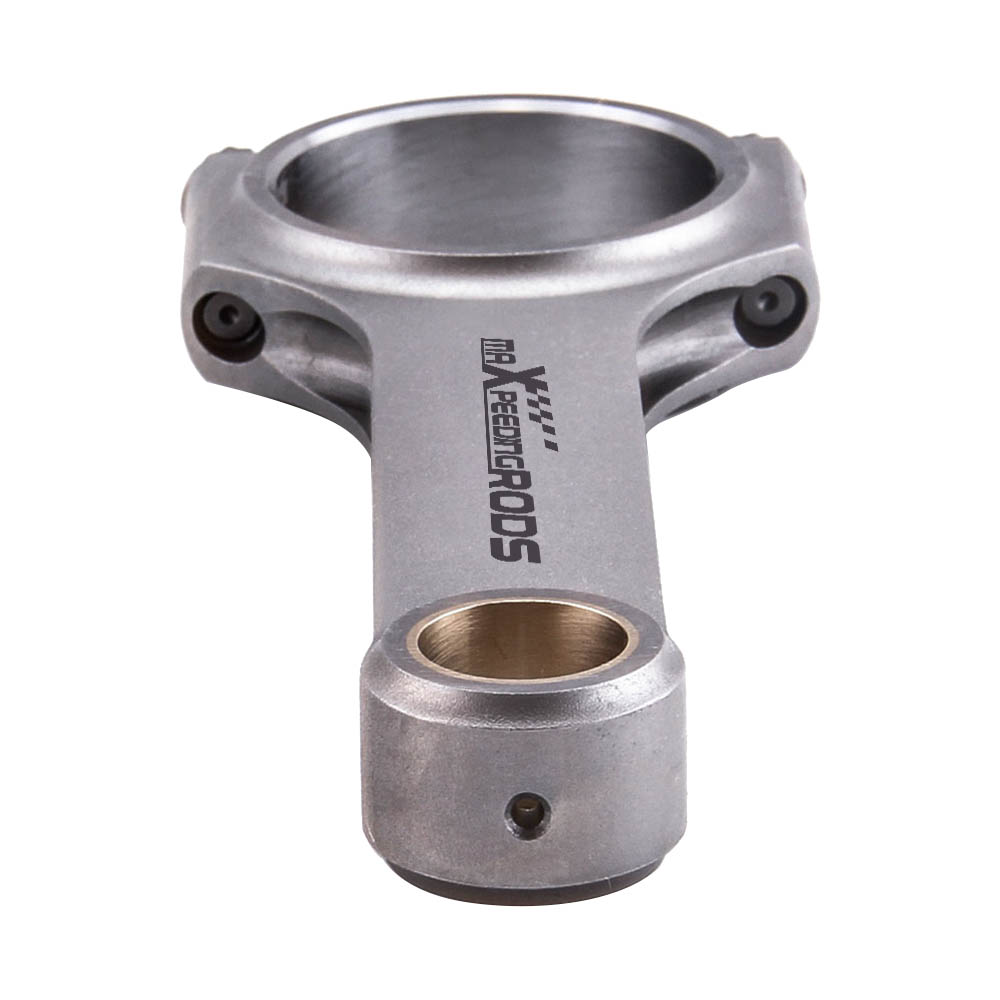

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Dimension

Center to center length:165mm/6.496"
Big end diameter:53.01mm/2.087"
Small end diameter:21mm/0.827"
Big end width:24.77mm/0.975"
Small end width:24.77mm/0.975"

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
