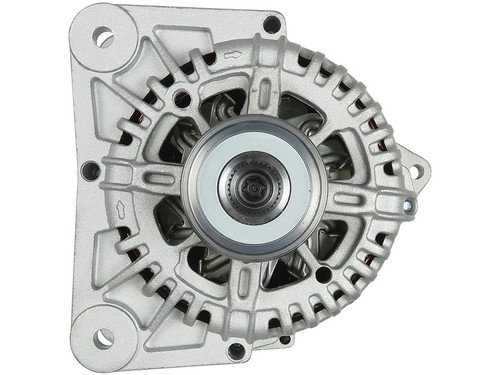

ALTERNATOR A3103 FOR RENAULT WIND SCENIC/GRAND/II MEGANE/Van/Sport/Tourer 1.5L

Description

Manufacturer Part Number	A3103
Length 1 [mm]	38,00
Length 2 [mm]	14,00
Length 3 [mm]	61,00
Voltage [V]	12
Alternator Charge Current [A]	110
Alternator Charging Current [A]	110
Version	TG11C066
Quality	STANDARD LINE
New part without deposit
for OE number	TG11C066

Components

	ARE3046S2
		Voltage [V]	12
		Quantity	1
	AFP3018(V)
		Outer diameter [mm]	55,50
		Inner diameter [mm]	17,00
		Length 1 [mm]	43,50
		Number of grooves	6
		Thread Size	M16x1,5
		Length 2 [mm]	17,30
		Quantity	1
	ABE9003(NACHI)
		Inner diameter [mm]	15,00
		Height [mm]	11,00
		Outer diameter [mm]	35,00
		Quantity	1
	ASL9015(BULK)
		Outer diameter 1 [mm]	14,70
		Inner diameter 1 [mm]	7,00
		Inner diameter 2 [mm]	8,90
		Height 1 [mm]	9,30
		Height 2 [mm]	9,30
		Length 1 [mm]	37,00
		Outer diameter 2 [mm]	27,30
		Quantity	1
	ARC3032
		Outer diameter [mm]	138,00
		Quantity	1
SVX7(BULK)
	Voltage [V]	12
	Thickness [mm]	4,50
	Width [mm]	6,30
	Height [mm]	14,50
	Height [mm]	15,30
	Quantity	1
	ARC3075
		Outer diameter [mm]	107,00
		Inner diameter [mm]	35,80
		Rated Current [A]	50
		Number of diodes	3
		Current Strength [A]	50
		Quantity	1
	AB3004P(BULK)
		Thickness [mm]	4,52
		Width [mm]	6,30
		Height [mm]	15,00
		Quantity	1
	ARS0021
		Length 1 [mm]	64,50
		Quantity	1
	ARS3043S(BULK)
		Outer diameter 1 [mm]	5,90
		Length 1 [mm]	23,10
		Quantity	1
ABE9242(NSK)(BULK)
	Inner diameter [mm]	15,00
	Height [mm]	11,00
	Outer diameter [mm]	35,00
	Quantity	1
	AFP3018(INA)
		Outer diameter [mm]	55
		Inner diameter [mm]	17
		Length 1 [mm]	43,30
		Number of grooves	6
		Thread Size	M16X1,5
		Length 2 [mm]	17,50
		Quantity	1
	ABE9006(NTN)(BULK)
		Inner diameter [mm]	17,00
		Height [mm]	14,00
		Outer diameter [mm]	47,00
		Quantity	1
	ABE9006(NSK)
		Inner diameter [mm]	17,00
		Height [mm]	14,00
		Outer diameter [mm]	47,00
		Quantity	1
	ABE9006(FAG)
		Inner diameter [mm]	17,00
		Height [mm]	14,00
		Outer diameter [mm]	47,00
		Quantity	1
ASL9071S
	Outer diameter 1 [mm]	14,90
	Inner diameter 1 [mm]	9,10
	Inner diameter 2 [mm]	6,70
	Height 1 [mm]	9,50
	Height 2 [mm]	9,50
	Length 1 [mm]	37,70
	Outer diameter 2 [mm]	27,30
	Quantity	1
	ABEC3001
		Outer diameter [mm]	37,30
		Inner diameter [mm]	35,00
		Height [mm]	17,70
		Quantity	1
	ABE9003(SKF)(BULK)
		Inner diameter [mm]	15,00
		Height [mm]	11,00
		Outer diameter [mm]	35,00
		Quantity	1
	ARE3046
		Voltage [V]	12
		Quantity	1
	ABE9003(SKF)
		Inner diameter [mm]	15,00
		Height [mm]	11,00
		Outer diameter [mm]	35,00
		Quantity	1
	ABE9014(BULK)
		Inner diameter [mm]	8,00
		Height [mm]	14,00
		Outer diameter [mm]	23,00
		Quantity	1
	ASL9015P
		Outer diameter 1 [mm]	14,80
		Inner diameter 1 [mm]	6,80
		Inner diameter 2 [mm]	9,00
		Height 1 [mm]	9,40
		Height 2 [mm]	9,40
		Length 1 [mm]	38,00
		Outer diameter 2 [mm]	27,90
		Quantity	1
	ABE9006(FAG)(BULK)
		Inner diameter [mm]	17,00
		Height [mm]	14,00
		Outer diameter [mm]	47,00
		Quantity	1
SVX7
	Voltage [V]	12
	Thickness [mm]	4,40
	Width [mm]	6,30
	Height [mm]	15,40
	Thickness [mm]	4,50
	Height [mm]	15,30
	Quantity	1
	AP3003
		Outer diameter 1 [mm]	55,00
		Inner diameter 1 [mm]	17,00
		Length 1 [mm]	40,50
		Number of grooves	6
		Length 2 [mm]	1,10
		Length 3 [mm]	18,00
		Outer diameter 2 [mm]	78,00
		Quantity	1
	ABE9006(BULK)
		Inner diameter [mm]	17,00
		Height [mm]	14,00
		Outer diameter [mm]	47,00
		Quantity	1
ABE9242(NSK)
	Inner diameter [mm]	15,00
	Height [mm]	11,00
	Outer diameter [mm]	35,00
	Quantity	1
	AB3004P
		Thickness [mm]	4,52
		Width [mm]	6,30
		Height [mm]	15,00
		Quantity	1
	ASL9015
		Outer diameter 1 [mm]	14,70
		Inner diameter 1 [mm]	7,00
		Inner diameter 2 [mm]	8,90
		Height 1 [mm]	9,30
		Height 2 [mm]	9,30
		Length 1 [mm]	37,00
		Outer diameter 2 [mm]	27,30
		Quantity	1
	ASL9015A
		Outer diameter 1 [mm]	14,90
		Inner diameter 1 [mm]	7,00
		Inner diameter 2 [mm]	9,20
		Height 1 [mm]	9,20
		Height 2 [mm]	9,20
		Length 1 [mm]	37,60
		Outer diameter 2 [mm]	27,00
		Quantity	1
	ABE9003(NTN)(BULK)
		Inner diameter [mm]	15,00
		Height [mm]	11,00
		Outer diameter [mm]	35,00
		Quantity	1
	ARS3028S
		Outer diameter 1 [mm]	14,36
		Inner diameter 1 [mm]	13,00
		Height 1 [mm]	12,10
		Height 2 [mm]	6,00
		Outer diameter 2 [mm]	7,84
		Inner diameter 2 [mm]	6,00
		Quantity	1
	ARE3046(VALEO)
		Voltage [V]	12
		Quantity	1
	ABE9003(NSK)(BULK)
		Inner diameter [mm]	15,00
		Height [mm]	11,00
		Outer diameter [mm]	35,00
		Quantity	1
	ARS3043S
		Outer diameter 1 [mm]	5,90
		Length 1 [mm]	23,10
		Quantity	1
	ABE9006(NSK)(BULK)
		Inner diameter [mm]	17,00
		Height [mm]	14,00
		Outer diameter [mm]	47,00
		Quantity	1
	ABE9003(BULK)
		Inner diameter [mm]	15,00
		Height [mm]	11,00
		Outer diameter [mm]	35,00
		Quantity	1
	AFP9002
		Outer diameter 1 [mm]	55,45
		Inner diameter 1 [mm]	52,30
		Length 1 [mm]	4,70
		Quantity	1
	ABE9003(NSK)
		Inner diameter [mm]	15,00
		Height [mm]	11,00
		Outer diameter [mm]	35,00
		Quantity	1
	ARE3046P
		Voltage [V]	12
		Quantity	1
	AR3005
		Voltage [V]	12
		Alternator Charge Current [A]	120
		Outer diameter [mm]	98,00
		Length 1 [mm]	152,00
		Quantity	1
	ABE9006
		Inner diameter [mm]	17,00
		Height [mm]	14,00
		Outer diameter [mm]	47,00
		Quantity	1
	ABR3001
		Outer diameter [mm]	138,00
		Inner diameter [mm]	47,00
		Height [mm]	62,00
		Quantity	1
	ABE9003(FAG)
		Inner diameter [mm]	15,00
		Height [mm]	11,00
		Outer diameter [mm]	35,00
		Quantity	1
	ABE9006(SKF)
		Inner diameter [mm]	17,00
		Height [mm]	14,00
		Outer diameter [mm]	47,00
		Quantity	1
ASL9071S(BULK)
	Outer diameter 1 [mm]	14,90
	Inner diameter 1 [mm]	9,10
	Inner diameter 2 [mm]	6,70
	Height 1 [mm]	9,50
	Height 2 [mm]	9,50
	Length 1 [mm]	37,70
	Outer diameter 2 [mm]	27,30
	Quantity	1
	ABE9004(BULK)
		Inner diameter [mm]	17,00
		Height [mm]	12,00
		Outer diameter [mm]	40,00
		Quantity	1
	ARS0017
		Outer diameter 1 [mm]	18,05
		Quantity	1
	ARS3026S
		Length 1 [mm]	17,45
		Quantity	1
	ARS3009
		Thickness [mm]	6,00
		Width [mm]	4,80
		Length 1 [mm]	43,00
		Quantity	1
ABEP3001(BULK)
	Inner diameter 1 [mm]	37,00
	Width [mm]	52,50
	Thickness [mm]	1,50
	Length 1 [mm]	52,50
	Quantity	1
	ASL9015P(BULK)
		Outer diameter 1 [mm]	14,80
		Inner diameter 1 [mm]	6,80
		Inner diameter 2 [mm]	9,00
		Height 1 [mm]	9,40
		Height 2 [mm]	9,40
		Length 1 [mm]	38,00
		Outer diameter 2 [mm]	27,90
		Quantity	1
	ABE9003
		Inner diameter [mm]	15,00
		Height [mm]	11,00
		Outer diameter [mm]	35,00
		Quantity	1
	ABE9006(SKF)(BULK)
		Inner diameter [mm]	17,00
		Height [mm]	14,00
		Outer diameter [mm]	47,00
		Quantity	1
	AS3015
		Voltage [V]	12
		Alternator Charge Current [A]	110
		Outer diameter 2 [mm]	127,00
		Inner diameter [mm]	99,00
		Height 1 [mm]	29,40
		Outer diameter 1 [mm]	117,40
		Quantity	1
	AFP3018
		Outer diameter [mm]	55,10
		Inner diameter [mm]	17,00
		Length 1 [mm]	44,20
		Number of grooves	6
		Thread Size	M16x1,5
		Length 2 [mm]	16,20
		Outer diameter [mm]	55,00
		Length 1 [mm]	43,50
		Length 2 [mm]	17,50
		Quantity	1
	AFP9002(BULK)
		Outer diameter 1 [mm]	55,45
		Inner diameter 1 [mm]	52,30
		Length 1 [mm]	4,70
		Quantity	1
	ARS3008
		Length 1 [mm]	37,00
		Quantity	1
	ABE9003(FAG)(BULK)
		Inner diameter [mm]	15,00
		Height [mm]	11,00
		Outer diameter [mm]	35,00
		Quantity	1
	ARE3046S
		Voltage [V]	12
		Quantity	1
	ABEP3001
		Outer diameter 1 [mm]	52,00
		Inner diameter 1 [mm]	37,00
		Thickness [mm]	1,50
		Width [mm]	52,50
		Length 1 [mm]	52,50
		Quantity	1
	ARS3005
		Inner diameter 1 [mm]	122,00
		Outer diameter 1 [mm]	130,00
		Height 1 [mm]	1,50
		Quantity	1
	ABE9006(NTN)
		Inner diameter [mm]	17,00
		Height [mm]	14,00
		Outer diameter [mm]	47,00
		Quantity	1
ARS0021(BULK)
	Length 1 [mm]	64,50
	Quantity	1
	ABE9003(NTN)
		Inner diameter [mm]	15,00
		Height [mm]	11,00
		Outer diameter [mm]	35,00
		Quantity	1
	ARC3047
		Outer diameter [mm]	38,00
		Outer diameter [mm]	138,00
		Quantity	1
	ABE9006(NACHI)
		Inner diameter [mm]	17,00
		Height [mm]	14,00
		Outer diameter [mm]	47,00
		Quantity	1
	ARS3028S(BULK)
		Outer diameter 1 [mm]	14,36
		Inner diameter 1 [mm]	13,00
		Height 1 [mm]	12,10
		Height 2 [mm]	6,00
		Outer diameter 2 [mm]	7,84
		Inner diameter 2 [mm]	6,00
		Quantity	1
	ARS3026S(BULK)
		Length 1 [mm]	17,45
		Quantity	1
