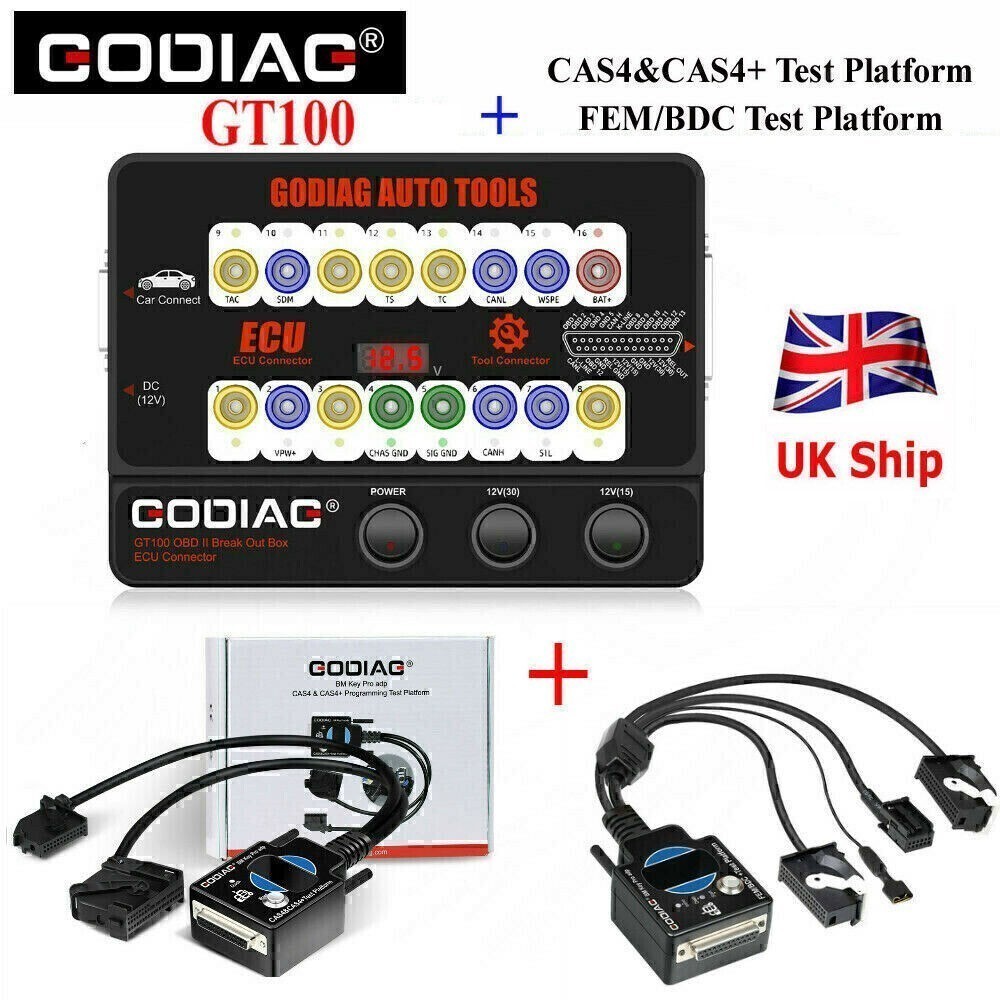

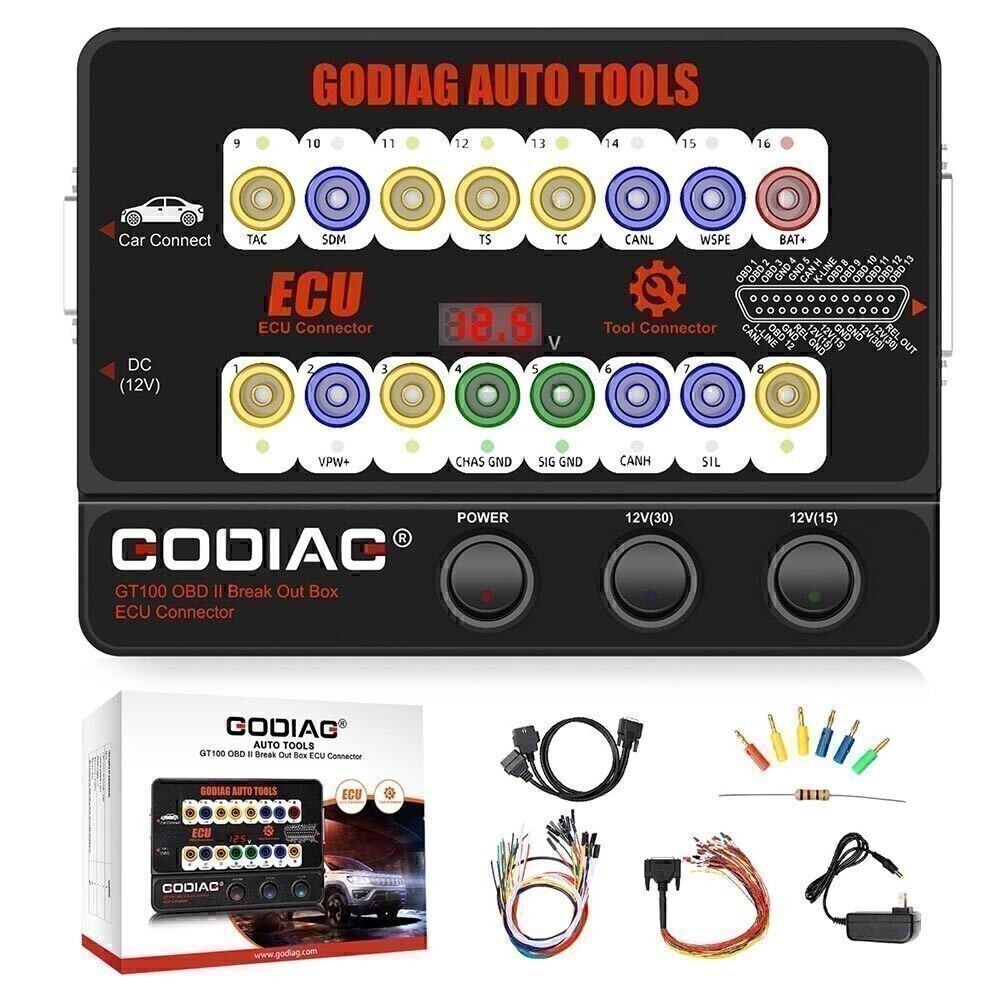

ITEM 1: GODIAG GT100 AUTO TOOLS OBD II Break Out Box E-C-U Connector

Highlights for GT100 E-C-U connector:

• It is the latest testing platform for OBDII protocol communication detection and E-C-U maintenance/diagnosis /pr0garmming /c0ding.

• It can convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion.

• Able to connect the single modules or multiple modules of the vehicle.

• It can be connected with any diagnostic tool to tell whether the car communication is good or not.

• Can work with most device to do test, will make your operation much easier , such as xhorse vvdi2, Autel Scanner, Launch Scanner, Vident Scanner, and so on.

• It can also supply power to the car when you change the battery to avoid the vehicle control module data being lost,automatically lo*cked,the key remote control fails and the fault light turns on.

• Can support all k*e*y lost, activate the meter and wake up the anti-theft module.

  (1) for Porsche, V*W 4th generation smart k*e*y &5th generation card k*e*y (models such as: new A6L Touareg A4 Q5 A7), use GT100 short the banana PIN 16----PIN 1, After the instrument is on, the k*e*y matching tool connects to GT100+ female Head for data collection. Some vehicle instruments are not bright, but data can also be collected, for example: A6L Q7.

  (2) Can replace the engine E-C-U for Toyota; and Support onnect short-circuit PIN13-PIN4 with K*e*y Pr0garmmer when do all k*e*y lost for Toyota.

  (3) Mitsubishi all k*e*y lost matching or all k*e*y lost for remote control k*e*y, need to set OBDII short-circuit PIN1-PIN4.

• With BMW CAS4 & CAS4+ Test Platform and BMW FEM/BDC test platform，GT100 can work with Xhorse VVDI2/Lonsdor K518/CGDI/Autel im608 to Support Off-site K*e*y pr0garmming/All K*e*ys Lost/ Add New K*e*y.


GODIAG GT100 Functions in Detail

- By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100's LED will indicate whether the OBDII diagnostic interface has a good communication with the car

- Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and pr0garmming to avoid the vehicle being unable to start/data loss/module lo*cked.


Indicator Meaning:

1. OBDII Protocol Detector & communication detection

1) Connect GODIAG GT100 to the OBDII diagnostic port of the car.

2) When the device displays the voltage, turn on the power switch of GODIAG GT100.

3) Then connect to the diagnostic tool, when the tool is communicating with the car, the LED indicator of corresponding protocol will light up or flash. ( If the CAN protocol is detected, it will have the maximum brightness. When the communication is successful, the corresponding CAN-H and CAN-L will dim or twinkling weakly)




2. E-C-U connection: single module connection

GODIAG GT100, connected to a single E-C-U module, is convenient for a user to do the single-module diagnosis and pr0garmming.

1) Connect the E-C-U with the color jumpers. (If the E-C-U is CAN protocol, please check whether you will need to connect a 120 ohm resistor.)

2) The Godiag GT100 can be powered by connecting to the OBDII diagnostic interface of car, or by an AC power adapter.

3) To diagnose and pr0garm for a single E-C-U by connecting the diagnostic tool or E-C-U Pr0garmmer.




3. Banana plug extension connection:

Extend the car's OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.



4. Convert OBD1 diagnostic interface to the standard OBD2

Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.



5. Connect multiple E-C-U control modules at the same time, which is convenient for the professional engineers to detect and maintain.


6. Used as the extension cables: The space of the diagnostic interface location is too narrow to connect to the diagnostic tool, or the user find that the diagnostic cable is not long enough during maintenance. It can be extended by 1.2 meters.



7. Able to power the car when replacing the used battery.

1) Prepare battery A to supply power by connecting to No. 16 / 4 / 5 holes of Godiag GT100 & to the OBD2 diagnostic interface of the car.

[Notice 1. Turn on the power switch of Godiag GT100. 2. Don't turn on the ignition switch, don't start the car]

2) Then replace the brand-new battery B with the used battery in the car, which will ensure that the car has fully power to prevent data loss and audio lo*ck-up or the malfunction due to lack of power to the E-C-U control module.


Godiag GT100 Parameter

Package includes:

1pc x Host

1pc x OBD 2-in-1 extension cable

1pc x Colored jumper cable

1pc x Power supply 12V

1pc x Resistance 120 ohm

6pcs x Banana plug

24pcs x Wire accessories, Dupont 2.54mm connector female pin

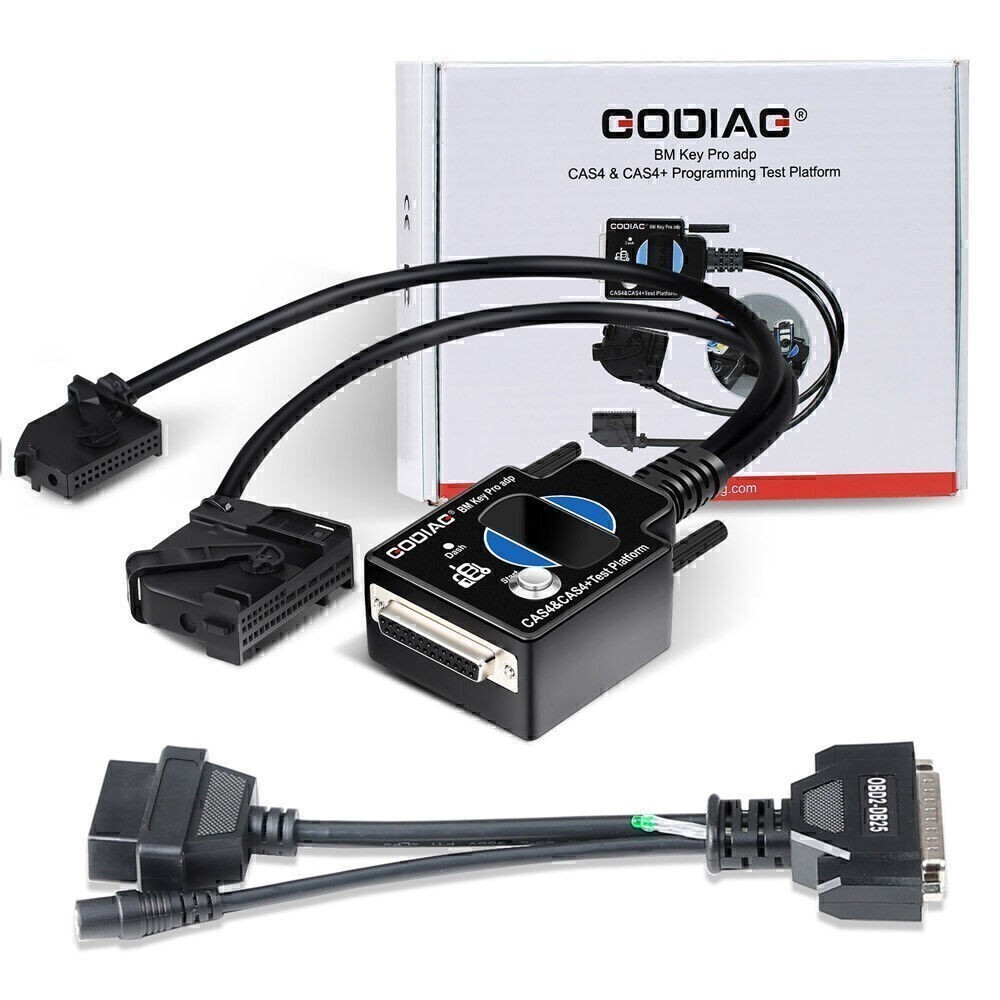

ITEM 2: GODIAG Test Platform Fit For BMW CAS4 / CAS4+ pr0garmming

Godiag CAS4 / CAS4+ pr0garmming test platform is a dedicated device developed for BMW lo*cks*miths, maintenance engineers and CAS4 / CAS4+ pr0garmming engineers.

Top Reasons to Get Godiag BMW CAS4 & CAS4+ Test Platform:

• Special for CAS4 CAS4+ pr0garmming Engineers

• Works Together with Godiag GT100,CGDI,Xhorse vvdi 2,BMW VVDI BIM Tool,Autel im608,Yanhua ACDP, Tango etc.

• Support All K*e*y Lost,Add New K*e*y,Synchronize Test and Troubleshooting....

• Easy to use and no need PCB.

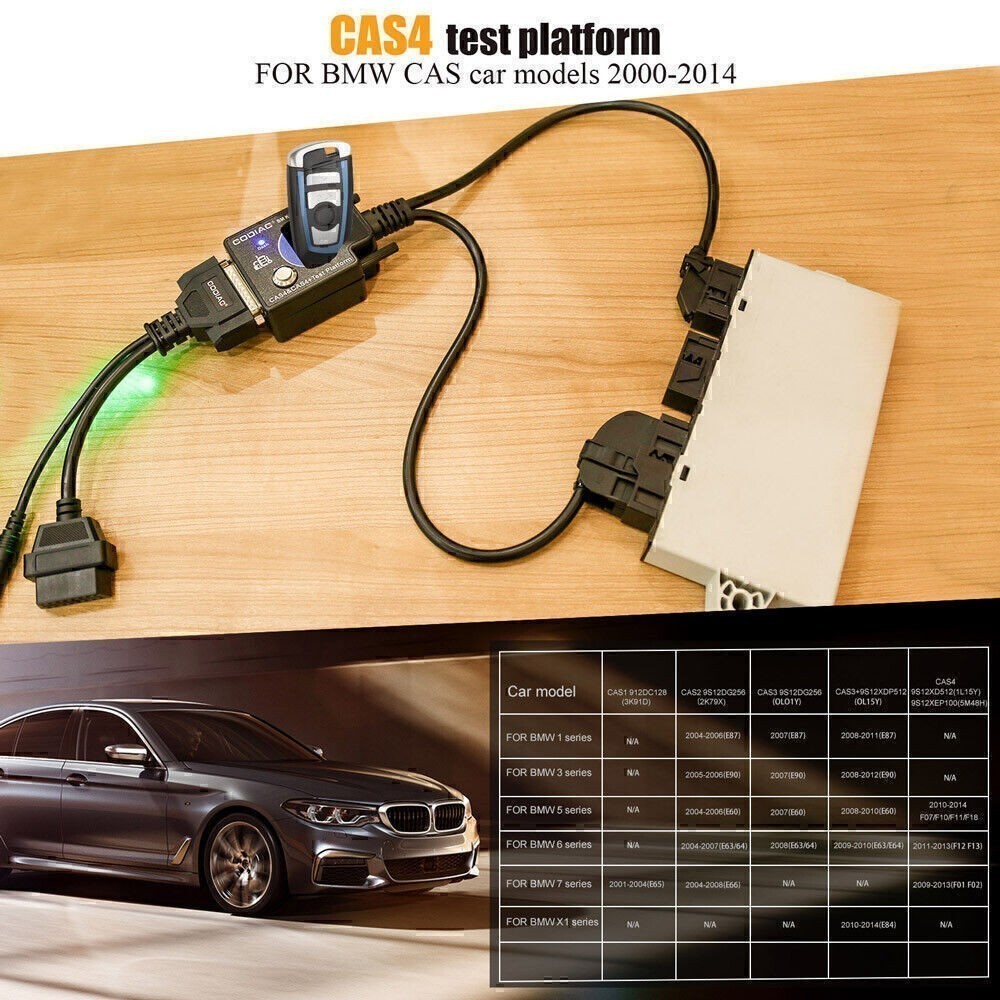

• For BMW Cas Car Model from 2000-2014 Year

1. By working together with Godiag GT100 & xhorse vvdi 2 / bmw vvdi bim tool / Autel im608 etc, Godiag CAS4 / CAS4+ test platform can progarm new k*e*y when all keys lost,
can add new k*e*y and replace CAS4 / CAS4+ E-C-U module.

2. Before installing back the CAS4 /CAS4+ module to the car, you are allowed to connect this test platform to the CAS module to test whether it can communicate
or there is any malfunction.

3. Used to read out & backup the data after preprocessing, used to replace CAS4 / CAS4+ immobilizer module (for example: replace 2-port CAS4 with 3-port imm0bilize system with comfort access.)



4. Before installing the CAS4 / CAS4+ module back to the car, it can be used to test whether the pr0garmmed k*e*y synchronizes with cas4 cas4+.



5. Godiag CAS4 CAS4+ test platform can help expand business for the Engineers who are skilled to pr0garm CAS4 /CAS4+ key.
When a car owner lost the k*e*y, he / she can remove the CAS4 module and the corresponding E-C-U, then ship them to the lo*cks*mith to pr0garm new k*e*y, also perform a synchronization test on the pr0garmmed k*e*y and CAS4 / CAS4+.



6. Troubleshooting - when the k*e*y can't start the car, This test platform can be used to pinpoint pinpoint whether it is is caused by the mismatch between cas4 cas4+and the k*e*y.



7. This test platform adopts the dedicated OEM cas4 cas4+ fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of CAS4 CAS4+ module.



8. GODIAG for BMW CAS4 /CAS4+ pr0garmming Test Platform Structure Description



①DB25 female connector(used to connect the male port of GODIAG GT100/ GODIAG OBD2).

②Ignition simulated start switch.

③Immobilizer dashboard simulated indicator.

④Key sensing area.

⑤Screw bolt.

⑥Godiag OEM dedicated CAS4 CAS4+ power adapter or CAN Communication adapter.

⑦Godiag OEM dedicated CAS4 CAS4+ start control adapter.

9. Dimension


Package includes:

1pc x GODIAG Test Platform For BMW CAS4 / CAS4+ pr0garmming

1pc x GODIAG OBD2 to OBD25 Cable

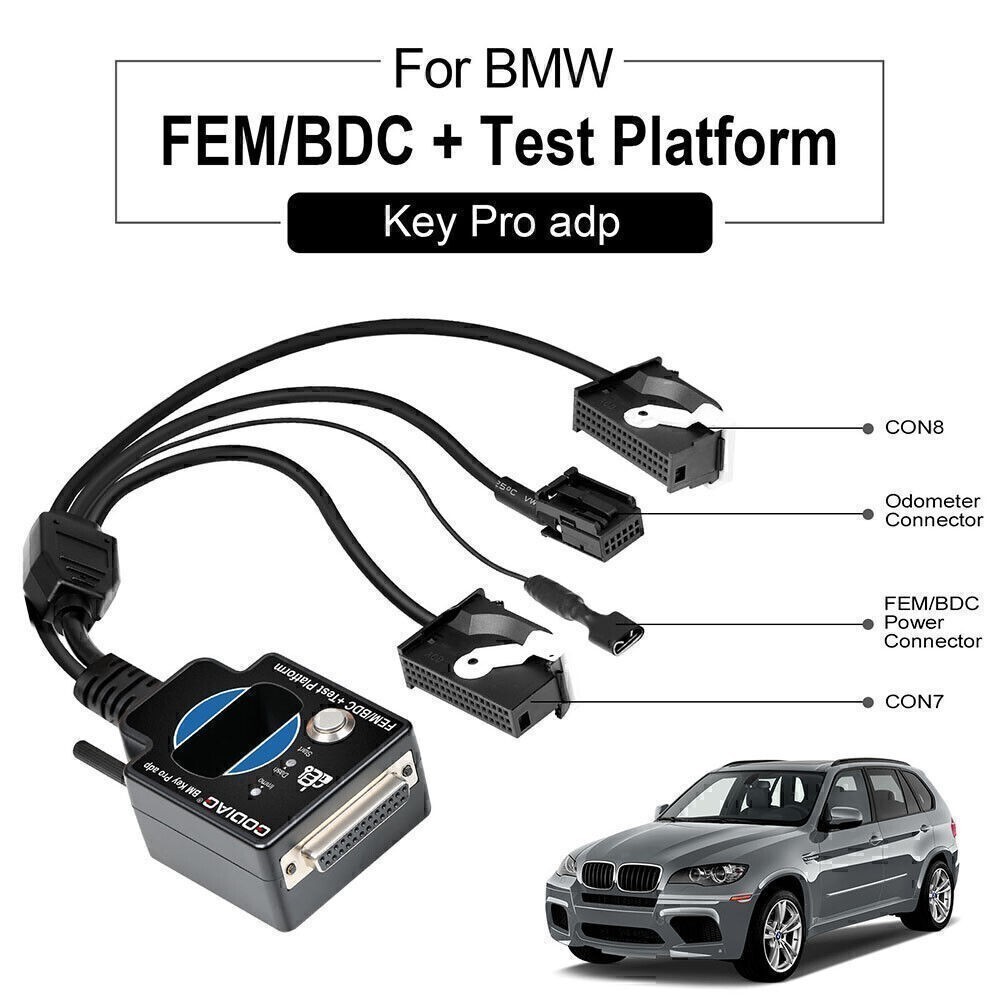

ITEM 3: GODIAG FEM BDC Test Platform For BMW

Godiag FEM/ BDC pr0garmming test platform is a dedicated device developed for BMW lo*cks*miths, maintenance engineers and FEM/ BDC pr0garmming engineers.

Godiag FEM / BDC pr0garmming test platform features:

1. Provide lo*cks*miths with the easy and convenient connection for FEM/BDC immobilizer system.

2. Perform the synchronization test for the progarmmed FEM / BDC and the key

3. Provide a test environment for the engineers who professionally recycle FEM/BDC.

4. Help automobile maintenance engineers check whether the FEM/BDC and the key are synchronized correctly.

5. Provide professional engineers with connecting FEM BDC modules and instrument.

GODIAG FEM BDC Test Platform VS Other FEM BDC Test Platform in the Market:

Name	GODIAG FEM BDC Test Platform	Other FEM BDC Test Platform
Price	$49.99	$59.99
Key Recognition Area	Stable, easy to identify the keys	Connect to key by wire, need to move keys all the time to detect
Power Plug Interface	Godiag dedicated OEM connector	Connect to power supply via clip, not stable
Extend Functions	Work with the obd2-db25 adapter to connect to more E-C-U and modules (db25 free in package)	No

1. By working together with Godiag GT100 & xhorse vvdi 2 / bmw vvdi bim tool / Autel im608 etc, Godiag FEM / BDC test platform can pr0garm new k*e*y, can add new k*e*y and replace FEM / BDC E-C-U module.




2. Allowed to connect this test platform to the FEM / BDC module to test whether it can communicate or there is any malfunction.

3. Used to read out & backup the data after preprocessing, used to replace FEM / BDC immobilizer module

4. Before installing the FEM / BDC module back to the car, it can be used to test whether the pr.garmmed k*e*y synchronizes with FEM / BDC.



5. Godiag FEM / BDC test platform can help expand business for the Engineers who are skilled to progarm FEM / BDC key.

When a car owner lost the key, he / she can remove the FEM / BDC module and the corresponding E-C-U, then ship them to the lo*cks*mith to pr0garm new k*e*y, also perform a synchronization test on the pr0garmmed k*e*y and FEM / BDC.



6. Troubleshooting - when the k*e*y can't start the car, This test platform can be used to pinpoint pinpoint whether it is is caused by the mismatch between FEM / BDC and the k*e*y.

7. This test platform adopts the dedicated OEM FEM / BDC fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of FEM / BDC module.



8. GODIAG for BMW FEM / BDC pr0garmming Test Platform Structure Description



① DB25 female connector． (used to connect the DB25 male port of GODIAG GT100)

② Ignition simulated start switch.

③ Imm0bilizer dashboard simulated indicator.

④ Key sensing area.

⑤ Screw bolt.

⑥ CON7.

⑦ Source connection port.

⑧ Appearance.

⑨ CON8.

9. Dimension

Package includes:

1pc x GODIAG Fit For BMW FEM/ BDC pr0garmming Test Platform

1pc x GODIAG OBD2 to BD25 Cable
