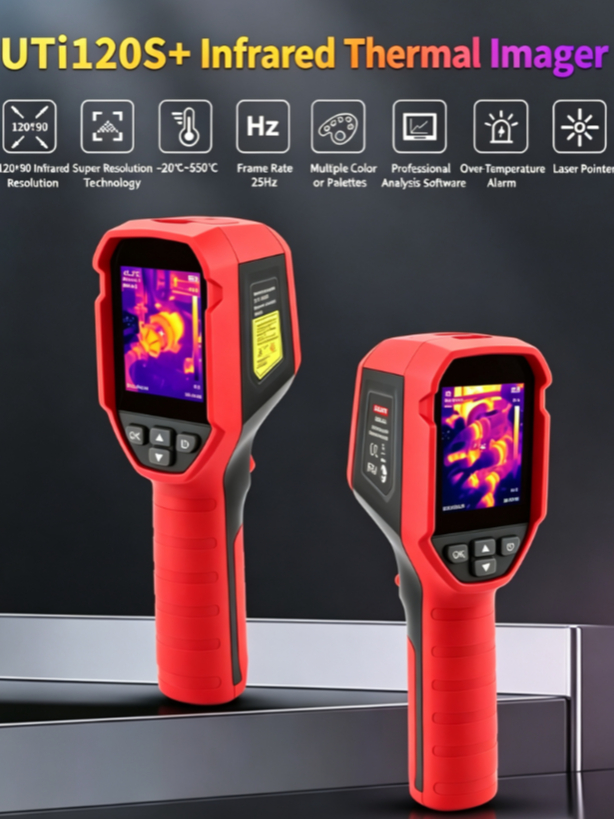

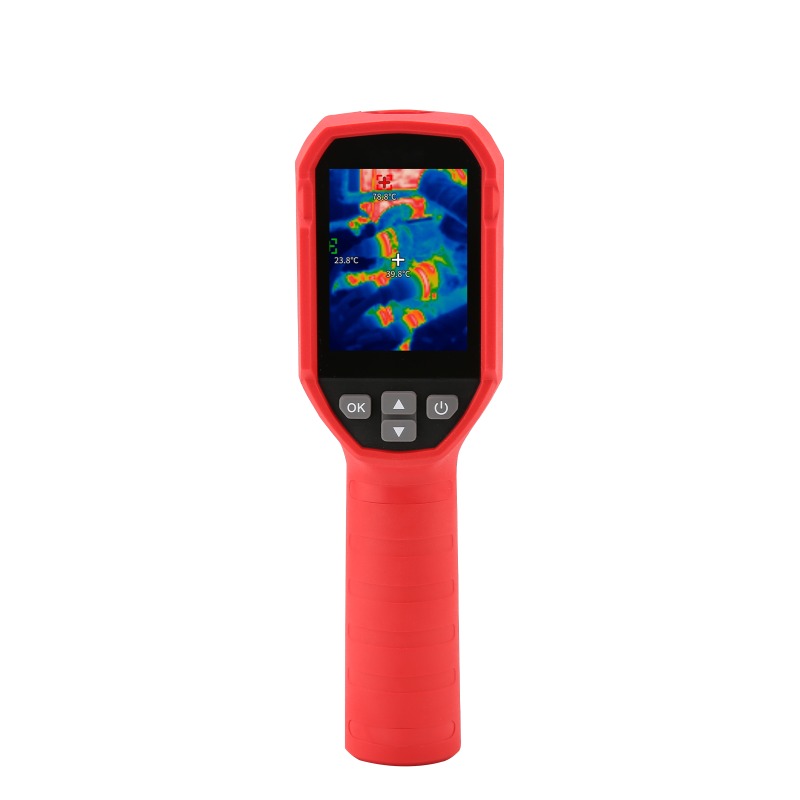

The UNI-T UTI120S+ is a professional non-cooled infrared thermal imager with 120×90 infrared resolution, ideal for various field inspection scenarios. It adopts advanced pixel enhancement technology to upgrade the image clarity to 240×180, delivering more precise detail performance. Compliant with IP54 industrial grade protection standard, this thermal camera supports PC analysis software for data export and report generation, helping users complete efficient on-site fault detection and temperature diagnosis.
Core Performance Parameters
This handheld thermal imager supports a wide temperature measurement range from -20°C to 550°C under normal ambient temperature of 25°C. The temperature accuracy reaches ±2°C or ±2% reading, whichever is greater, with adjustable emissivity from 0.10 to 1.00 for different measured objects. It features 25Hz real-time frame rate and a 50° horizontal × 38° vertical field of view, with thermal sensitivity lower than 60mK to capture tiny temperature differences accurately.
Equipped with a 2.4-inch TFT LCD color display screen, it offers multiple color palettes including Iron, Rainbow, Hot Iron, High Contrast Rainbow, Black Hot and White Hot to adapt to different working environments. Built-in Class 2 red laser pointer assists fast target positioning, together with auxiliary LED work light for dark-area operation.
Practical Functional Features
It supports high and low temperature tracking, real-time temperature alarm on screen, LED light reminder and buzzer alarm to promptly notify abnormal temperature risks. Captured thermal images are saved in standard JPG format, and all files can be transferred to PC via matching analysis software for deep data checking and professional report exporting。
Powered by a 3.7V 2600mAh rechargeable lithium battery, the device provides more than 13 hours of continuous working time under default settings. Users can customize auto power-off timing with three options: 10 minutes, 30 minutes or turn off auto shutdown entirely. The whole machine reaches IP54 dustproof and waterproof rating, with a maximum measurable distance of 2 meters.
Physical Information
Product dimension: 197mm × 72mm × 60mm
Net weight: approximately 313 grams
Wide Application Scenarios
Perfect for electrical equipment maintenance, mechanical equipment overhaul, building floor heating leakage detection, pipeline inspection, household appliance troubleshooting, automobile detection and industrial site temperature testing. Reliable UNI-T industrial measuring tool for engineers, maintenance workers and professional inspectors.
Safety Note
This product is Class 2 laser device, do not stare directly at the laser beam to avoid eye damage. Comply with local safety standards during daily use.
Package Includes
1 x UNI-T UTI120S+ Thermal Imager
1 x USB Charging Cable
1 x User Manual
Extra complimentary small gift included as surprise
