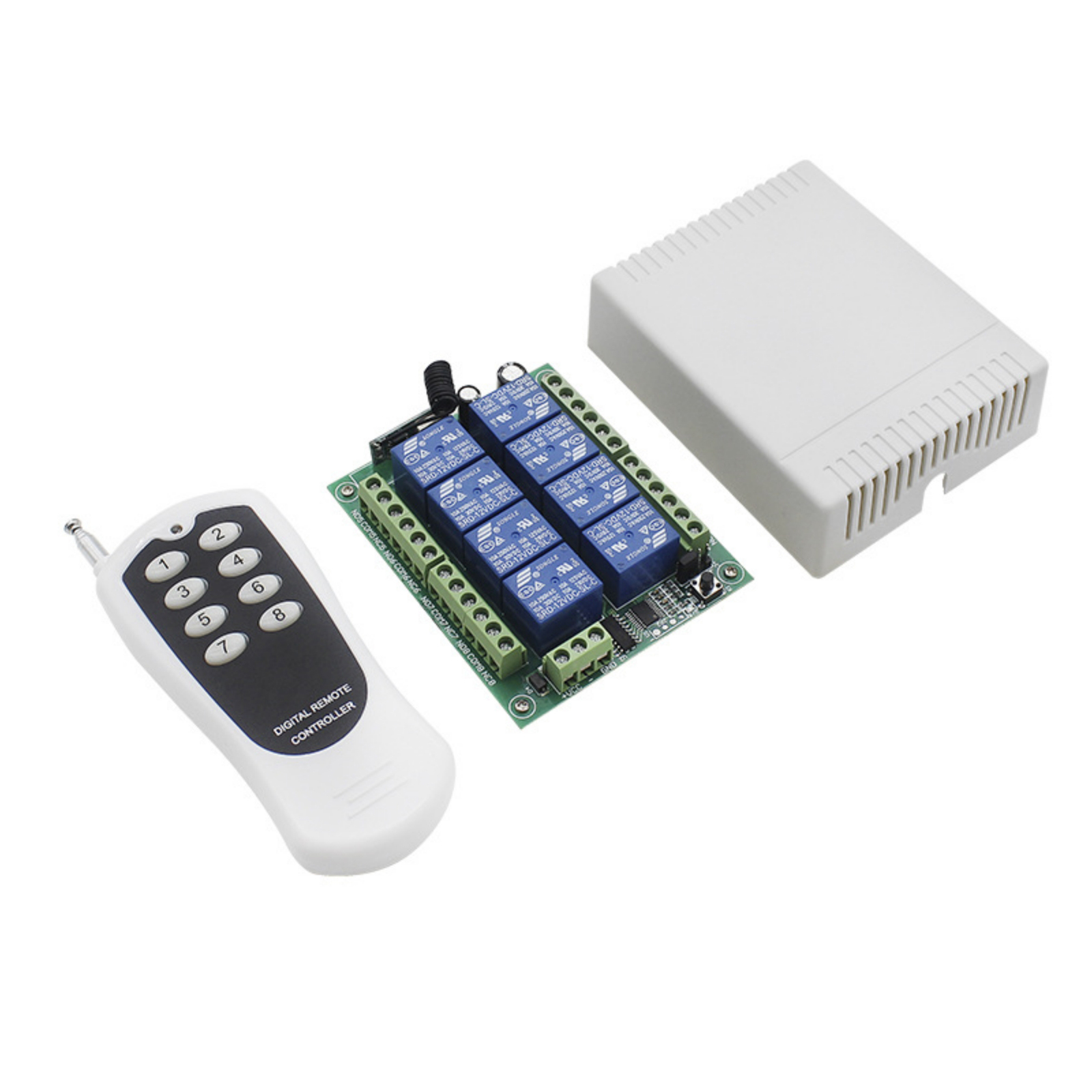

Features:

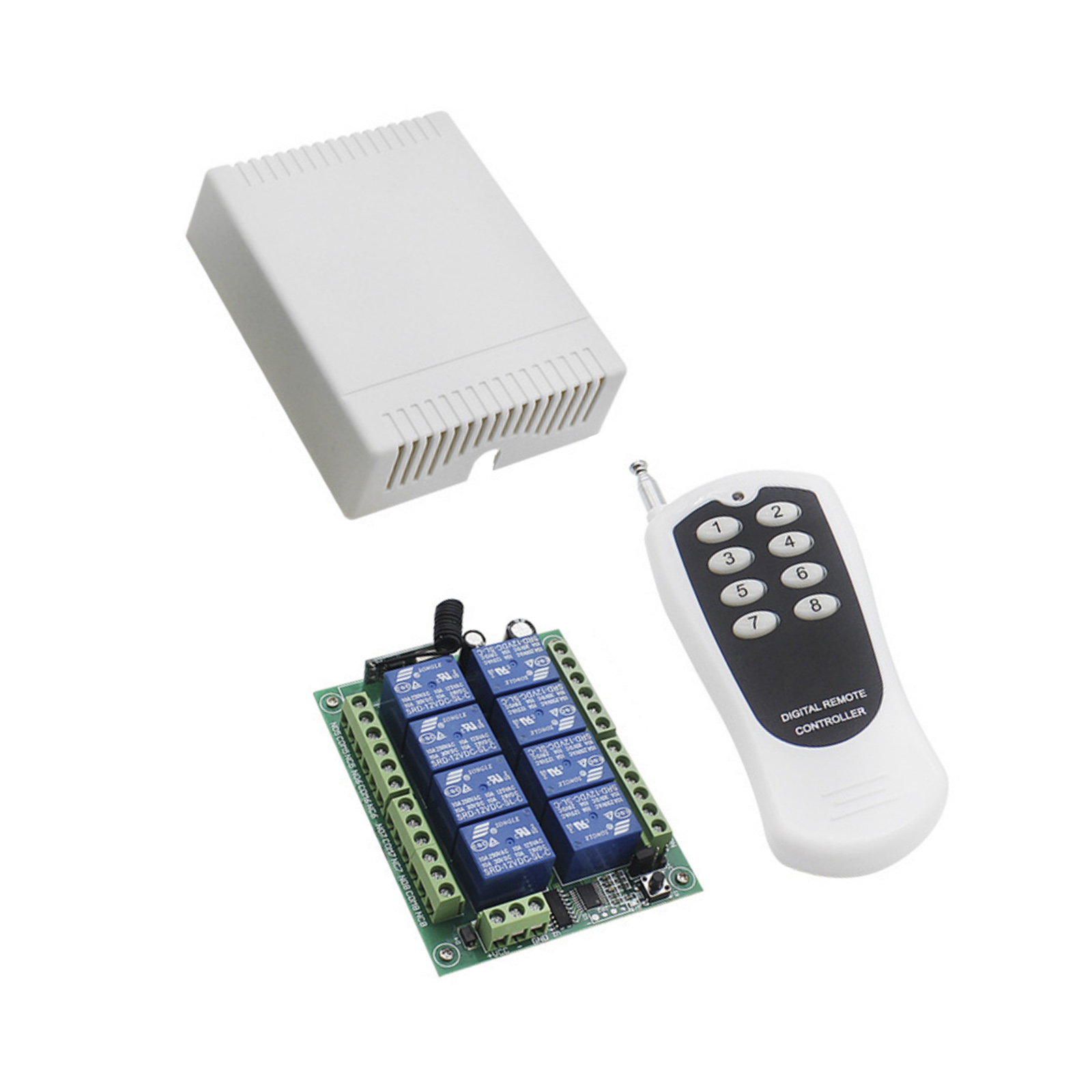

Multi Functional Eight Channel Wireless Intelligent Remote Control Switch, Outputting Switch Signals For Eight Relays, Can Enable The Controlled Equipment Or Motor To Meet The Requirements Of Switch Or On/Off Conversion, As Well As Various Special Control Programs
The Wireless Receiver Controller Has The Characteristics Of High Confidentiality, Stable Performance, Low Power Consumption, And Is Easy To Use,
By Using The Traditional Jumper Cap Adjustment Function, The Wireless Signal Transmitted By The Remote Control Can Be Received And Saved By The Receiving Controller, And It Can Be Used Together.
Specifications:
Frequency: 433mhz

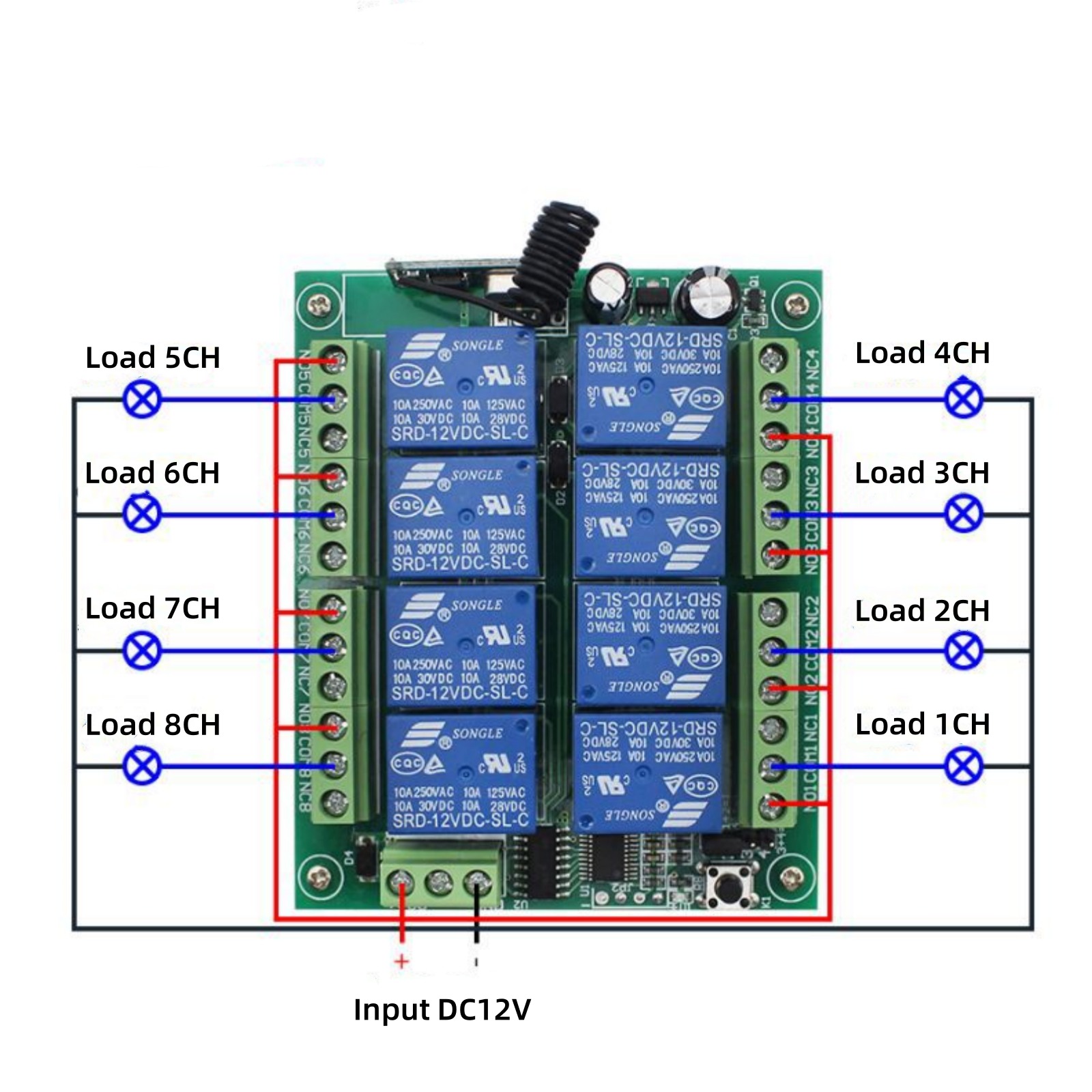

Operating Voltage: 12V DC
Decode: Learning Code
Operating Type: Self Locking T, Interlock L, Jogging M, Self Locking Interlock T+L

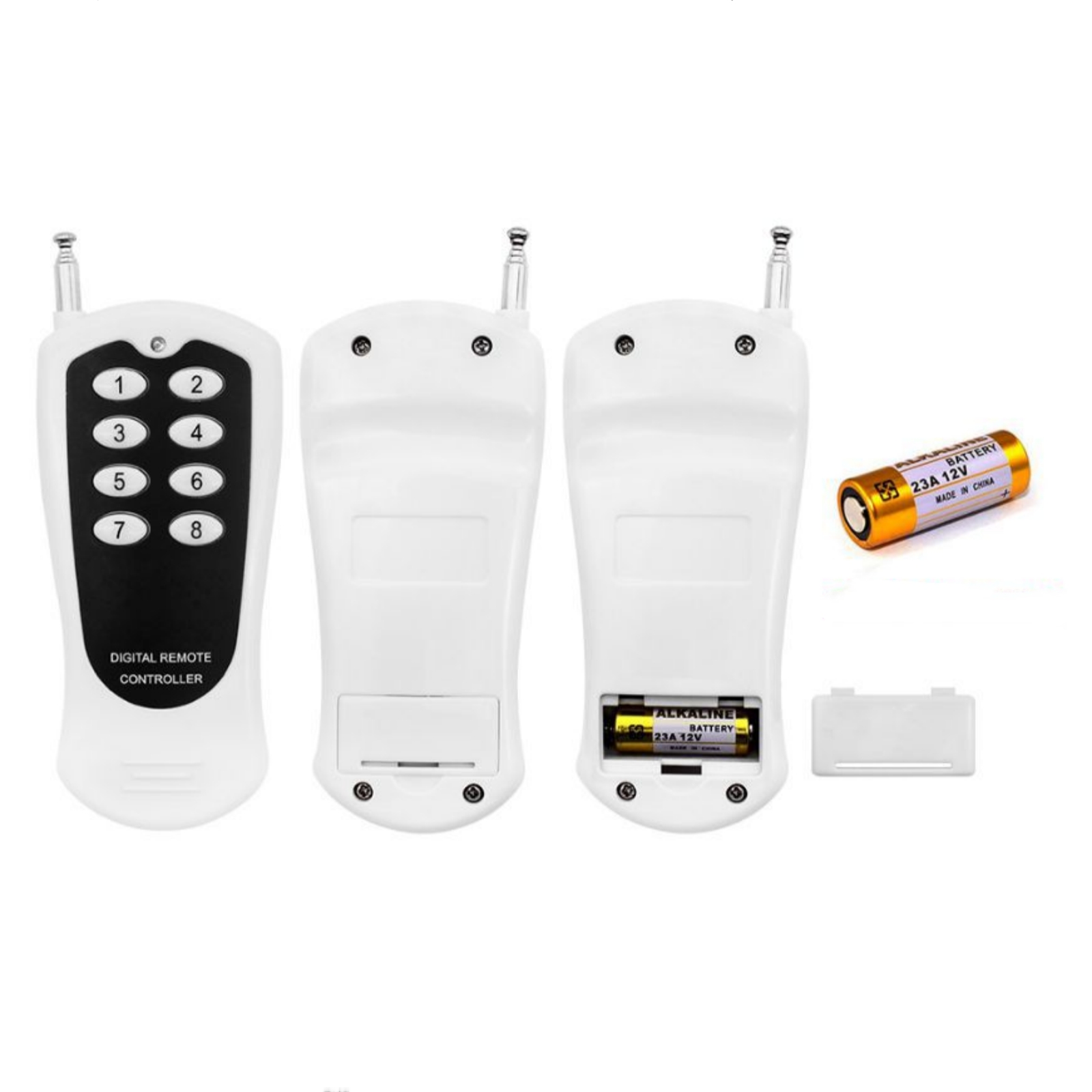

Remote Control Battery: 1* 23A 12V Battery(Battery Included)
Transmitting Distance: 1000m

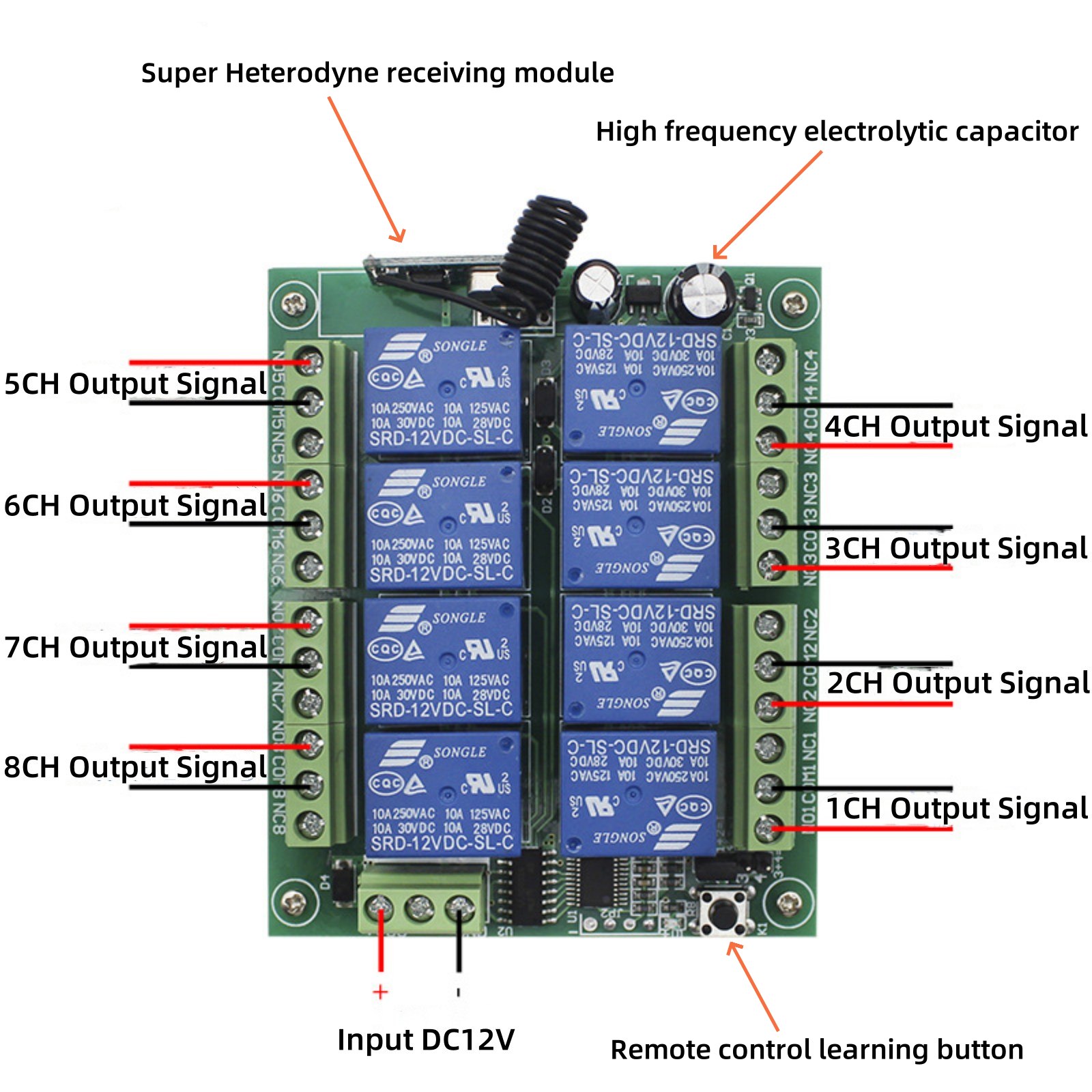

Learning Methods:

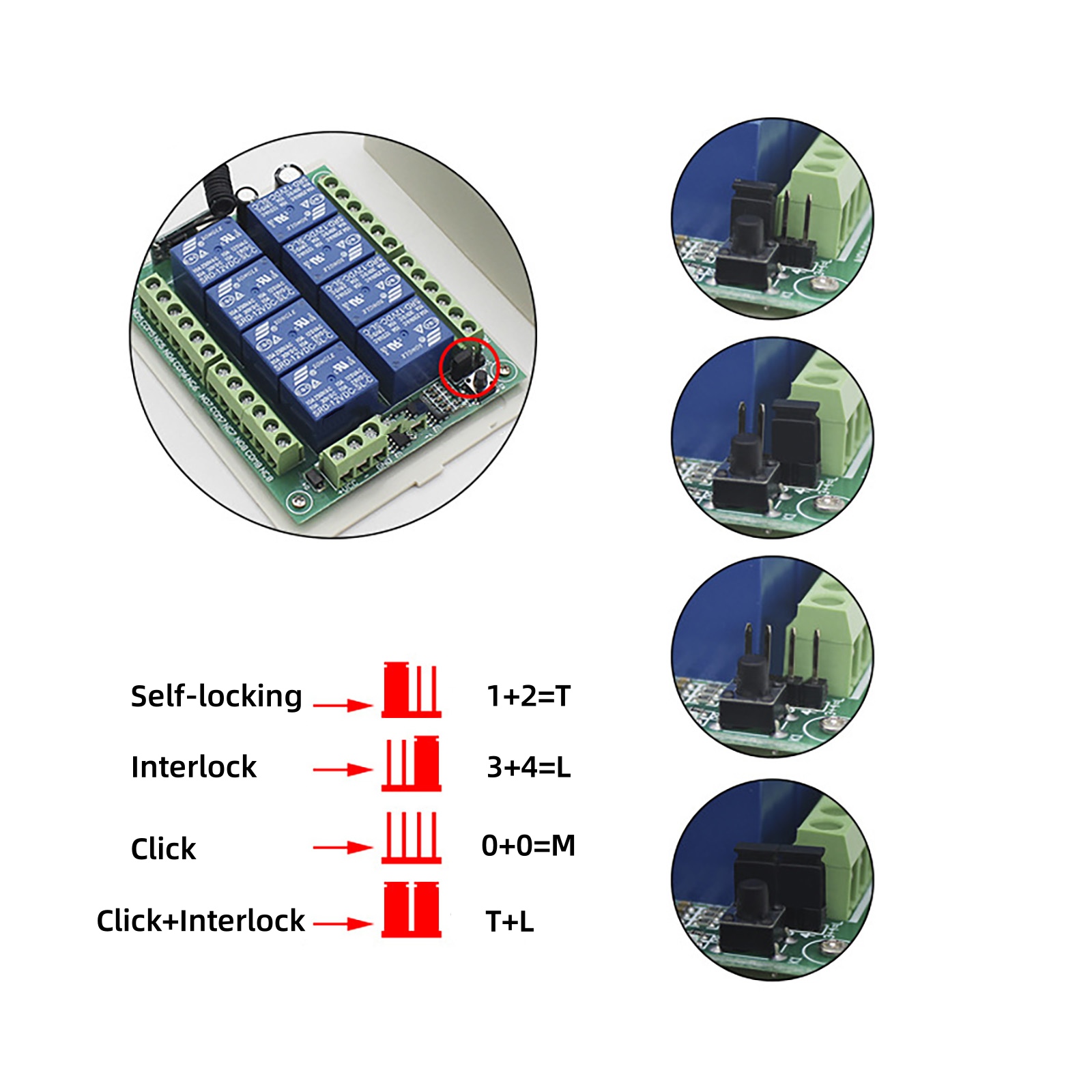

Self Locking Learning Method: Short Circuit The Jumper Cap To 1+2=T, Press The Learning Button, And The Red Light Will Turn Off Within 7 Seconds To Verify The Code.
Interlock Learning Method: Short Circuit The Jumper Cap With 3+4=L, Press The Learning Button, And The Red Light Will Turn Off Within 7 Seconds To Verify The Code

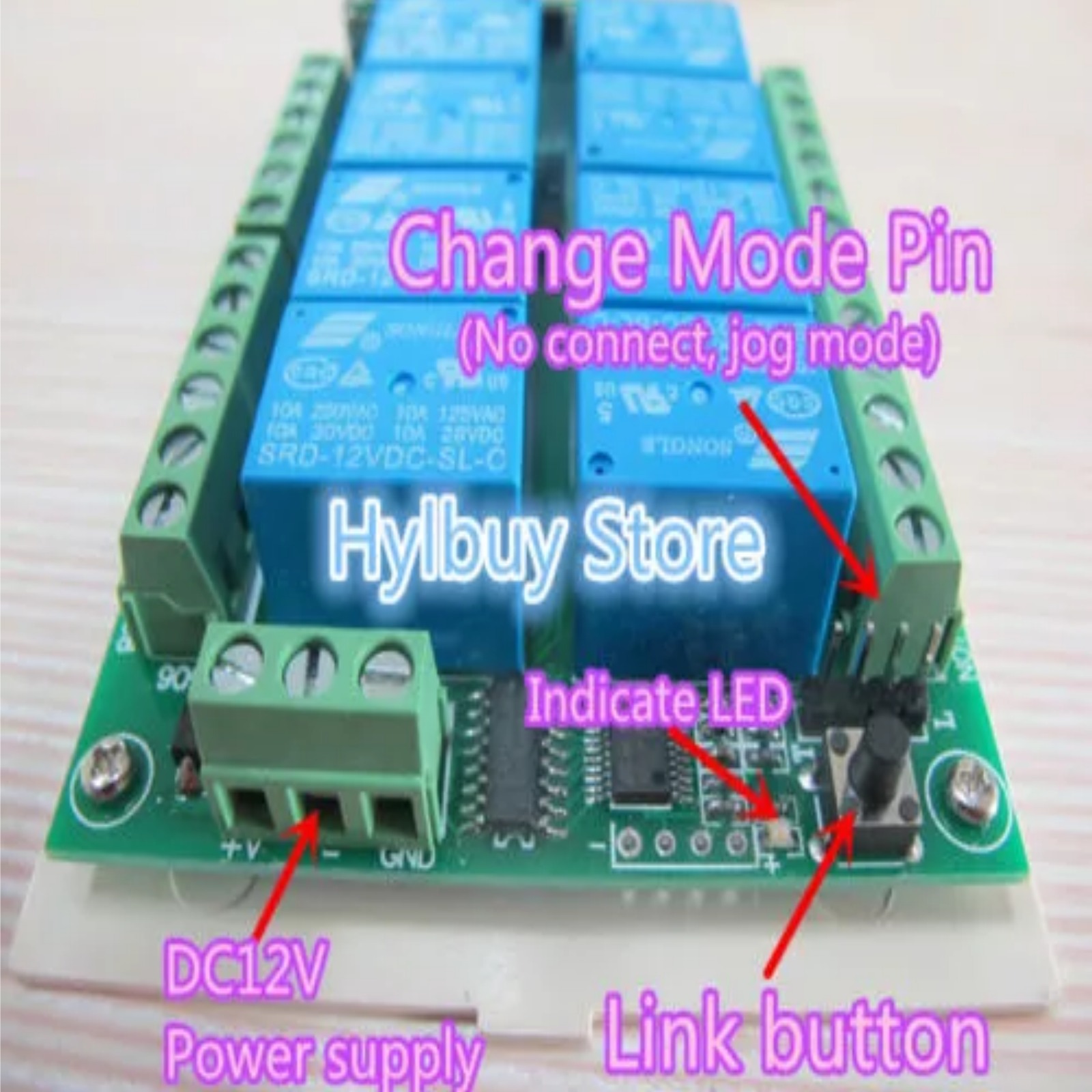

Jogging Learning Method: Do Not Plug In The Jumper Cap, Press The Learning Button, And The Red Light Will Turn Off Within 7 Seconds To Check The Code,
Self Locking+Interlocking Learning Method: Insert 2 Jumper Caps, 1/2/3/4 Self-Locking, 5/6/7/8 Interlocking.
Code Clearing Method: Press And Hold The Learning Button For 10 Seconds, The Led Indicator Light Flashes For 5 Seconds, And The Code Clearing Is Complete,
*(Attention: When Switching Working Modes, Please Turn Off The Power And Then Plug In The Power To Clear And Match The Code)
Working Modes:
Self Locking T: Press The Same Remote Control Button, Press Once To Turn On The Relay, Press Again To Turn Off The Relay.
Interlock L: Press The 1 Key On The Remote Control To Turn On The Relay, Press The 2 Key On The Remote Control To Turn Off The Relay.
Jogging M: Press The 1 Key On The Remote Control To Turn On The Relay, Release The 1 Key On The Remote Control To Turn Off The Relay. If You Keep Pressing The 1 Key And Don' T Release It, The Relay Will Remain On. When You Release It, The Relay Will Turn Off.
Self Locking Interlock T+L: 1/2/3/4 Way Self-Locking, 5/6/7/8 Way Interlocking.

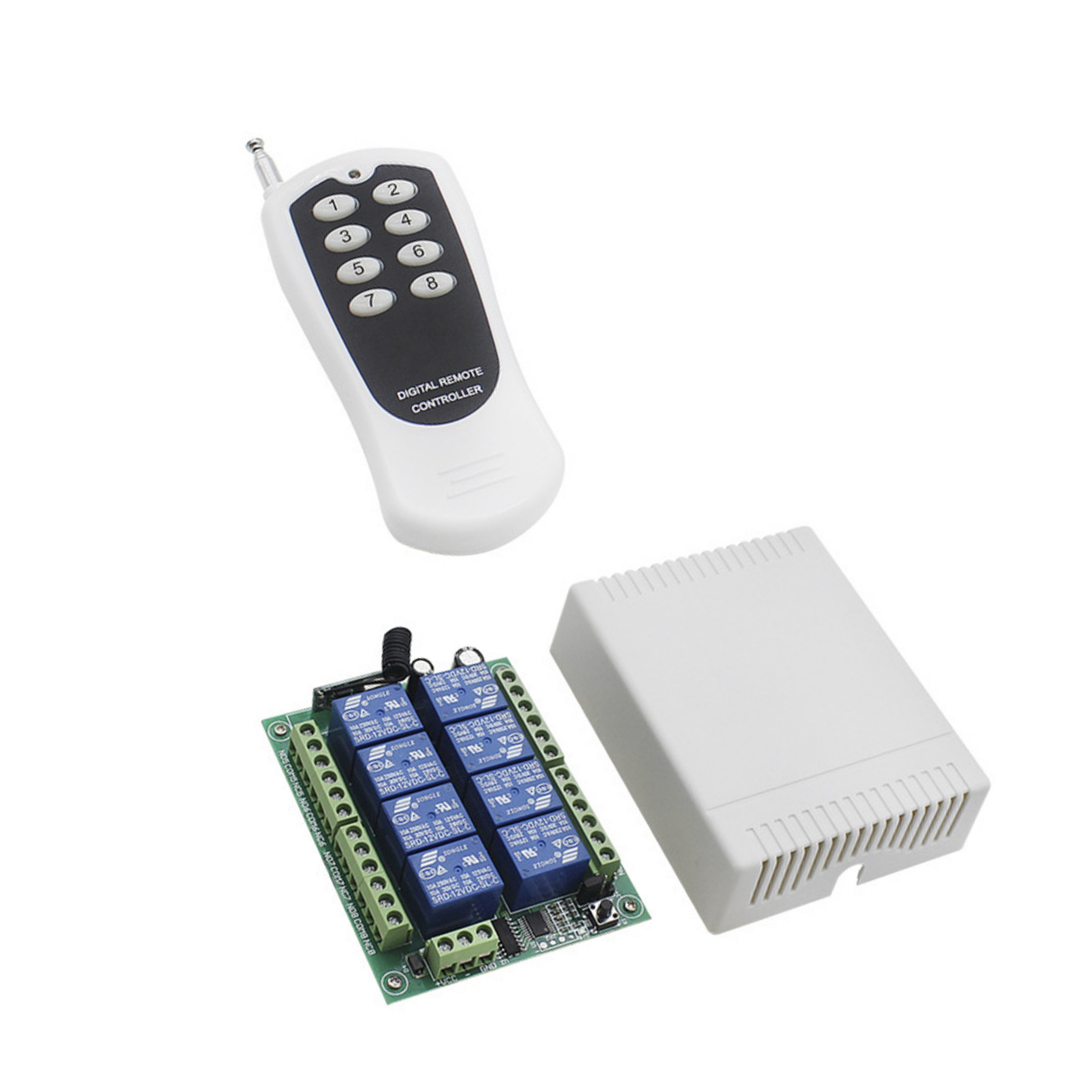

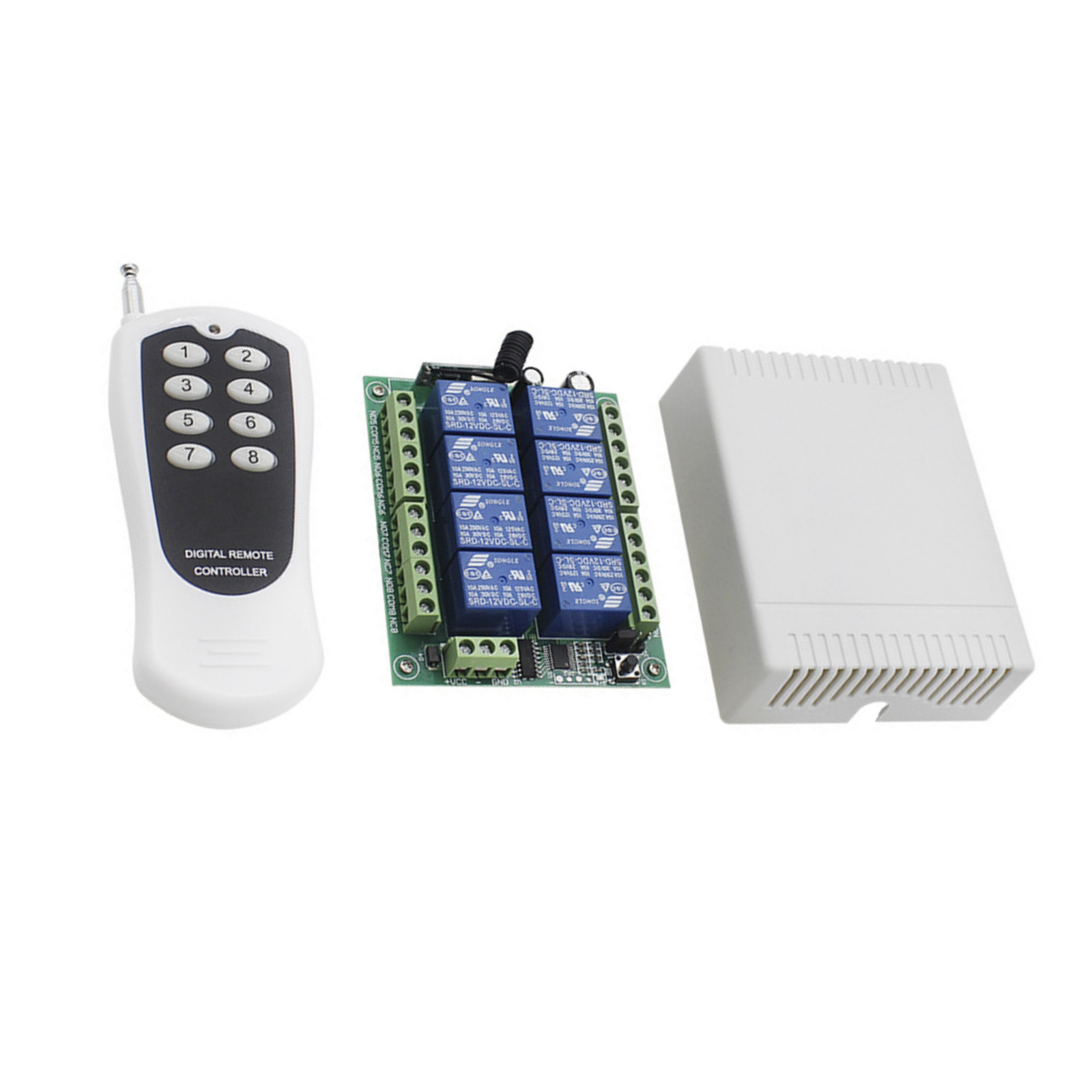

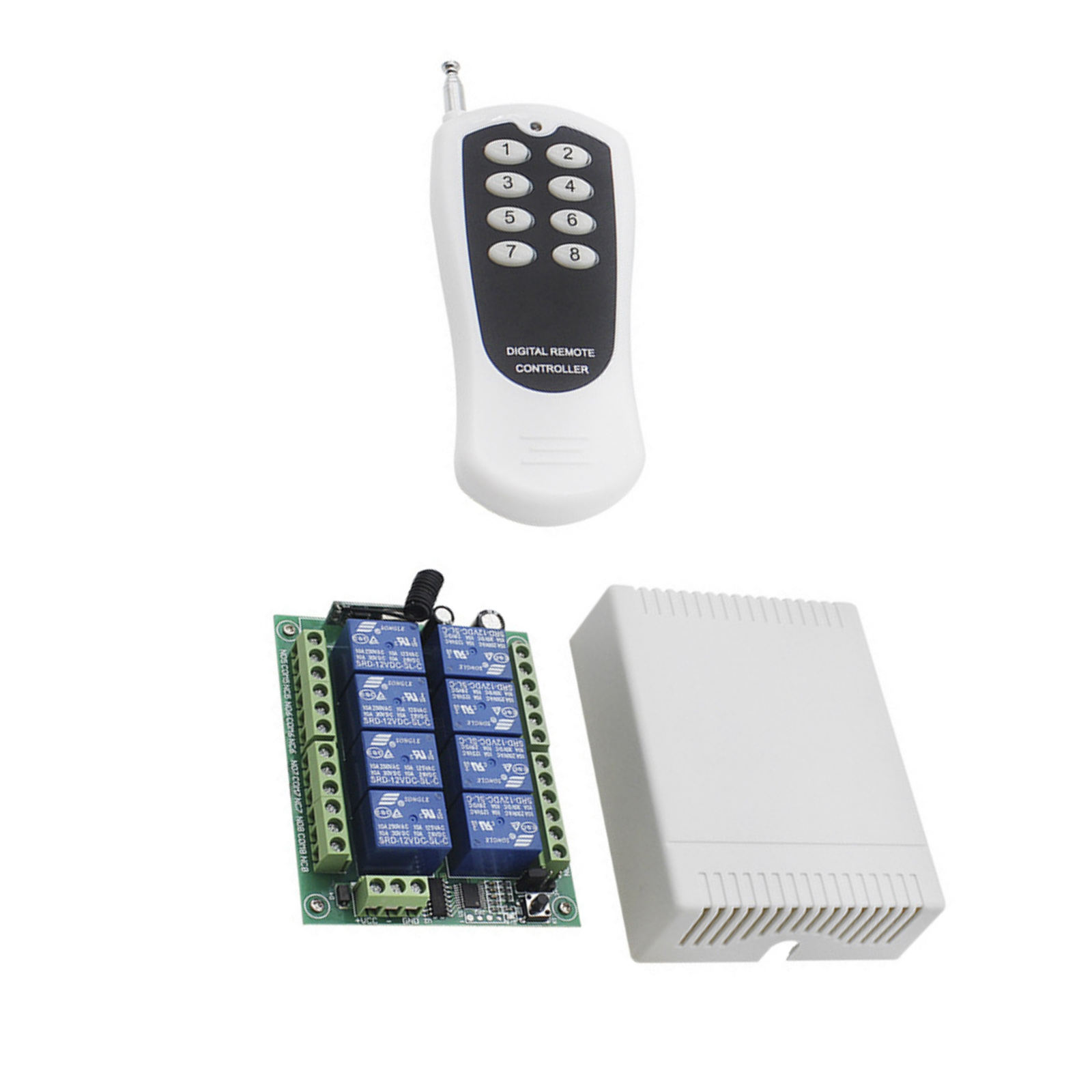

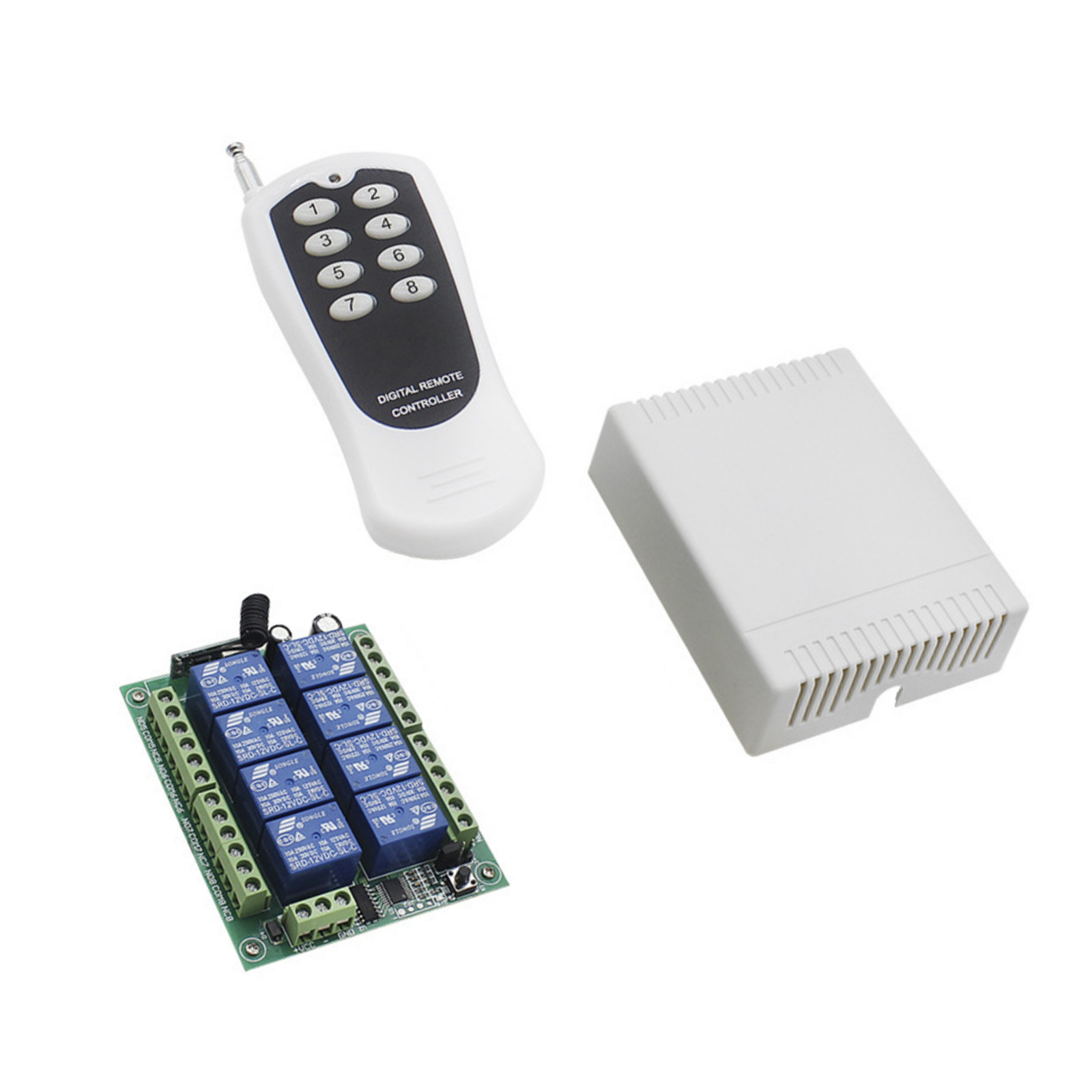

Package Including:
1* Receiver
1* Transmitter
