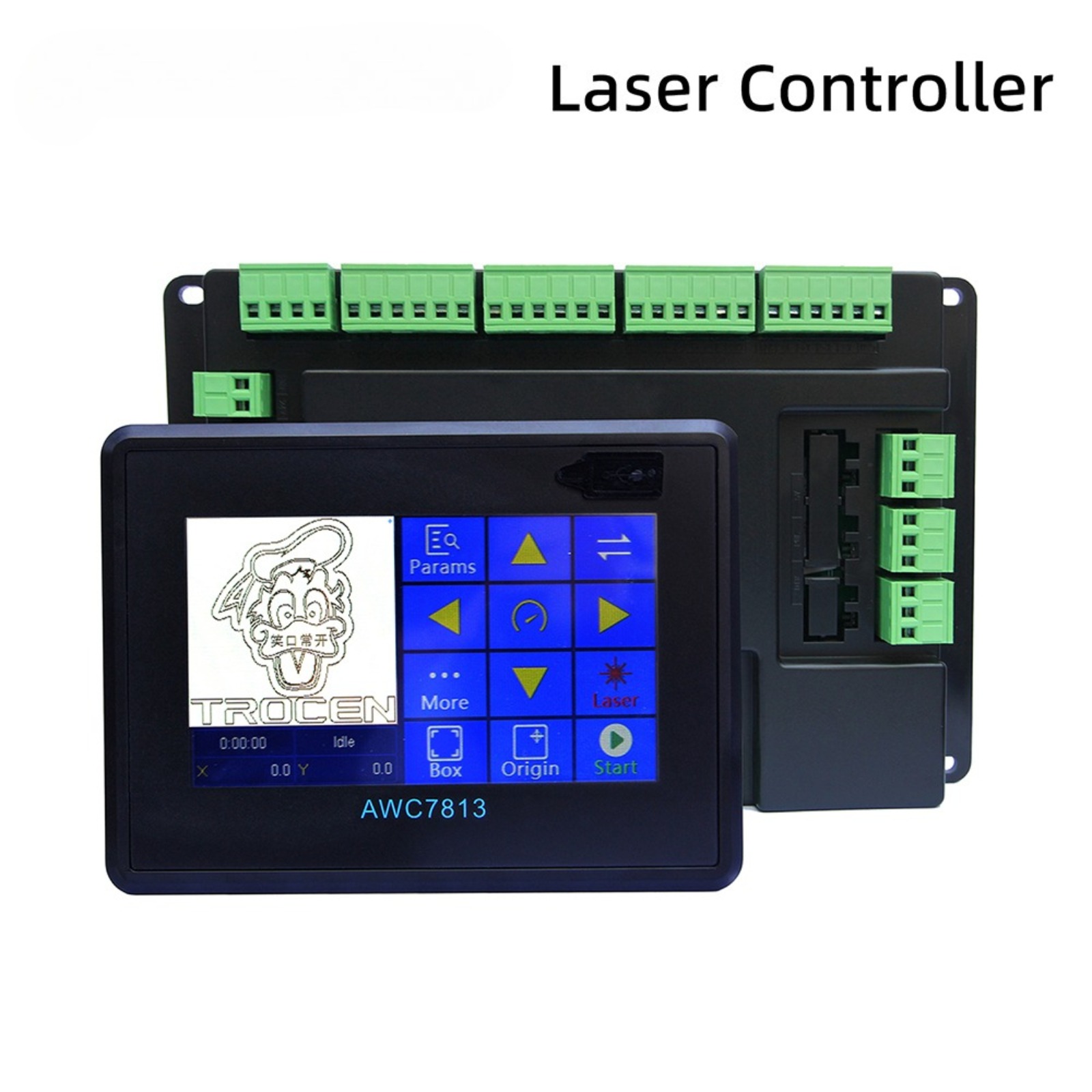

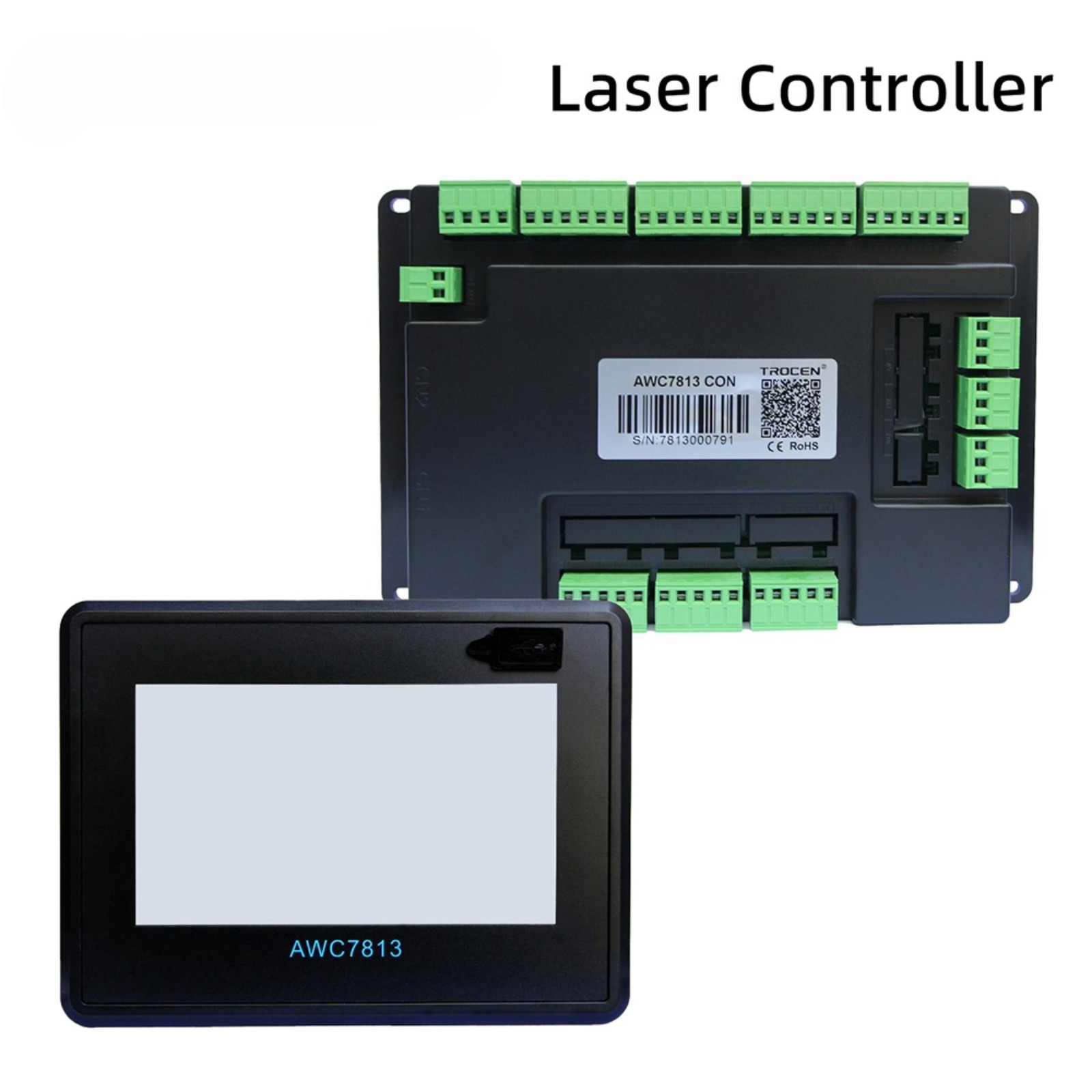

Ray Laser
Product Description
Features:
- 5" true color touch screen
- New 32-bit high-speed DSP makes the system run faster and more stable
- Simple to operate, saving time for training and after-sales
- Support U disk offline file preview function and real-time display of laser module motion trajectory
- Device parameters can be set completely off a PC
- All optocouplers completely isolate external electromagnetic interference, with strong anti-static performance, and make the system work more stable and reliable
- Support multiple languages: Chinese, English, Portuguese, Turkish, Russian, French, Korean, Spanish, Arabic, Vietnamese and Danish
- Support USB2.0 high-speed interface and more stable reading and writing of files in USB drive. It can recognize various brands of USB flash drives
- Support network communication and USB communication, faster transmission speed and more stable performance
- Support Z-axis autofocus, Y- and Z-axis dual-drive control
- Support three types of blowing: full blowing, light blowing and layer blowing
- Intelligent diagnosis of the fault of the system itself
- Switch the way to manually move the axis with one click
- A variety of humanized positioning mode and return mode: convenient for customers with different habits to operate machines
- One-key continuous cutting makes it convenient to continue to connect and cut after the processing file is interrupted in any way
- When debugging the cutting effect, there are few setting parameters and it is easy for users to use
Technical Parameters:
- Replaceable model: AWC708S TL3120 and other brands of single-head laser control systems
- Power supply: DC24V 3A
- Universal inputs: 6-way universal opto-isolated inputs
- Universal output: 8-way universal opto-isolated OC gate output
- Number of control axes: X, Y and Z axis
- Number of controlled lasers: single
- Supported lasers: CO2 glass tube and RF tube
- Laser energy control: 0-100%. 0.1% continuously adjustable
- Accuracy: ±0.01mm
- Supported graphic formats: ±0.01mm

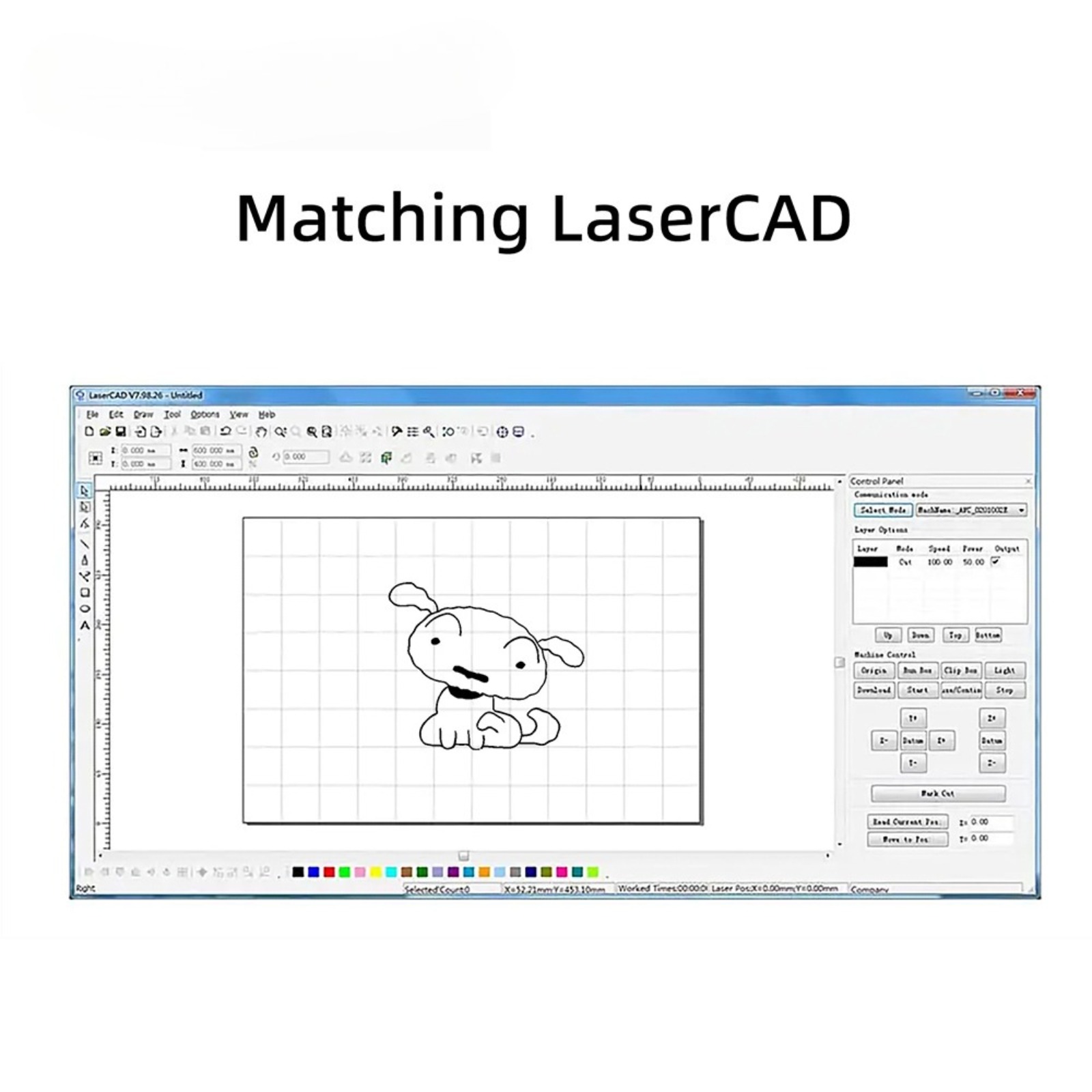

- Supported software: for LaserCAD and lightburn (support plugins for CORELDRAW, AUTOCAD and Adobe Illustrator)
- Supported systems: Windows (Window XP, Vista, Win7, Win8 and Win10) operating systems
- 5" true color touch screen
- New 32-bit high-speed DSP makes the system run faster and more stable
- Simple to operate, saving time for training and after-sales
- Support U disk offline file preview function and real-time display of laser module motion trajectory
- Device parameters can be set completely off a PC
- All optocouplers completely isolate external electromagnetic interference, with strong anti-static performance, and make the system work more stable and reliable
- Support multiple languages: Chinese, English, Portuguese, Turkish, Russian, French, Korean, Spanish, Arabic, Vietnamese and Danish
- Support USB2.0 high-speed interface and more stable reading and writing of files in USB drive. It can recognize various brands of USB flash drives
- Support network communication and USB communication, faster transmission speed and more stable performance
- Support Z-axis autofocus, Y- and Z-axis dual-drive control
- Support three types of blowing: full blowing, light blowing and layer blowing
- Intelligent diagnosis of the fault of the system itself
- Switch the way to manually move the axis with one click
- A variety of humanized positioning mode and return mode: convenient for customers with different habits to operate machines
- One-key continuous cutting makes it convenient to continue to connect and cut after the processing file is interrupted in any way
- When debugging the cutting effect, there are few setting parameters and it is easy for users to use
Technical Parameters:
- Replaceable model: AWC708S TL3120 and other brands of single-head laser control systems
- Power supply: DC24V 3A
- Universal inputs: 6-way universal opto-isolated inputs
- Universal output: 8-way universal opto-isolated OC gate output
- Number of control axes: X, Y and Z axis
- Number of controlled lasers: single
- Supported lasers: CO2 glass tube and RF tube
- Laser energy control: 0-100%. 0.1% continuously adjustable
- Accuracy: ±0.01mm
- Supported graphic formats: ±0.01mm
- Supported software: for LaserCAD and lightburn (support plugins for CORELDRAW, AUTOCAD and Adobe Illustrator)
- Supported systems: Windows (Window XP, Vista, Win7, Win8 and Win10) operating systems
-
