Product Description
Package list:
Controller+control panel+USB cable+wire cable

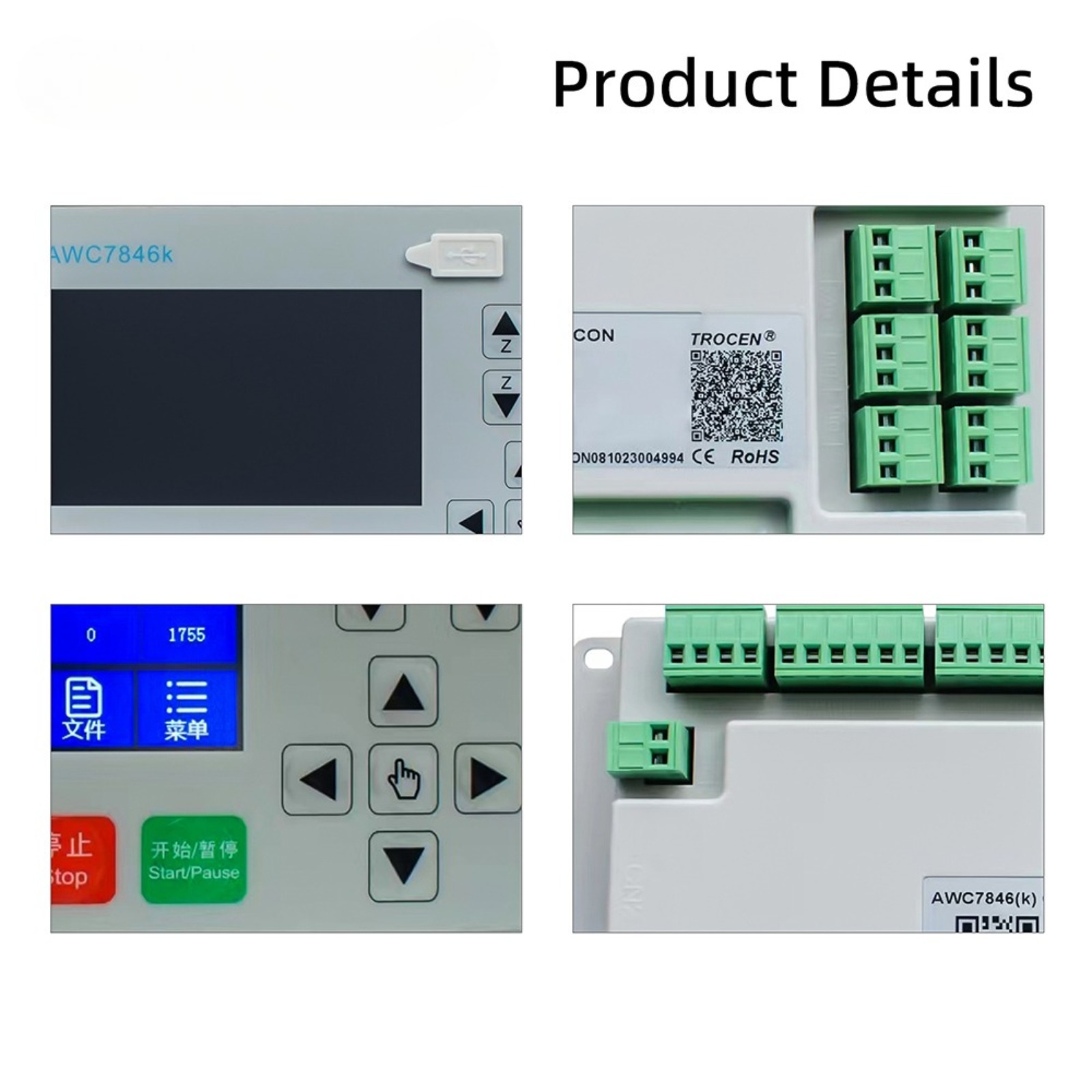

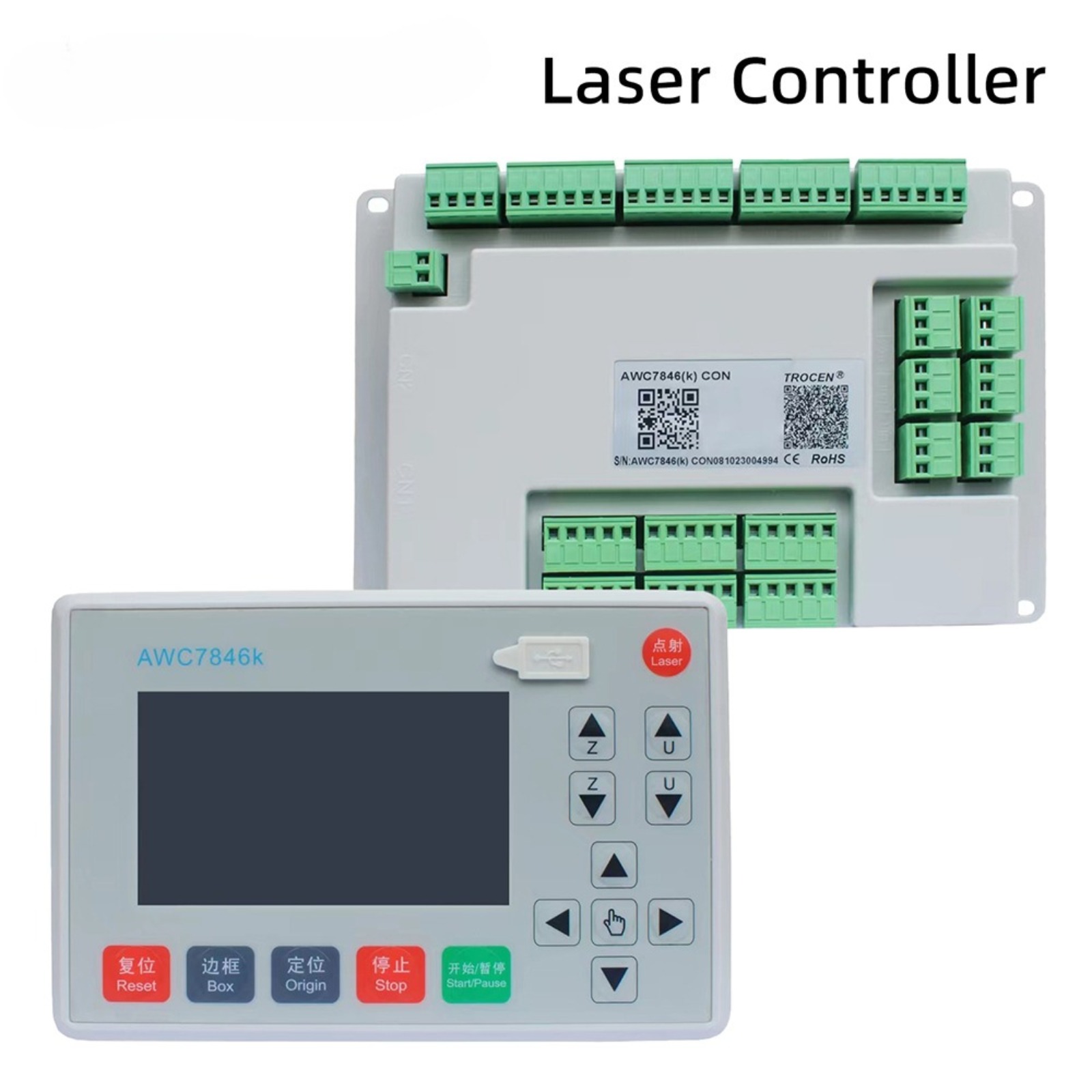

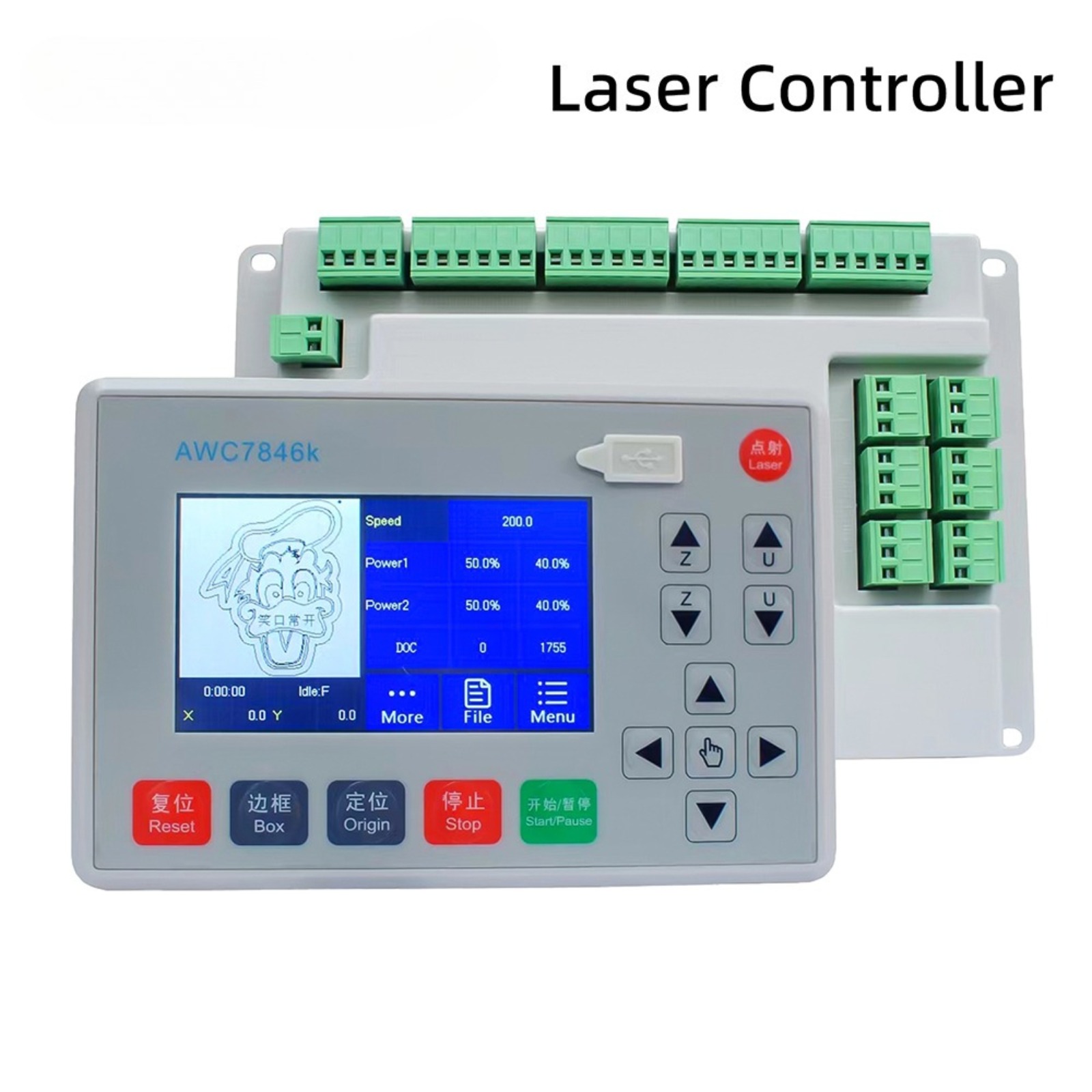

As the enhanced version of AWC708C LITE,Awc708c plus support 6 axes &4 laser heads separated control and multi head movement control.
It provides powerful functionality and suits for customer secondary development. Technical Parameters:
|
Model
|
AWC7846K (Replacement of AWC708C PLUS)
|
|
Power
|
DC24V/3A
|
|
Input
|
6 roads
|
|
Output
|
6 roads
|
|
Control Axes
|
X Y Z U V W Axes
|
|
Laser Quantity
|
Four heads which could be separated adjusted
|
|
Laser Sources
|
Continuous,RF,Co2 and solid laser source
|
|
Laser Power Control
|
0-100% 0.1% continuously adjustable
|
|
Precision
|
0.01mm
|
|
Support Format
|
DST,PLT,BMP,DXF,AI
|
|

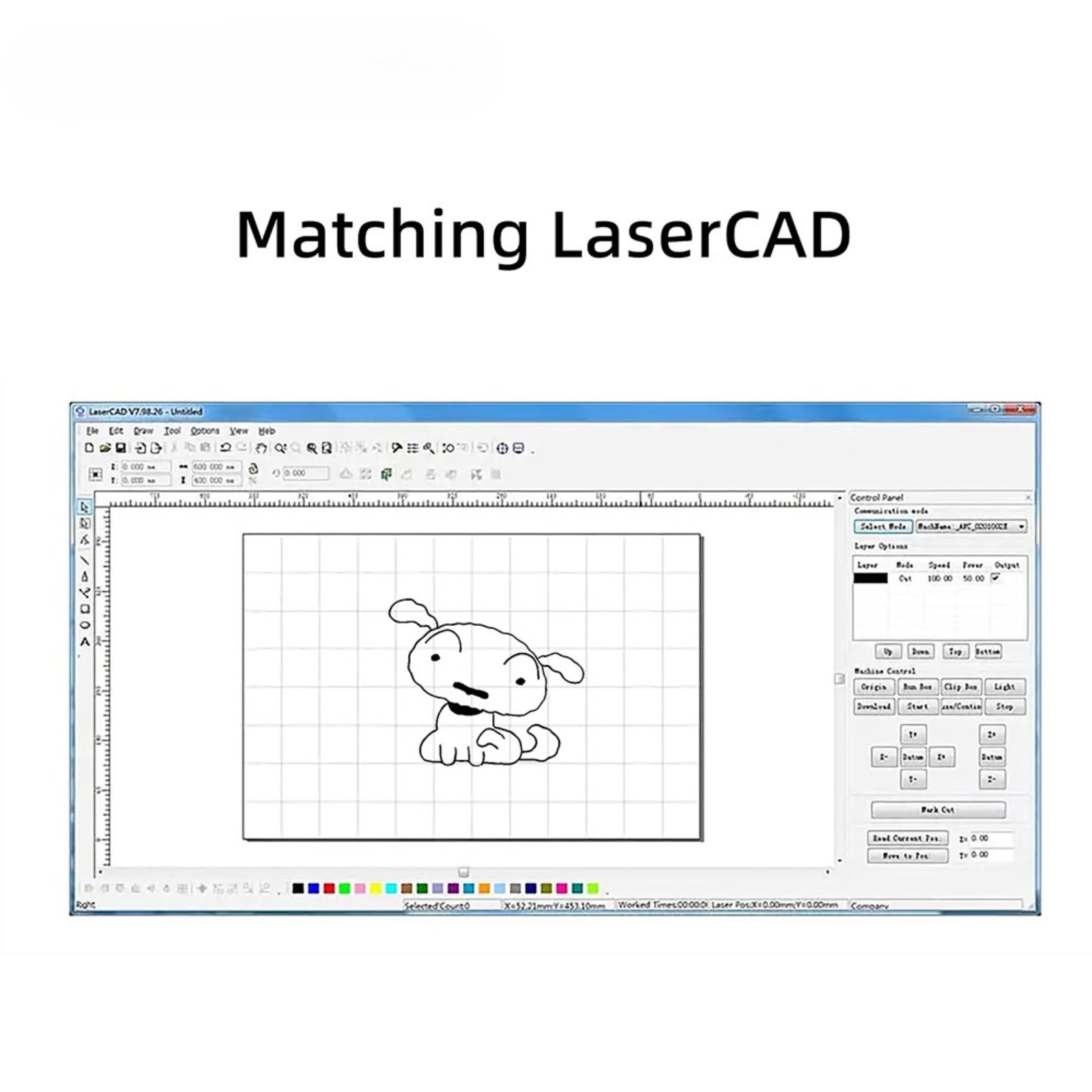

Support Software
|
LaserCAD(support CorelDRAW,AutoCAD,Adobe
|
Product Features:
1, New generation 32 high speed CPU with better property;Add series humanized function such as live automatic tracking display,Origin model selection,etc
2, Support local time clock.Compared with 608 series,encryption function is more humanized.
3, Can select completed off-line work model to set up device parameters.
4, Completed light-coupled isolated external electromagnetic interference to make working performance more stable.
5, Support auto reset setting.
6, USB 2.0 High speed interface is available.More stable for U disk to read and write files.Can discern various brand U disk;Network model and USB model are supported.Faster steady transportation.
7, Max 6 axes and 4 laser source control.Perfect stability with servo and stepper motor system.
-
