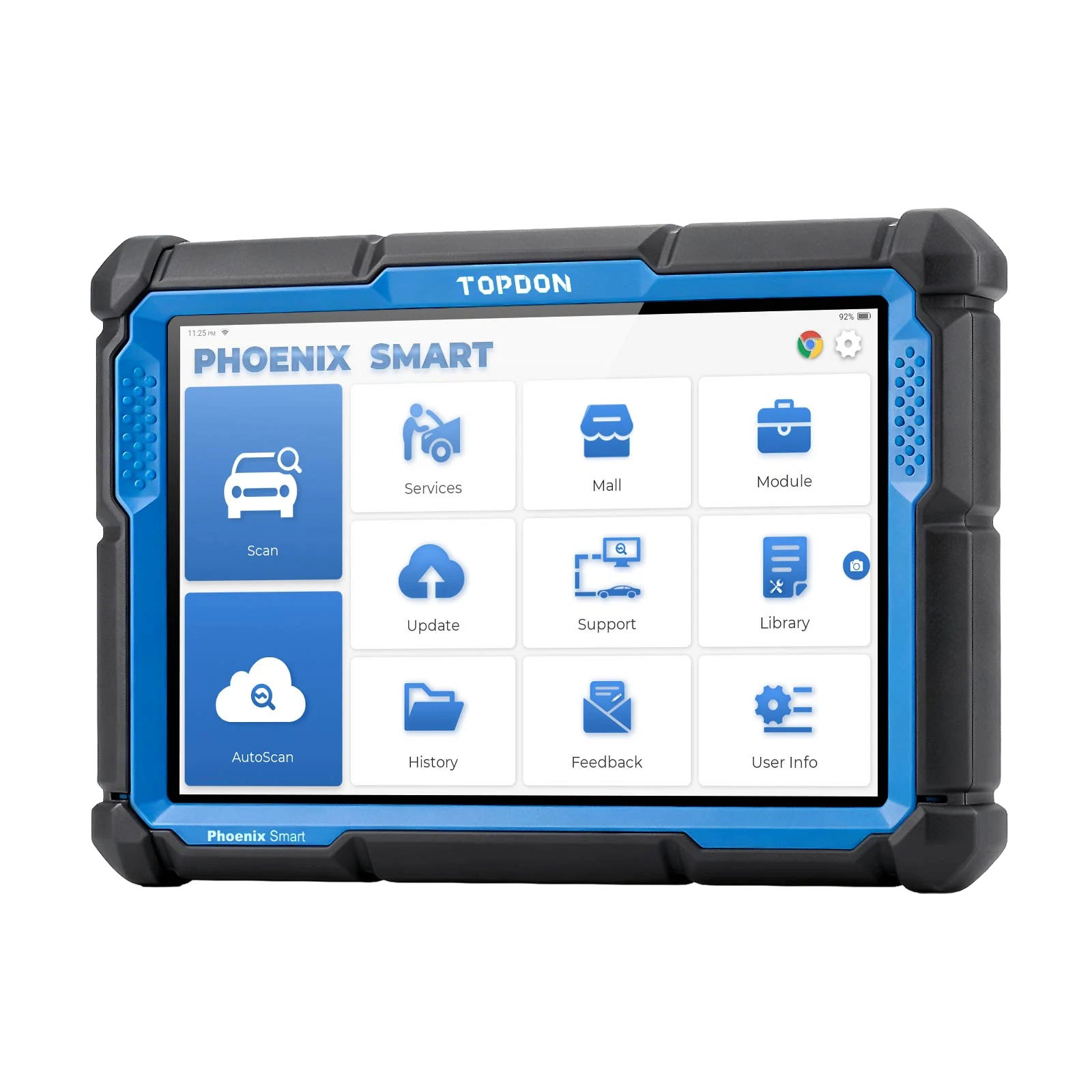

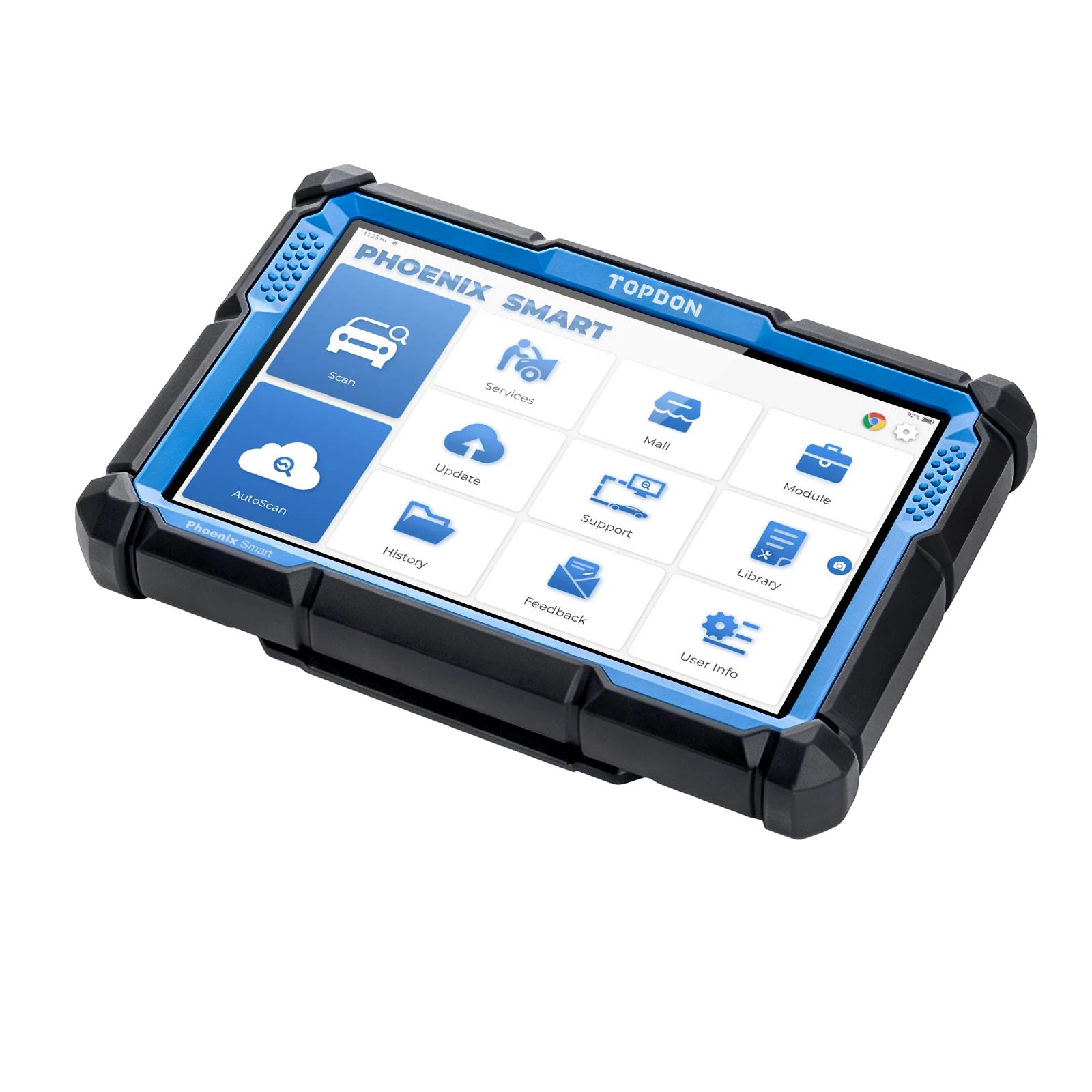

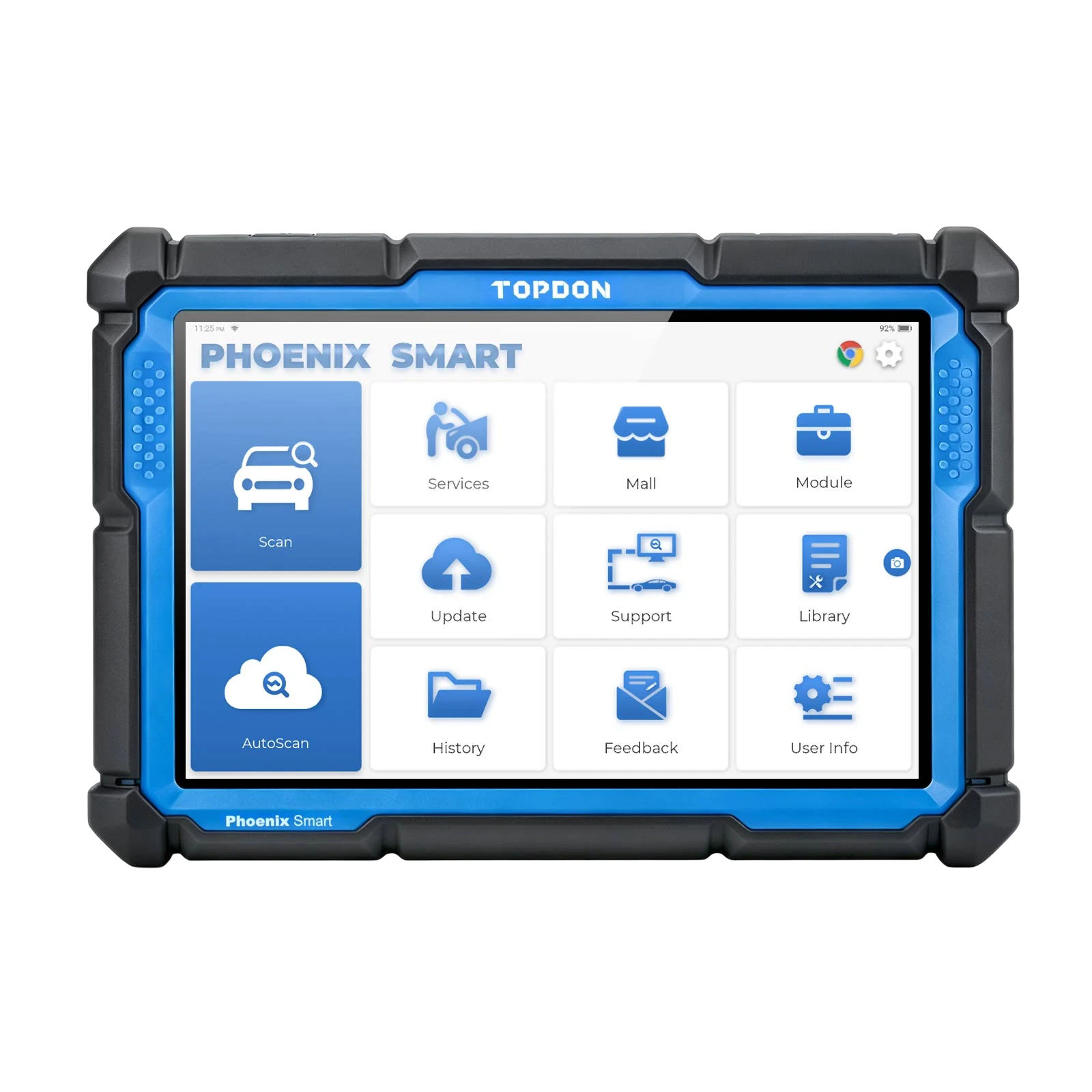

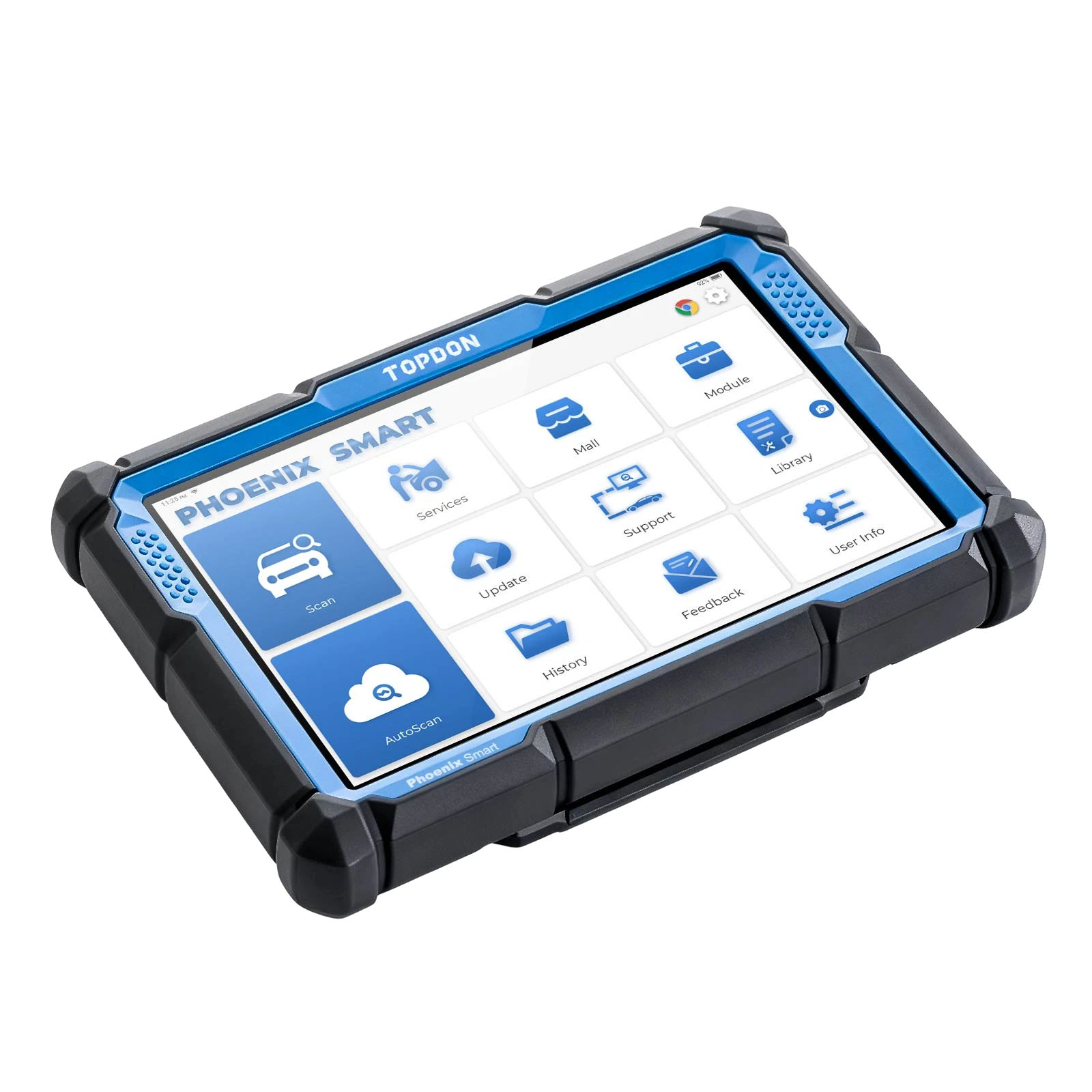

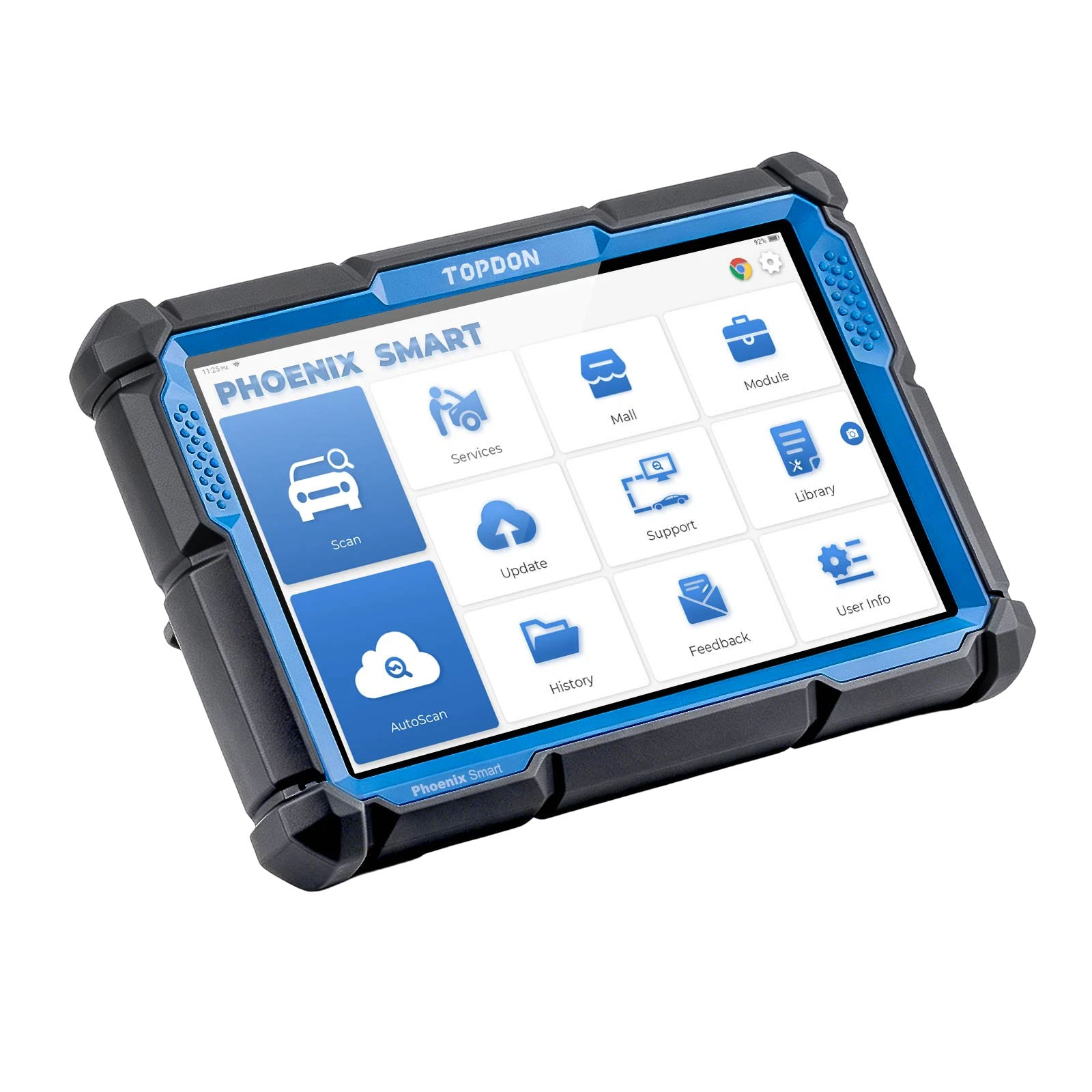

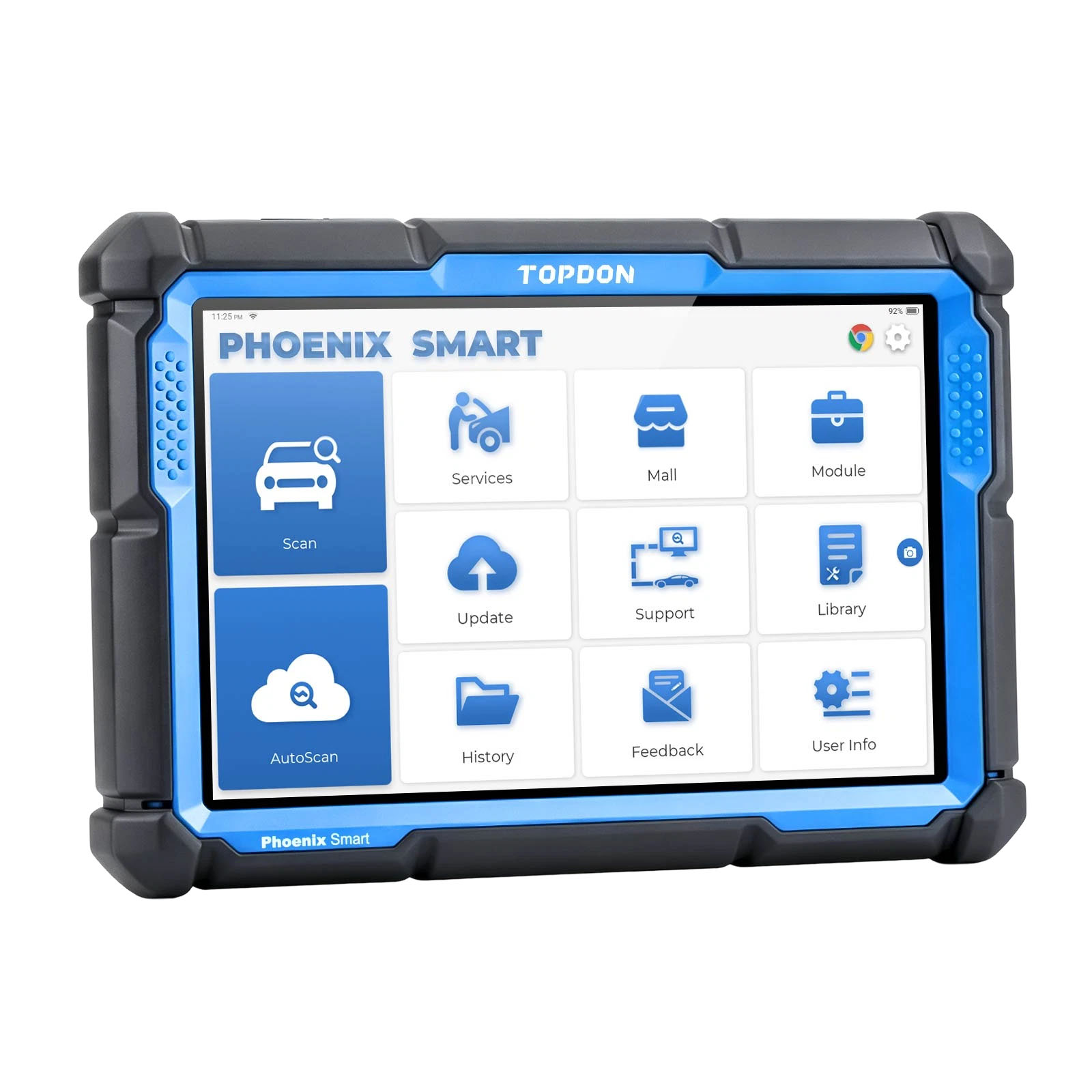

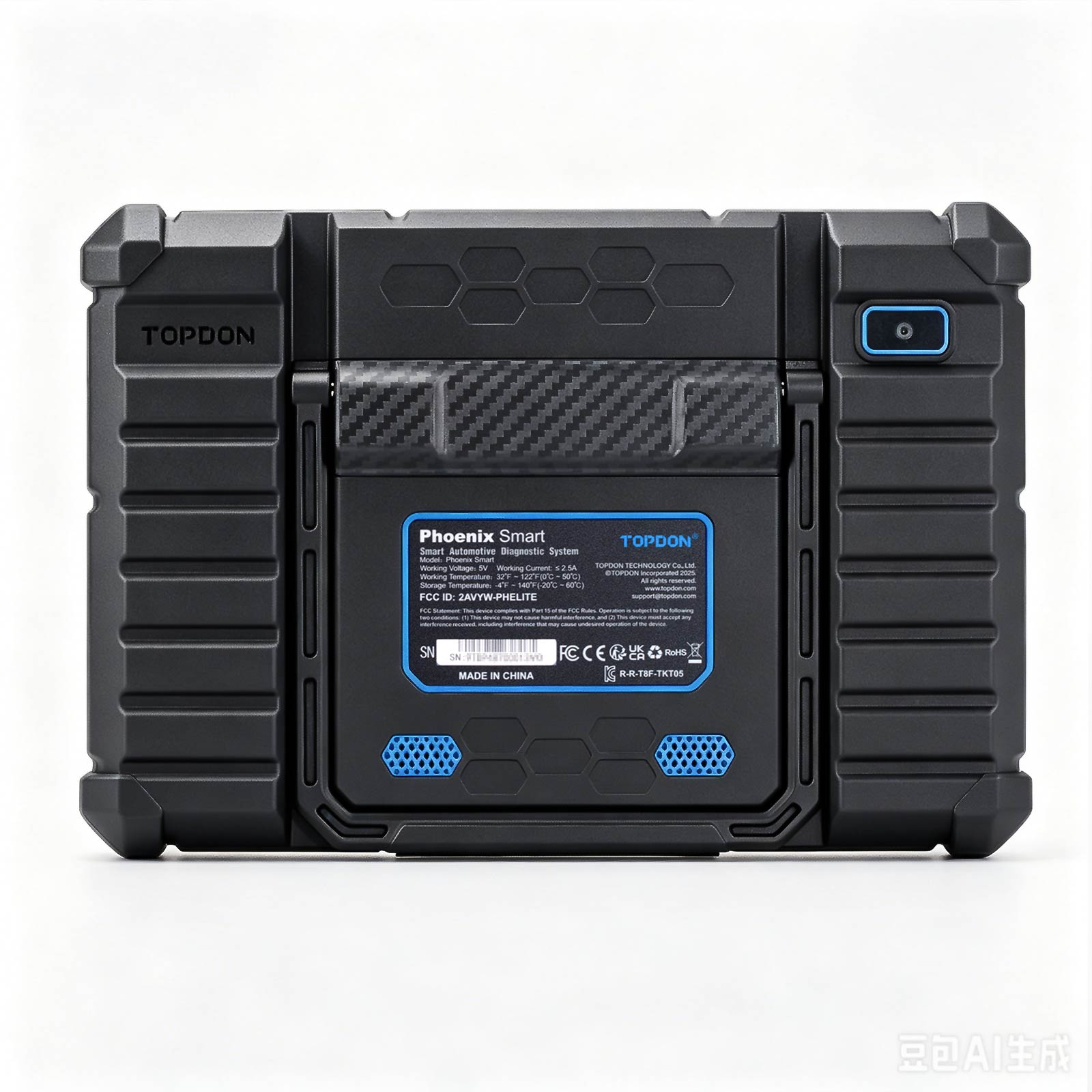

TOPDON Phoenix Smart Car Diagnostic Tool Bidirectional Scan Tool

Note: Not sold in United Kingdom.

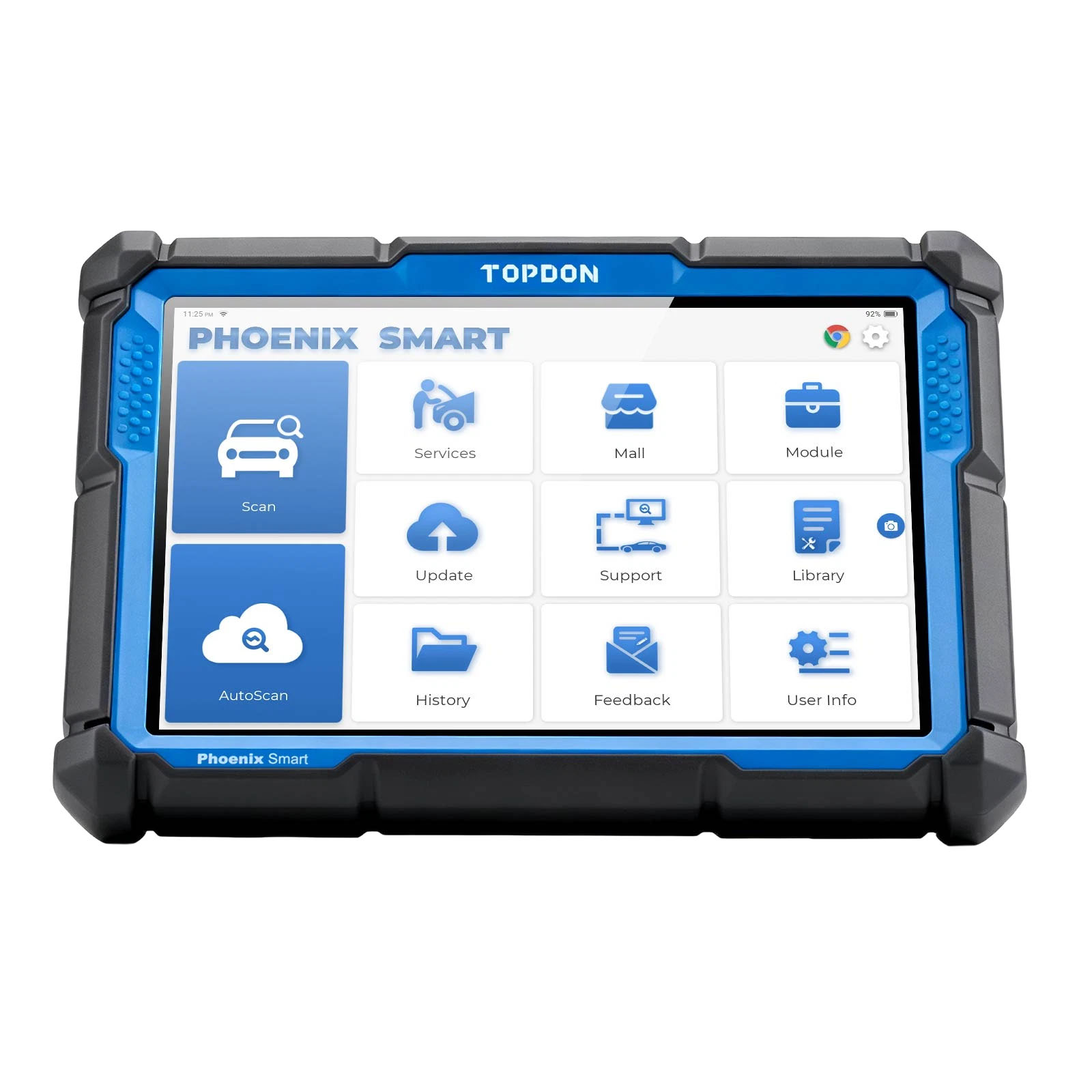

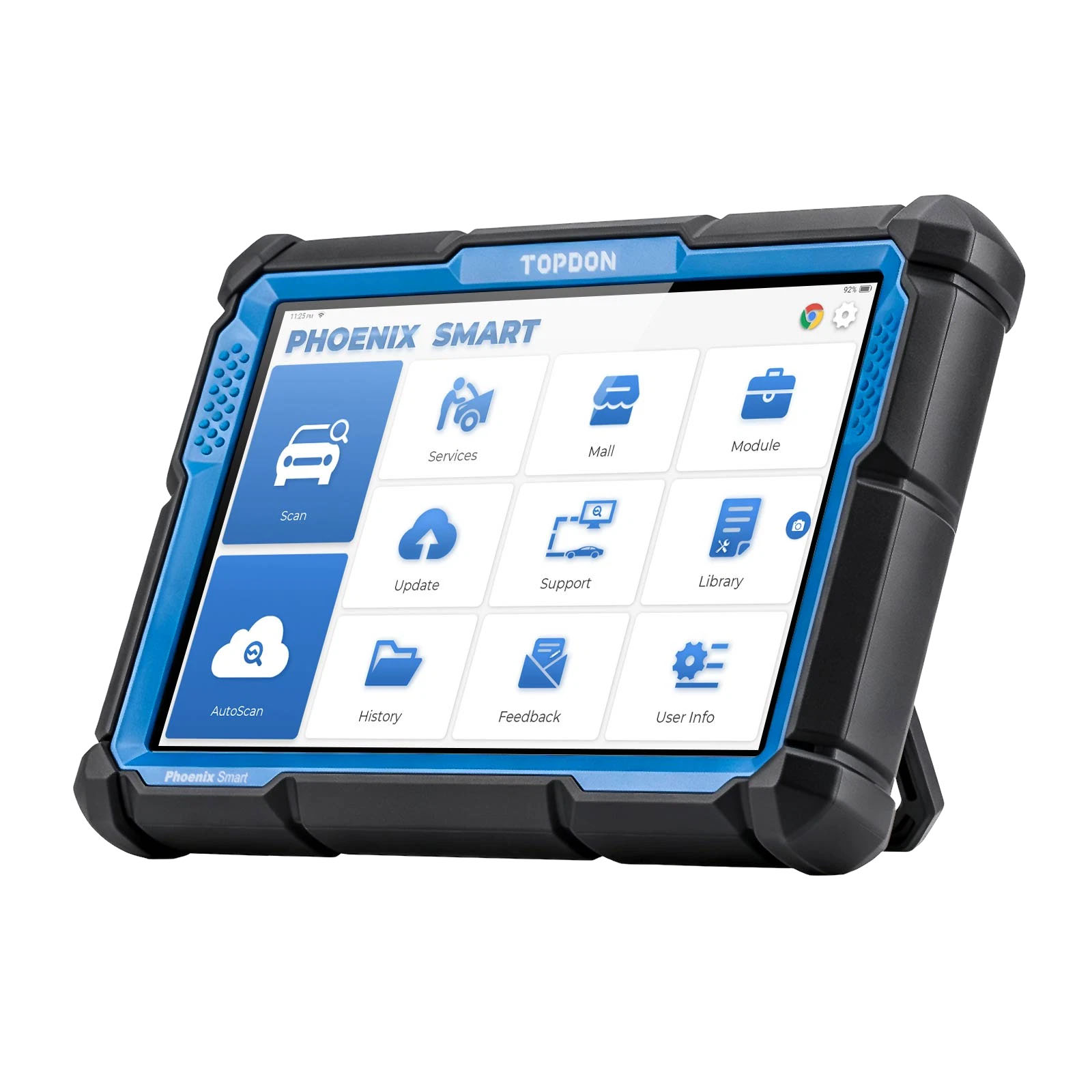

The TOPDON Phoenix Smart is a professional OE-level diagnostic tool for technicians and shops needing comprehensive vehicle coverage. Equipped with a 10.1-inch HD touchscreen, a quad-core processor, and 128GB storage, it delivers fast, efficient diagnostics across 200+ vehicle brands.

The Phoenix Smart supports full-system diagnostics, E-C-U coding, and cloud-based progarmming for over 13 major brands, including for BMW, for Mercedes-Benz, for V.W, and for Porsche. With bi-directional control, it allows technicians to perform actuation tests, run maintenance resets, and adjust vehicle parameters with ease. The Phoenix MDCI Pro VCI supports J2534, CAN FD, DoIP, and RP1210 protocols, ensuring compatibility with modern vehicles.

Additional features like ADAS calibration compatibility, FCA Secure Gateway access, topology mapping, and guided procedures make this tool essential for automotive professionals.

Highlights:

• Upgraded from Phoenix Elite, Phoenix Plus, Phoenix Pro, Phoenix Xlink.
• Performs same function as Phoenix Max, but at a lower cost.
  Full-System Fault Diagnosis for 200+ Brands: With broad coverage, Phoenix Smart supports OE-level diagnostics across Asian, American, and European brands, providing deep insight into all vehicle systems—from engine to ABS and SRS.
• Cloud-Based Progarmming for 13+ Brands: for Benz, for BMW, for V.W, for Audi, for Skoda, for Seat, for Nissan, for Hyundai, for Kia, for Honda, for Acura, for Land rover, for Jaguar, for Renault, for Subaru, for Infiniti, for Sprinter, for Maxus
• Guided Diagnostics for V.A.G Vehicles: The intuitive software offers step-by-step guided diagnostics specifically for V-ol-k-sw-a-g-en, for Audi, for Skoda, and for SEAT models, helping technicians navigate complex repairs with accuracy and speed.
• FCA Gateway Access: Allows secure diagnostics and the ability to adjust protected functions on modern FCA vehicles, including for Chrysler, for Dodge, for Jeep, and for Fiat,for  ensuring seamless service on secure platforms.
• Wide Protocol Compatibility with Phoenix MDCI Pro : Equipped with the Phoenix MDCI Pro VCI, the Phoenix Smart supports J2534, DoIP, CanFD, D-PDU, and RP1210 protocols, covering all major communication methods for advanced diagnostics and E-C-U progarmming.
• Advanced Topology Mapping: This tool presents a comprehensive view of the vehicle’s entire sensor system, transforming raw data into clear visuals. With Topology Mapping, technicians can see each module’s status, streamlining troubleshooting.
• Do More With Special Settings: Phoenix Smart allows access to hidden settings, such as enabling Video-In-Motion, disabling seatbelt chimes, and more. Supported across makes like Audi, Volkswagen, BMW, Porsche, and Toyota, these customizations enhance service offerings.
• ADAS Calibration Compatibility: Phoenix Smart supports Advanced Driver Assistance Systems (ADAS) calibration (Need Buy Adas Activation Card), enabling technicians to align intricate driver-assistance functions for safety and accuracy. It can be paired with the TOPDON Phoenix ADAS Mobile package for seamless calibration.
• 18+ Languages, 2 years free update; Annual subscription is 695USD/year or 999USD for 2 years
• Supports FCA SGW, Renault and Nissan security gateway access (with license)

BROAD COVERAGE AND A COMPREHENSIVE DATABASE

The Phoenix Smart supports full system fault diagnosis of more than 200 vehicle brands. This tool offers OE-Level diagnostics for the most common Asian, American, and European models, and many other vehicle models.

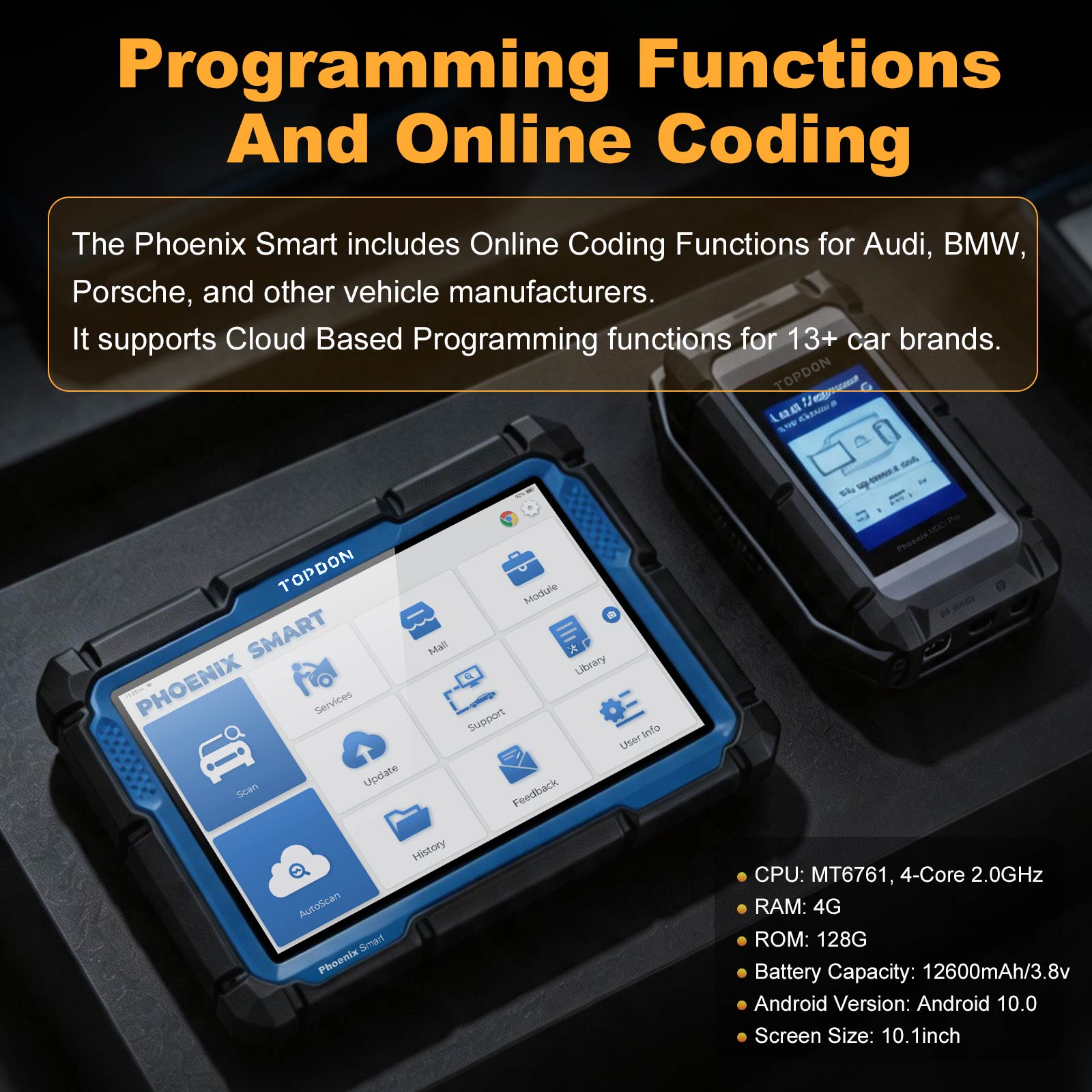

PROGRAMMING FUNCTIONS AND ONLINE CODING

The Phoenix Smart includes Online Coding Functions for Audi, BMW, Porsche, and other vehicle manufacturers.
It supports Cloud Based Programming functions for 13+ car brands.


Cloud-Based Programming for 13+ Brands

Q: How to Unlock the ONLINE PROGRAMMING FUNCTION?

A: The Phoenix Smart Diagnostic Tool comes with native support for E-C-U progarmming on for Benz and for BMW vehicles, allowing technicians to perform progarmming and adaptation functions directly from the tool. For users who need E-C-U programming for other vehicle brands, the tool provides the flexibility to unlock additional progarmming functions upon request. Simply provide your Serial Number (SN), and the tool’s capabilities will be expanded to unl-o-ck progarmming for other vehicle brands, ensuring broader compatibility across your workshop.

The Phoenix Smart includes Cloud-Based Progarmming, a powerful feature that allows technicians to update, reprogarm, and optimize E-C-Us (Electronic Control Units) in modern vehicles. This capability enables precise software updates and control module replacements aligned with OEM standards, enhancing functionality and ensuring optimal performance for a broad range of vehicle systems.

NOTE: Topdon online progarmming is restricted in North America, Spain and Portuguese regions.

Features of Phoenix Smart E-C-U Progarmming

• Direct Access to OEM Software Updates

Through Progarmming, the Phoenix Smart connects with servers to download and install the latest software updates. This ensures that each E-C-U has the most up-to-date progarmming, improving performance, resolving software-related issues, and increasing compatibility with other systems.

• Essential for Module Replacement and Updates

After replacing control modules like the E-C-M (Engine Control Module) or TCM (Transmission Control Module), reprogarmming is crucial for compatibility with existing vehicle systems. Cloud-Based Progarmming helps configure these modules with OEM settings, which is key for maintaining factory standards and performance.

• Comprehensive Support for Over 13 Car Brands

Phoenix Smart’s Cloud-Based Programming supports major vehicle manufacturers, especially European brands such as for Mercedes-Benz, for BMW, for Audi, for Porsche, for V-olksw-a-gen (including for Skoda and for SEAT), for Jaguar, for Land Rover, for Nissan, for Subaru, for Renault, for Hyundai, for Kia, and more. This broad compatibility makes it a versatile solution for automotive shops handling a wide range of brands.

• Cost-Effective Alternative for Dealership-Level Progarmming

As a J2534 PassThru device, the MDCI Pro provides access to OEM progarmming without the need for multiple, brand-specific dealership tools, offering an affordable solution for independent workshops seeking comprehensive progarmming capabilities.

TOPOLOGY MAPPING FOR TOTAL CLARITY

Diagnose Every System with a Single Click!

The Phoenix Smart offers an All Systems Diagnostic with Topology Mapping, providing an advanced, comprehensive view of a vehicle's electronic architecture. The Topology Mapping feature visually displays the connectivity and status of each module in real time, using color-coded indicators to simplify the diagnostic process. This helps technicians quickly identify issues, understand module relationships, and streamline troubleshooting by displaying how various systems interact across the entire vehicle.

• Comprehensive System Scanning: Covers ABS, SRS (a.irb.a.g), engine, transmission, and all other essential vehicle systems, ensuring a full health check for accurate diagnostics.
• Fault Code Reading and Clearing: Detects and clears diagnostic trouble codes (DTCs) across all systems, helping quickly identify and resolve issues.
• Live Data Stream: Real-time monitoring of various system data points, such as engine RPM, battery voltage, and sensor outputs, allowing professionals to analyze performance.
• Bi-Directional Control: Enables direct control of specific components like wipers, windows, and A/C, essential for troubleshooting and verifying repairs.
• Advanced Functions for Specialized Systems: Access advanced diagnostics for systems like TPMS, BCM, suspension, HVAC, and more.
• One-Click Health Report: Generates a detailed diagnostic report with system statuses, fault codes, and recommendations for easy sharing with clients.
• AutoVIN & AutoScan: Automatically identifies the vehicle’s make, model, and year for fast and accurate diagnostics across all supported systems.
• Topology Mapping: Displays a visual, tree-like diagram of the vehicle’s electronic architecture, allowing instant visualization of system connections and status.

This all-encompassing diagnostic approach ensures a complete vehicle checkup, saving time while enhancing the accuracy and efficiency of every diagnostic session.

41+ MAINTENANCE SERVICES

Complete Care for Every Vehicle, Every System!

The Phoenix Smart offers 40+ Maintenance Services, providing a wide range of diagnostic and service functions that cover various vehicle needs. Here are some key services included:

· Oil Reset· Electronic Parking Brake (EPB) Reset· Battery Management System (BMS) Reset· Steering Angle Sensor (SAS) Reset· ABS Bleeding

· Diesel Particulate Filter (D--P-F) Regeneration· Throttle Adaptation· Tire Pressure Monitoring System (TPMS) Reset· Injector Coding· Airbag (SRS) Reset· Gearbox/Transmission Reset· Sunroof Initialization· Window Initialization/Calibration· Seat Calibration· Air Suspension Reset· EGR (Exhaust Gas Recirculation) Reset· AC System Relearn· Headlight Matching· Fuel Pump Activation· Gear Learning

· Language Change/Customization· Stop/Start Reset· AdBlue Reset· A/F (Air-Fuel) Ratio Reset· NOx Sensor Reset· EVAP (Evaporative Emission Control System) Test· Coolant Bleeding· Transport Mode Activation/Deactivation· Clutch Adaptation· Engine Power Balance Monitoring

· Transmission Adaptation Reset· Rain/Light Sensor Initialization· Turbocharger Calibration· Battery Voltage Reset· Stop/Start Reset

And More....

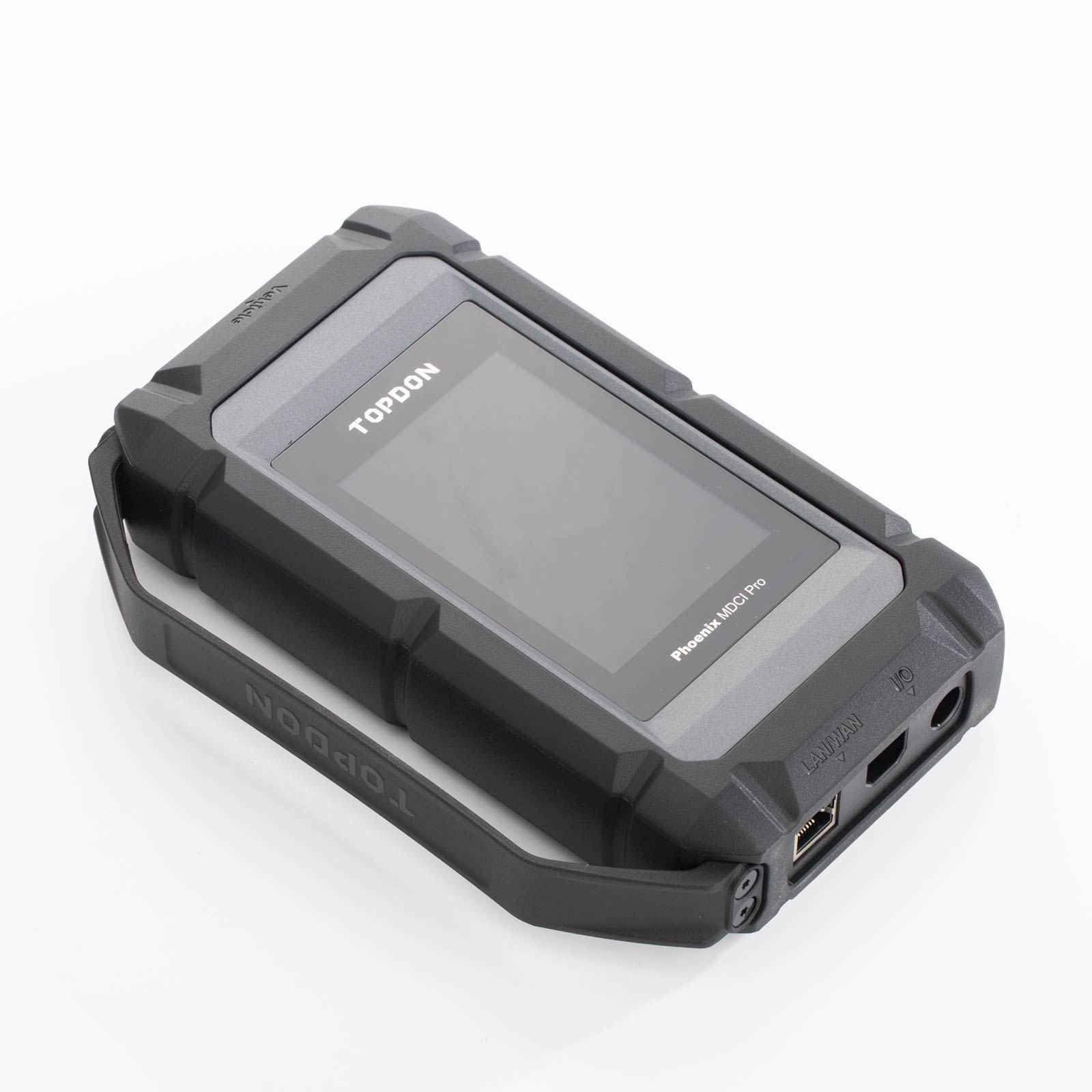

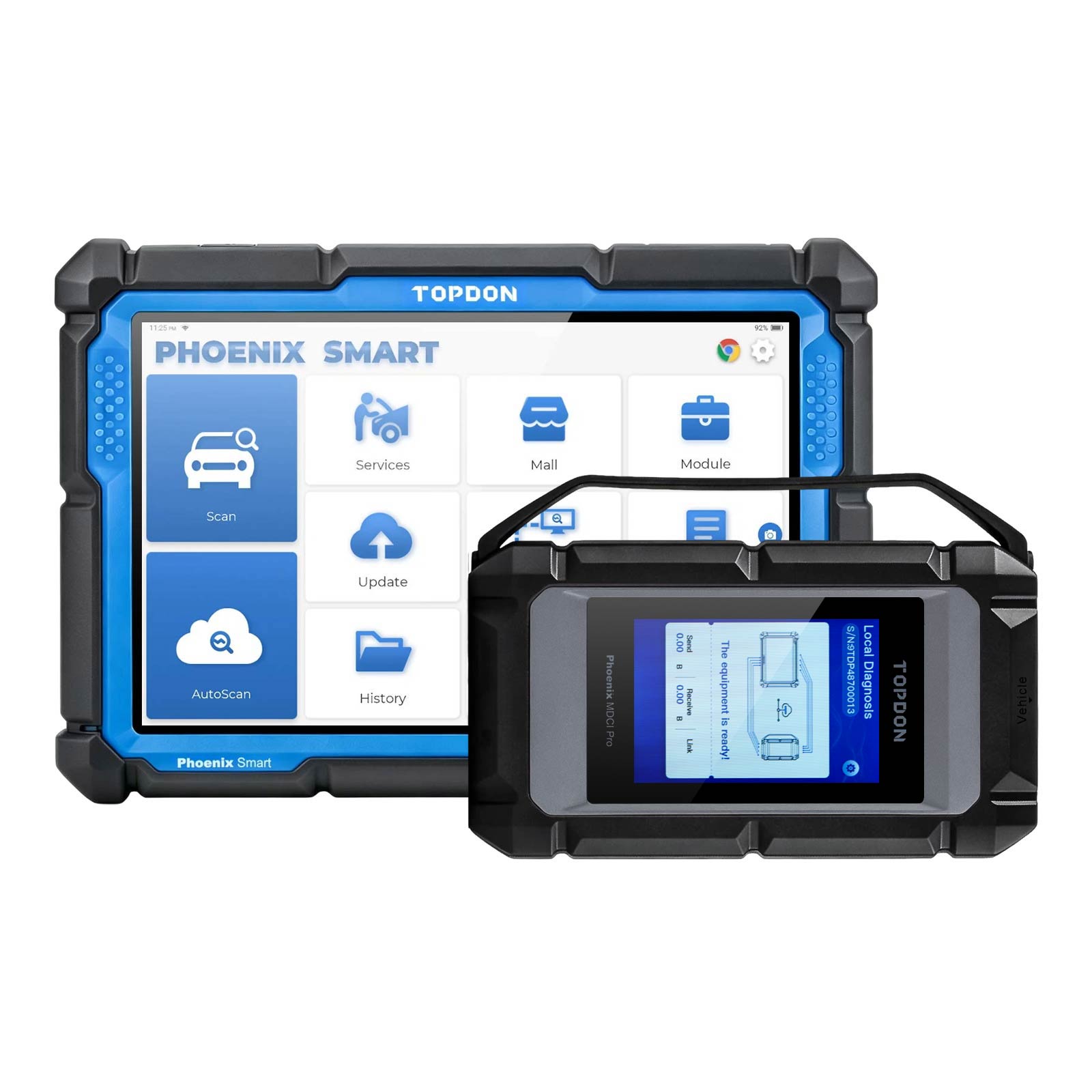

THE PHOENIX MDCI PRO HAS YOU COVERED

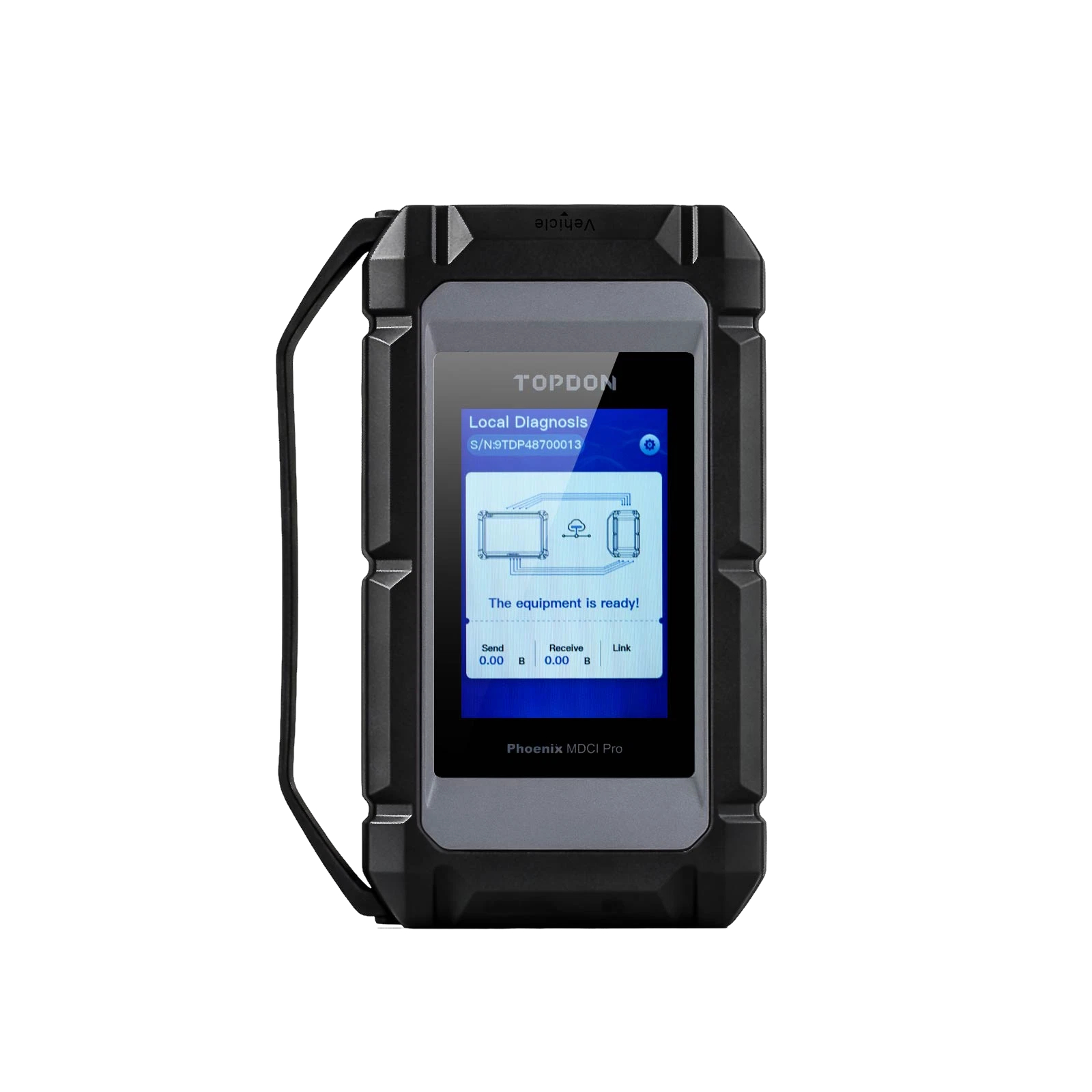

TOPDON's Phoenix Smart comes with the Phoenix MDCI Pro, a VCI that supports J2534, DoIP, CanFD, D-PDU, and RP1210 protocols.
This MDCI Pro's unparalleled coverage allows you to offer OE-level services to newer and more modern vehicles. With the Phoenix MDCI Pro, you will never be forced to outsource!

STEP-BY-STEP GUIDED PROCEDURES

Guided procedures and functions streamlines the repair process. Follow the prompts for easy and convenient operation, suitable for V.W, Audi, for Skoda and for SEAT vehicles.

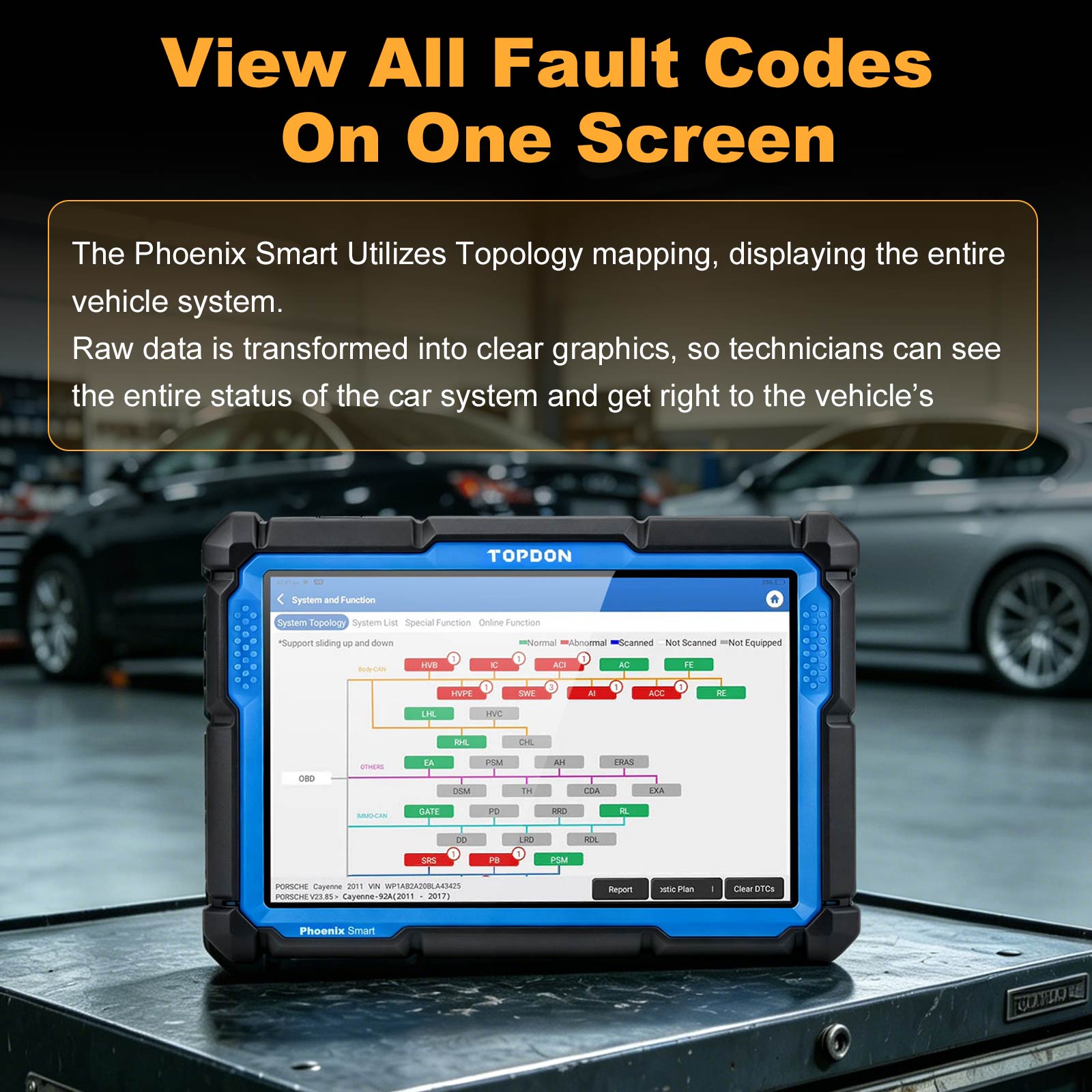

VIEW ALL FAULT CODES ON ONE SCREEN

The Phoenix Smart Utilizes Topology mapping, displaying the entire vehicle system.
Raw data is transformed into clear graphics, so technicians can see the entire status of the car system and get right to the vehicle’s issues.


ENHANCED DIAGNOSTIC FUNCTIONS

Unlock More Business Opportunities

• Online FFS Activation (for V.W, for Audi):

Tailored for V-o-lksw-a-g-en and for Audi vehicles, Online FFS (Fehlerfreischaltung) Activation enables remote unlocking and configuration of features on various modules, such as adaptive lighting, mirror adjustments, and comfort settings. This feature supports safe and compliant software updates through secure online channels, ensuring all activations are fault-free and compatible with the manufacturer’s standards.

• Step-by-Step DTC Guided Function (for Ben.z, for B.MW, for Porsche, for Audi, for V.W)

For B.MW, for Porsche, for Audi, and for V.W vehicles, the DTC Guided Function offers detailed repair guidance based on detected DTCs, assisting with diagnostics across multiple interconnected systems. Guided procedures and functions streamlines the repair process. Follow the prompts for easy and convenient operation, suitable for V.W, for Audi, for Skoda and for SEAT vehicles.

FCA Secure Gateway

The Phoenix Smart supports FCA Secure Gateway (SGW) access, making it compatible with Fiat Chrysler Automobiles (FCA) models that have SGW protection. This includes brands like Chrysler, Dodge, Jeep, Fiat, and Alfa Romeo. The SGW restricts access to advanced diagnostic functions and certain module settings to prevent unauthorized modifications and protect vehicle security.

Repair Data Library

The Phoenix Smart Repair Data Library offers an in-depth Fault Code Guidance feature. Based on stored fault codes, it provides: Component Location· Pin Diagram· Special Functions· Active Test· Data Stream

Flash Hidden Function

The Flash Hidden Function in the Phoenix Smart tool allows users to unlock and activate hidden or restricted features within a vehicle’s system. This feature is especially useful for personalizing and enhancing the driving experience by enabling advanced settings that are typically inaccessible in factory default mode.

ADD-ON TOOLS

Enhance Your Diagnostics with Advanced Features (Available for Additional Purchase)

The Phoenix Smart Premium Extensions are powerful add-ons designed to elevate the diagnostic and maintenance capabilities of the Phoenix Smart tool. These premium extensions provide advanced functionality for a variety of specialized tasks, allowing technicians to expand their service offerings and handle complex diagnostics with confidence.

Here’s a look at the available Premium Extensions:

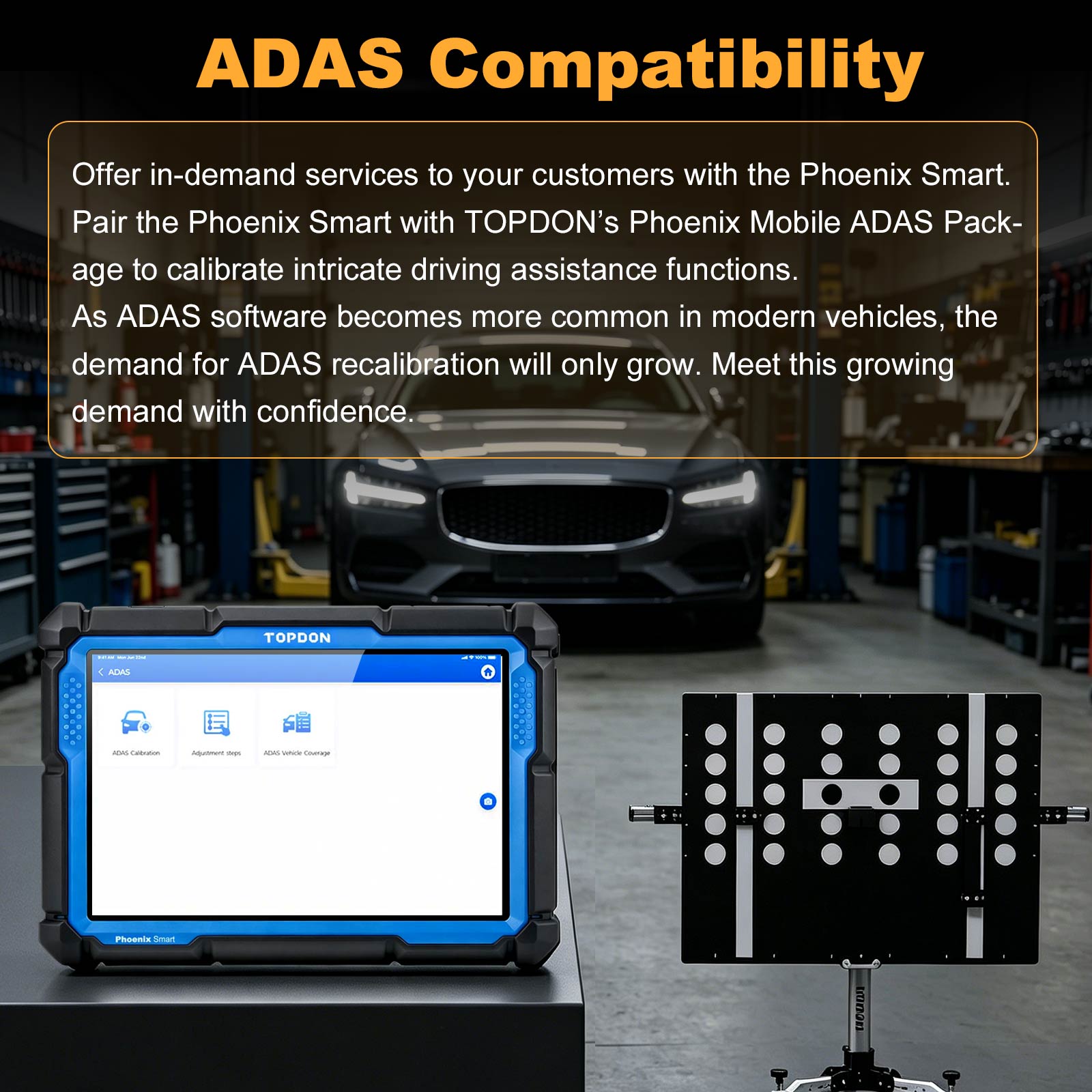

• ADAS (Advanced Driver Assistance System) Calibration (Adas Activation Card/Phoenix Adas Kit)

Offer in-demand services to your customers with the Phoenix Smart. Pair the Phoenix Smart with TOPDON’s Phoenix ADAS Mobile Package to calibrate intricate driving assistance functions.

As ADAS software becomes more common in modern vehicles, the demand for ADAS recalibration will only grow. Meet this growing demand with confidence.

Accurately calibrate sensors, cameras, and radars on modern vehicles to ensure optimal performance of safety features like lane assist, adaptive cruise control, and automatic emergency braking.

• Battery Tester (BTmobile ProS)

Efficiently test the health of vehicle batteries, including traditional and electric vehicle batteries. The BTmobile ProS offers precise diagnostics to help prevent battery failures and extend their lifespan.

• K-ey Progarmming (T-Ninja Box)

Easily program and reprogram Ḱḕẏs for a wide range of for BMW, for Benz and for BMW. The T-Ninja Box enables fast Ḱ-ḕẏ cloning, system adjustments, and system resets for complete Ḱ-ḕẏ management.

• Thermal Imaging Camera (TC001/TS001/TC001Plus)

Utilize advanced thermal imaging to diagnose overheating components, identify electrical issues, and spot potential mechanical failures. With multiple models available (TC001, TS001, TC001Plus), you can select the ideal thermal tool for your needs.

• EV Package

Specially designed for electric vehicles, the EV package supports diagnostics, battery health checks, and power management to ensure electric vehicles are running efficiently and safely. This package is essential for EV technicians and shops.

• HD Package

The HD Package offers deep diagnostics for heavy-duty vehicles like trucks, buses, and agricultural machinery. With enhanced compatibility, this package makes the Phoenix Smart a go-to tool for all types of vehicles, from passenger cars to large commercial fleets.



PHOENIX SMART Specification:
