Specification:
Condition: 100% Brand new
Shell Color: Black

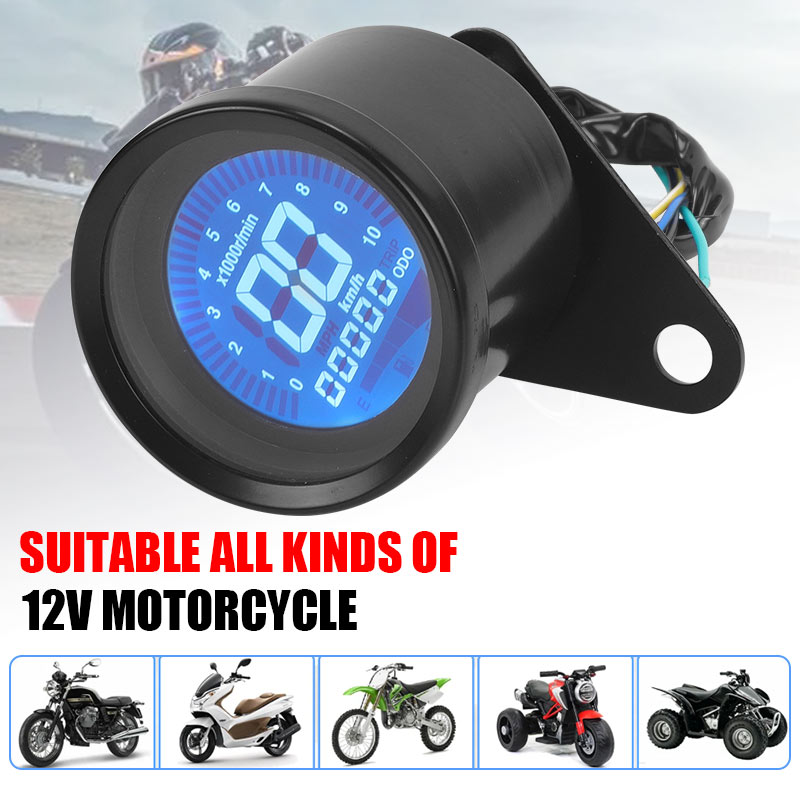

Working Voltage: DC 12V

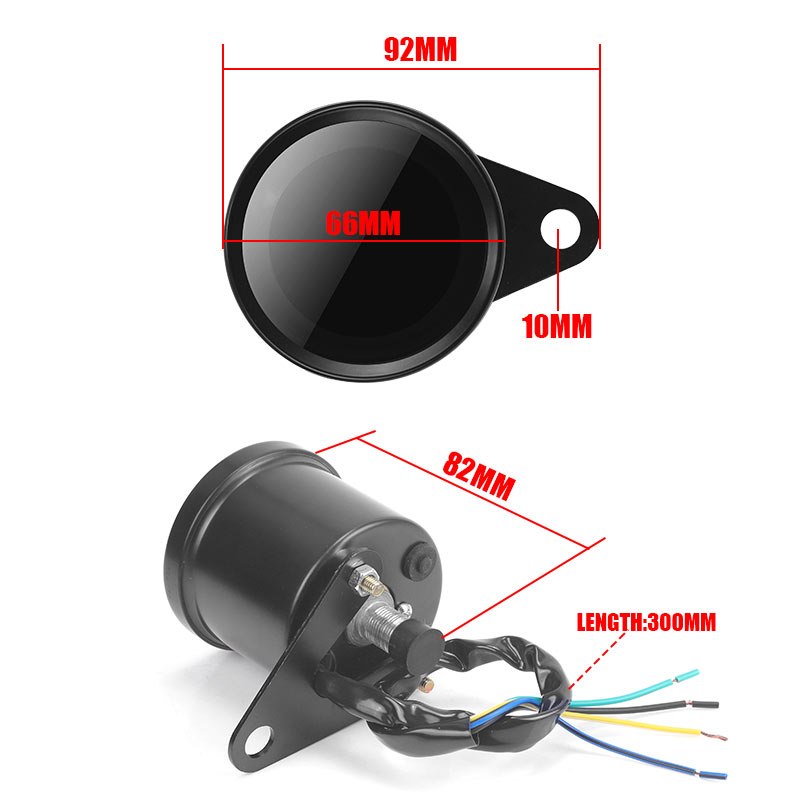

Material: Metal Housing and Backlight LCD Digital Screen

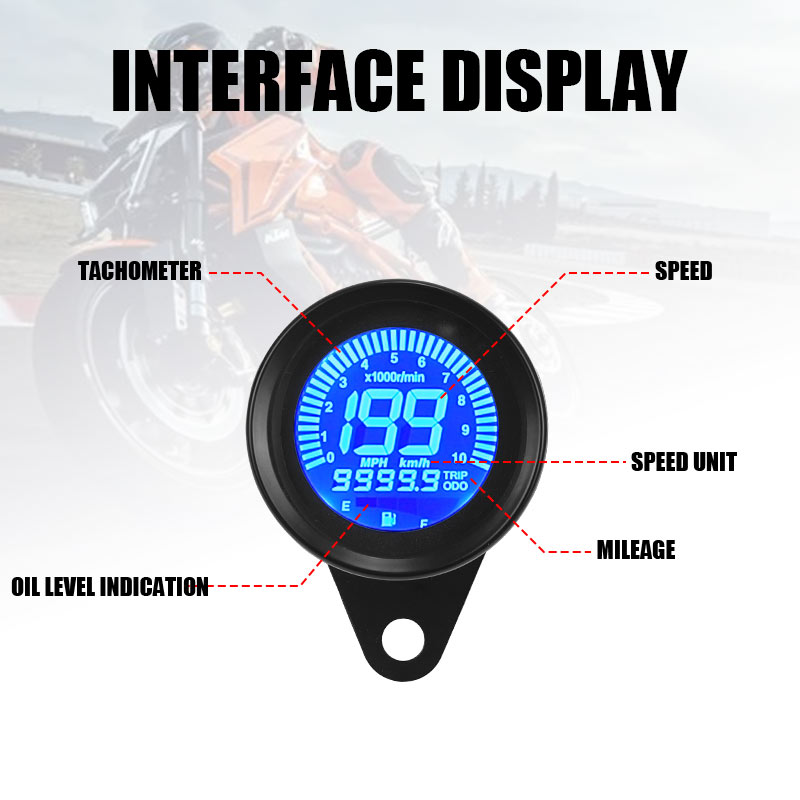

4 Function: Speedometer / Tachometer / Odometer / Fuel Gauge

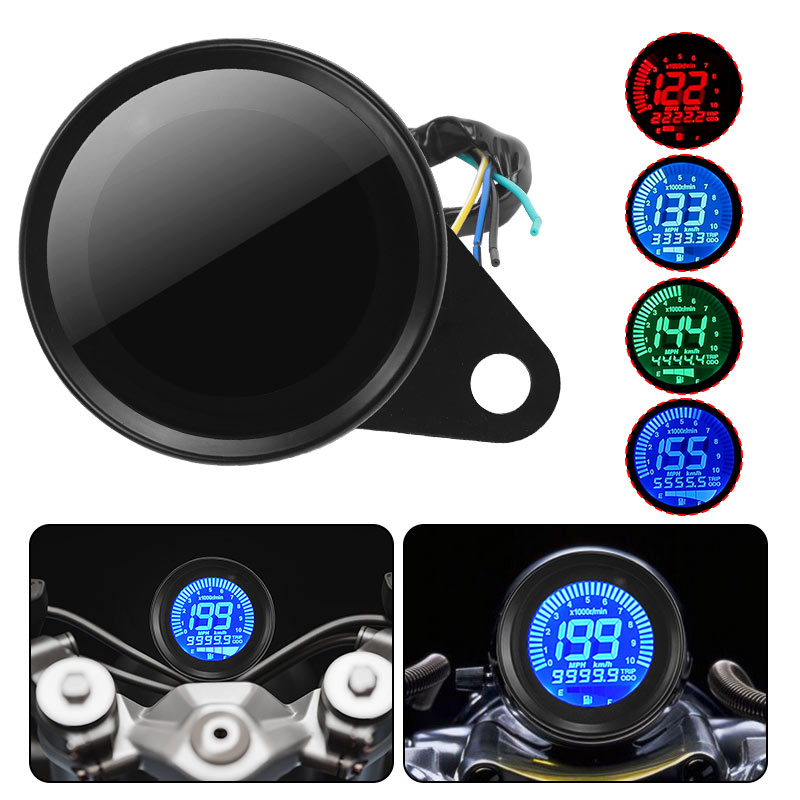

Wire Connection:
Black wire for positive 12V
Green wire for negative 12V
Blue wire for oil fuel gauge display
Yellow wire for tachometer display
Package Includes:
1x Motorcycle Speedometer
Strong knowledge is required
Setting Guide:

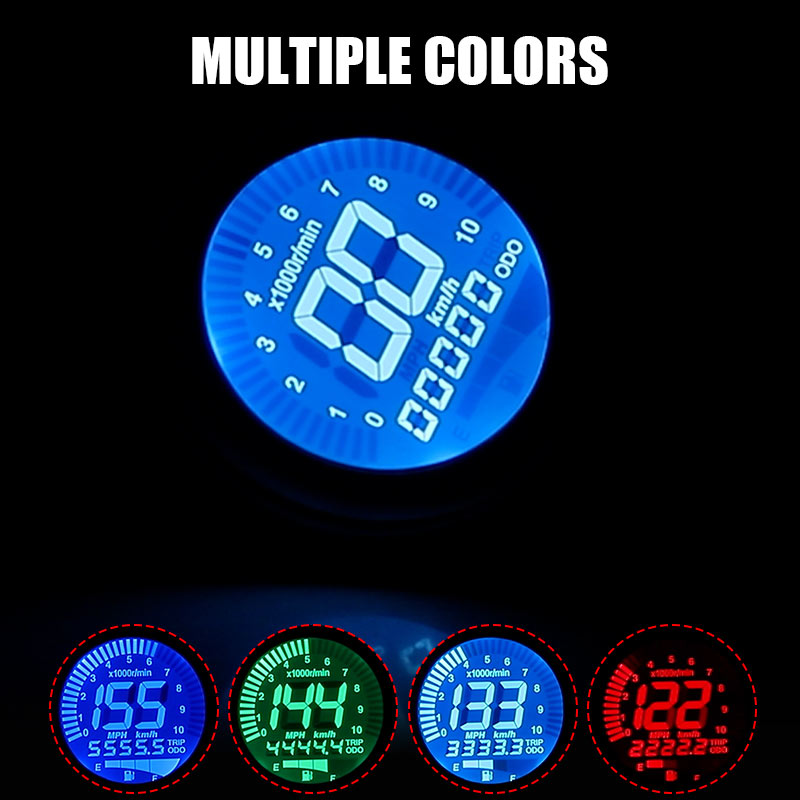

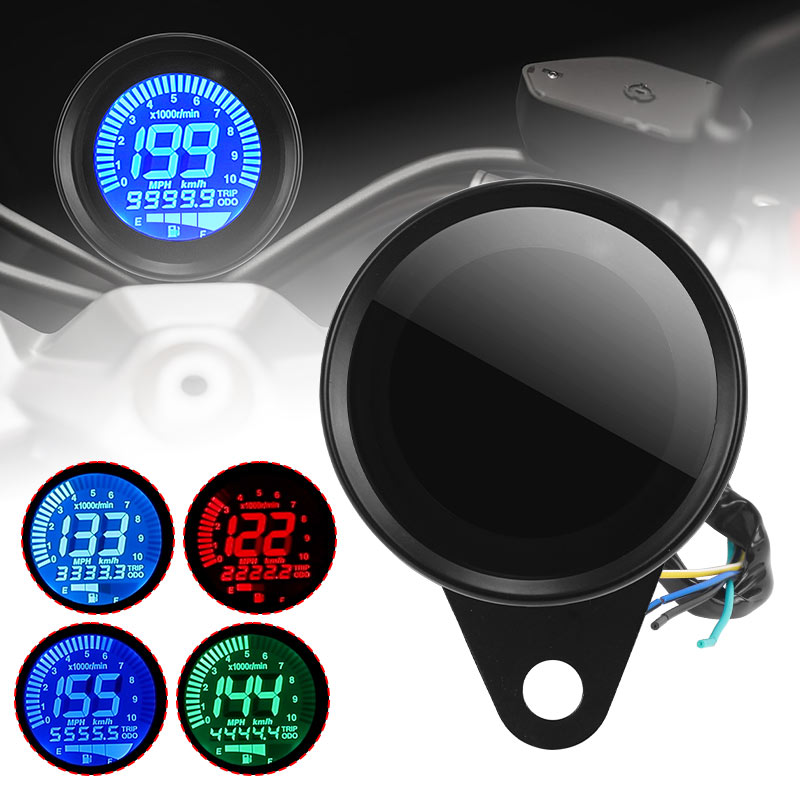

1. Light Color Switch:
7 Colors LED, press the button 3 seconds in ODO mode.
2. KM/H and MPH Switch:
(1) Keep pressing the button, then turn on the power, the screen will display "P0000". This means you have successfully entered setting mode.
(2) Long press is used to switch the digits, short click is used to change the digits. Edit the code to "P6610" and the screen displays "00466" to indicate success.
(3) Short click the button to continue, screen displays "1-001", which means KM/H setting. You can long press the button to enter edit mode.
(4)With short click, change it to "1-002", which means MPH. Long press it to exit the editing mode.
3. Number of Cylinders Setting:
(1) Steps connect to above, short click until the screen displays "2-002", means 2 cylinders.
(2) Enter the edit mode(long press the button), edit the code(short click) to "2-004" means 4 cylinders.
(3) Long press the button to exit the editing mode.
4. Fuel Gauge Setting:
(1) Steps connect to above, short click until the screen displays "3-002", indicating 2-wire oil meter.
(2) Enter edit mode(Long press the button), edit the code(short click) to "3-003", indicating 3-wire oil meter.
(3) Long press the button to exit the editing mode.
(4) Short click to continue the operation and finish.
