Camshaft Timing Tool Kit Compatible with Ford Land Rover Explorer Mustang Ranger Mountaineer Mazda B4000 4.0L 4015CC SOHC 12V V6
- This ford 4.0 timing tool kit Compatible with 4.0L 4015CC SOHC 12V V6 engine，2004-2010 Ford Explorer//2004-2010 Ford Ranger// 2004-2010 Ford Mustang//2004-2010 Ford Land Rover/ /2004-2010 Ford L3// 2004-2010 Ford Mountaineer.
- OEM no. ref: 303-564, 303-571, 303-575, 303-576, 303-577, 303-578
- Designed for the chain driven 4.0 direct injection petrol engines which fitted with variable valve timing. Help you to install the timing kits properly, especially for making sure the accuracy of synchronization of the time in the engine.
- Made of high-quality material, high hardness, have long service life.
- Comes with a durable carrying case for easy transport and storage.
Product description
DAYUAN Engine Timing Took Kit
Use the kit to achieve accurate timing. Constructed from 45# steel for maximal strength and corrosion-resistant longevity.
Compatibility
97-10 FORD EXPLORER 4.0L 245CID SOHC V6, VIN Code "E","K"
01-05 FORD EXPLORER SPORT TRAC 4.0L 245CID SOHC V6, VIN Code "E","K"
01-10 FORD RANGER 4.0L 245CID SOHC V6, VIN Code "E","K"
05-06 FORD MUSTANG 4.0L 245CID SOHC V6, VIN Code "E","K"
98-10 MERCURY MOUNTAINEER 4.0L 245CID SOHC V6, VIN Code "E","K"
01-06 MAZDA B4000 4.0L 4016cc SOHC V6, VIN Code "E"
Package Include

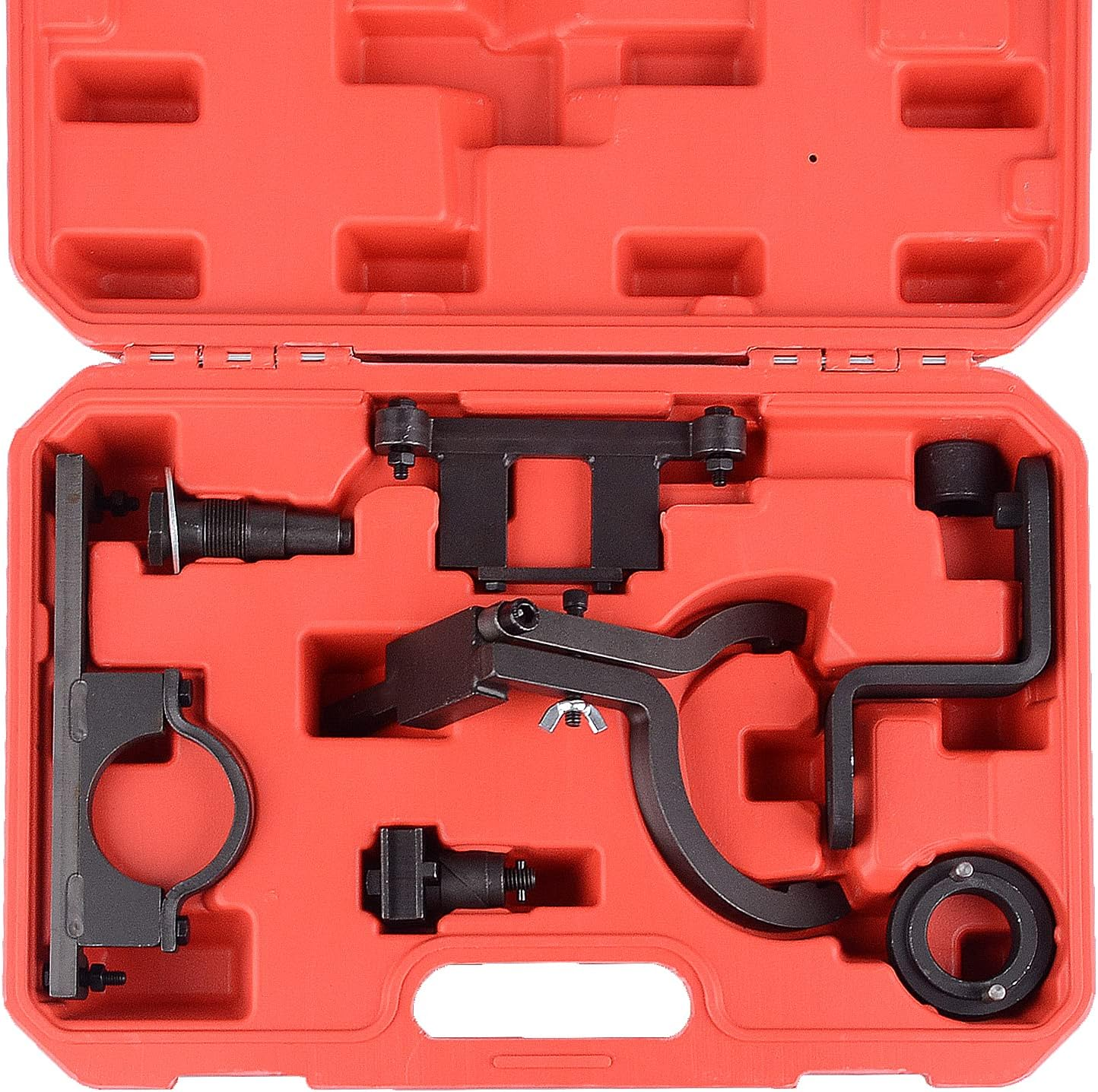

- Crankshaft Top Dead Center Timing Tool 303-573
- Camshaft Gear Holding Tool Adapter 303-578
- Timing Chain Tensioner Tool 303-571
- Torque Wrench Extension 303-575
- Camshaft Sprocket Bolt Socket 303-565
- Camshaft Gear Holding Tool 303-564
- Camshaft Holding Tool 303-577
- Camshaft Holding Tool Adapter 303-576
Cam Gear Holding Tool & Adapter
1. Install tool No. 303-564 and 303-578 on the camshaft as shown.
2. Secure tool No. 303-564 to the cylinder head.
3. Service the timing chain as required according to instructions in the vehicle service manual.
4. Torque fasteners to factory specifications.
Crankshaft Holding Tool
1. Install tool No. 303-573 on the crankshaft damper.
2. Rotate the engine counterclockwise (CCW) until the tool stops against the engine block.
3. Service the timing chain as required according to instructions in the vehicle service manual.
4. Torque fasteners to factory specifications.
Cam Holding Tool & Adapter
1. Install tool Nos. 303-577 and 303-576 on the camshaft as shown.
2. Secure tool No. 303-577 to the cylinder head.
3. Service the timing chain as required according to instructions in the vehicle service manual.
4. Torque fasteners to factory specifications.
Cam Gear Bolt Socket & Ext. & Timing Chain Tension Tool
1. Remove the hydraulic chain tensioner from the engine.
2. Install tool No. 303-571 into the engine to hold pressure on the timing chain during the cam timing procedure.
3. Adjust camshaft timing according to instructions in the vehicle service manual. Torque fasteners to factory specifications.
4. Assemble the No. (303-565 & 303-575) socket and extension on the camshaft gear bolt as shown. Removal: Use a ratchet or breaker bar to loosen and remove the bolt from the camshaft. Assembly: Use a torque wrench to tighten the bolt on the camshaft. Refer to the vehicle service manual for the correct torque specifications.
303-564 578
303-573
303-577 576
303-565 575 303-571
