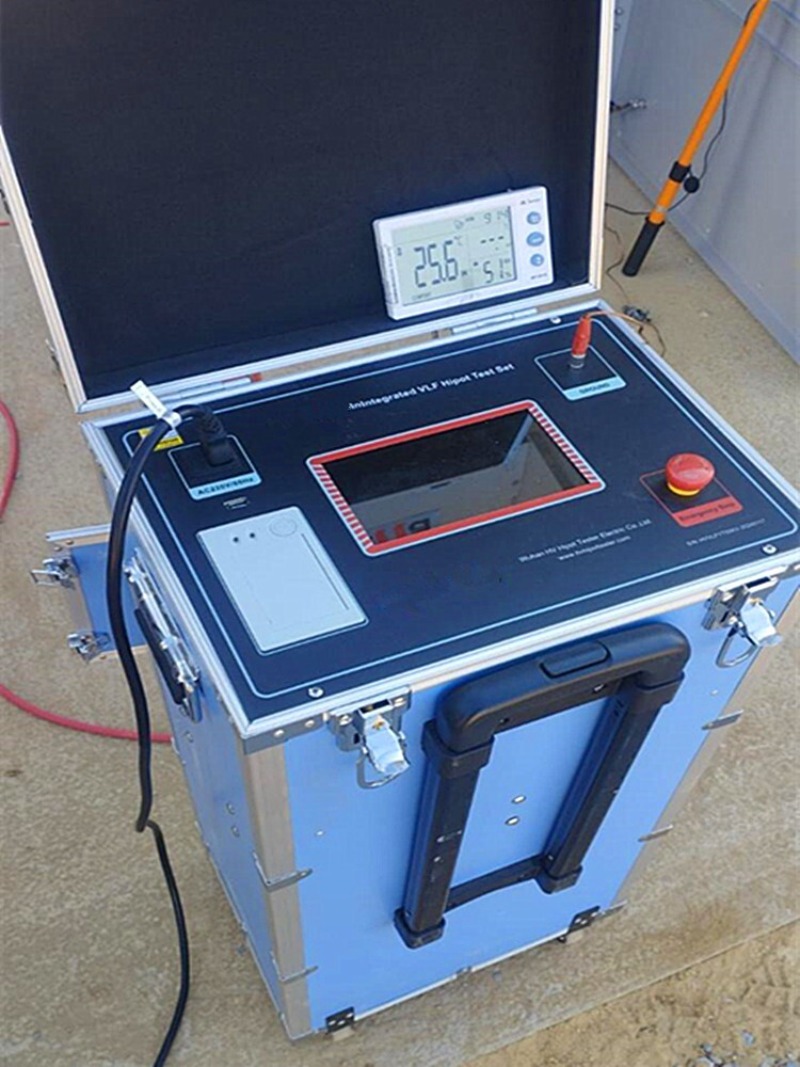

30kV Integrated VLF Hipot Test Set Power Cable Hipot Test Set

Product Description

Product Overview:

The ultra-low frequency insulation withstand voltage test is actually an alternative method to the power frequency withstand voltage test. When conducting power frequency withstand voltage tests on large and medium-sized generators, motors, power cables, and other test samples, large capacity test transformers or resonant transformers are required due to the large capacitance of their insulation layers. These huge devices are not only bulky and expensive, but also very inconvenient to use. In order to solve this contradiction, the international community generally adopts the method of reducing the test frequency, thereby reducing the capacity of the test power supply. From years of theoretical and practical experience both domestically and internationally, it has been proven that replacing the power frequency withstand voltage test with a 0.1Hz ultra-low frequency withstand voltage test not only achieves the same equivalence, but also greatly reduces the size and weight of the equipment. In theory, the capacity is about one fifth of the power frequency, and the operation is simple. This is the main reason why this method is widely adopted.
The new generation of integrated 0.1Hz ultra-low frequency high voltage generator developed by our company adopts the latest power electronic components and ARM7 microcontroller technology, further reducing the size and weight of the equipment. It is easy to operate and has more stable performance, overcoming the disadvantages of short service life, high failure rate, and large volume of the first generation mechanical booster. Through years of practice, feedback from a large number of users has shown that this series of ultra-low frequency high-voltage technology is leading in the country and has the highest cost-effectiveness!

Rated Output Voltage 30kV (Peak), 40kV (Peak)
Output Frequency 0.1Hz, 0.05Hz, 0.02Hz
Load Capacity 0.1Hz: ≤1.1µF; 0.05Hz: ≤2.2µF; 0.02Hz: ≤5.5µF
Measurement Accuracy ±3%
Voltage Peak Error (Positive/Negative) ≤3%
Voltage Waveform Distortion ≤5%
Operating Environment Indoor/Outdoor; Temperature: -10℃~+40℃; Humidity: ≤85%RH
Power Supply AC 220V±5%, 50Hz±5% (Generator power ≥3kW if used)
Power Fuse 10A

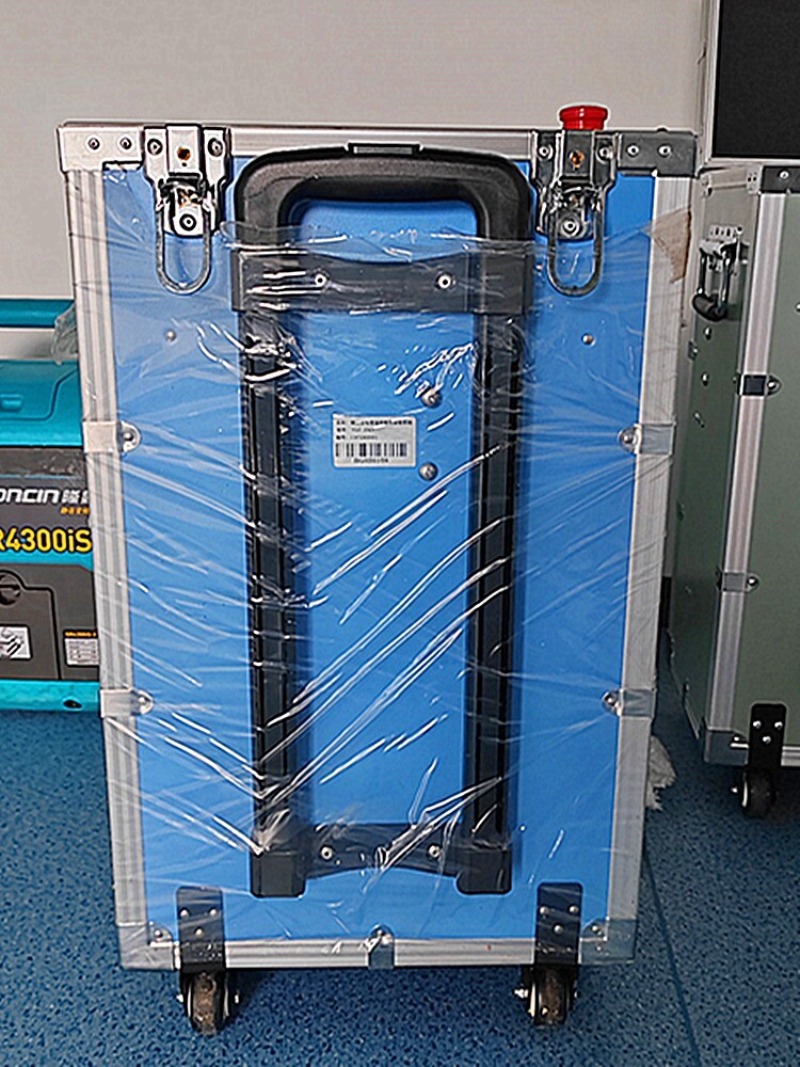

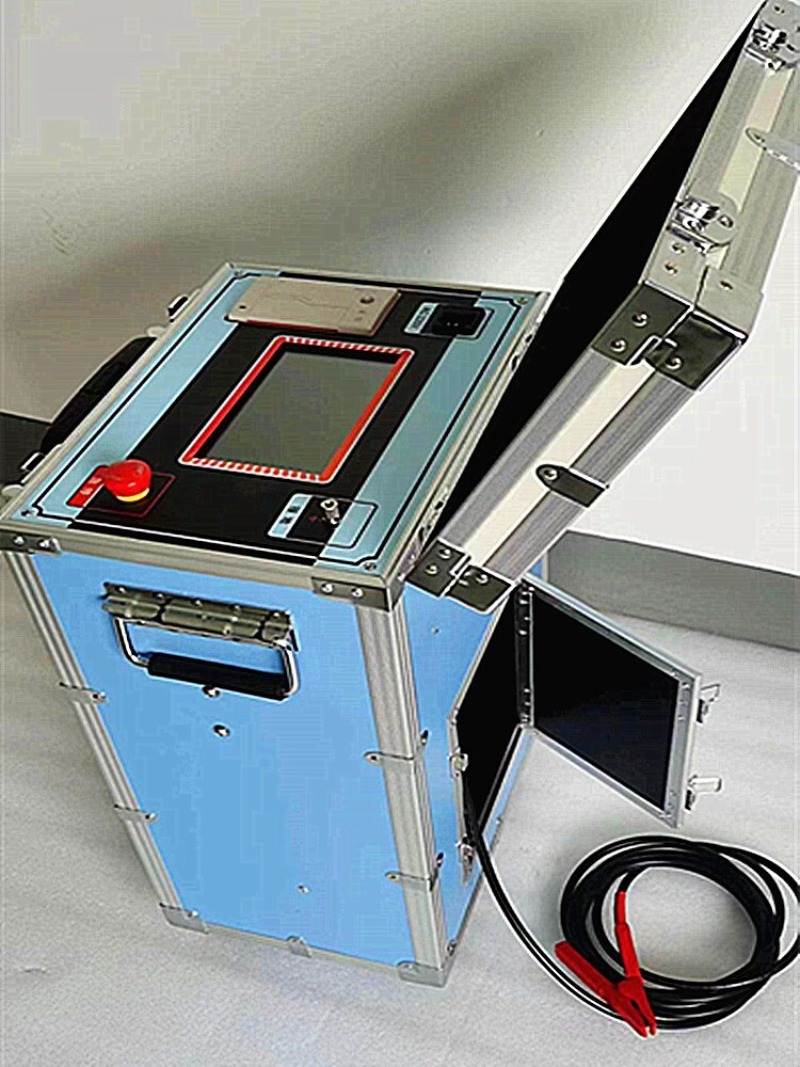

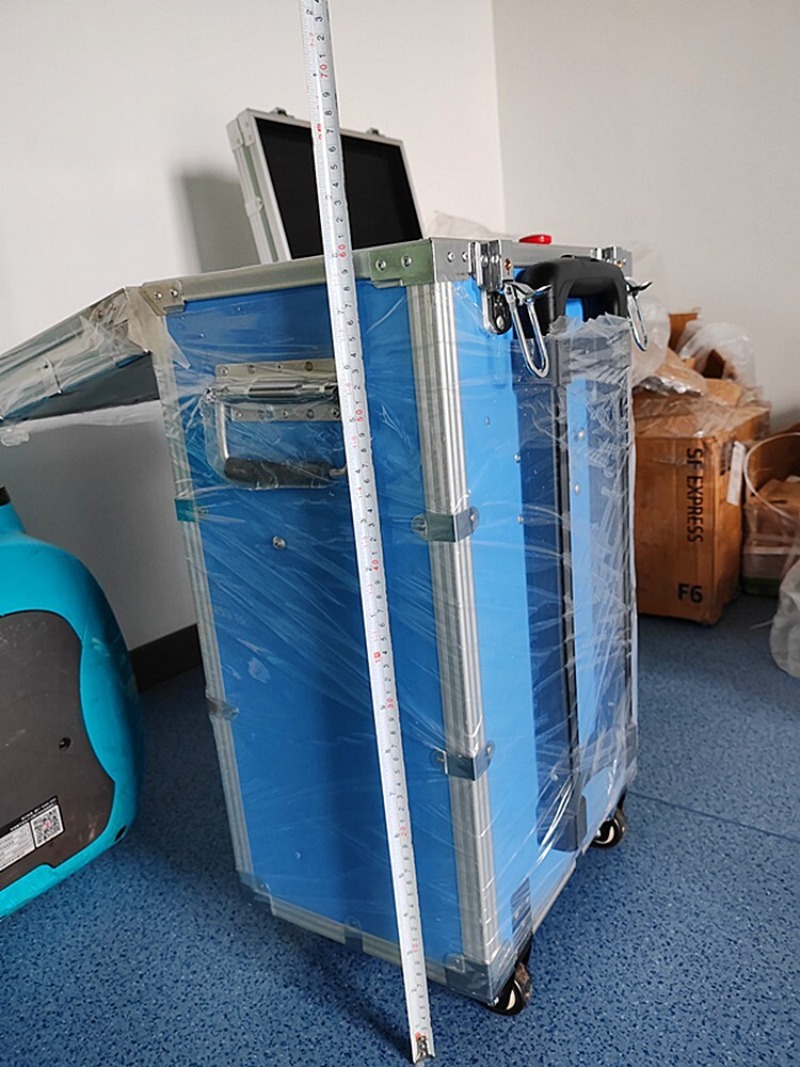

Product Structure & Weight All-in-One Design, 35kg
Maximum Test Object Capacitance ≤5.5µF (Consistent with maximum load capacity at 0.02Hz)


Features and Functions:

1. Advanced technology: adopting digital frequency conversion technology, microcomputer control, fully automated testing processes such as boosting, lowering, measurement, and protection.

2. Easy to operate: simple wiring and convenient operation.

3. Comprehensive protection: Multiple protections (overvoltage protection, high and low voltage side overcurrent protection), quick action (action time ≤ 10ms), instrument safety and reliability.

4. Safe and reliable: The controller and high-voltage generator are connected at low voltage, with photoelectric control, ensuring safe and reliable use.

5. Adopting high and low voltage closed-loop negative feedback control circuit, the output has no capacitance rise effect.

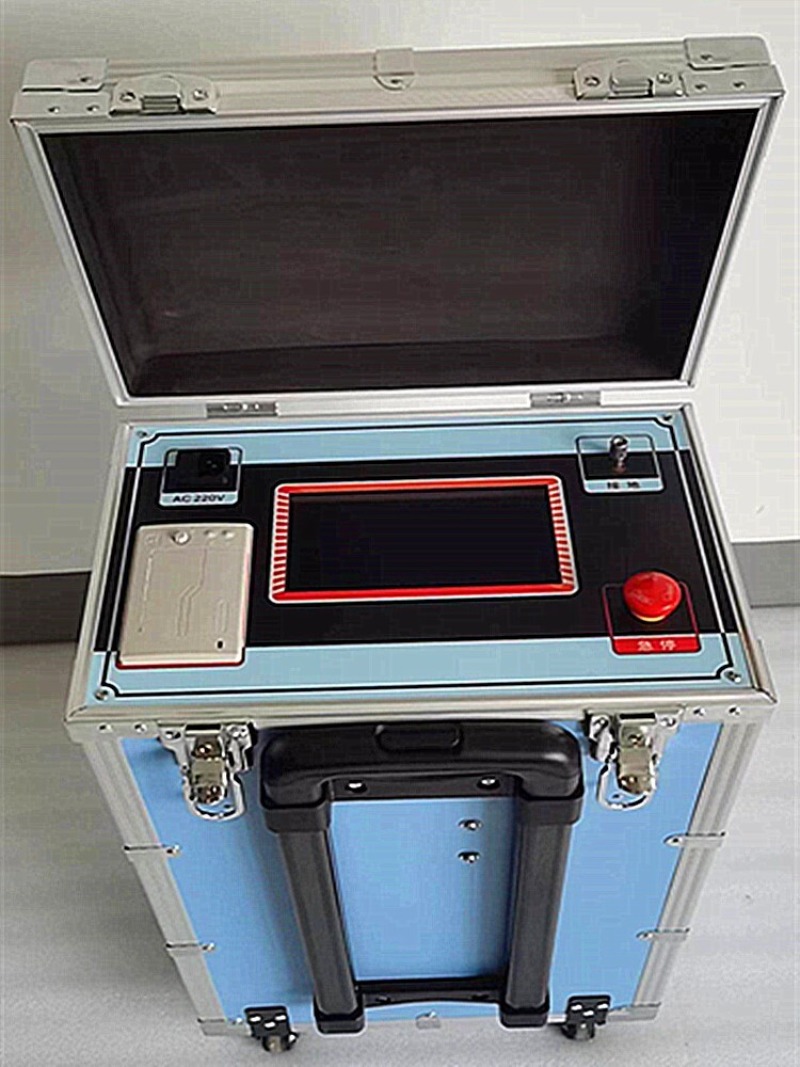

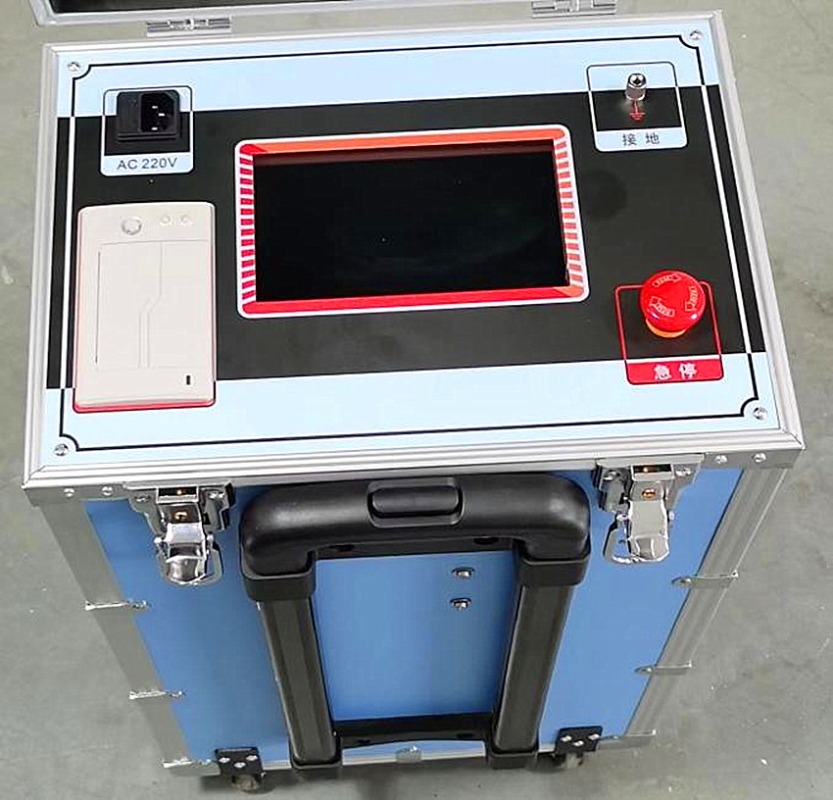

6. Complete configuration: capacitive touch screen, LCD Chinese character display, automatic storage, automatic printing.

7. Large testing range: Multiple frequency options of 0.1Hz, 0.05Hz, and 0.02Hz provide a wide testing range.

8. Small size and light weight: very conducive to outdoor operations
