Vehical Fitment:
1960-1965 Chevy Biscayne All Engines
1959-1963 Chevy Impala All Engines
1963-1965 Chevy Belair All Engines
1964-1965 Chevy Chevelle All Engines
1959-1962 Chevy Kingswood All Engines
1959-1960 Chevy El Camino /Cabellero All Engines
1964-1965 Chevy El Camino /Cabellero All Engines
1959-1962 Chevy Caprice All Engines
PLS NOTE:Only with BOTH Hoses On Passenger Side
Transmission: Automatic and Manual.
Radiator Configuration:
2-Row of tubes Core Racing Design
Core Dimensions: 16 1/2'' HIGHX 24 3/4''WIDE
OVERALL SIZE: 21 3/4" HIGH X 28" WIDE
Inlet Hose Connection: 1 1/2" Passenger Side
Outlet Hose Connection: 1 3/4" Passenger Side
MOUNTING BRACKET BOLT HOLE SPECS: 26 3/4" WIDE CENTER TO CENTER
Transmission Oil Cooler: ¢26×305×1/4-18NPT(T)
Description:

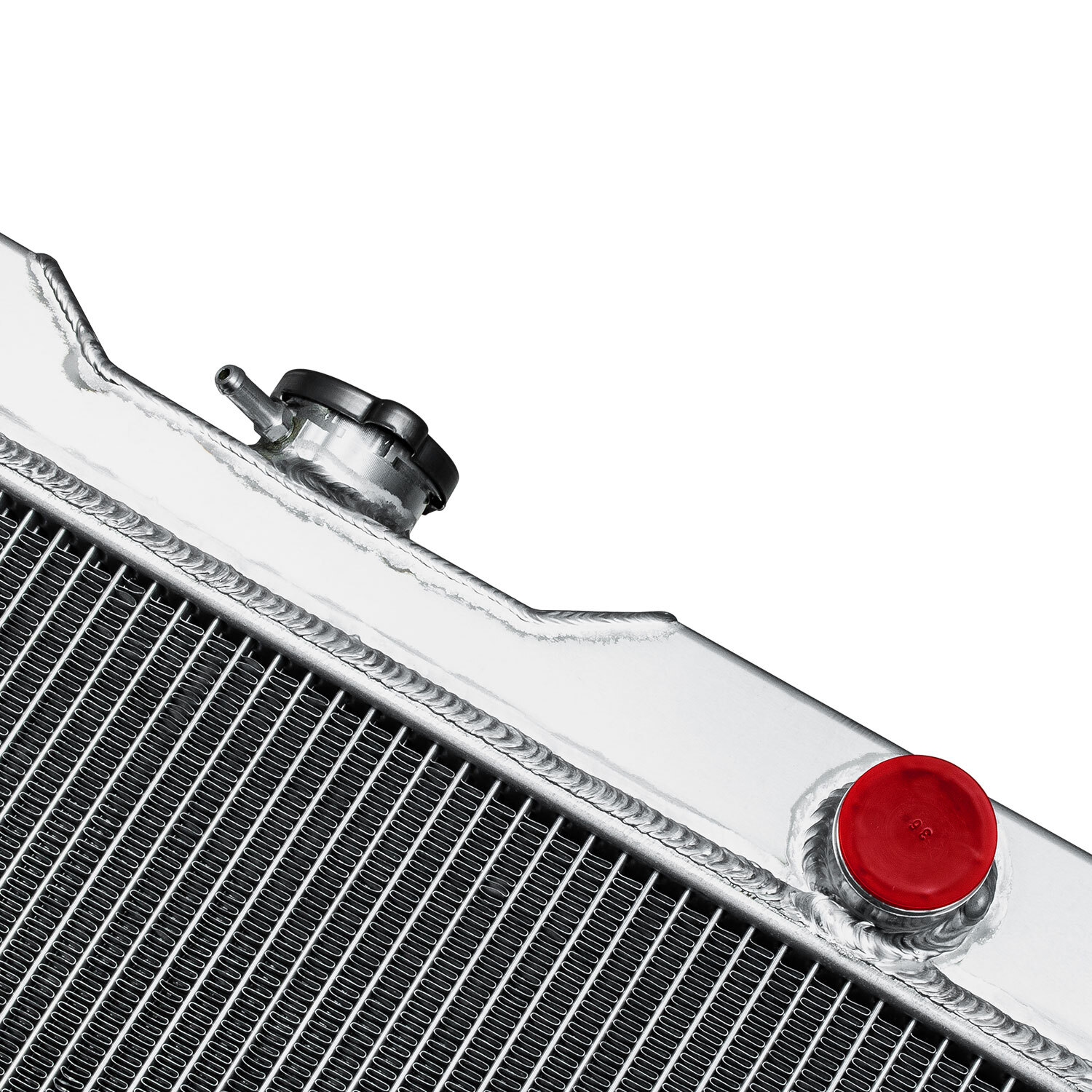

This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.










Vehical Fitment:
1960-1965 Chevy Biscayne All Engines
1959-1963 Chevy Impala All Engines
1963-1965 Chevy Belair All Engines
1964-1965 Chevy Chevelle All Engines
1959-1962 Chevy Kingswood All Engines
1959-1960 Chevy El Camino /Cabellero All Engines
1964-1965 Chevy El Camino /Cabellero All Engines
1959-1962 Chevy Caprice All Engines
PLS NOTE:Only with BOTH Hoses On Passenger Side
Transmission: Automatic and Manual.
Radiator Configuration:
2-Row of tubes Core Racing Design
Core Dimensions: 16 1/2'' HIGHX 24 3/4''WIDE
OVERALL SIZE: 21 3/4" HIGH X 28" WIDE
Inlet Hose Connection: 1 1/2" Passenger Side
Outlet Hose Connection: 1 3/4" Passenger Side
MOUNTING BRACKET BOLT HOLE SPECS: 26 3/4" WIDE CENTER TO CENTER
Transmission Oil Cooler: ¢26×305×1/4-18NPT(T)
Description:
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
