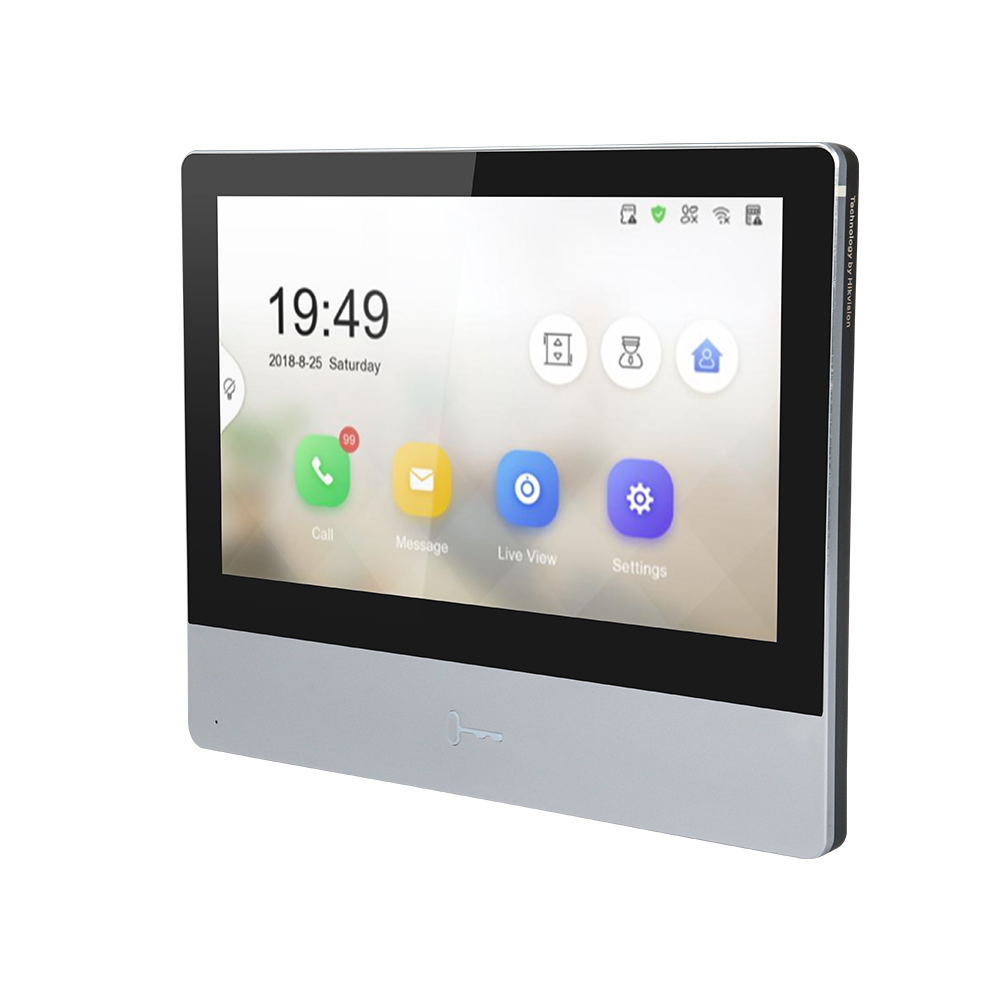

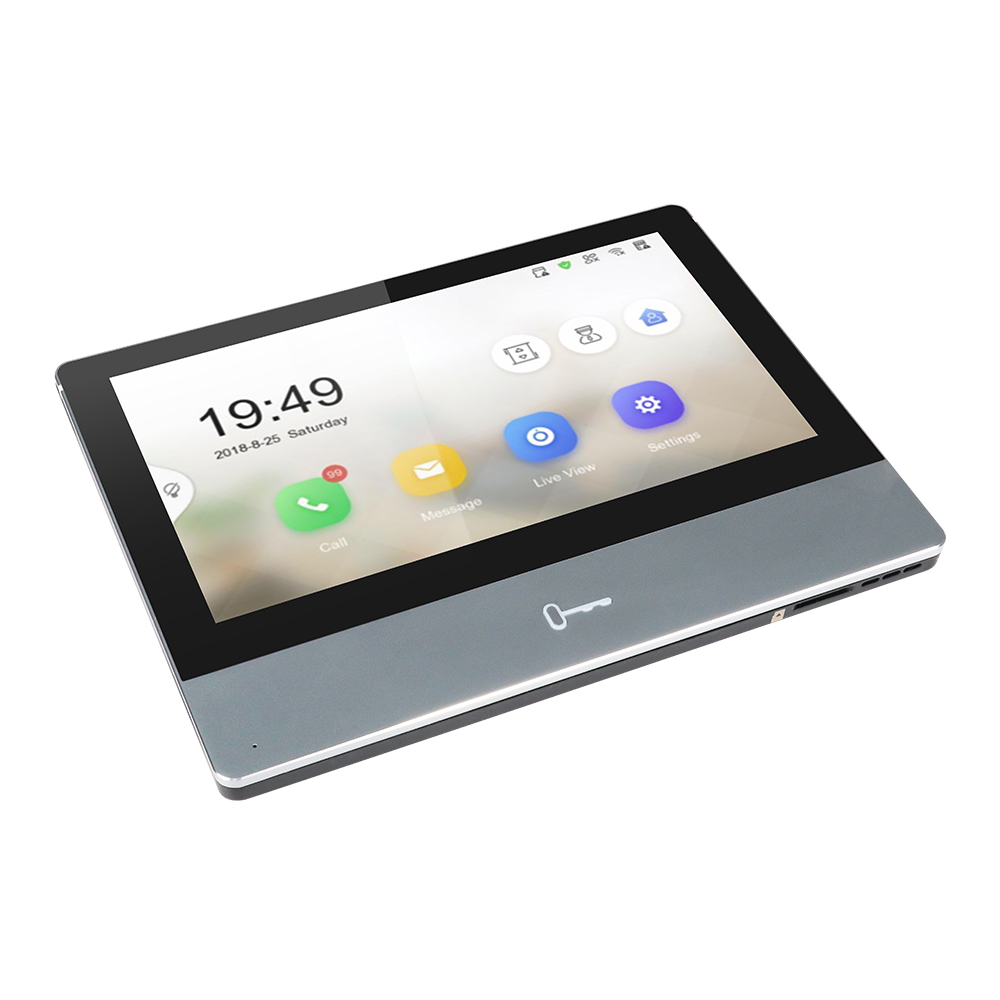

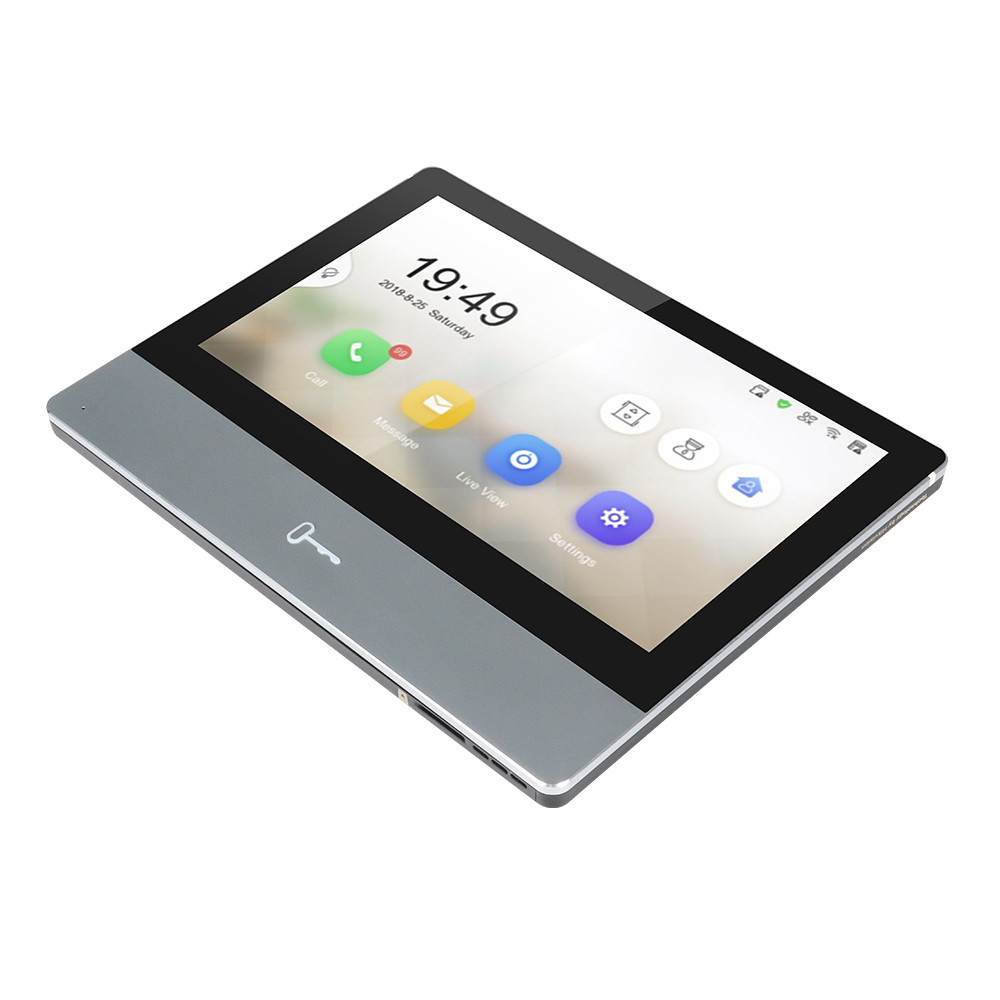

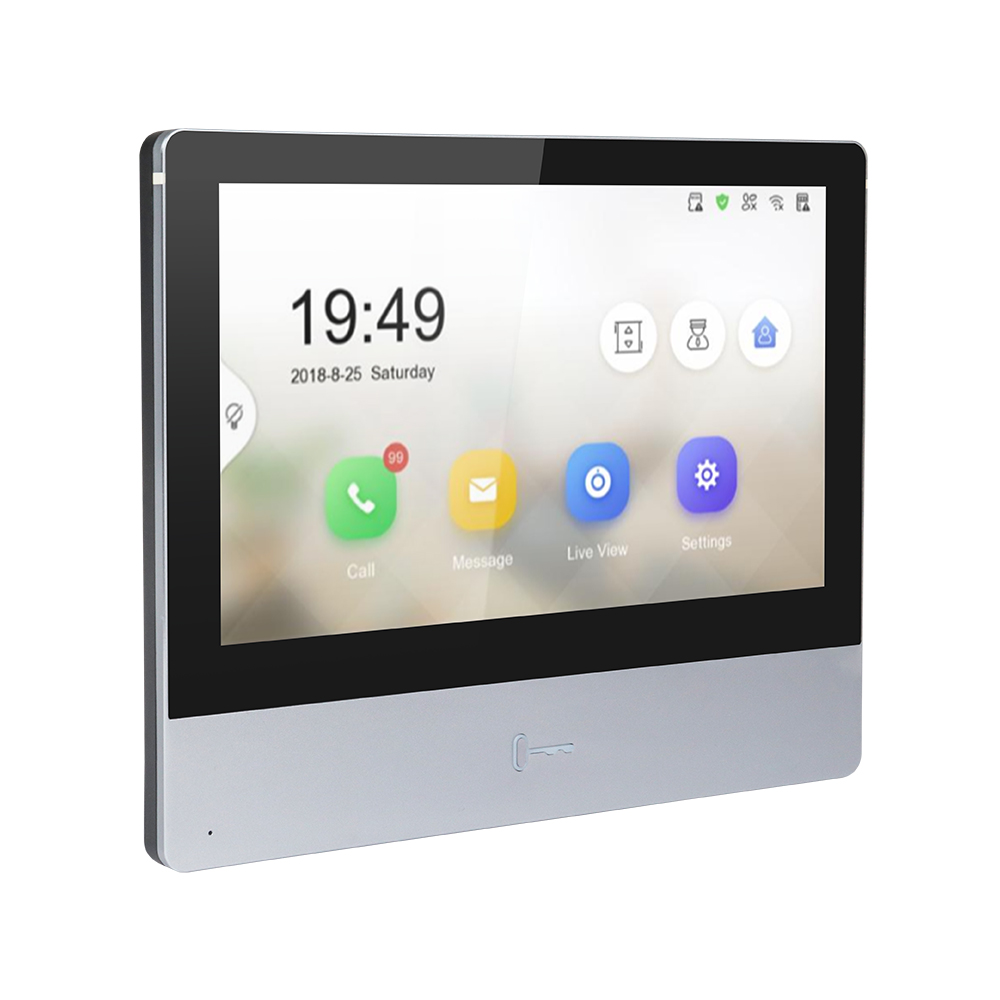

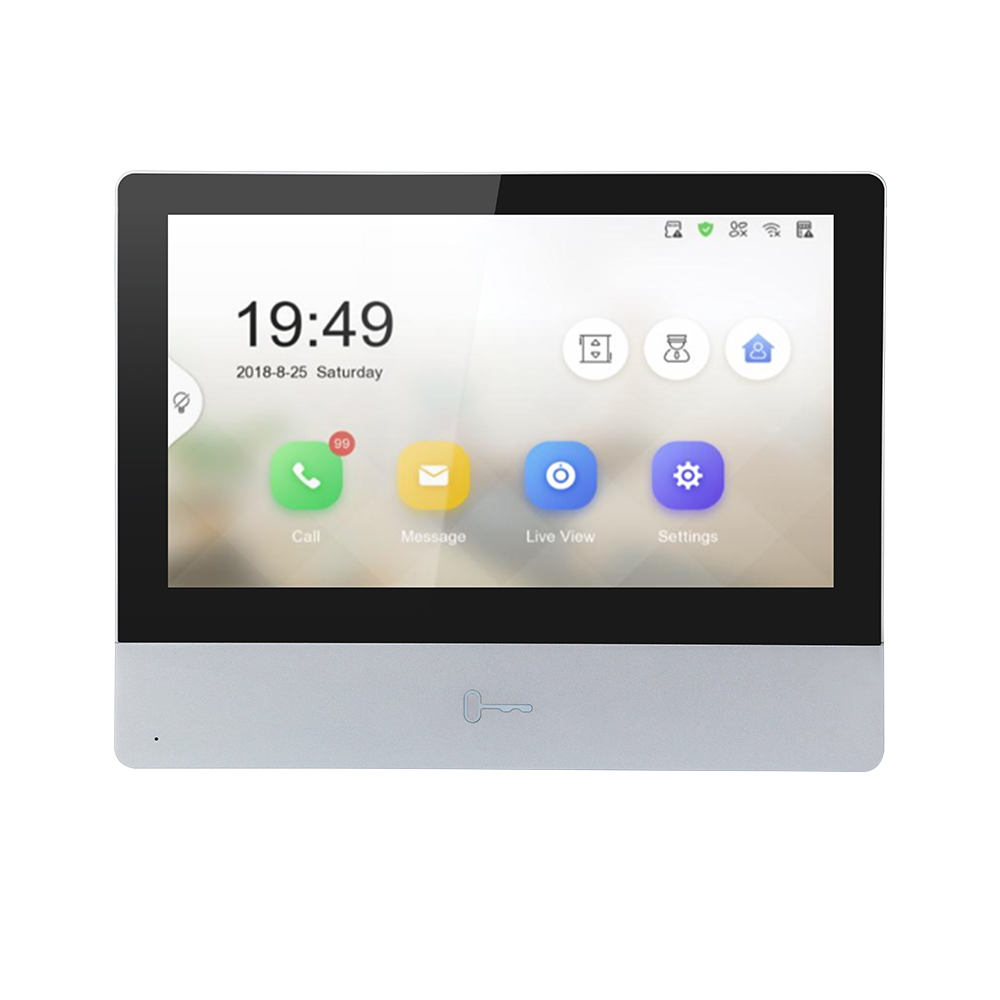

Product Description
Features:

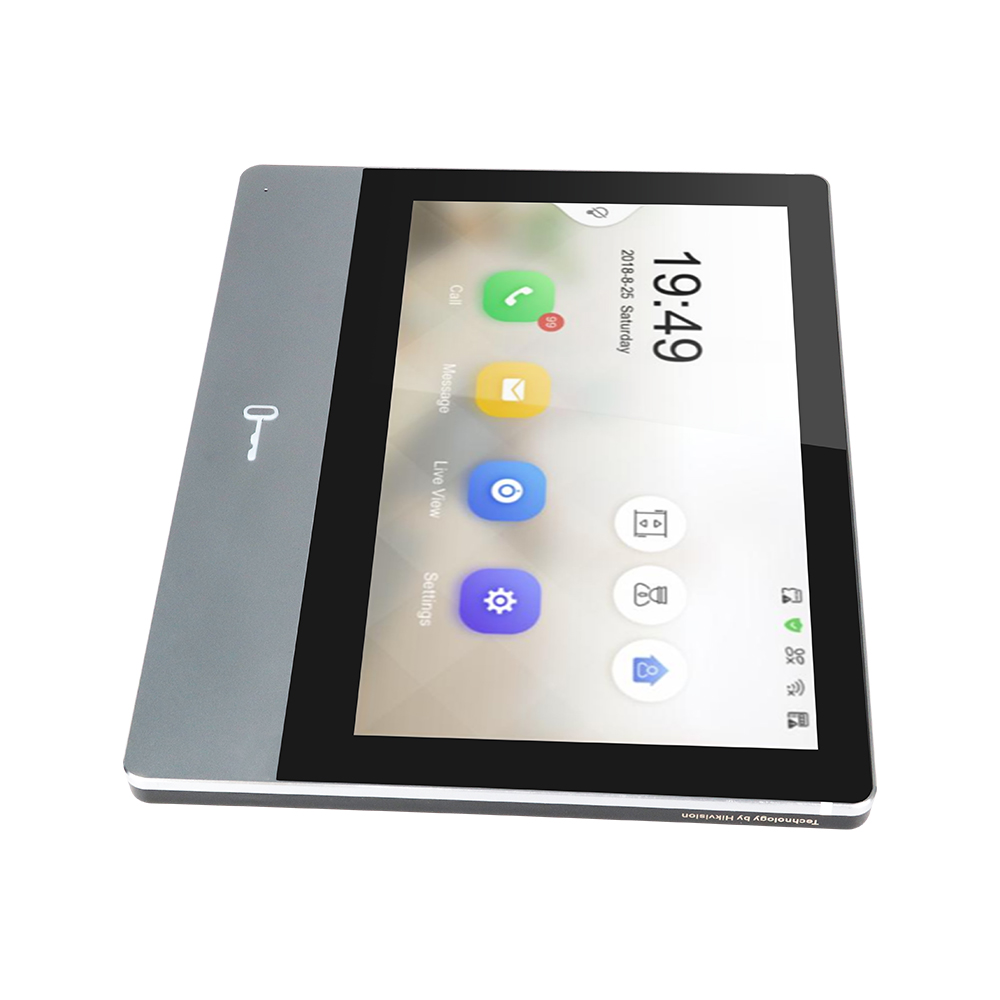

✅ 7-inch IPS touch screen with 1024 × 600 resolution
✅ Reddot award winner
✅ Convenient Hik-Connect APP mobile control
✅ Receive calls, open the door and live view remotely
✅ Easy to use without PC
✅ Easy wizard for quick setup
✅ Configure the whole system on one touch screen
✅ Rich functions and extensions
✅ Live-view of the door station and cameras in public areas
✅ Support voice messages when no response from the indoor station
✅ Receive alarms by internal alarm terminals
✅ Elevator access control
| System Parameters | |
|---|---|
| Operation System | Linux |
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embedded high performance processor |
| Display Parameters | |
| Screen Size | 7-inch |
| Operation method | Capacitive touch screen |
| Type | Colorful IPS |
| Resolution | 1024 × 600 |
| Video Parameters | |
| Lens | / |
| Resolution | / |
| FOV | / |
| Wide dynamic range (WDR) | / |
| Video compression standard | / |
| Focal length | / |
| Audio Parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711 U、G.711 A、G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio Input | Built-in omnidirectional microphone |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Notice capacity | 200 |
| Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | 17 |
| Linked network camera capacity | 16 |
| Network Parameters | |
| Network protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | / |
| 3G/4G | / |
| Zigbee | / |

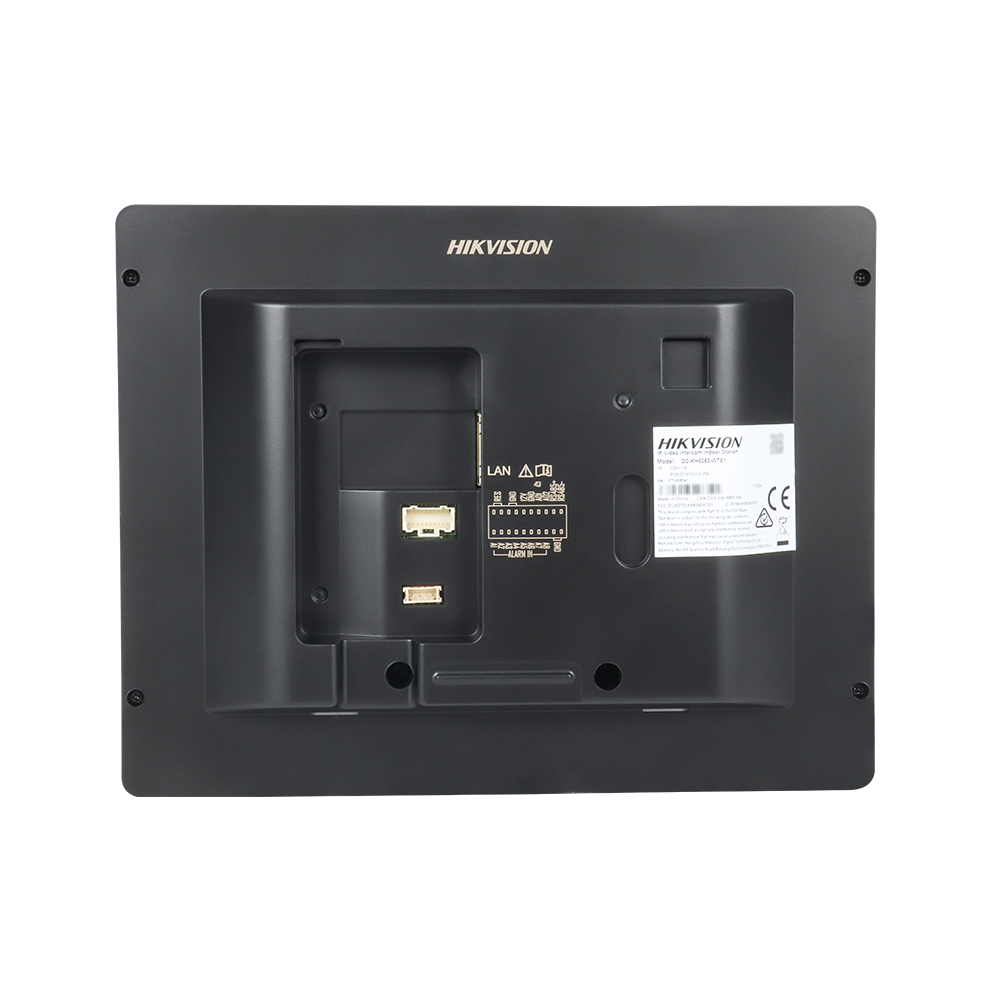

| Device interfaces | |
| Alarm input | 8 |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| TAMPER | / |
| RS-485 | 1 RS-485 (Half duplex) |
| USB | / |
| TF card | Support TF card, up to 128 G |
| Alarm output | 2 |
| Lock control | 2 high/low level relays (3.3V/0V) |
| General | |
| Button | 1 physical button |
| Installation | Surface mounting |
| Indicator | / |
| Net weight | 355 g (0.8 lb) |
| Gross weight | 899 g (2.0 lb) |
| Protective level | / |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% (no-condensing) |

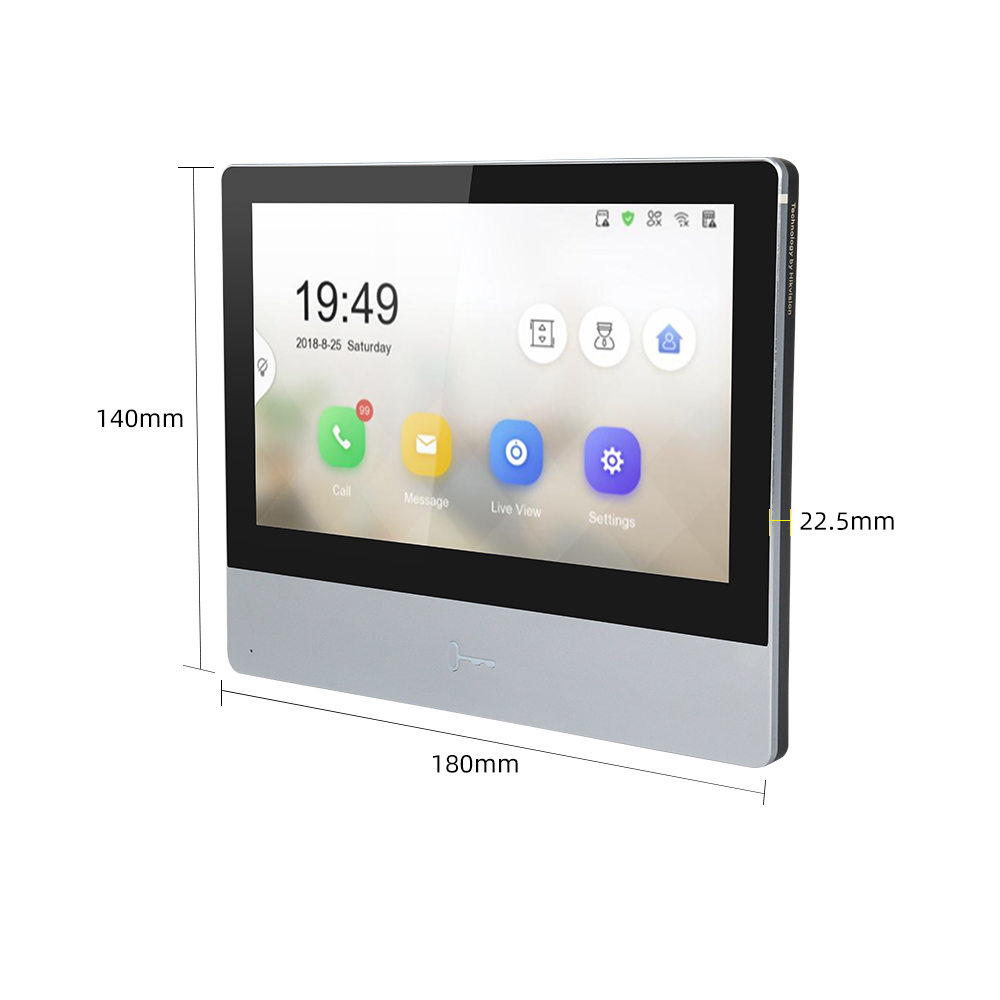

| Dimension (W × H × D) | 180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88") |
| Battery | / |
| Power supply | 12 VDC, 1 A, IEEE802.3af, standard PoE |
| Application environment | Indoor |
| Power consumption | ≤ 8 W |
| Language | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
