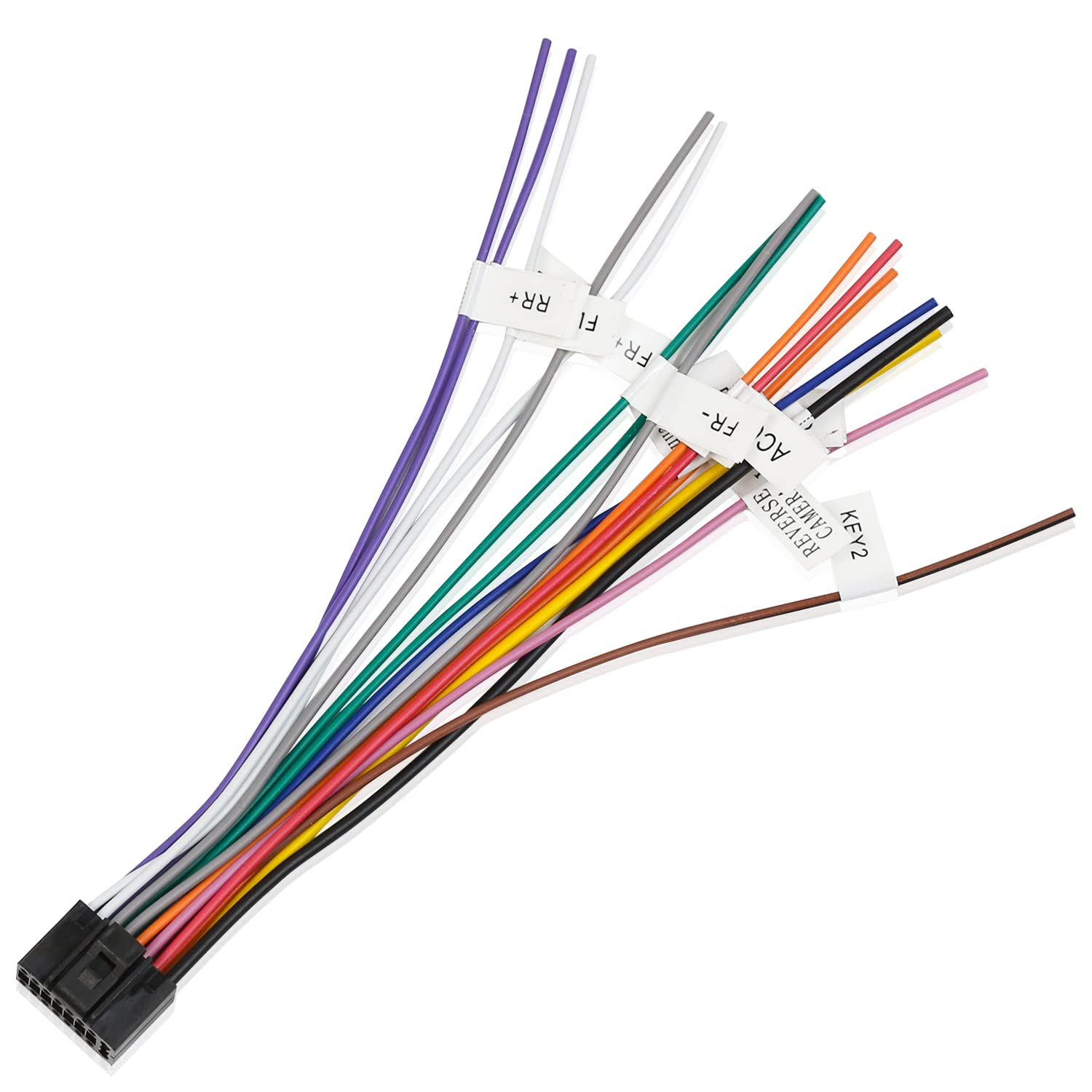

Adaptador De Arnes De Cableado Para Radio Android Conector Y Etiquetas Completas
Description
| Item Weight | 20 Grams |
| Material | ABS+Copper |
| Item dimensions L x W x H | 7.48 x 0.79 x 0.59 inches |
| Connector Type | Solder |
- 16 Pin ISO Radio Harness for Car Stereo: Universal radio power adapter can use for all most android head unit with standard 16pin power sockets
- Color Coded Universal Radio Wire Harness: Partial cables with specific functional label, simple connect to your car's wire according to these labels. Included 4 groups speaker wires and ACC, Power positive, GND wires and other cords
- Aftermarket Radio Wiring Harness Replacement: Full ABS stereo connector and copper core android stereo wire harness adapter, easy connection and sturdy, more stable and safer, only fit for DC 12V, not for 24V cars
- Easy Installation: Without cutting any stereo wire cable, split the end pvc jacket of terminals, connect to your car's cable directly, suggest solder or heat tube connection
- Before Installation: Do not match wire color with your car radio definition or vehicle, please follow up the wire label's mention to connect with car. Please compare the power socket of the device with iso car radio wire plug 16pin, or you can check the picture of the radio's power jack
Features
Easy to plug into the stereo 16 pin power socket 2din or 1din)
Flexible pure copper stereo wires
With steering wheel and reversing camera connection wires
Convenient to peel off the PVC jacket of cable tails
Softness, high conductivity and wide compatibility
Wire Definition
ACC: Connect to ignition switch (red cable)
B+ Batteries : To battery +12V (yellow cable)
GND : To battery negative B- (black cable)
+ILL : To illuminate backlight B+
Reversing wire: To backup camera detection wire (Marked as Reverse or Back)
SW1 KEY1 : To steering wheel line 1
SWC KEY2 : To steering wheel line 2
ANT : To auto antenna (blue cable)
Green wire: Left Rear Speaker (+)
Green and Black wire: Left Rear Speaker (-)
White wire: Left Front Speaker (+)
White and Black wire: Left Front Speaker (-)
Purple wire: Right Rear Speaker (+)
Purple and Black wire: Right Rear Speaker (-)
Gray wire: Right Front Speaker (+)
Gray and Black wire: Right Front Speaker (-)
Specification
Cable length: 7.48 inches
Socket width: 0.79 inches
Socket height: 0.59 inches
Product weight: 20 g
Material: ABS and Copper
Comaptibility: Universal 1din or 2din android car stereo
Package
1x 16Pin ISO Radio Harness Adapter
