Description
ER-TFT018-3 is 128x160 pixel 1.8 inch tft lcd display panel with st7735s controller ic,optional capacitive touch panel and 4-wire resistive touch panel,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 4-wire serial spi interface. FPC with zif connector is easily to assemble or remove.
Of course, we wouldn't just leave you with a datasheet and a "good luck!" We prepared the interfacing documents,libraries and examples for arduino due,mega 2560,uno,nano and for raspberry pi or raspberry pi zero.For 8051 microcontroller user,we also prepared the interfacing document and demo code.
1.8 inch Series TFT Display List ↓
Display Part Number | Description |
1.8"TFT LCD 128x160 Pixels Display with ST7735S Controller and Breakout Board | |
1.8"TFT LCD 128x160 Pixels Display with ILI9163 Controller | |
1.8"TFT LCD 128x160 Pixels Display with ST7735S Controller | |
1.8"TFT LCD 128x160 Pixels Display with ST7735S Controller | |
1.8"TFT LCD 128x160 Pixels Display with ILI9163 Controller Breakout Board | |
1.8"TFT LCD 128x160 Pixels Display with ILI9341 Controller and Breakout Board,Arduino Shield |
What's included in the package ↓
Num | Accessory Name | Qty |
1 | 1.8" Color 128x160 TFT LCD Display Panel | 1 |
2 | ZIF (FPC) Connector | 1 |

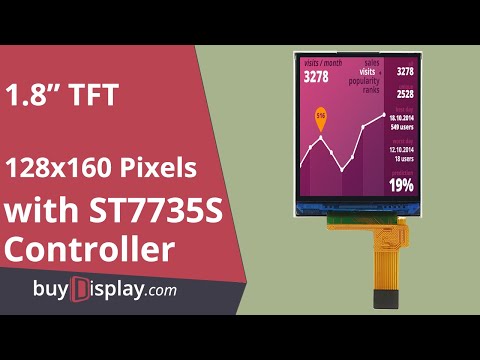

Video_ER-TFT018-3
128x160 1.8 inch Color TFT LCD Display with ST7735 Controller SPI
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Ebay doesn't allow listings to contain external links,so the documents link may be invalid. Please copy the below entire link to your browser for checking our documents(at the bottom of the page) or for bulk order.
https://www.buydisplay.com/128x160-1-8-inch-color-tft-lcd-display-with-st7735-controller-spi
Datasheet for TFT LCD Display,Controller,Connector
Format Documents Name Language Update Date Size
ER-TFT018-3 Datasheet English Jul-07-2023 642K Controller ST7735S_Datasheet English Nov-01-2011 3.0M 12 Pins 0.50mm Pitch ZIF Connector Drawing English Jul-29-2023 248K
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
| ER-TFT018-3 Datasheet | English | Jul-07-2023 | 642K |
| Controller ST7735S_Datasheet | English | Nov-01-2011 | 3.0M |
| 12 Pins 0.50mm Pitch ZIF Connector Drawing | English | Jul-29-2023 | 248K |
Tutorial - 8051 Microcontroller
Format Documents Name Language Update Date Size
8051 Interfacing and Demo Code English Jul-20-2023 263K
8051 Microcontroller Development Board & Kit for ER-TFT018-3 N/A N/A N/A
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
| 8051 Interfacing and Demo Code | English | Jul-20-2023 | 263K |
| 8051 Microcontroller Development Board & Kit for ER-TFT018-3 | N/A | N/A | N/A |
Specification
| Gross Weight (kg) | 0.0200 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2023. |
| Part Number | ER-TFT018-3 |
| Display Format | 128x160 Pixels |
| Interface | 4-Wire Serial SPI |
| IC or Equivalent | ST7735S |
| Appearance | RGB on Black |
| Diagonal Size | 1.8“ |
| Connection | FPC-Connector |
| Outline Dimension | 33.00(W)x42.50(H)x2.15(T)mm |
| Visual Area | 29.43x36.44mm |
| Active Area | 28.03(W)x35.04(H)mm |
| Character Size | No |
| Dot (Pixel) Size | No |
| Dot (Pixel) Pitch | 0.218x0.219mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Response Time(Typ) | 12ms |
| Contrast Ratio(Typ) | 300:1 |
| Colors | 4K/65K/262K |
| Viewing Direction | No |
| Viewing Angle Range | Left:50.0 , Right:50.0 , Up:40.0 , Down:40.0 degree |
| Brightness(Typ) | 200cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 30mA |
| Power Supply(Typ) | 3V |
| Supply Current for LCM(Max) | No |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Series Number | ER-TFT018-3 |
