Description
ER-TFT013-2 is 240x240 pixel 1.3" IPS tft lcd display panel with ST7789V2 controller,super wide viewing angle, superior display quality, and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 4-wire serial spi interface with soldering type FPC,no connector is needed.
The ER-TFT013-2 is equipped with an optional capacitive touch screen, allowing users to interact with the display by touching it with bare fingers. It is also provided with an optional FPC connector. We recommend using this 8051 MCU development board (ER-DBT013-2-CTP) for testing.

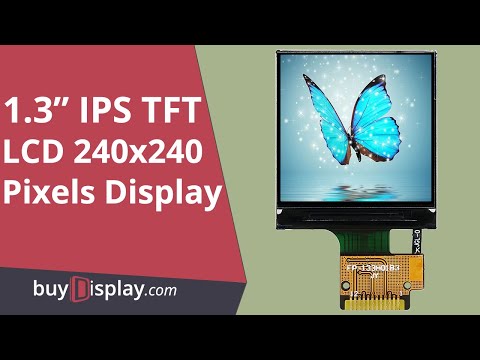

Watch Video
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Touch Panel Option (Packing List)
Option No. | Accessory Name | Qty |
1 | with No Touch Panel | 1 |
2 | with Capacitive Touch Panel and 16pin FPC Connector | 1 |
Ebay doesn't allow listings to contain external links,so the documents link may be invalid. Please copy the below entire link to your browser for checking our documents(at the bottom of the page) or for bulk order.
https://www.buydisplay.com/1-3-inch-tft-lcd-display-ips-square-panel-screen-240x240-for-smart-watch
Datasheet for Display
Format Documents Name Language Update Date Size
ER-TFT013-2_Datasheet English Aug-21-2025 925K Controller ST7789V2 Datasheet English Nov-01-2016 3.0M Capacitive Touch Panel Controller CST816_Datasheet English Jun-05-2017 575K 16 Pins 0.40mm Pitch ZIF Connector for Touch Panel English Sep-27-2016
445K
Tutorial- 8051 Microcontroller
Format Documents Name Language Update Date Size
8051 Interfacing and Demo Code English Aug-21-2025 890K
Datasheet for Display
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
| ER-TFT013-2_Datasheet | English | Aug-21-2025 | 925K |
| Controller ST7789V2 Datasheet | English | Nov-01-2016 | 3.0M |
| Capacitive Touch Panel Controller CST816_Datasheet | English | Jun-05-2017 | 575K |
| 16 Pins 0.40mm Pitch ZIF Connector for Touch Panel | English | Sep-27-2016 | 445K |
Tutorial- 8051 Microcontroller
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
| 8051 Interfacing and Demo Code | English | Aug-21-2025 | 890K |
| Gross Weight (kg) | 0.0180 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2021. |
| Part Number | ER-TFT013-2 |
| Display Format | 240x240 Pixels |
| Interface | 4-wire SPI |
| IC or Equivalent | ST7789 |
| Appearance | RGB |
| Diagonal Size | 1.3“ |
| Connection | Soldering FPC |
| Outline Dimension | 26.16(W)x29.22(H)x1.5(T)mm |
| Visual Area | 25.08x28.40mm |
| Active Area | 23.40(W)x23.40(H)mm |
| Dot (Pixel) Pitch | 0.097x0.097mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 4K/65K/262K |
| Viewing Direction | IPS |
| Viewing Angle Range | Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree |
| Brightness(Typ) | 350cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 30mA |
| Power Supply(Typ) | 3V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
