Ultra Compact 3G SDI NDI Video Streaming Encoder Decoder 1080P60 NDI Converter PC-Free
Description:

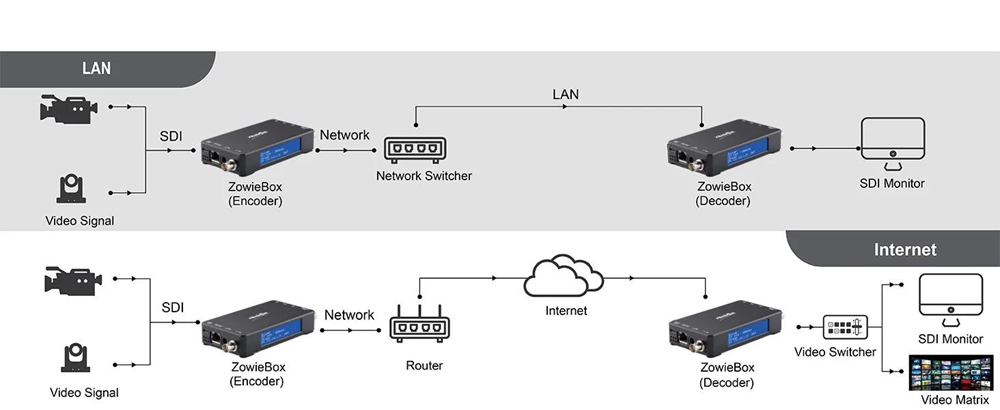

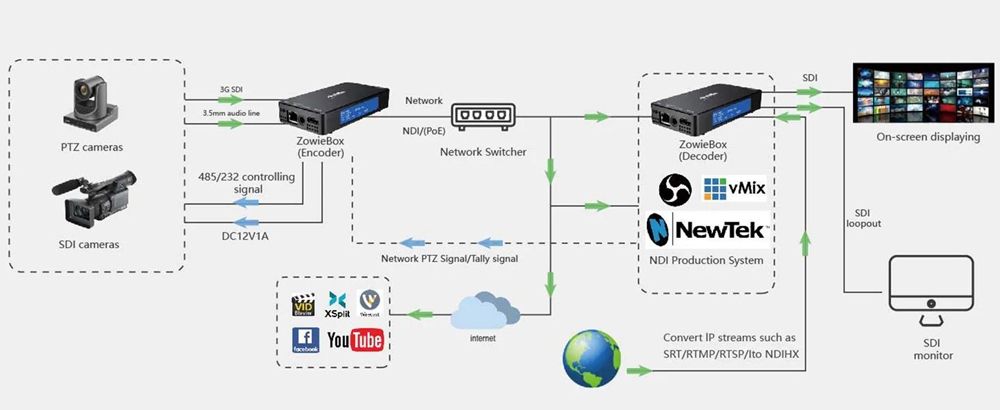

- It is a hardware SDI encoder/decoder, is both a video streaming codec and an NDI|HX3 (Certified) converter. It can standalone stream professional broadcast video PC-free, providing a flexible and affordable solution to stream high-quality videos over the internet.

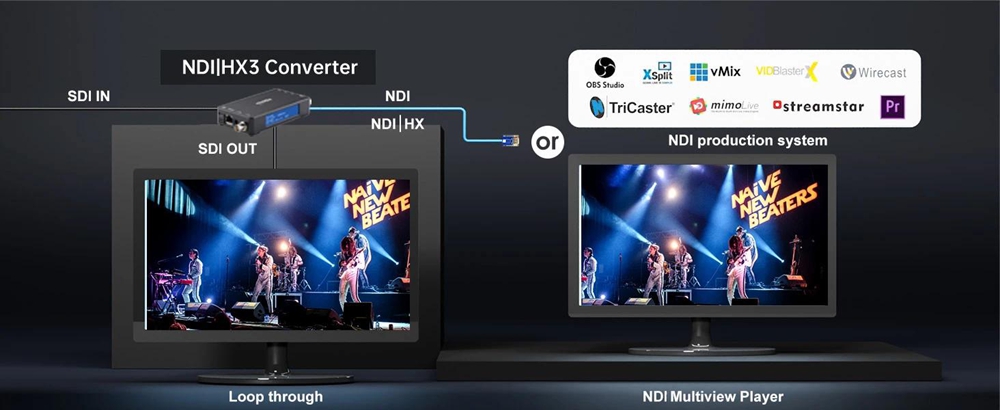

- Encode SDI signal to NDI|HX3/HX2/HX (No full NDI, No NDI|HB). Loop through SDI signal to monitors.

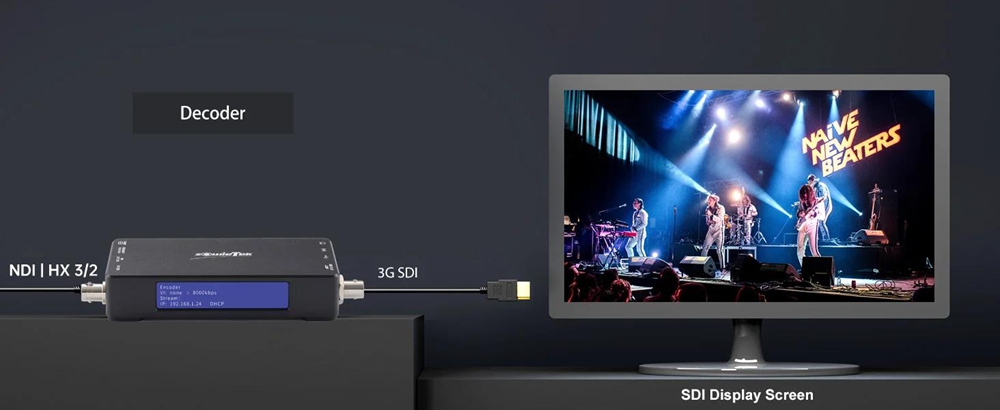

- Decode NDI (NDI|HX3, NDI|HX2, NDI|HX, not full NDI and NDI|HB) into 3G SDI video signal.
Specification:
Power Supply:

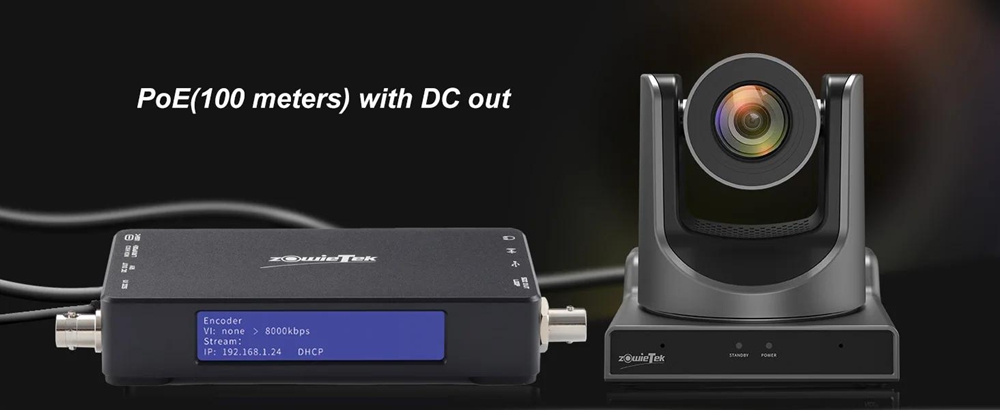

- Input: USB Type-C, up to 25W, 20V 1A, 20W DC adapter; PoE+ (802.3at) CAT5e above
- Power consumption: about 10W (excluding DC output)
- Output: up to 12V 1A DC, with current limit
Video:
- Video encoder: H.264 HP/MP/BP, H.265 MP
- Encoding and decoding resolution: 1080i50/60, 720p50/60 (for video input and output)
- Loop-out bypass: support HD/3G SDI
- Frame rate (1080/720P): 24/25/30fps, 50/60fps for 1080/720P
- Encoding and decoding format: H.264/H.265
- Speed rate control: CBR/VBR

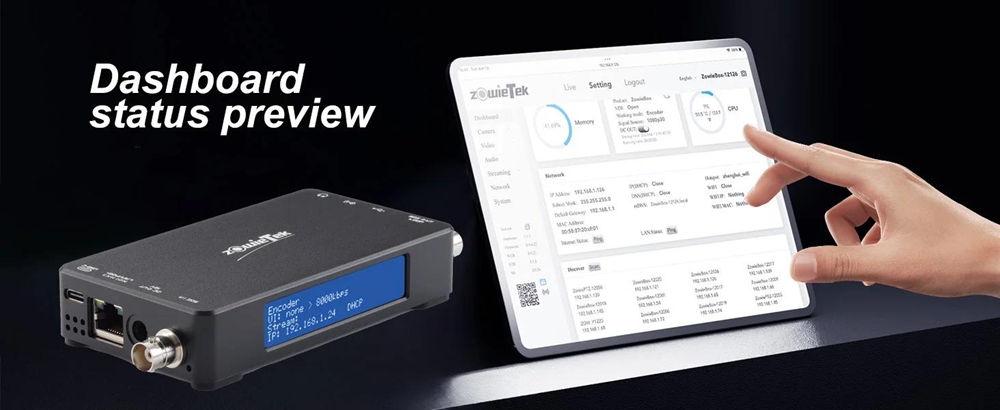

- Live preview: web preview interface, HDMI-compatible loop communication and output
Network:
- LAN: 100/1000Mbps gigabit
- WIFI: 802.11a/b/g/n/ac, dual-band
- Bluetooth: V5.0
- Web: http, https
Live Streaming:

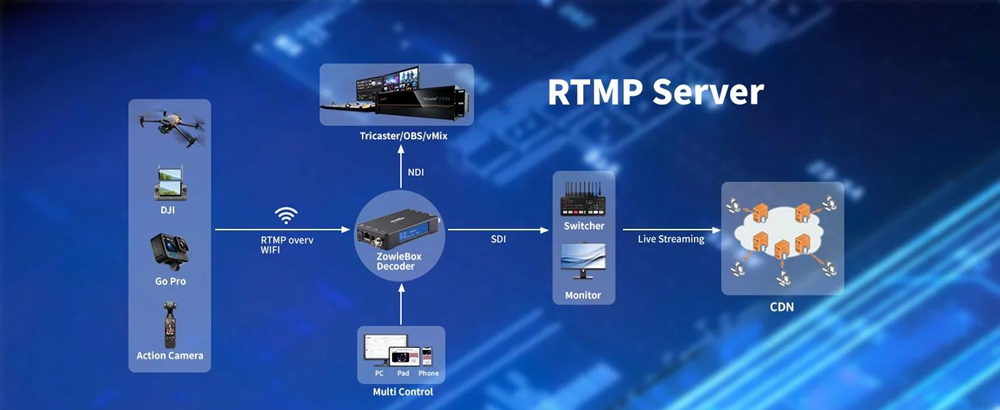

- Live streaming input: RTSP/RTMP(s)/SRT
- Decoding: RTMP(s)/SRT/RTP/UDP/RTSP/TCP/HTTP(s)
- Bit rate: max. 50mbits/s, adjustable
- NDI encoding: NDI/HX3/HX2/HX
- NDI decoding: NDI/HX3/HX2/HX
- NDI audio: audio through NDI
- Recording: mp4, mov, ts
- Rotation: 0/90/180/270n°, native vertical live streaming
- Main stream: up to 1080p60
- Secondary stream: up to 1080p
Audio:
- Sampling: 32, 44.1, 48kHz
- Encoding mode: AAC, MP3, 16bit
- Bit rate: 32 - 192kbps
- Channel: dual channel, AGC
- Input: 0.7VRMS, 20Kohm
- Output: 16ohm, 30mW
- Source: SDI embedded audio, line input
Input/Output:
- SDI input: HD/3G SDI, SMPTE 292M, 372M, 424M
- SDI loop-out: up to 3G SDI
- SDI output: HD/3G SDI, SMPTE 292M, 372M, 424M
- NDI: NDI ® | HX3/HX2/HX (supports NDI 5.5 upgrade)
Configuration:
- Display: dot matrix, COG
- Setting: mobile phone, Pad, PC, RESTFUL
- OSD: text, logo, subtitles, timestamps

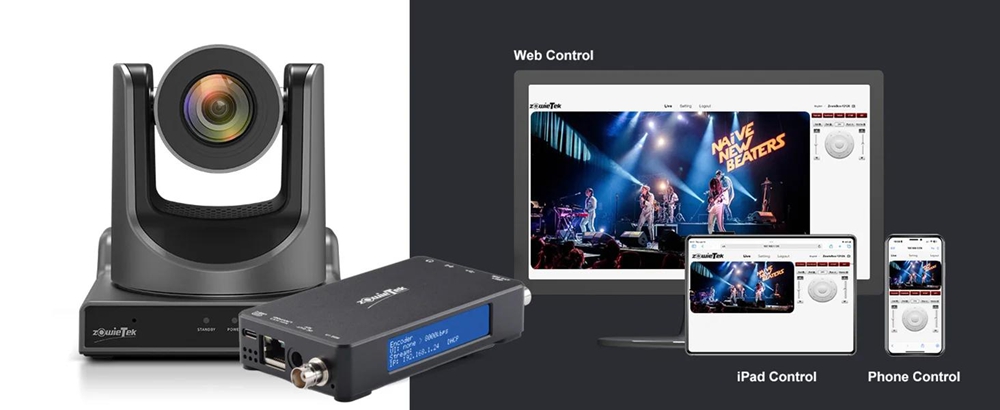

PTZ:
- Interface: RS232/485/422 via USB adapter
- Protocol: Pelco D/P, VISCA
Tally Light:
- Tally light: auto/manual
Software:
- Firmware: upgradeable, for Linux OS

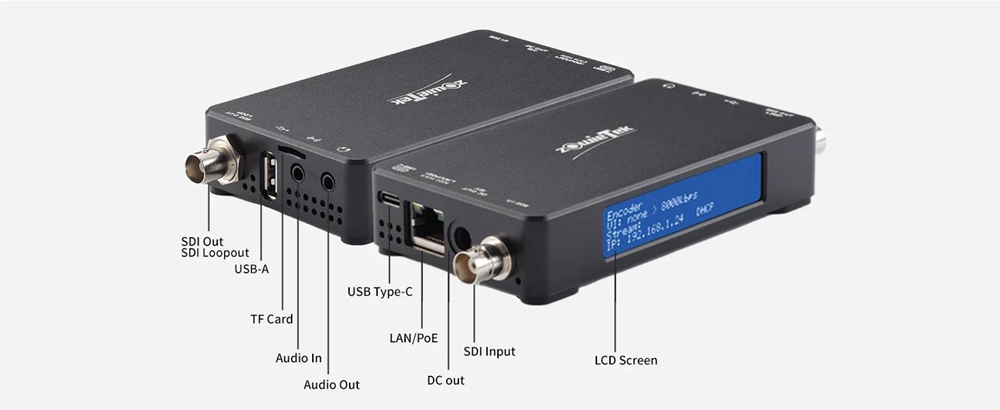

Interface:
- SDI input: HD/3G SDI, SMPTE 292M, 372M, 424M
- SDI loop output: up to 3G SDI
- SDI output: HD/3G SDI, SMPTE 292M, 372M, 424M
- Audio input: 1 x 3.5mm TRS jack
- Audio output: 1 x 3.5mm TRS jack
- Network: RJ45, Gigabit, PoE
- USB: 1 x USB, TYPE A
- Display: 1 RGB LED panel

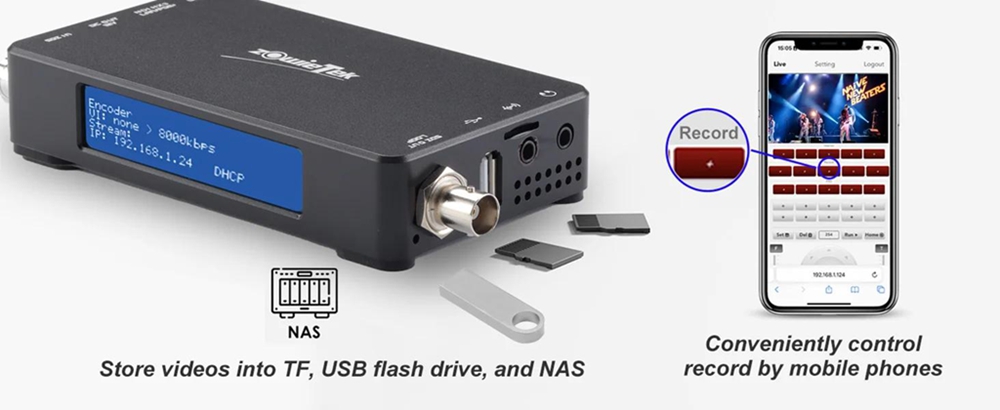

Storage:
- Interface: 1 x Micro SD/TF, USB
- Network: NAS
- Disk partition format: FAT32 up to 2T, exFAT
Physical Environment:
- Size: 123 x 68 x 22mm
- Weight: 166 grams black aluminum alloy
- Working temperature: 0°C - 45°C
- Storage temperature: -20°C - 60°C
- Tripod: 1/4-20 inches
Certification:
- Certification: CE, FCC
Package Included:
- 1 x Video Encoder
Description:
- It is a hardware SDI encoder/decoder, is both a video streaming codec and an NDI|HX3 (Certified) converter. It can standalone stream professional broadcast video PC-free, providing a flexible and affordable solution to stream high-quality videos over the internet.
- Encode SDI signal to NDI|HX3/HX2/HX (No full NDI, No NDI|HB). Loop through SDI signal to monitors.
- Decode NDI (NDI|HX3, NDI|HX2, NDI|HX, not full NDI and NDI|HB) into 3G SDI video signal.
Specification:
Power Supply:
- Input: USB Type-C, up to 25W, 20V 1A, 20W DC adapter; PoE+ (802.3at) CAT5e above
- Power consumption: about 10W (excluding DC output)
- Output: up to 12V 1A DC, with current limit
Video:
- Video encoder: H.264 HP/MP/BP, H.265 MP
- Encoding and decoding resolution: 1080i50/60, 720p50/60 (for video input and output)
- Loop-out bypass: support HD/3G SDI
- Frame rate (1080/720P): 24/25/30fps, 50/60fps for 1080/720P
- Encoding and decoding format: H.264/H.265
- Speed rate control: CBR/VBR
- Live preview: web preview interface, HDMI-compatible loop communication and output
Network:
- LAN: 100/1000Mbps gigabit
- WIFI: 802.11a/b/g/n/ac, dual-band
- Bluetooth: V5.0
- Web: http, https
Live Streaming:
- Live streaming input: RTSP/RTMP(s)/SRT
- Decoding: RTMP(s)/SRT/RTP/UDP/RTSP/TCP/HTTP(s)
- Bit rate: max. 50mbits/s, adjustable
- NDI encoding: NDI/HX3/HX2/HX
- NDI decoding: NDI/HX3/HX2/HX
- NDI audio: audio through NDI
- Recording: mp4, mov, ts
- Rotation: 0/90/180/270n°, native vertical live streaming
- Main stream: up to 1080p60
- Secondary stream: up to 1080p
Audio:
- Sampling: 32, 44.1, 48kHz
- Encoding mode: AAC, MP3, 16bit
- Bit rate: 32 - 192kbps
- Channel: dual channel, AGC
- Input: 0.7VRMS, 20Kohm
- Output: 16ohm, 30mW
- Source: SDI embedded audio, line input
Input/Output:
- SDI input: HD/3G SDI, SMPTE 292M, 372M, 424M
- SDI loop-out: up to 3G SDI
- SDI output: HD/3G SDI, SMPTE 292M, 372M, 424M
- NDI: NDI ® | HX3/HX2/HX (supports NDI 5.5 upgrade)
Configuration:
- Display: dot matrix, COG
- Setting: mobile phone, Pad, PC, RESTFUL
- OSD: text, logo, subtitles, timestamps
PTZ:
- Interface: RS232/485/422 via USB adapter
- Protocol: Pelco D/P, VISCA
Tally Light:
- Tally light: auto/manual
Software:
- Firmware: upgradeable, for Linux OS
Interface:
- SDI input: HD/3G SDI, SMPTE 292M, 372M, 424M
- SDI loop output: up to 3G SDI
- SDI output: HD/3G SDI, SMPTE 292M, 372M, 424M
- Audio input: 1 x 3.5mm TRS jack
- Audio output: 1 x 3.5mm TRS jack
- Network: RJ45, Gigabit, PoE
- USB: 1 x USB, TYPE A
- Display: 1 RGB LED panel
Storage:
- Interface: 1 x Micro SD/TF, USB
- Network: NAS
- Disk partition format: FAT32 up to 2T, exFAT
Physical Environment:
- Size: 123 x 68 x 22mm
- Weight: 166 grams black aluminum alloy
- Working temperature: 0°C - 45°C
- Storage temperature: -20°C - 60°C
- Tripod: 1/4-20 inches
Certification:
- Certification: CE, FCC
Package Included:
- 1 x Video Encoder
