Condition: USED

Warranty: 1 YEAR AUDIOSAVINGS

Description:

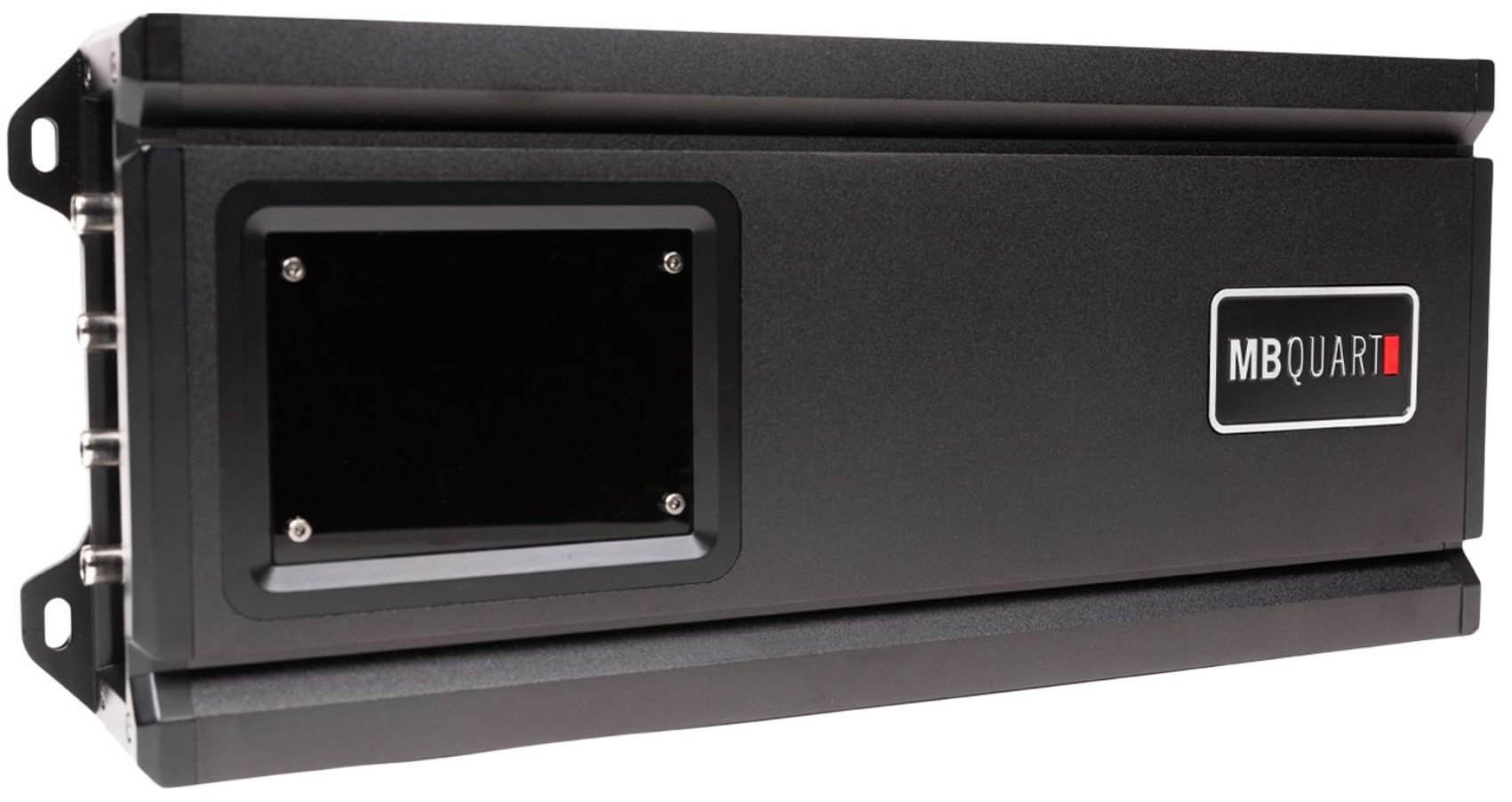

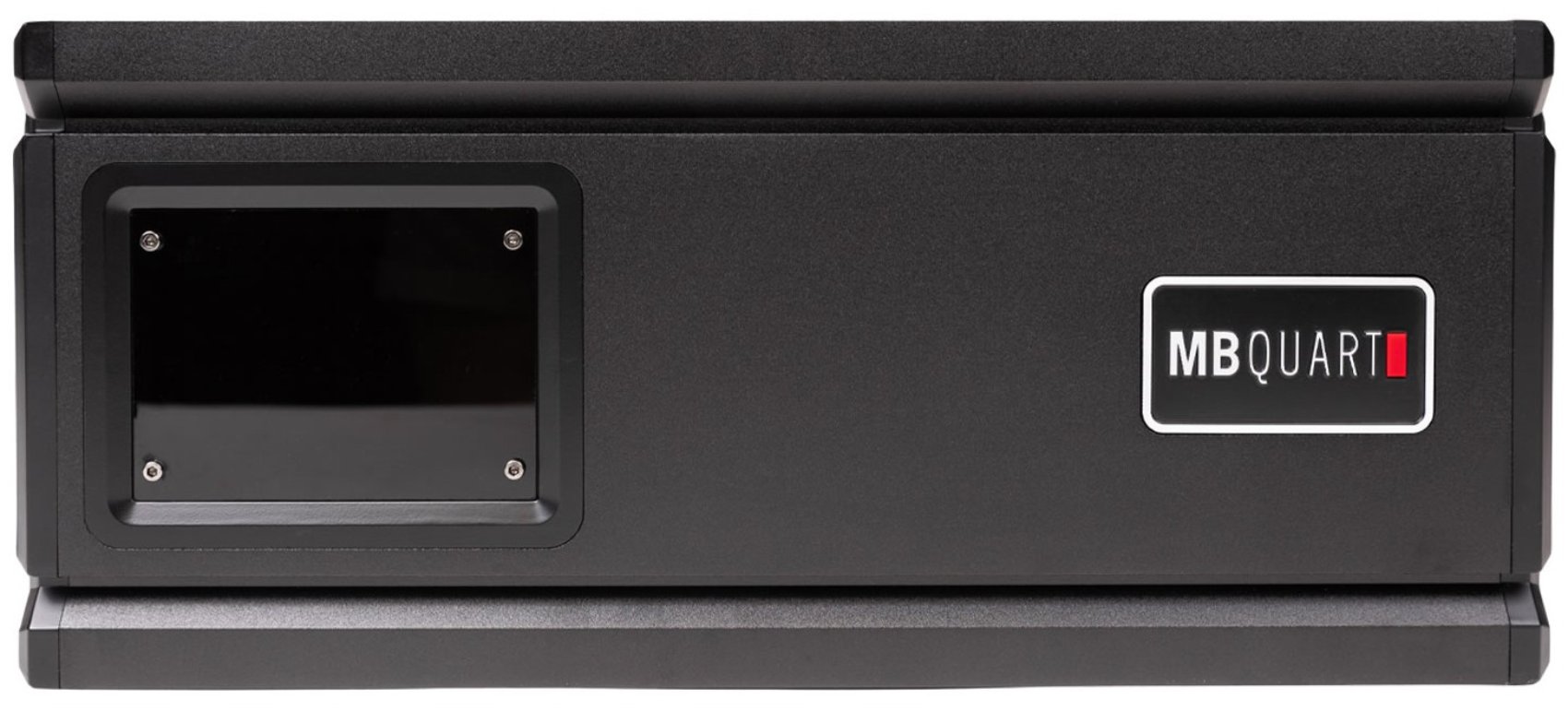

MB Quart Reference series 4-channel car audio amplifier featuring innovative sound quality and power technology. The RA1-1100.4 is a 1100 watt car audio amplifier. Reference amplifiers feature DC Sensing to allow any amplifier to be easy integrated into an OEM system by simply adapting a RCA cable from the source unit.

Features & Benefits:

• Low Noise Preamplifier Circuit

  • Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.

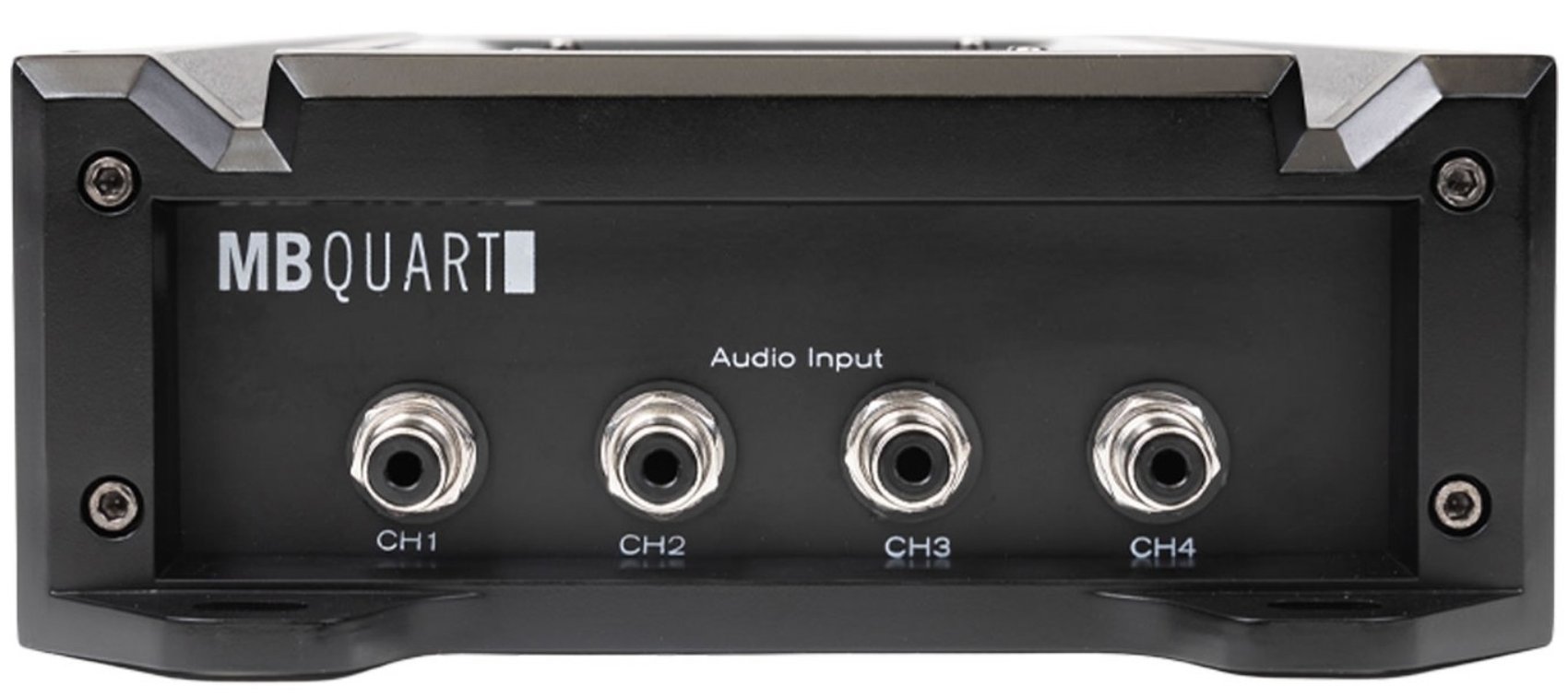

• RCA Inputs

  • Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
• High Level Inputs

  • See Auto-Sense Feature.
• Operation Mode

  • 2 / 4 Channel

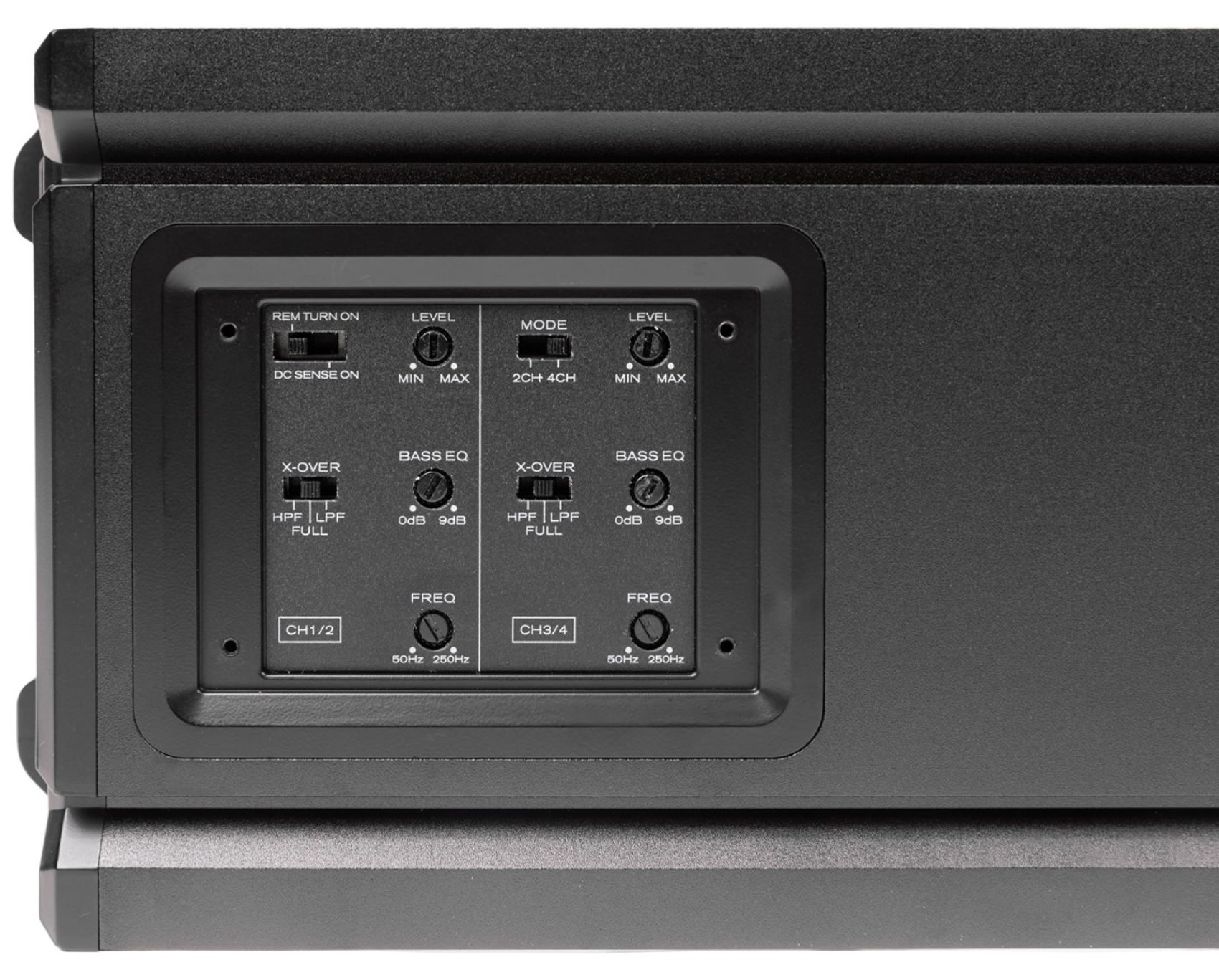

• Crossover Type

  • Variable electronic crossovers allow for complete control of the sound.
• Electronic Equalizer

  • Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.
• Class / Topology

  • Class SQ: Multi-channel amplifiers utilize the unique MB Quart Class SQ topology. Matched with Q-Stasis the sonic accuracy and clarity exceeds standard Class D amplifiers.
• Output Device Technology

  • FLUID-FETS: MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers.
• Heat Sink

  • Aluminum: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration.
• Power Supply

  • Rugged MOSFET Pulse Width Modulation power supply: Allows amplifier to produce efficient power without taxing the vehicle electrical system.

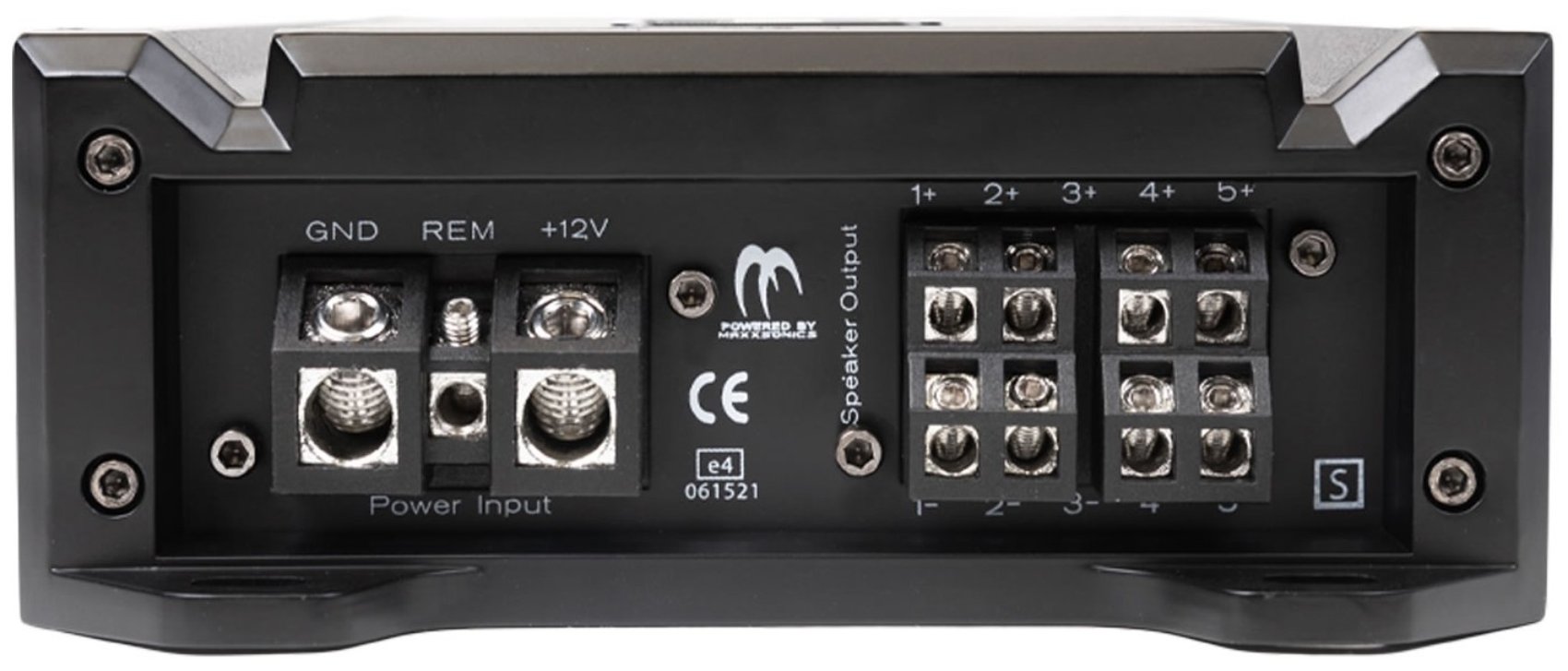

• Output Connections

  • Heavy duty connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier.
• Connection Type

  • Secure connection for all power, ground and speaker connections.
• Auto Turn-On

  • DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.

Details & Specs:

• Color: Black
• Warranty: 1 Year
• Compatible Vehicles: Universal
• Amp Class: Class SQ (Class D)
• Amp Total Channels: 4
• Amp Max Power (watts): 1100
• Amp Power @ 2 Ohms (ch x watts): 4 x 275
• Amp Power @ 4 Ohms (ch x watts): 4 x 150
• Amp Mono Bridged @ 4 Ohms (ch x watts): 2 x 550
• Amp Crossover: Electronic
• Amp Variable High Pass Crossover 12dB per Octave: CH1 & CH2: Switched Full/HPF/LPF 50Hz-250Hz, CH3 & CH4: Switched Full/HPF/LPF 50Hz-250Hz
• Amp Variable Low Pass Crossover 12dB per Octave: CH1 & CH2: Switched Full/HPF/LPF 50Hz-250Hz, CH3 & CH4: Switched Full/HPF/LPF 50Hz-250Hz
• Amp Bass Boost: 0-9dB
• Amp Subsonic Filter: N/A
• Amp Variable Voltage: 0.02-9V
• Amp Signal to Noise: > 101dB
• Amp Frequency Response: 10Hz-35kHz
• Amp Total Harmonic Distortion (THD): < 0.09%
• Amp Speaker Level Audio Inputs: RCA
• Amp Power Terminal 12v/GND: 4 AWG
• Amp Speaker Terminal Wire Gauge: 12 AWG
• Amp Fusing: 90A External
• Proposition 65 Notice: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
