Specification:
Powered by the battery of the Truck car.
1. BTU:11000
2. Rated power: 300-950w
3. Rated current: 40-80A
4. Undervoltage protection(adjustable): 11.4
5. Protection level: IP * 4
6. Freezing medium: R134a
7. Voltage: DC 12V
8. Air volume: 500m³ / h
9. Cooling capacity: 2500W
10. Undervoltage response: 10.6-11.4v
11. Control method: remote control
12. refrigerant capacity: 600g-750g （ R134A ）
13.battery cables:7 awg
(if the cables are too short for you,you can buy a 100A anderson connector and extra two 7awg cables to make it longer enough)
14. Applicable models: heavy trucks, light trucks, construction vehicles, excavators, ships, touring vehicles, refrigerated vehicles, etc.
15.suggest battery:12v/150a or better

ACFORCARS A/C Kit Universal 14x18 Fan 14" Under Dash 6 Vents

A/C System Universal Kit for Vintage |Old | Antique

Cars or Trucks, vehicles that need A/C System

Why install a universal air system in my vehicle?

Heading out to a road run on a hot day without A/C can feel like you're traveling in a sauna on wheels or a refrigerator without a heater when the weather turns cold.

When it comes to installing an aftermarket climate-control system there are basically two types those for universal applications and those designed for specific vehicles. But regardless of the type of system being installed the same individual components are involved and they work the same way.

Find a mechanic specialized in automotive air conditioning, request that they make a diagnosis, most do it for free, then buy the products you need with us at the best price and with durability that will not fail you.



Your Car Basic A/C Components

Compressor | Condenser | Evaporator | Expansion Valve | Drier or Accumulator | Refrigerant Freon | Oil | Fan | Relay | Pressure Switch | Blower Motors | Heater Core



Additional Features:

Aftermarket Product with Premium Quality. Easy Installation. High Reliability

Details:

Universal Complete Kit System fits any car, just make sure you have the available space needed to mount the parts, type of belt that the motor has, how powerful do you need the compressor.



These are examples of classic cars, our kits are universal, this is not an exact fitment for each vehicle.

Ford: Fairlane, Falcon / Ranchero, Mustang, Mercury, Thunderbird, Cougar, Escort, Granada, LTD.

GM: El Camino, Impala, Camaro, Chevelle, Corvette, Nova, Monte Carlo, Bel Air, Suburban, Caprice, Biscayne, Malibu, Del Ray, Nomad. Oldsmobile Cutlass. Pontiac Firebird & Lemans.

Mopar: Dodge Challenger, Charger, Dart, Demon & Demon, Coronet, Superbee, Daytona.

Plymouth Cuda, Belvedere, Satellite, GTX, Barracuda, Duster& Duster, Scamp, Road Runner, Superbird.

Key Benefits:

A/C System Universal ideal for Big Cars, Trucks and Bus

How to choose my kit?
Step #1:
Check what type of belt your engine has, so you can select which compressor you need
(V Belt, Serpentine with 6 Groove or 8 Groove)
Step #2:
Measure the height and length space you have available to install the condenser
(example 14" height and 18" length is 14x18)

What's Includes

CONDENSER14” x 18” (18mm Core Depth) 4 Rails

COOLING FAN14”x18'', 12V

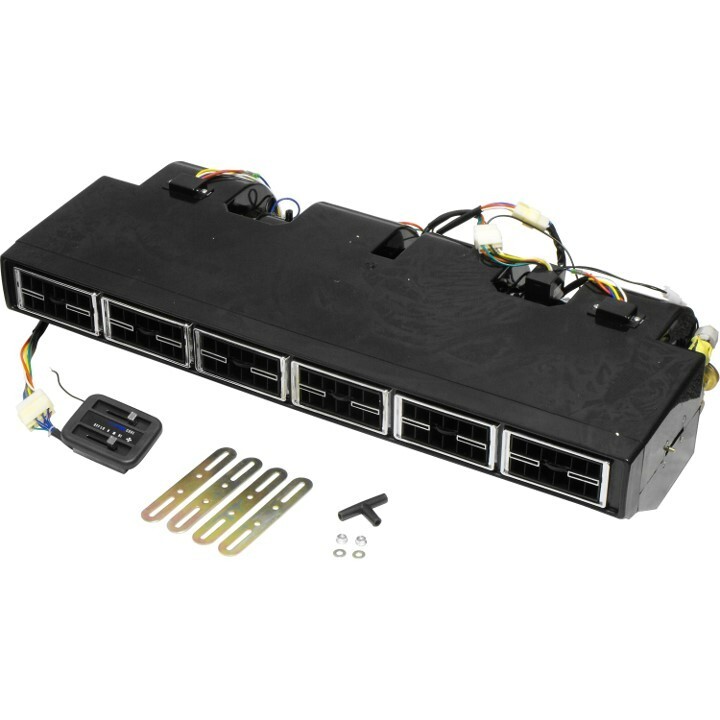

UNDER DASH EVAPORATOR UNIT 32,200 BTU 6 Louver, Black with Chrome Deluxe 36 Pass, 2 Double Shaft Blower Motor 12V, Include Mounting brackets, drain hose and T, Size: 31.69inL x 13.54inW x 5.59inH

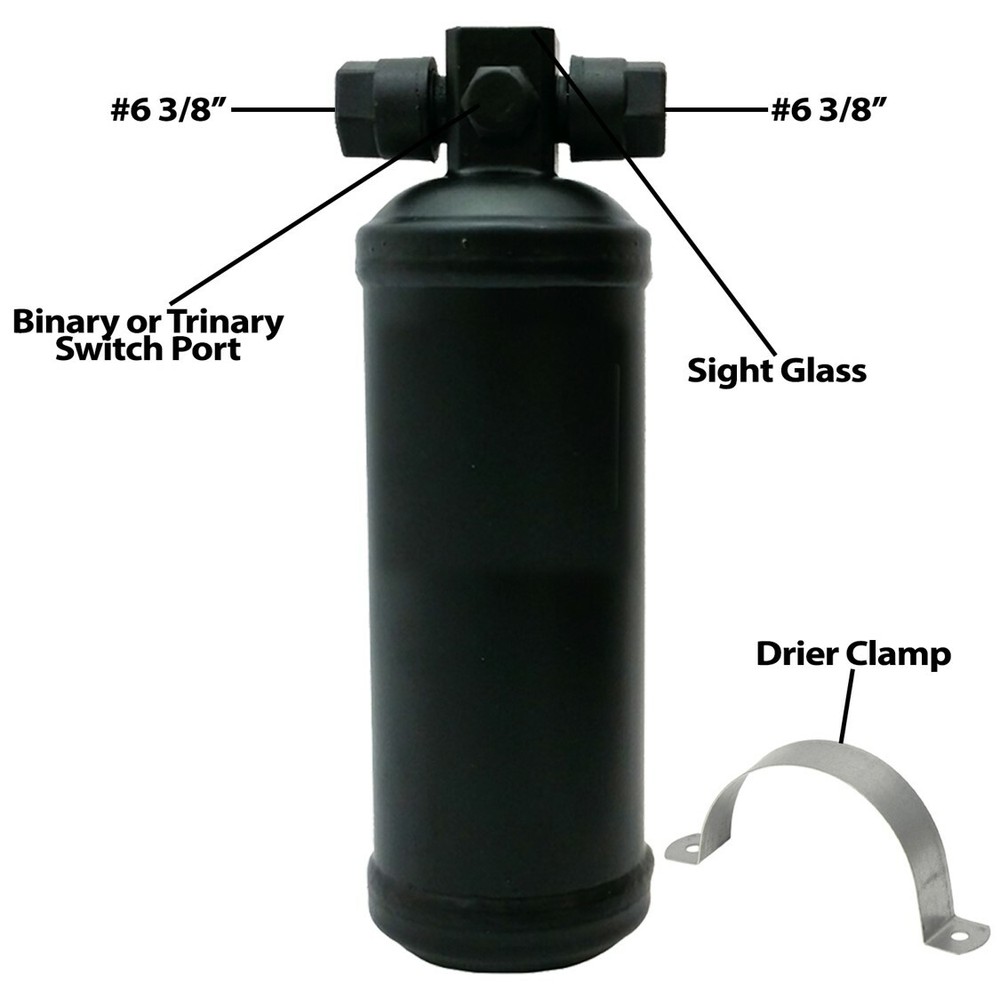

RECEIVER DRIER

Inlet Thread Size: 5/8 – 18

Outlet Thread Size: 5/8 – 18

Inlet (mm): 8

Outlet (mm): 9

Diameter (mm): 60

Length (mm): 199

Inlet Size: 3/8

Fuse Plug: Yes

Sight Glass: Yes

Outlet Size: 3/8

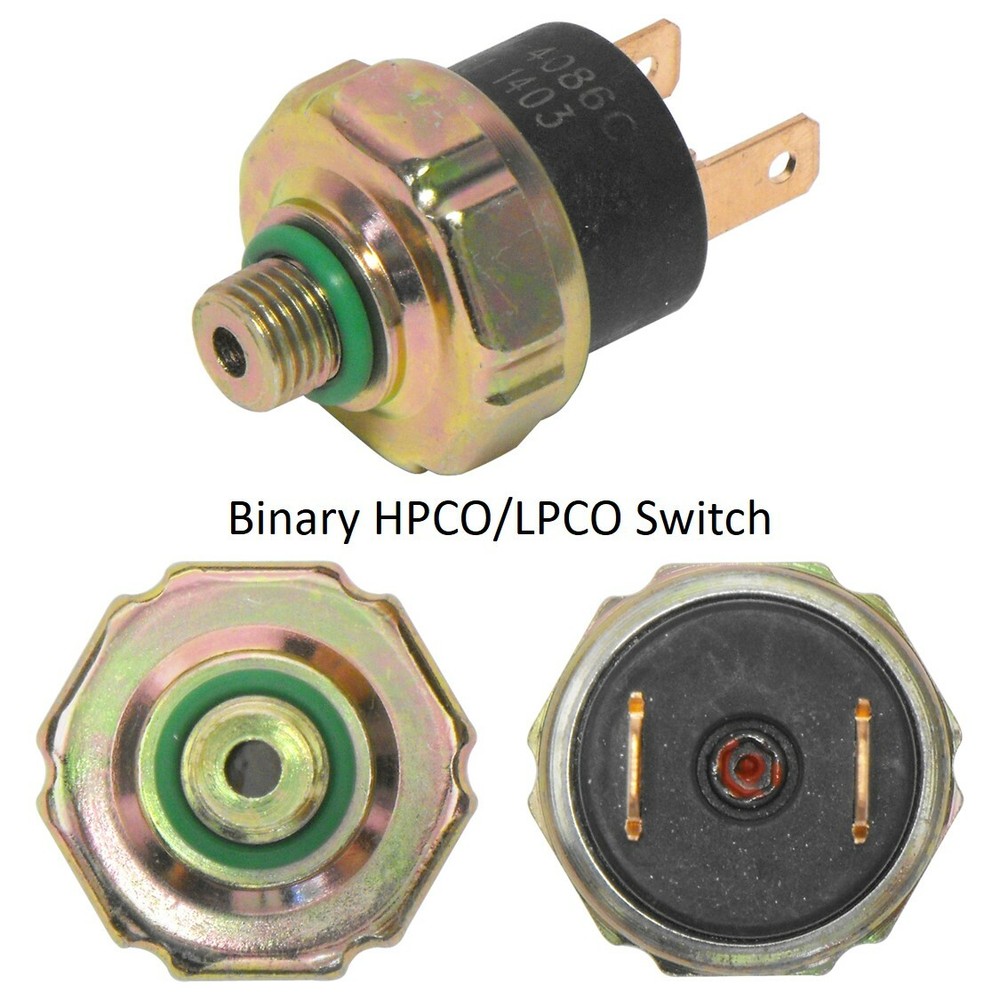

PRESSURE SWITCH

Binary HPCO/LPCO Switch

Thread Size: 3/8-24

Height: 45mm

Width: 26.7mm

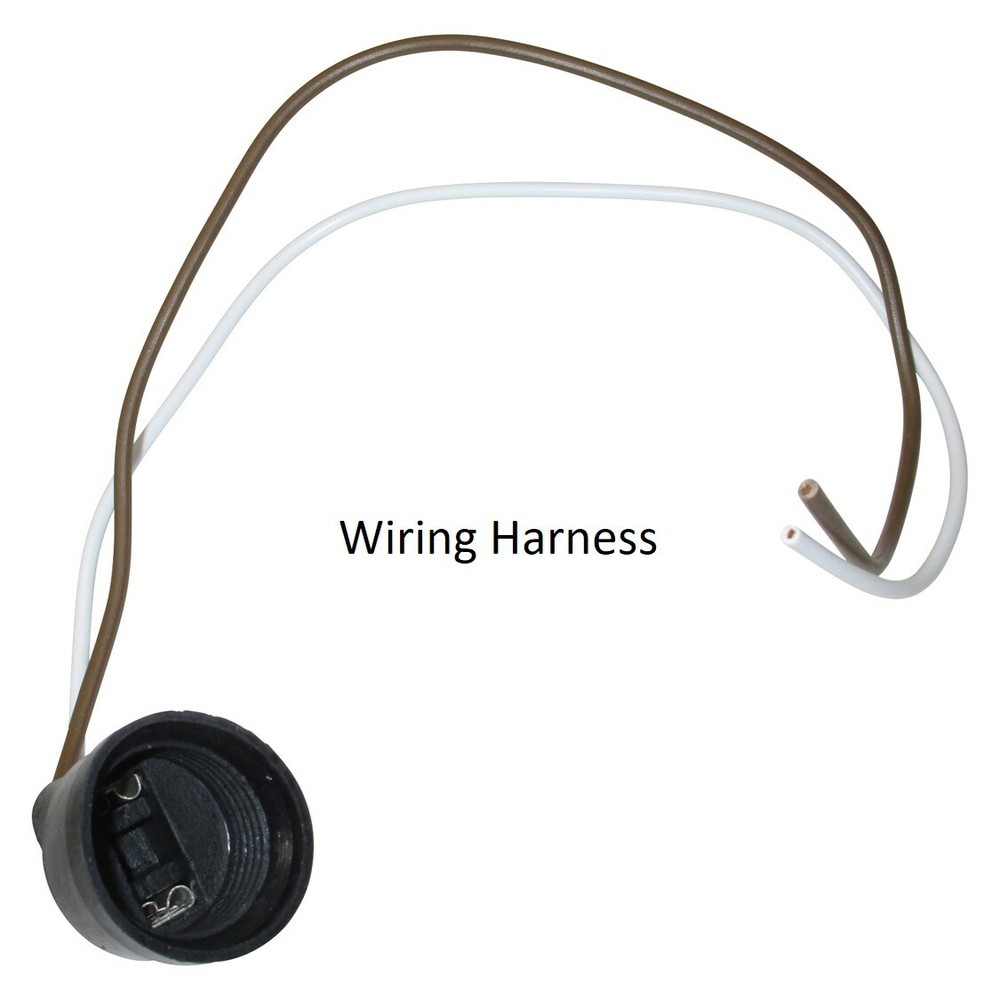

WIRING HARNESS, Binary 2 Blade Low Pressure Cut-Out Cycle Switch

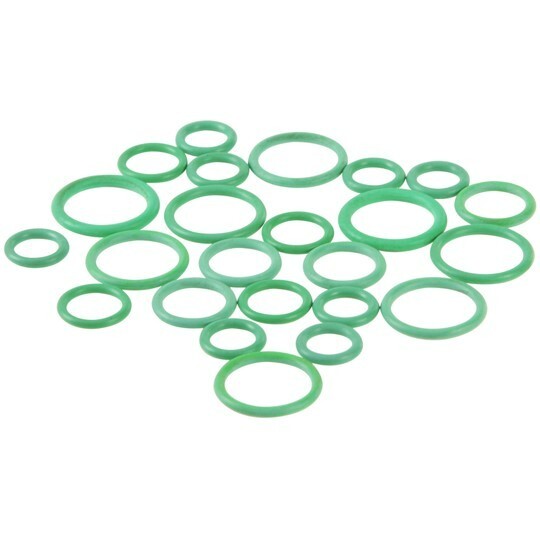

O-RINGS KIT

(5) #06 5/16

(5) #08 13/32

(5) #10 1/2

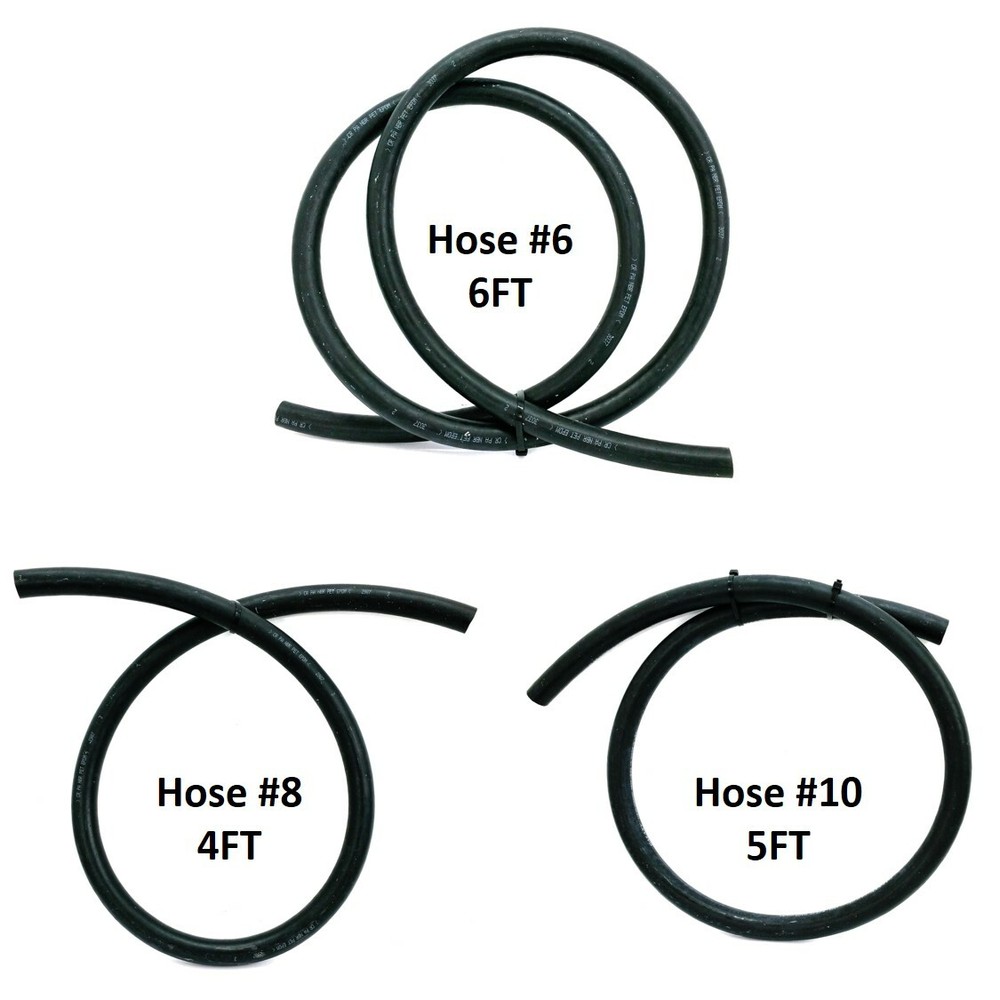

HOSES KIT

(6 FT) #6 5/16

(4 FT) #8 13/32

(5 FT) #10 1/2

FITTING KIT & CLAMP

Straight #6

Straight #8

Straight #10

45 degrees #6

45 degrees #8

45 degrees #10

90 degrees #6

90 degrees #8

90 degrees #10

90 degrees with Service Port #8

90 degrees with Service Port #10
COMPRESSOR



*NOT include





*Not Include Refrigerant (Freon) R134a,

*Compatible table only for reference.

Please be aware that the vehicle compatibility list may not be 100% accurate. However, the OE number provided in our listing is. Match the result with the OE number we have in the listing that would be the best way to guarantee fitment.



Before Purchasing, please carefully check the OEM part number and illustrations to make sure it is compatible with your model. If you are not sure, please feel free to contact us. We are always here to solve any problems you may encounter, and we'll reply you as soon as possible.



Then, if you have any problems after purchasing, please contact us before opening a return or case. We will do our best to provide you with the best solution. Thanks for your understanding.
