Features:

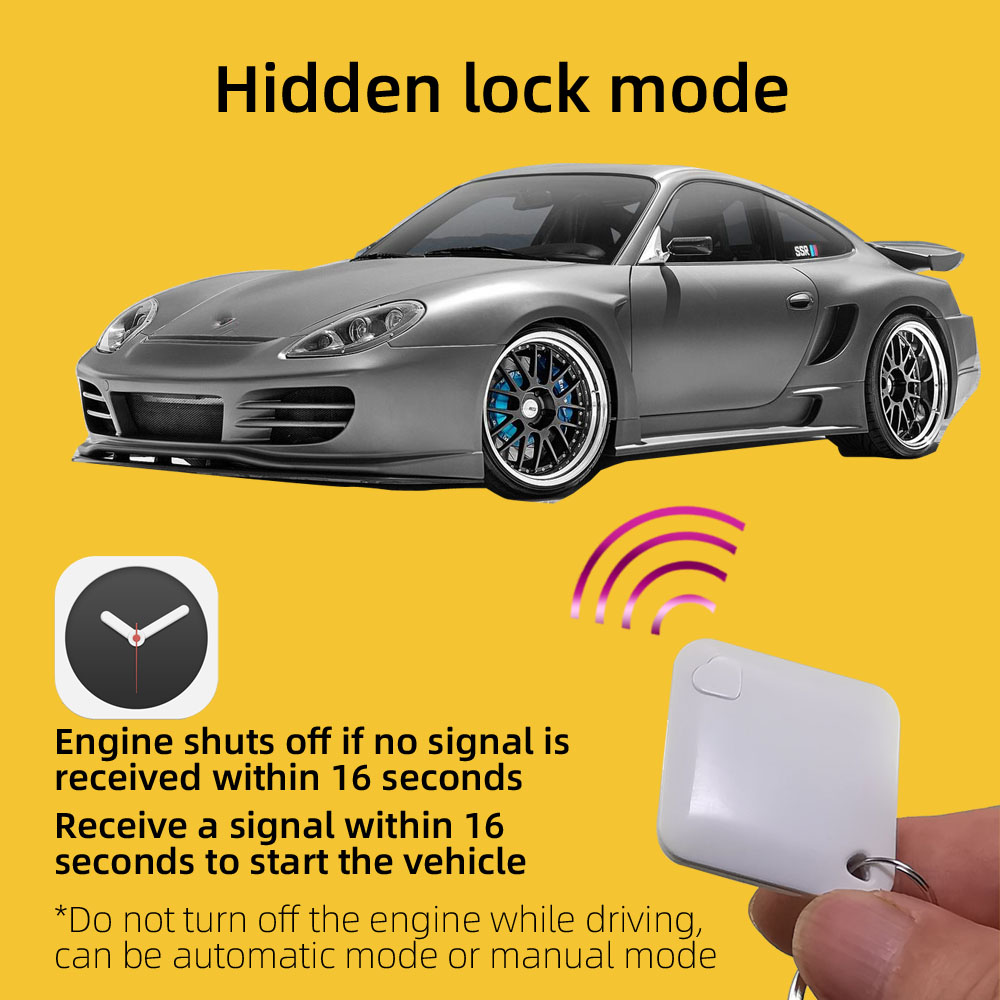

1. Circuit hidden lock mode (no short-circuit ring is inserted in the unit inside) factory default mode
    1. If the car does not receive the signal from the remote control within 16 seconds after starting the car, the
        engine will turn off. The car can start normally if it receives the signal from the remote control within 16
        seconds of starting. Even if it no longer receives the signal from the remote control, it will not turn off.
    2. Remote control operation:
       (1) Manual mode: press the remote control every time or immediately after start-up.
       (2) Automatic mode: Just bring the remote control.
    3. LED indication function: When receiving a remote control signal, the LED flashes once, indicating that the
       signal is normal, and no signal will not flash.

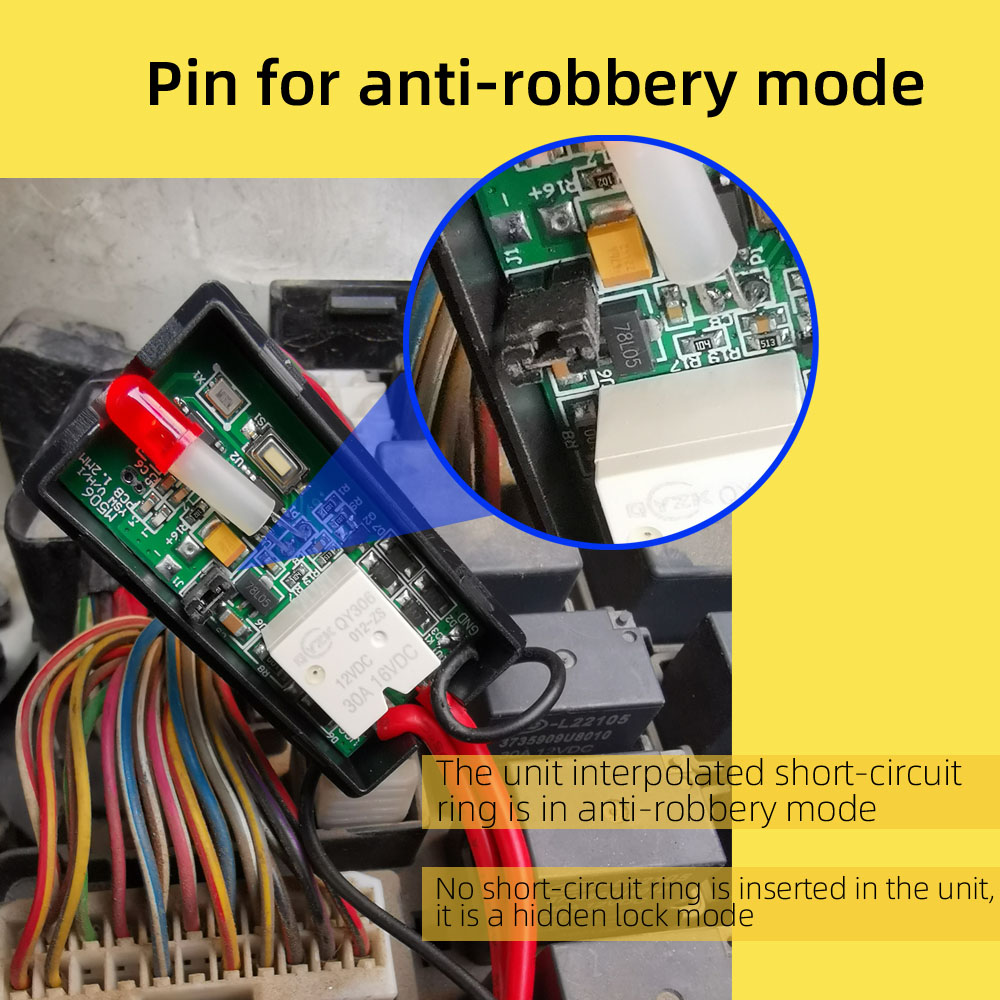

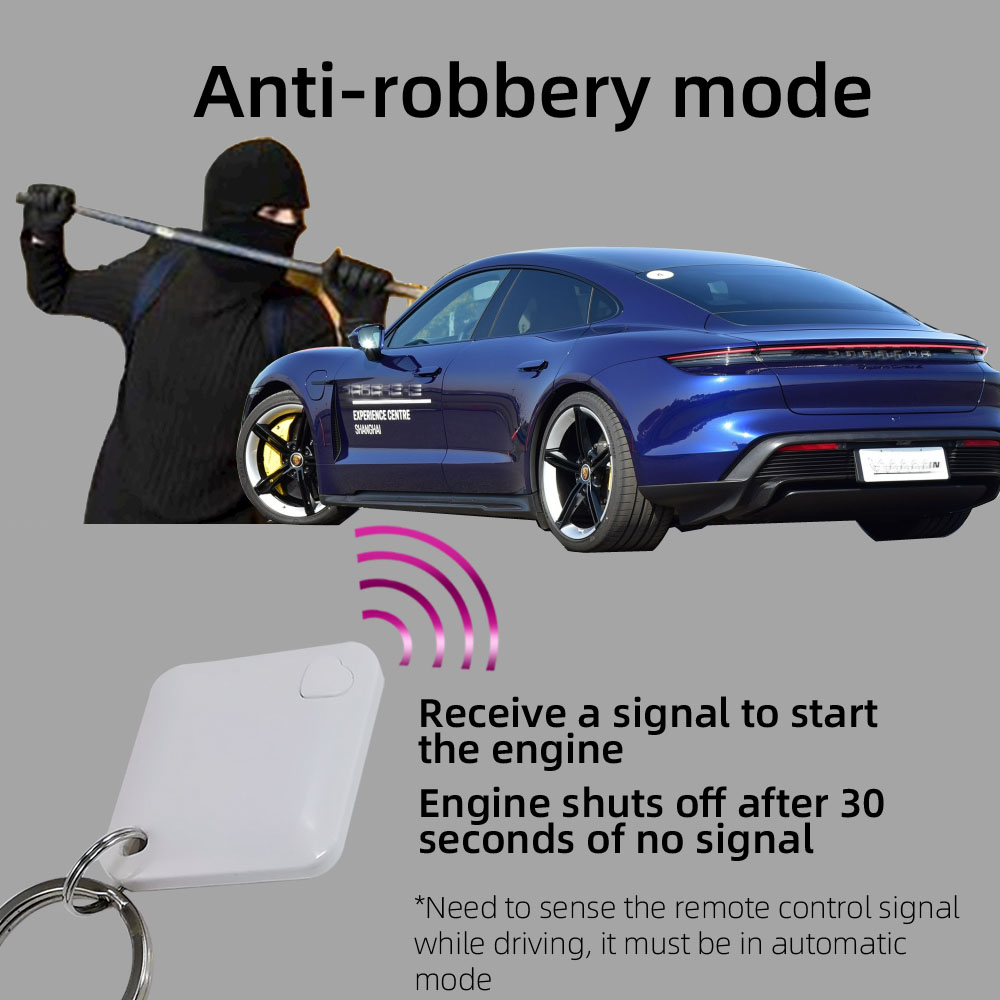

2. Anti-robbery mode: (the host inserts a short-circuit ring)
    1. When the host receives the signal from the remote control, the car can start normally, and it needs to continue
         to receive the signal from the remote control in the middle, otherwise it will turn off after 30 seconds if the
         signal is not received.
    2. LED indication: when the signal from the remote control is received, it flashes once for 1 second, when the
        signal is not received, it flashes 2 times per second for 11 to 20 seconds; when the signal is not received for
        21 to 30 seconds, the LED flashes 4 times per second. (After 30 seconds Have not received the signal LED does
         not light)
    3. The remote control in anti-robbery mode must turn on the automatic mode, otherwise it will turn off halfway
        due to no signal received.
3. How to use the remote control:
     Please keep the remote control alone, do not mix with the car keys to increase the difficulty of grabbing.
     Coding learning: Press the host computer learning code switch to let go, immediately press the remote control
     button, the relay in the host will beep 3 times to indicate that the code learning is successful, and the method
     for learning the second remote control is the same as above. Up to 2 remotes can be learned. The code has
     been learned well when leaving the factory, and there is no need to repeat the operation.

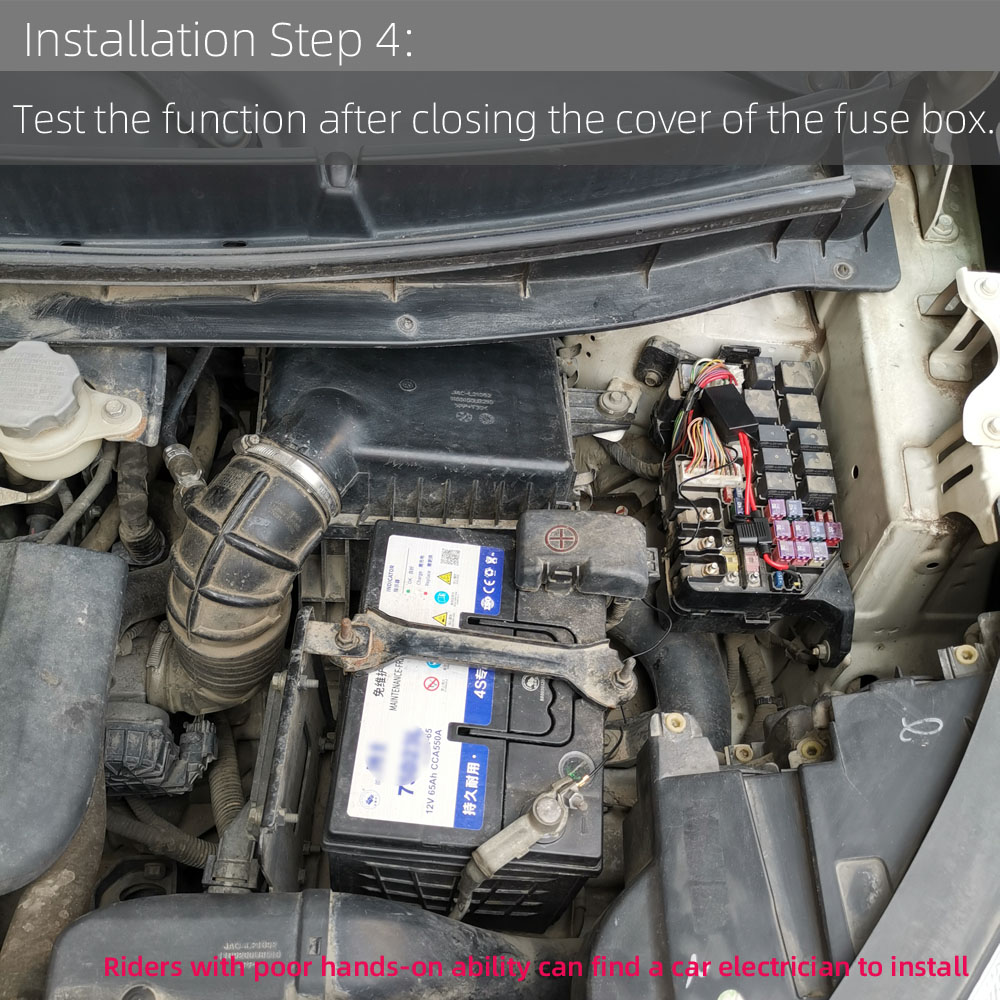

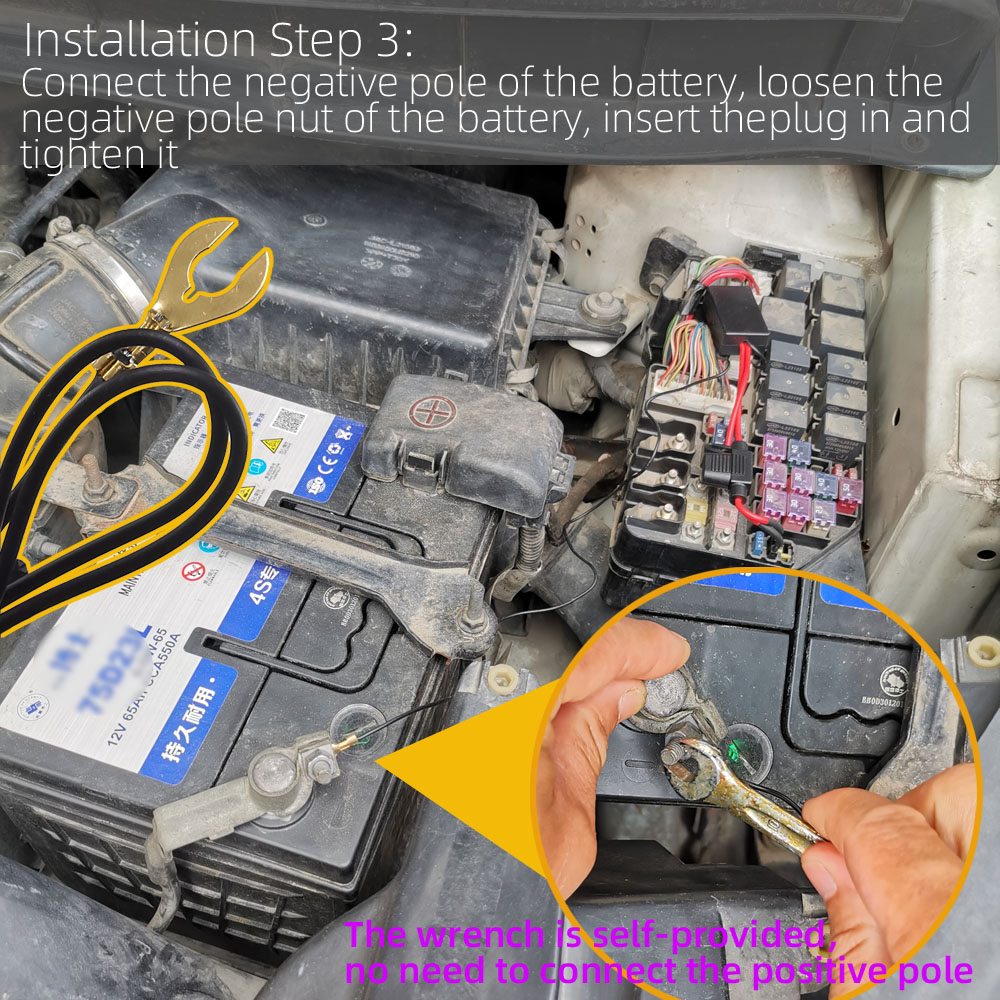

4. How to install:

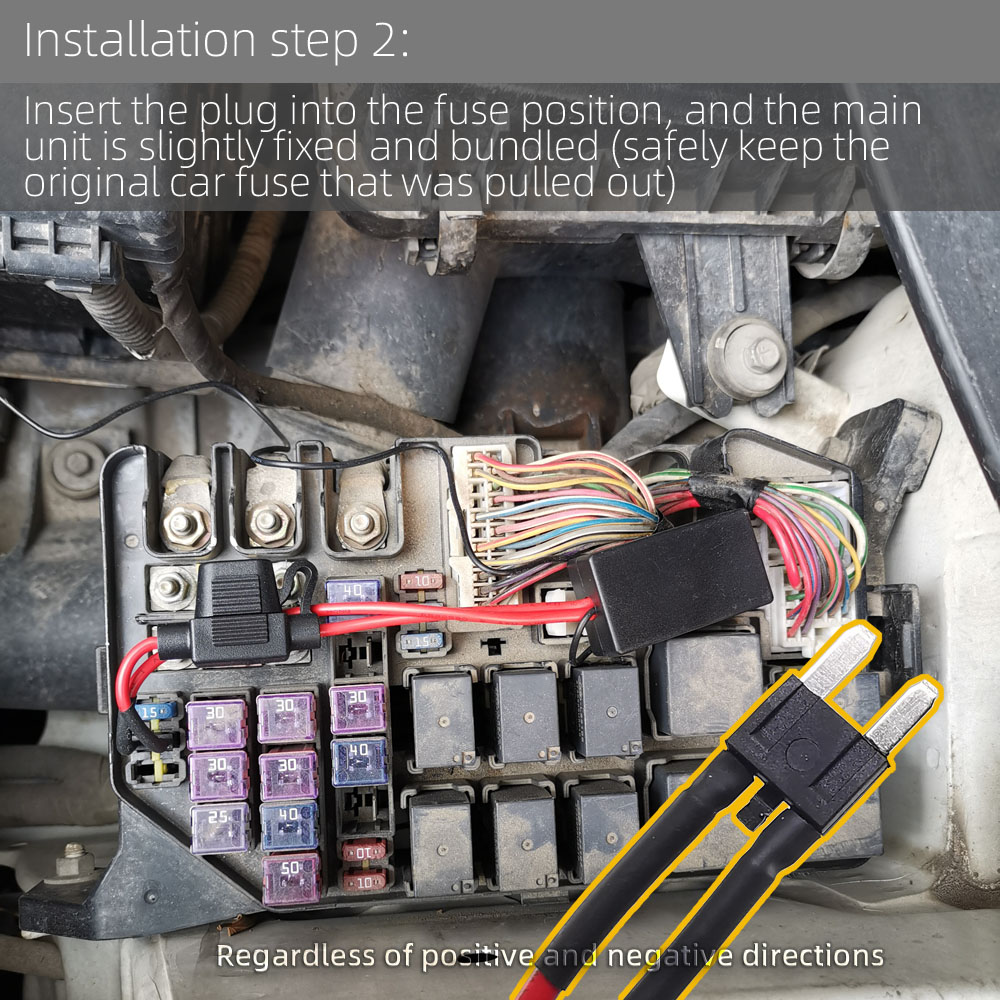

    First open the fuse box, find the oil pump fuse and pull it out, then replace it with the red wire plug , Keep the
    original fuse in a safe place , fix the main unit with a tie and cover the fuse box.


SPECIFICATION
Unit working voltage: 12V±3V
Unit quiescent current: ≤12mA
Unit control current: ≤30A
Remote control operating current: ≤3~8mA
Remote control standby current: ≤1uA
Remote control battery specification: CR2032
Remote control frequency: 433.92MHz

NOTICE:
When not using the system ,turn the remote off for extends battery life ,This product is not waterproof design.

Product size:
Unit:48*26*15mm
Remote:33*33*4.5mm
Packing box:165*92*48mm

Package Include:
Package list:(1 set)
1 x Unit with wire (fuse=15A)
2 x Sensor Remomte
1 x User manual in English
