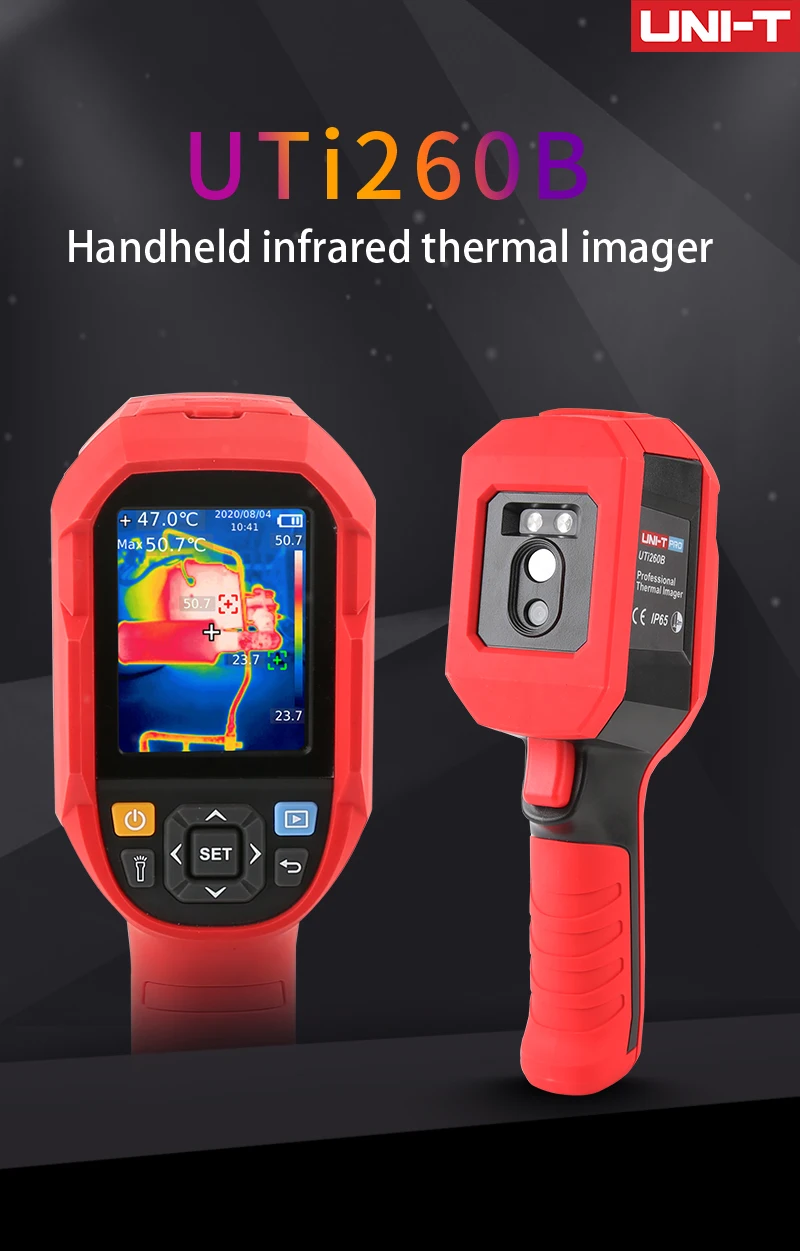

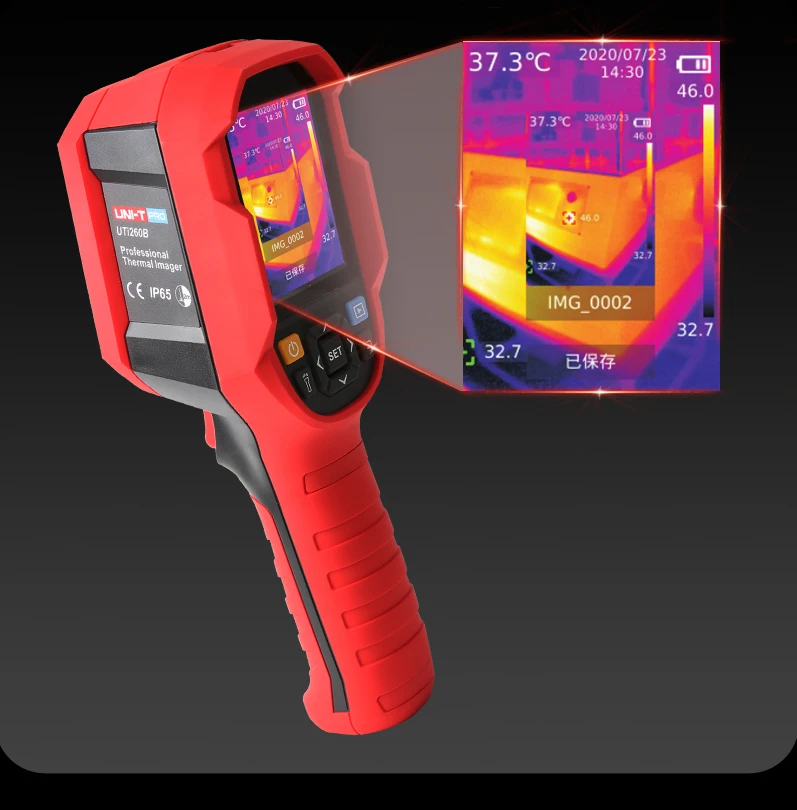

UNI-T UTi260B Thermal Imager Resolution 256 x192 (Including Battery) 25Hz For Leakage inspection and maintenance Infrared Camera

Handheld Design

Its handheld style allows for easy maneuverability and use in tight spaces, enhancing its practicality for on-site inspections.

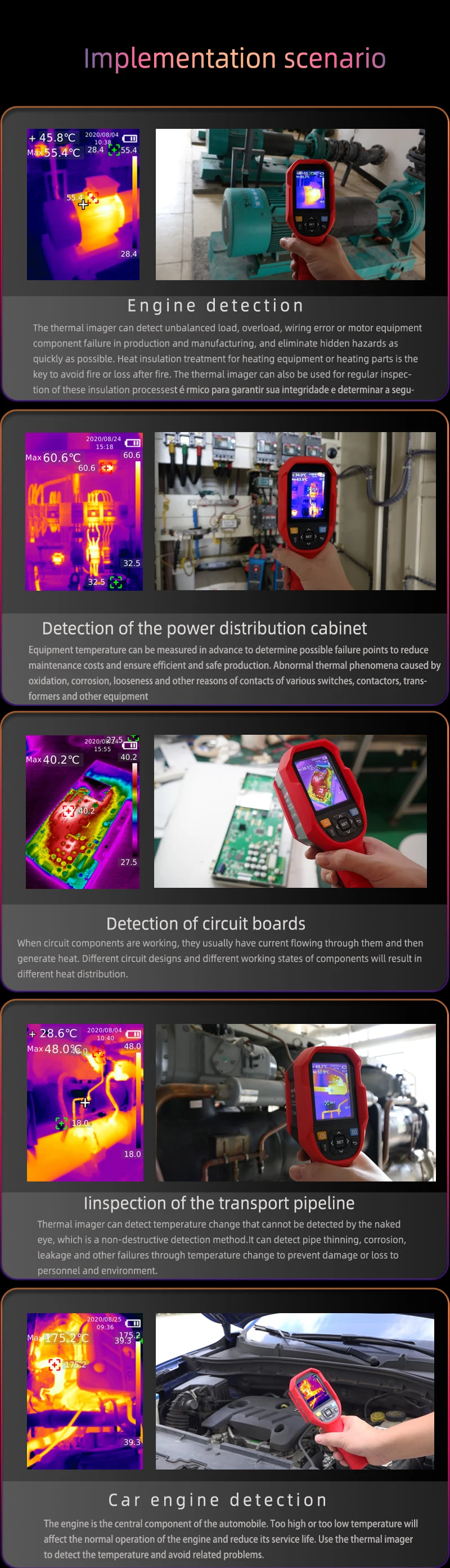

Leakage Inspection Tool

Ideal for leakage inspection and maintenance, this infrared camera offers precise thermal imaging for effective problem identification.

Inclusion of Battery

Equipped with a button battery, the device ensures continuous operation without the need for external power sources.

Wide Temperature Range

The camera operates effectively within a temperature range of -15℃ to 550℃, making it suitable for various inspection scenarios.

Certified Safety

The UNI-T UTi260B is CE certified, ensuring compliance with safety standards and providing peace of mind for users.

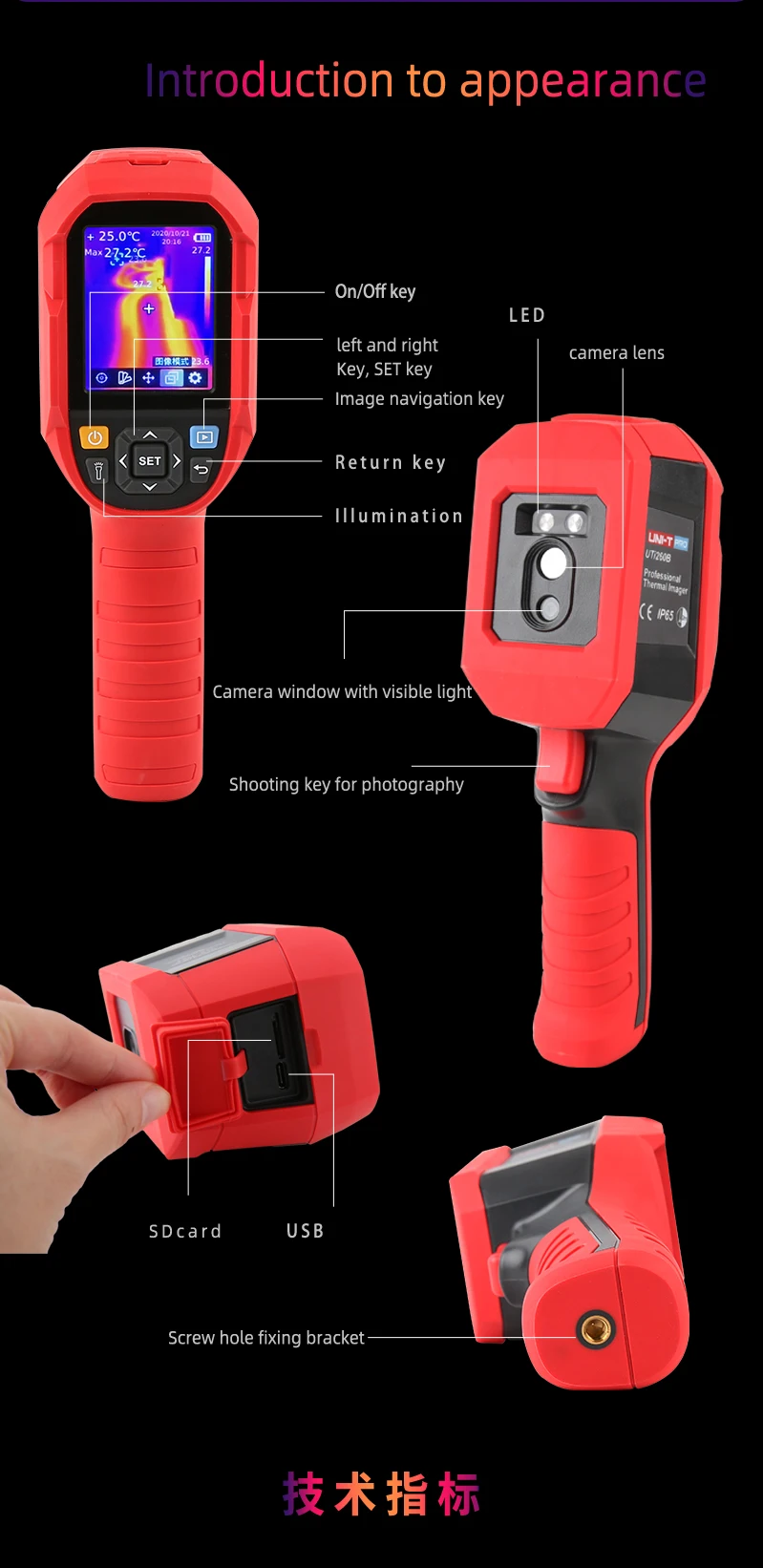

Uti260b graphic introduction

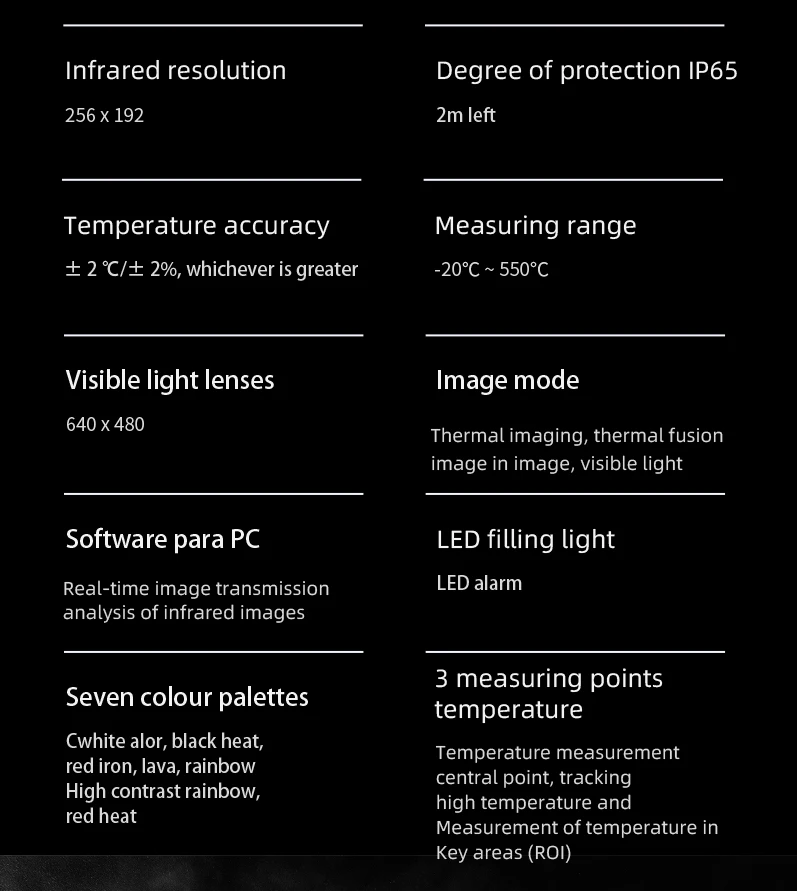

Technical Parameter

Temperature range: -15°C~ 550°C (5°F~1022°F)
Precision: ±2°C/±2% whichever is greater

Sensor: Uncooled focal plane

Mode High gain: -15°C~150°C, low gain: 150°C~550°C
Corresponding time of temperature measurement: ≤500ms

Thermal imaging pixels: 256*192 (49152)

Pixel size: 12um

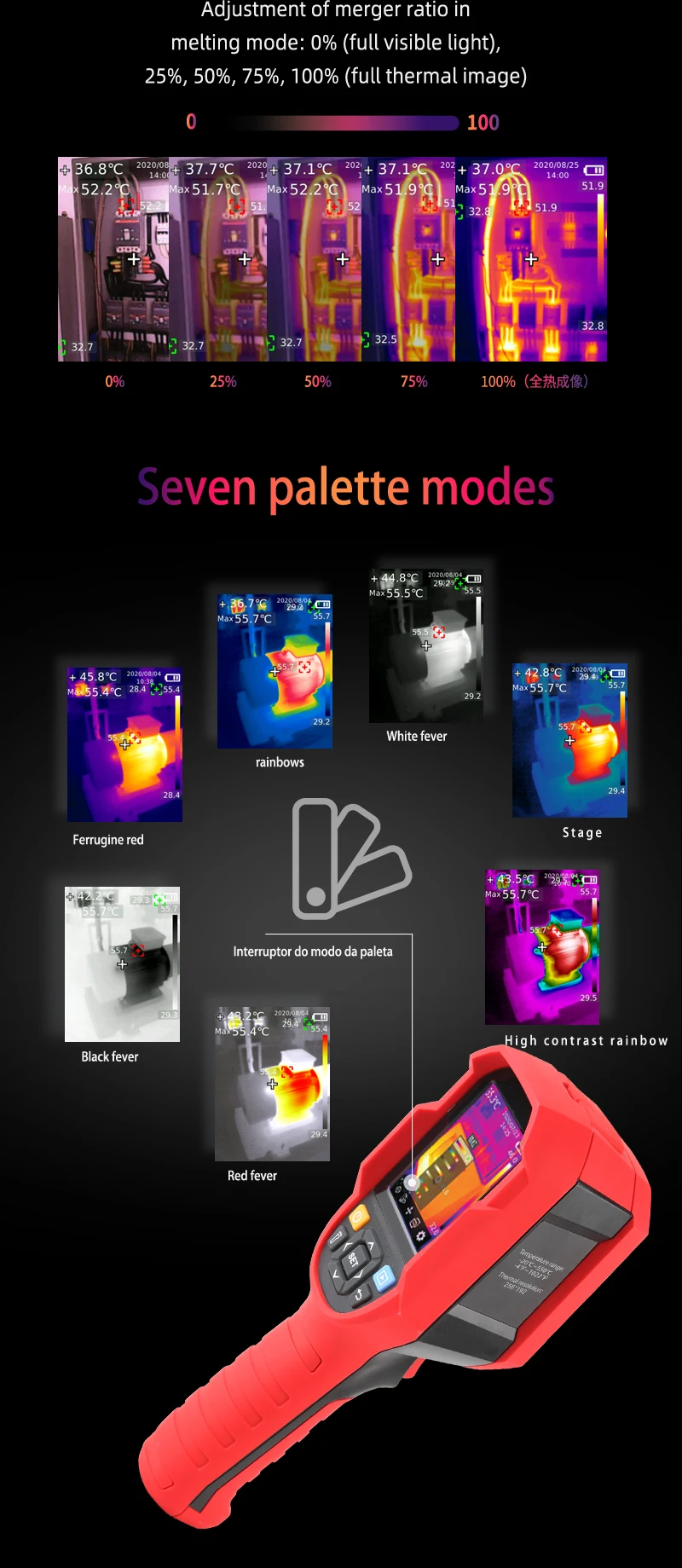

Swatches: White hot, black hot,iron red, lava, rainbow, high contrast rainbow, red hot

Infrared spectrum bandwidth: 8~14um

Field of view: 56° (H) *42.2° (V)

IFOV: 3.8mrad

Thermal imaging sensitivity: <60mK

Frame rate: <25Hz

Visible light resolution: 640x 480

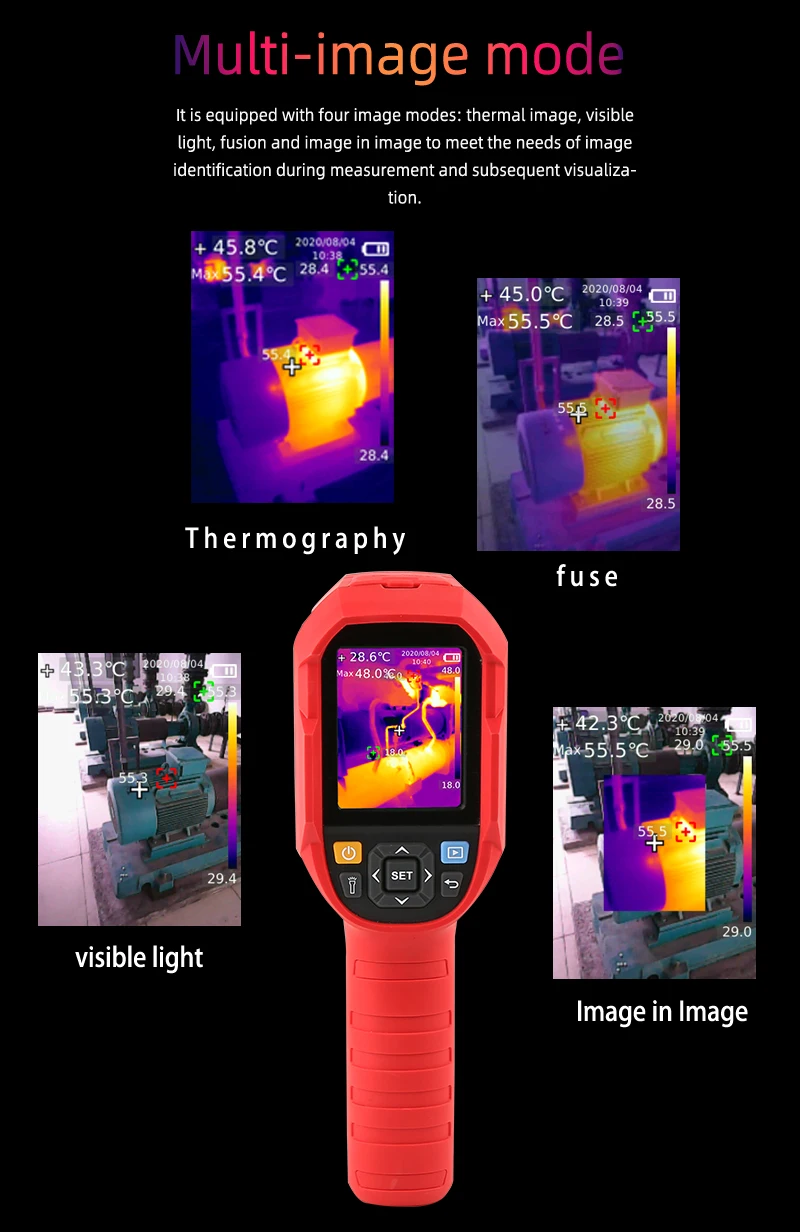

Mixed settings: 0% (full visible light), 25%,50%, 75%, 100% full thermal imaging)

Image format: BMP

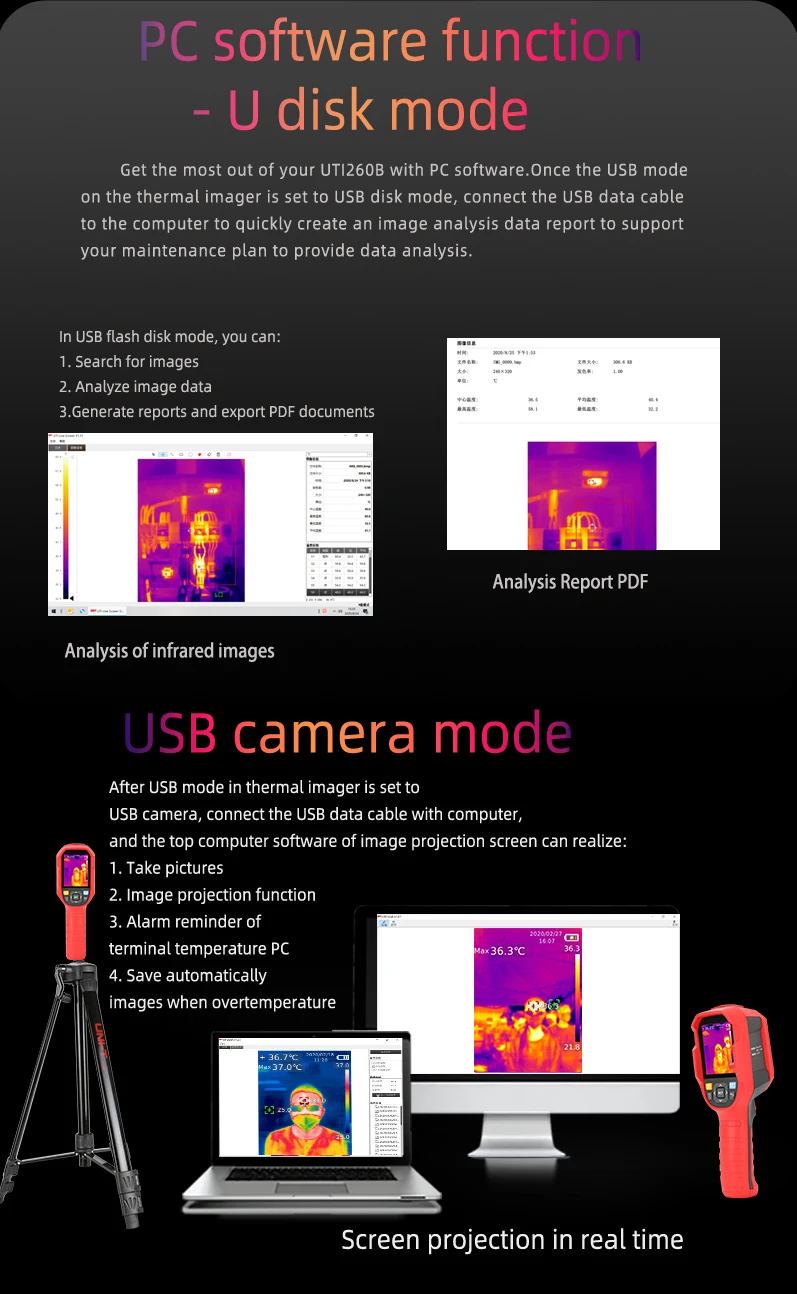

PC analysis software:Yes

Real-time image transmission: PC software real-time projection

Data communication: Type-C USB

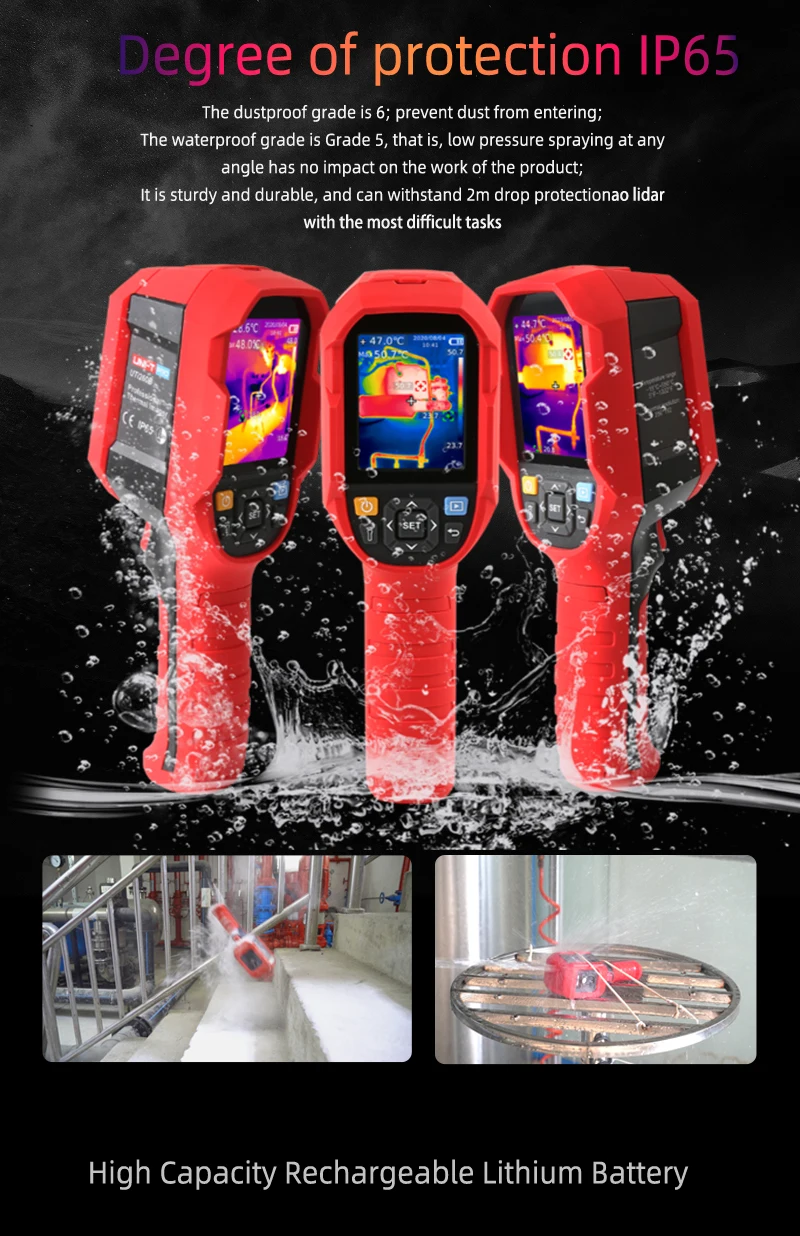

IP rating: IP65

Drop test: 2m

Display screen: 2.8 "TFT LCD

Display resolution: 320* 240

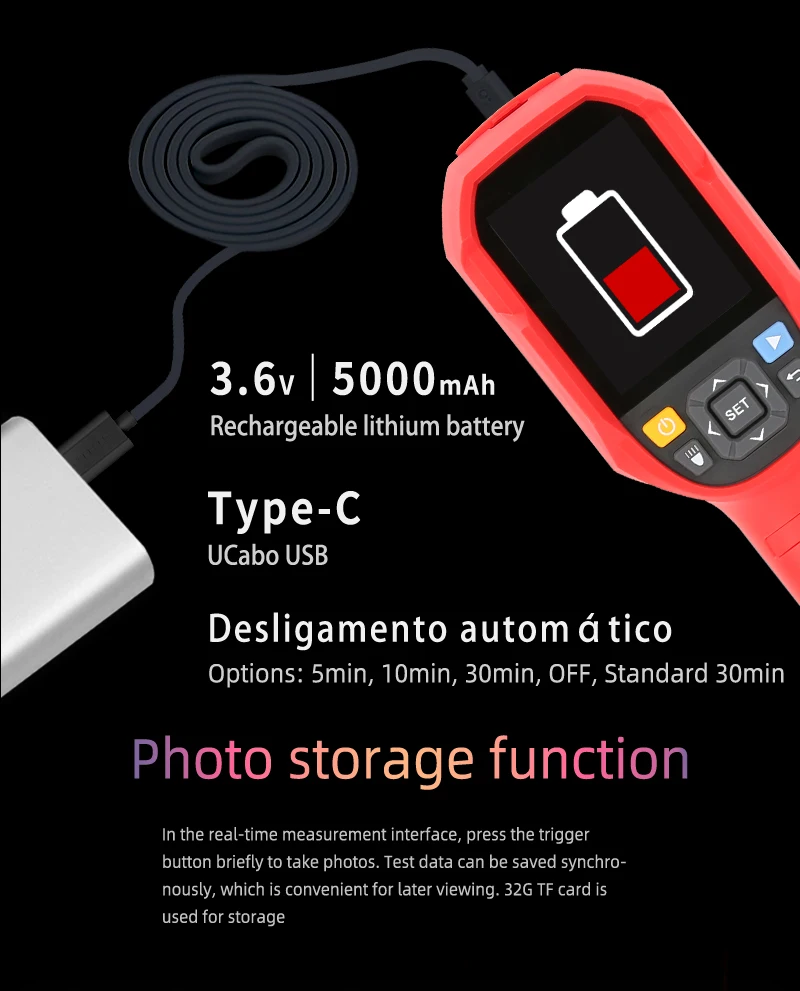

Battery: Li-ion 3.6V 5000mAh 26650 single cell

Automatic shut-down: Optional (5min, 10min, 30min,) The default 30min automatic shutdown

Usage time: Not less than 6 hours

Charging time: No more than 5 hours

Charging voltage/current: 5V/2A

Image storage: Micro SD card

Product Size: 236*75.5*86mm

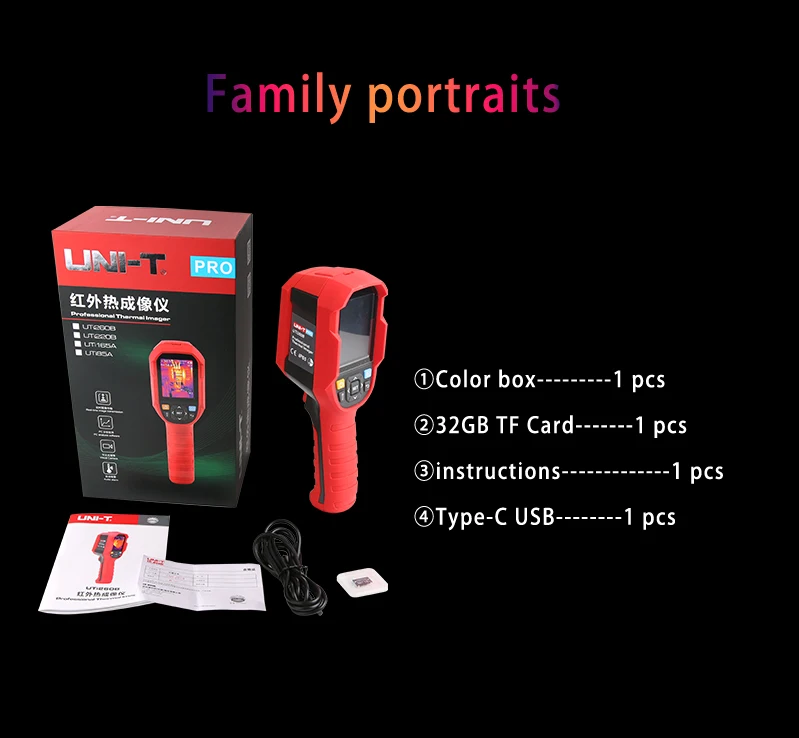

Accessories: Manual, Type-C USB cable, 16G TF card
