High-headroom ATX gaming platform for Intel 12th–14th Gen with cost-effective DDR4. You get PCIe 5.0 x16, 3x Gen4 M.2 NVMe for game/library storage, 2.5GbE LAN, and robust cooling control—great for full-size gaming builds and future upgrades.

Designed for strong gaming performance and upgrade flexibility, the Gigabyte B760 GAMING X DDR4 GEN5 delivers PCIe 5.0 x16 graphics support, triple Gen4 M.2 storage, and 2.5GbE networking on a full ATX board.

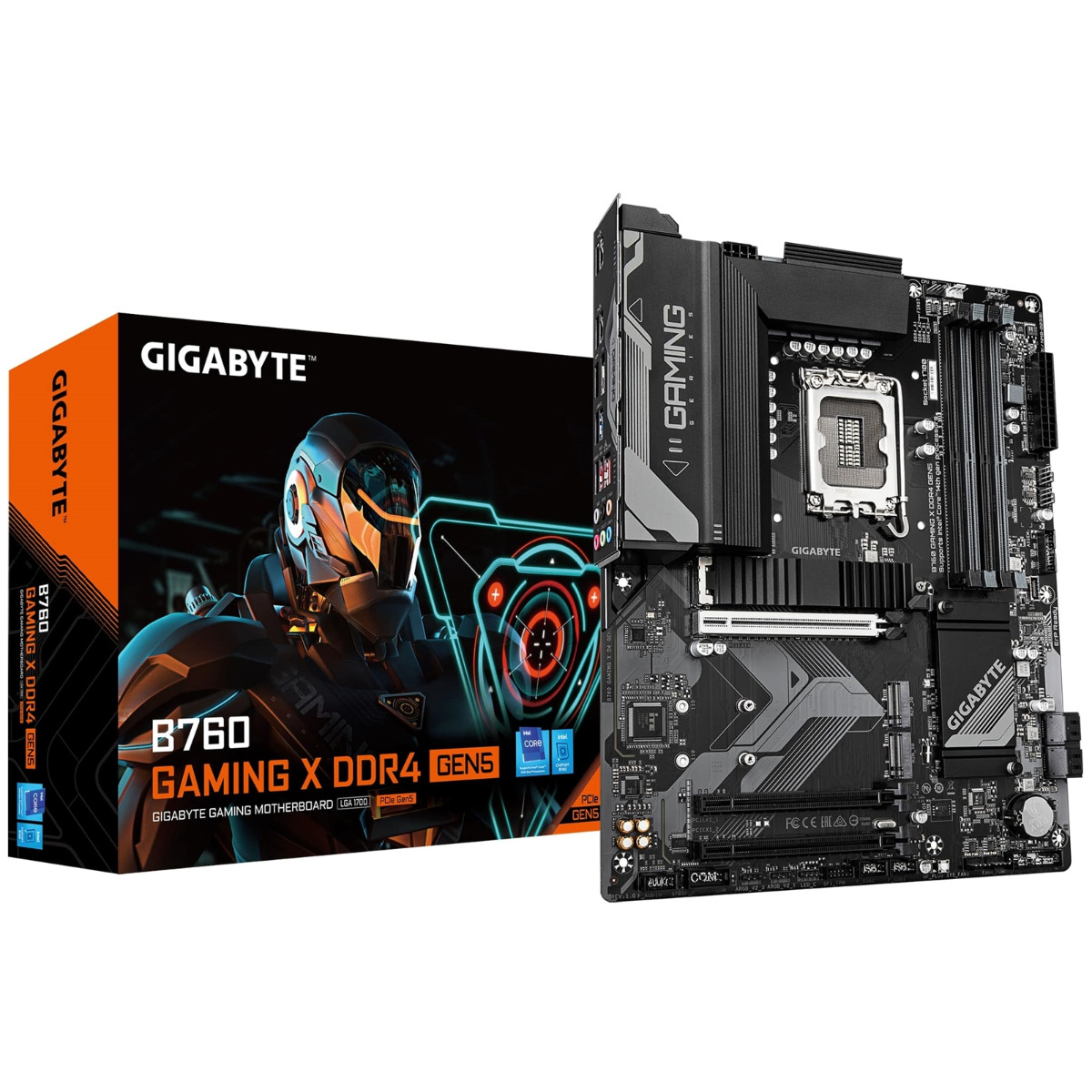

The Gigabyte B760 GAMING X DDR4 GEN5 is a full-size ATX motherboard for Intel LGA1700 platforms, designed for strong everyday and gaming builds while keeping memory costs down with DDR4. You still get next-gen essentials like a PCIe 5.0 x16 graphics slot, plus three high-speed PCIe 4.0 x4 M.2 slots for NVMe storage.

With hardware prices trending upward, DDR4 can be a smart way to build or upgrade without overspending—especially if you already have DDR4 RAM or want to allocate more budget to a GPU or SSD.

Key Features

• DDR4 value builds: 4x DDR4 DIMM slots, up to 128GB, XMP support
• Intel LGA1700: Supports Intel® Core™ 14th / 13th / 12th Gen
• PCIe 5.0 GPU slot: PCIe 5.0 x16 with EZ-Latch quick release
• 3x M.2 NVMe: 3x PCIe 4.0 x4 M.2 connectors + M.2 thermal guard
• Fast wired networking: Realtek® 2.5GbE LAN
• Front USB-C® support: Internal USB-C® header (USB 3.2 Gen 2, 10Gb/s)
• Display outputs: 1x HDMI + 1x DisplayPort (for Intel iGPU)
• Cooling control: Smart Fan 6, multiple temperature sensors, fan stop
• Easy BIOS update: Q-Flash Plus (update BIOS without CPU/RAM/GPU)
• Fitted I/O shield: Cleaner, easier installation

Compatibility

• Socket: Intel LGA1700
• CPU support: Intel 12th / 13th / 14th Gen (some CPUs may need a BIOS update)
• Memory type: DDR4 only (dual channel), up to 128GB
• Case support: ATX cases (board size 30.5cm x 24.4cm)
• OS: Windows 11 64-bit / Windows 10 64-bit

Specifications

• Model: B760 GAMING X DDR4 GEN5
• Chipset: Intel® B760 Express
• Form Factor: ATX (30.5cm x 24.4cm)
• Memory: 4x DDR4 DIMM, up to 128GB, XMP, up to 5333 (O.C.)
• Expansion: 1x PCIe 5.0 x16 (CPU), 2x PCIe x16 (PCIe 3.0 x1 lanes)
• Storage: 3x M.2 (PCIe 4.0 x4/x2), 4x SATA 6Gb/s
• RAID: RAID 0/1/5/10 (SATA)
• LAN: Realtek® 2.5GbE
• Audio: Realtek® Audio CODEC, up to 7.1-channel, S/PDIF Out header
• Video outputs: 1x DisplayPort (up to 4K@60), 1x HDMI (up to 4K@60)
• USB highlights: Internal USB-C® header (USB 3.2 Gen 2), rear USB 3.2 Gen 2 Type-A (red), plus USB 3.2 Gen 1 / USB 2.0 ports
• BIOS: 256 Mbit flash, AMI UEFI, Q-Flash Plus button
• EAN: 4719331873448
• MPN: B760 GAMING X DDR4 GEN5

Package Includes

• Gigabyte B760 GAMING X DDR4 GEN5 ATX motherboard
• Fitted / integrated rear I/O shield

Condition: New - Brand New

Warranty: 12 Month Warranty

Important:
It is your responsibility as a buyer to ensure this is compatible with your hardware or operating system before buying.

Assume that any photo is a library photo, not the actual item you will receive, unless expressly mentioned above.

Unless expressly mentioned in the description, there will be no other parts included with the item. This includes items such as drivers, cables, manuals, warranty cards etc. Hard drives, tape drives, caddies etc. will not include any screws, fixing rails unless expressly mentioned.
