Cooling & Radiator Specialist
DESCRIPTION
VEHICLE Fitment：
For 1995-2004 Toyota Tacoma 2.7L
For 1995-2004 Toyota Tacoma 2.4L
For 1995-2004 Toyota Tacoma 3.4L
Note: Fits 2.4L L4, 2.7L L4 or a 3.4L V6 engine.
PLS Measure RADIATOR SIZE ONLY FOR 18 5/8" H Core Height.
SPECIFICATIONS：
High Performance Racing Spec.
1-Row of tubes Core Racing Design
Core Material: Aluminum
Overall Height: 23 1/2"
Overall Width: 28 1/8"
Core Height: 18 5/8"
Core Width: 25 1/8"
Inlet Diameter: 1 3/8 " On Passenger Side
Outlet Diameter: 1 3/8 " On Driver Side
Transmission Oil Cooler Fitting Type: M14-1.5
Fan Specification:
Diameter : 16'' (Blade to Blade)
Number of Blades: 10 pcs
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2,250 rpm
Max. Amp Draw: 15amp
Voltage: DC 12V
Wattage: 120W
Description:

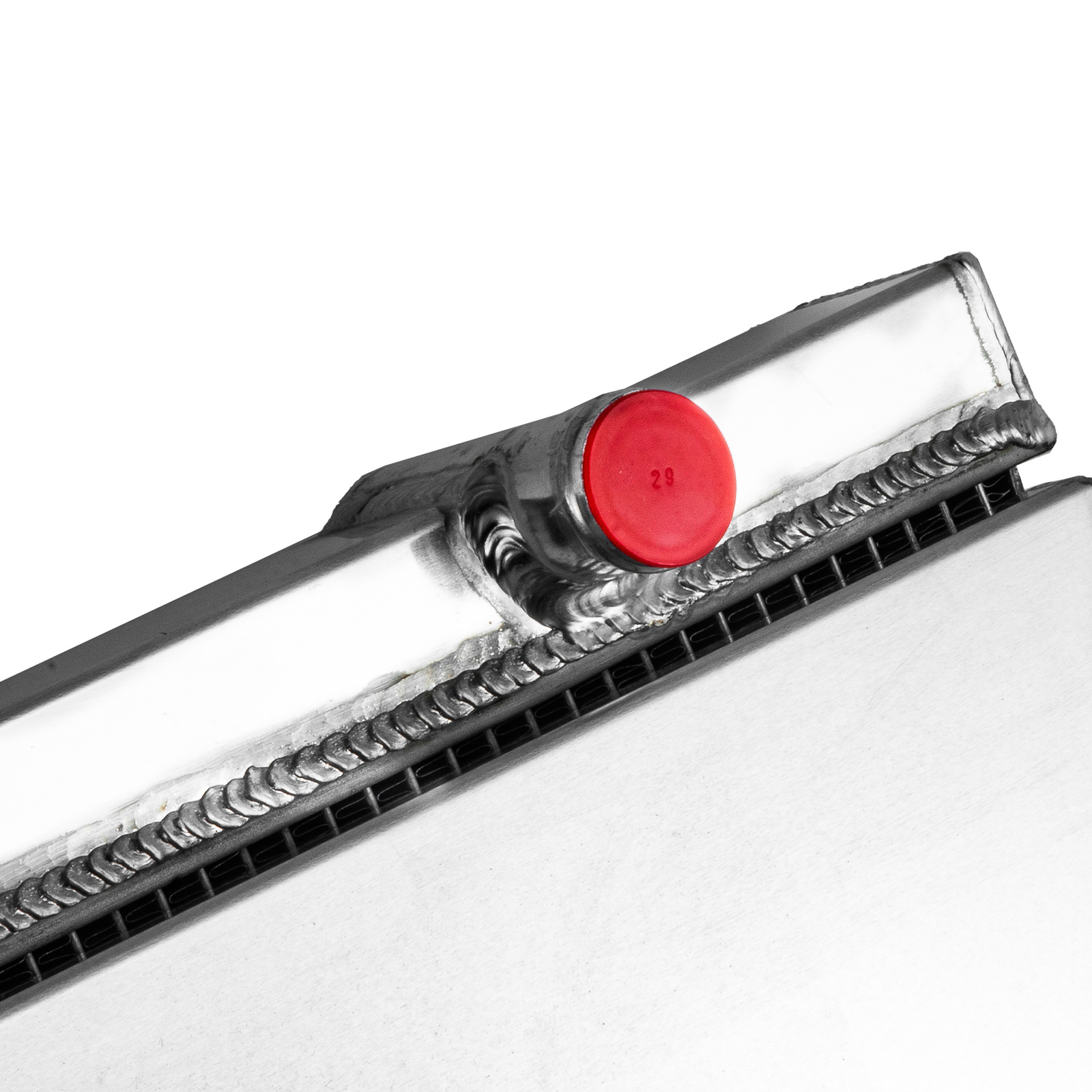

This aluminum radiator
is designed to provide maximum cooling efficiency to prevent premature
engine failure. Its light-weight, and high-heat transferring aluminum
features a tube and fin design that, dramatically increases surface area
that enables the heat to dissipate more efficiently. This Aluminum
Radiator is at least 40% more efficient than stock ones. Most
importantly, it has a much higher capacity for coolant than stock ones,
which means that your cooling system will be more efficient and will be
more resistant to temperature surges in racing applications.

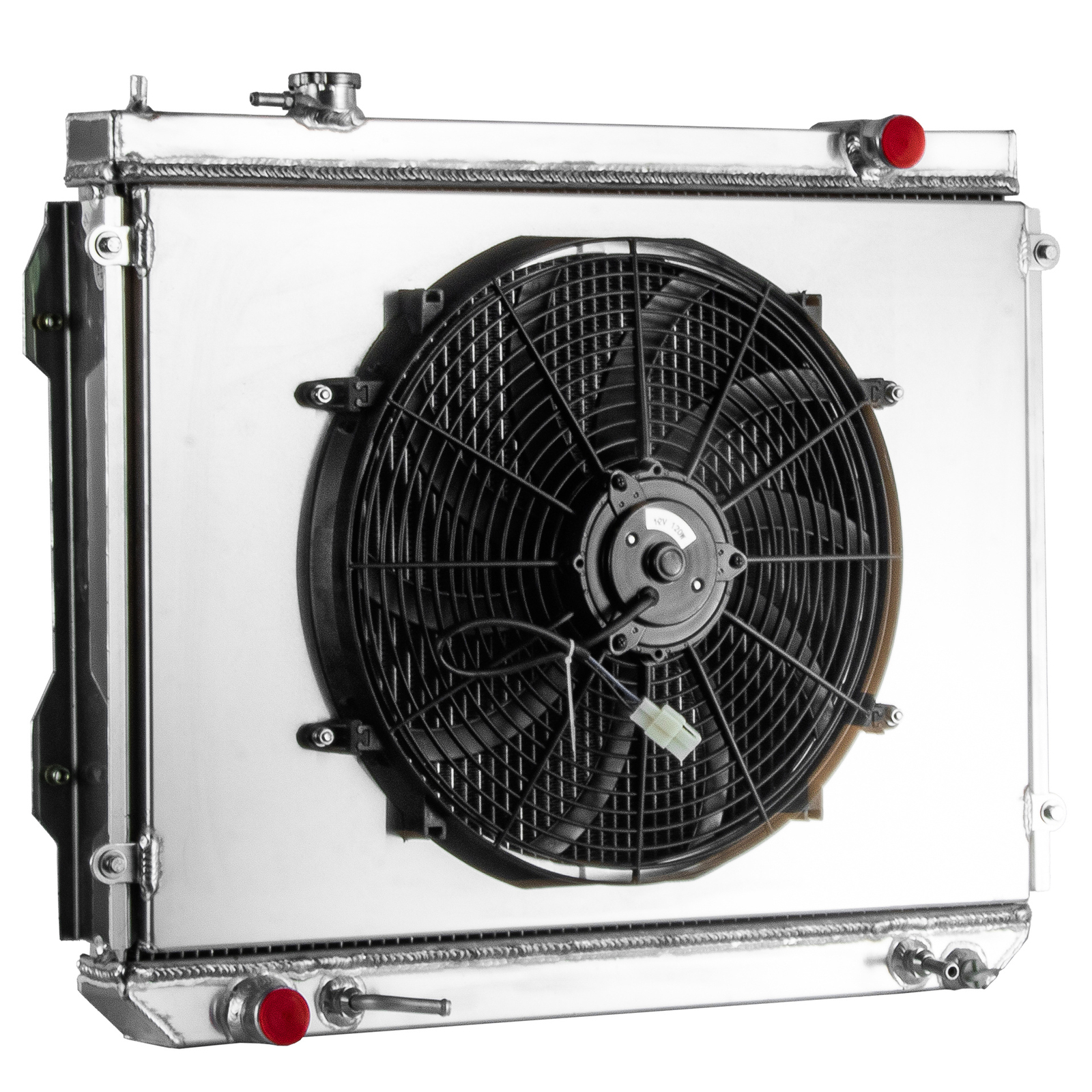

Aluminum Shroud+Fan：
The fan and the fan
shroud effectively drive the heat over and out the engine compartment
rather than thrusting it into the front of the engine. The fan shroud
basically houses the fan blades securing it in place and keeping it from
damaging the other engine components that may disturb the smooth and
even operation of the engine. With excellent operating temperature
management, allowable levels of engine temperature are stabilized.
Investing in proper maintenance though will considerably benefit the
ride and driving quality in maintaining the ideal working conditions of
the engine.
