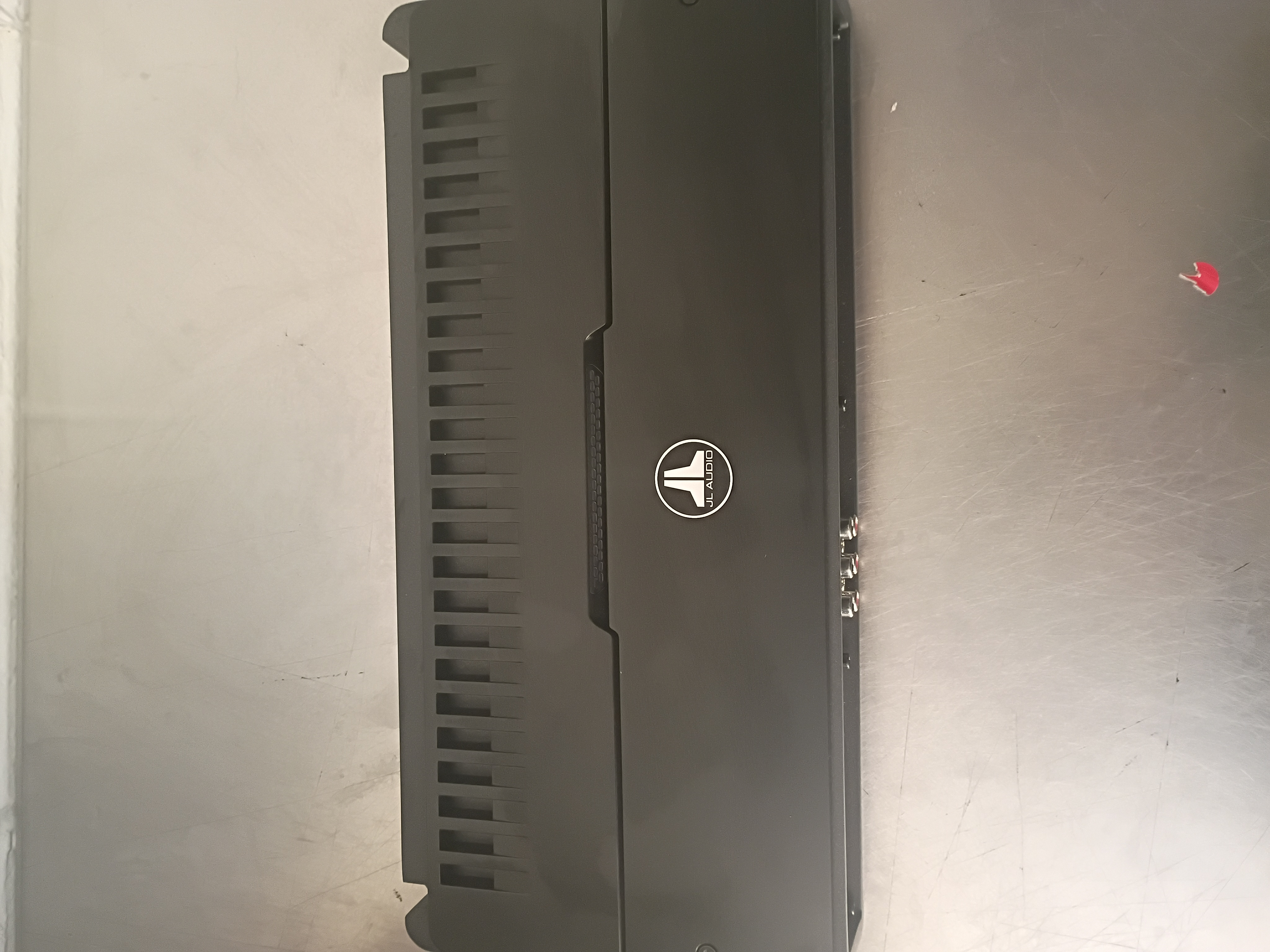

Used RD-900/5 RD Series 900W RMS Class D 5-Channel Car Amplifier

JL Audio URD900/5

Used, good condition RD900/5 JL Audio RD-900/5 5-Channel 900 Watts RMS RD Series Class D Amplifier

5-Channel Class D System Amplifier, 70 W x 4 @ 4 ohms + 500 W x 1 @ 2 ohms - 14.4V

Crafted as an all-in-one, total system solution, the RD900/5 is engineered to power a complete audio system consisting of a subwoofer + four satellite system with 900 watts of high-performance sound. Equipped with our exclusive NexD switching technology, this complete power package efficiently generates a potent 70 watts of crystal-clear audio into 4 ohms, plus a robust 500 watts for a subwoofer system, all from a single compact chassis. Each pair of main channels is also fully bridgeable, stoutly producing 200 watts of full-range audio bliss (into 4 ohms), creating an ultra-powerful 3-channel amplifier.

Conveniently located on top of the RD900/5, you'll find a complement of studio-grade signal processing features, all hidden beneath a removable protective cover. Each pair of main channels is equipped with a 12 dB / octave high-pass filter, with a dedicated low-pass filter for its subwoofer channel. All three crossovers offer continuously variable frequency selection from 50-500 Hz, for precise filtering. Dual-range, differential-balanced inputs are also onboard, capable of accepting most input voltage levels, plus automatic turn-on capability (via signal sensing or DC-offset sensing) for maximum versatility.

LED clipping indicators are also standard equipment for each channel section. This all-new, innovative feature lets you easily set your amplifier's input sensitivity settings, quickly and accurately, with no special equipment needed. The RD900/5 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. With the addition of an RBC-1 remote level control (sold separately), you can conveniently control the subwoofer's output remotely from the driver's seat.

SPECS

Rated Continuous (RMS) Power @ 14.4 V

Main Channels @ 4 ohms: 70 W RMS x 4

Main Channels @ 2 ohms: 100 W RMS x 4

Main Channels - Bridged @ 4ohms: 200 W RMS x 2

Subwoofer Channel @ 4 ohms: 225 W RMS x 1

Subwoofer Channel @ 3 ohms: 325 W RMS x 1

Subwoofer Channel @ 2 ohms: 500 W RMS x 1

Subwoofer Channel @ 1.5 ohms: N/A

Rated Continuous (RMS) Power @ 12.5 V

Main Channels @ 4 ohms: 60 W RMS x 4

Main Channels @ 2 ohms: 90 W RMS x 4

Main Channels - Bridged @ 4ohms: 180 W RMS x 2

Subwoofer Channel @ 4 ohms: 200 W RMS x 1

Subwoofer Channel @ 3 ohms: 250 W RMS x 1

Subwoofer Channel @ 2 ohms: 350 W RMS x 1

Subwoofer Channel @ 1.5 ohms: N/A

General Specifications

Frequency Response (Main Channels): 12 Hz - 22 kHz (+0, -1dB)

Frequency Response (Subwoofer Channel): 10 Hz - 500 Hz (+0, -1dB)

S/N Ratio, referred to highest rated power (Main Channels): >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)

S/N Ratio, referred to 1 W: >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Damping Factor @ 4 ohms: >150 / 50 Hz

Damping Factor @ 2 ohms: >75 / 50 Hz

THD+N @ Rated Power (Main Channels): <1% @ 2 ohms per Ch.

THD+N @ Rated Power (Subwoofer Channels): <1% @ 2 ohms per Ch.

Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)

Min.Copper Power / Ground Wire Gauge: 4 AWG wire

Fuse Rating: 80 A (AFS, AGU or MaxiFuse)

Signal Processing

Filter Mode(s): Channels 1 and 2 (front): High-Pass only

Filter Slope(s): Channels 1 and 2 (front): 12 dB/octave

Filter Frequency Range: Channels 1 and 2 (front): 50 Hz - 500 Hz

Filter Mode(s): Channels 3 and 4 (rear): High-Pass only

Filter Slope(s): Channels 3 and 4 (rear): 12 dB/octave

Filter Frequency Range: Channels 3 and 4: 50 Hz - 500 Hz

Filter Mode(s): Subwoofer Channel: Low-Pass only

Filter Slope(s): Subwoofer Channel: 12 dB/octave

Filter Frequency Range: Subwoofer Channel: 50 Hz - 500 Hz

Detented, Calibrated Filter Freq. Potentiometers: No

Filter Defeat Function: No

Infrasonic Filter: Subwoofer Channel: No

Remote Level Control: Optional (RBC-1)

Remote Level Modes: Sub Ch.

Channel Input Mode Switch: Yes (2/4/6 ch.)

Pass-Through Preamp Output: No

Source Channel Selection for PreOuts: N/A

Physical Specifications

Height (H): 2.13 in / 54 mm

Width (W): 14.66 in / 372 mm

Depth (D): 6.96 in / 177 mm

Net Weight: 6.15 lb / 2.79 kg
