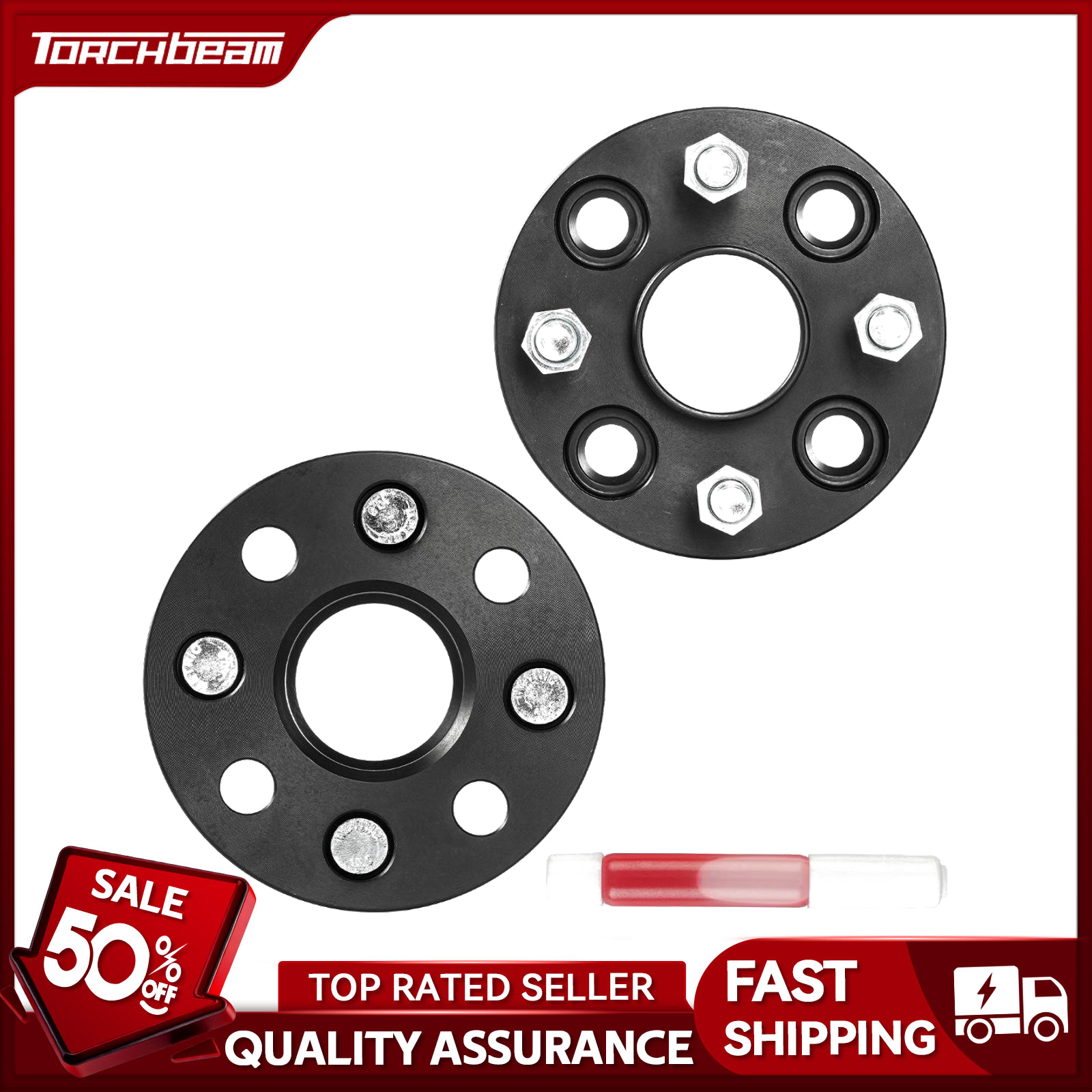

Features & Details

Spacer Thickness: 15mm
Vehicle Bolt Pattern: 4x100mm
Wheel Bolt Pattern: 4x100mm
Thread Size: M12x1.5
Hub Bore: 54.1mm
Hubcentirc: Hubcentirc: Yes,Easier to install,Easy to Locate,More secure than lug-centric spacers as they seat on the hub,No need to purchase separate hub-centric rings.
Lug Patterns: 4
Torqued Down By Hand At: 70-80lb-ft
Inside Diameter: 54.1mm
Outside Diameter: 140mm
Items Included: 2x wheel spacers,Thread locker,Instruction Manual
Fits: ATV / UTV
Stud Grade: 12.9
Number of Pieces: 2
UPC: Does not apply
Placement on Vehicle: Left, Right, Front, Rear
Manufacturer Warranty: 5 Years
Number in Pack: 2
Features: durable
Finish: Manufacturing process
Color: Black
Manufacturer Part Number: Does not apply
Centering: 54.1mm
Material: High Quality t6 6061 Billet Aluminum
Bolt Pattern: 4x100mm
Brand: Torchbeam
Type: wheel spacer

Key Benefits

- Made from high-quality T6 6061 billet aluminum for enhanced durability and performance.
- Hub-centric design ensures better fit and alignment, providing a more secure installation compared to lug-centric spacers.
- Torque specifications of 70-80 lb-ft for optimal installation strength and safety.
- Fits various models including 2007-2008 Toyota Yaris and 1998-2002 Toyota Corolla.
- Includes two wheel spacers, thread locker, and an instruction manual for convenience.


Compatibility

For Toyota:
Toyota Yaris 2007-2008 L4 1.5L
Toyota Yaris 2009-2011 All engine
Toyota Yaris 2012-2014 All engine
Toyota Yaris 2015 All engine
Toyota Yaris 2016-2017 All engine
Toyota Yaris 2019-2020 All engine
Toyota Corolla 1993-1997 L4 1.8L
Toyota Corolla 1993-1997 L4 1.6L
Toyota Corolla 1998-2002 All engine
Toyota Prius C 2012-2015 All engine
Toyota Prius C 2016-2019 All engine
Toyota Echo 2000-2005 L4 1.5L
Toyota Yaris iA 2017-2018 All engine
Toyota Tercel 1989-1997 All engine
Toyota MR2 Spyder 2000-2005 All engine

For Hyundai:
Hyundai Accent 2000-2004 All engine
Hyundai Accent 2005 L4 1.6L
Hyundai Accent 2007-2011 L4 1.6L
Hyundai Accent 2012-2014 All engine
Hyundai Accent 2015-2017 All engine
Hyundai Accent 2018-2022 All engine

For Kia:
Kia Rio 2006-2010 L4 1.6L
Kia Rio 2012-2017 All engine
Kia Rio 2018-2022 All engine
Kia Rio 2023 All engine
Kia Rio5 2006-2011 L4 1.6L
Kia Spectra 2000-2004 All engine

For Mazda:
Mazda Miata 1990-1997 All engine
Mazda Miata 1999-2005 All engine
Mazda MX-5 Miata 2016-2022 All engine
Mazda 2 2011-2014 All engine
Mazda Protege 1999-2001 L4 1.6L
Mazda Protege 2002-2003 L4 2.0L (SubModel:DX; LX)

For Scion:
Scion xB 2004-2006 All engine
Scion xA 2004-2006 All engine
Scion iA 2016 All engine

For Ford:
Ford Escort 1997-2000 All engine

For Chevrolet:
Chevrolet Prizm 1998-2002 All engine

For Geo:
Geo Prizm 1993-1995 L4 1.6L

For Fiat:
Fiat 124 Spider 2017-2020 All engine

What's Included

2x wheel spacers,Thread locker,Instruction Manual

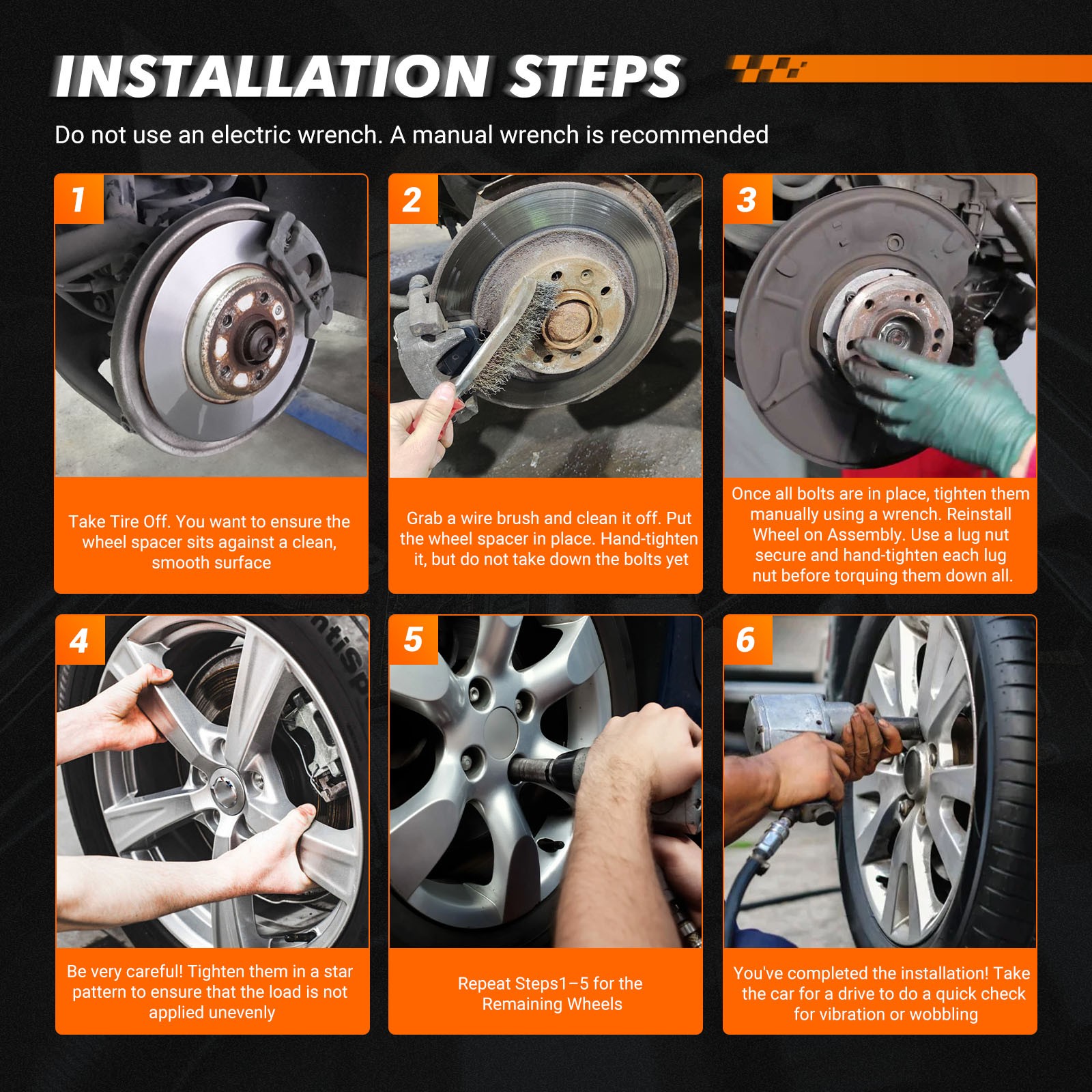

Installation Guide

- Begin by securely lifting the vehicle and removing the wheels.
- Clean the hub surface to ensure a smooth installation of the spacers.
- Place the wheel spacers onto the hub, aligning the specifications with the bolt pattern (4x100mm).
- Use the thread locker to apply on the bolts, then attach the wheel back onto the spacer.
- Tighten the lug nuts by hand initially, and then torque down to 70-80 lb-ft for secure fitting.


Important Notes

- Ensure compatibility with your vehicle by confirming fitment (e.g., for 2007-2011 Hyundai Accent L4 1.6L).
- Spacer thickness is 15mm; confirm that this will meet your clearance requirements.
- Do not exceed the recommended torque specifications to prevent damage.
- Regularly check the tightness of lug nuts after installation and during regular vehicle maintenance.


How To Measure the Bolt Pattern of Your Vehicle


The bolt pattern refers to the diameter of an imaginary circle formed by the centers of the wheel lugs. Different vehicles come with different types of bolt patterns on their wheels. It is better to do some measurements on your own. Common bolt patterns are of 4, 5, 6 or 8 lug holes.

How to Measure the Thickness of Wheel Spacers


To achieve the look that flushes or nearly flushes with the fender, measuring the wheel gap is necessary. Too thick can cause the tires to rub against the body, while too thin may not achieve the desired visual or performance improvements. The wheel gap refers to the distance from the outside edge of your tires or rims to the inner fender lip.


1. Place a straight edge across the face of the wheel and tire combination. Make sure the straight edge touches both sides of the tire to make sure that the straight edge truly represents the front face of the wheel.
2. Use your measuring tool to measure from the inside of the straight edge to the inside of the fender lip.
3. Take the measurement at the point where the wheel and tire is closest to the fender. This may be closer to the front or rear edge of the fender rather than top dead center.

Important Notes



1. Check the thickness of the spacer you are ordering. If your vehicle has studs that are longer than the thickness of the spacer, you will need to trim your vehicle studs. If your rims mount lug bolts, and you want to install a thin spacer, you may need shorter lug bolts.
2. The centerbore of the spacer is the size of the big hole in the middle. If the center of your hub is larger than the centerbore of the spacer, it will not fit. It's ok if the center of your hub is smaller. If you need an exact fit, then order hub-centric spacers.



Non Hub Centric or Hub Centric Wheel Spacers


Hub centric wheel spacers: Use the axle hub to center and support the wheel. Use the lug studs as compressive force to keep the wheel tight to the wheel hub.

Lug-centric wheel spacers: Use the lug studs to support the wheel. Then uses tapered holes and nuts to align/center the wheel so that the spacers can keep it compresses to the hub.



Hub centric wheel spacers match the locating ring on the hub, ensuring that the weight of the car is carried by the hub and not by the studs or bolts, thus reducing the stress on the bolts or studs. Lug centric wheel spacers use lug studs to support the wheel, then tapered holes and nuts to position the wheel and keep it compressed against the hub. Non hub centric wheel spacers may cause vibration while driving. So using the hub centric wheel spacers will be a better option.
