Product Description

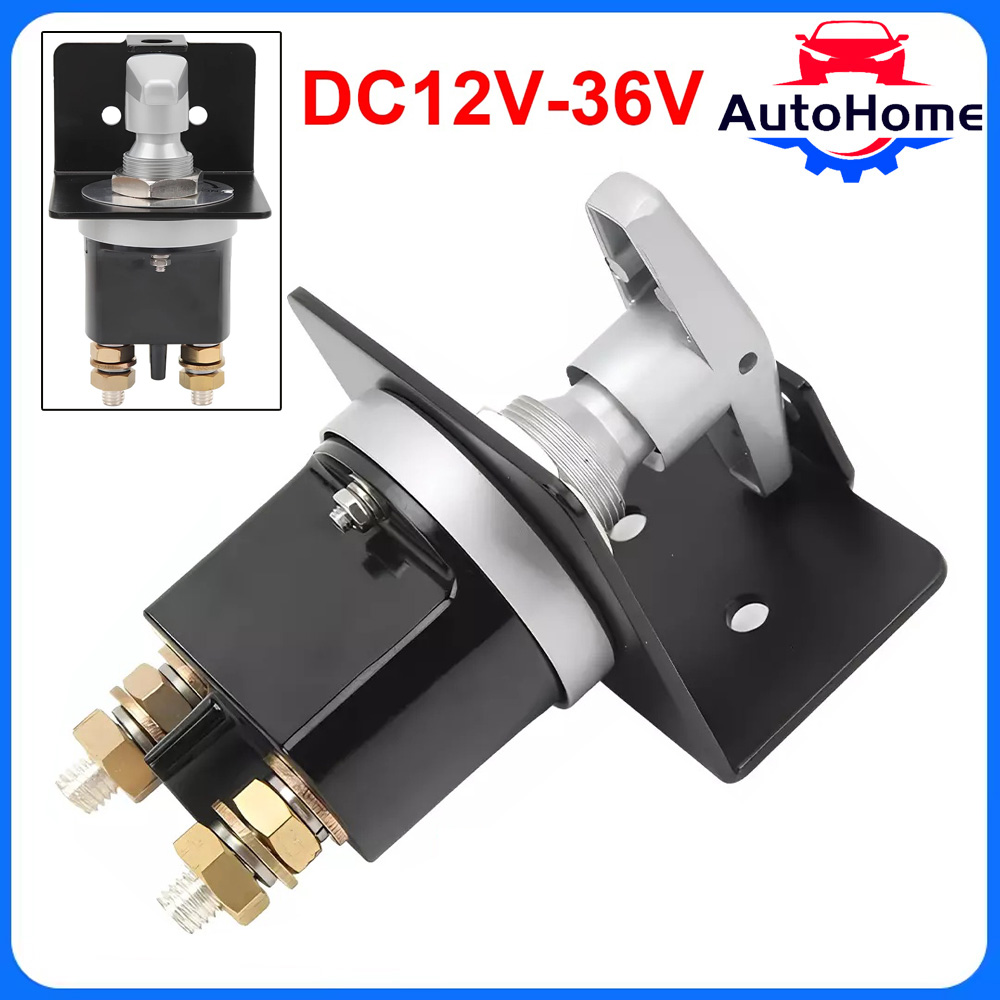

12V-36V Battery Kill Switch Disconnect Isolator Power Cut OFF Car Boat Marine RV


About this item


HIGH CURRENT & WATERPROOF - 12V-36V, 500A rated current, 5000A instantaneous current, replacement part number: 20247, 10MM threaded studs with nuts, polarity negative, metal material, watertightness processing.

SIMPLE OPERATION - High Current Battery Cut Off Switch with Lock-Out Plate, turn the knob to turn it on or off. The heavy duty rotary handle is locked to the panel through a padlock hole to prevent accidental opening or closing, as well as tampering or unauthorized use.

UNIVERSAL BATTERY DISCONNECT SWITCH - Which protects against electrical fires and theft when equipment is not in use and provides a reliable way to shutdown electrical power during maintenance and protect batteries from excessive battery drain. Disconnect the battery when you are not driving a Car / Boat / RV / Yachts / Vehicle / ATV / Trucks / Off-road / Tractors / Agricultural Equipment, etc. Keep you safe all the time.

EASY TO INSTALL - Compared to the remote control switch, there is no need for programming or code, just connect the product with wire, the operation is very simple. For the specific connection mode, please refer to the wiring diagram in our product picture. If you have any questions, please contact us in any time.


Product Description


Replacement part number: 20247

Working voltage: 12V-36V

Rated current: 500A

Instantaneous current: 5000A

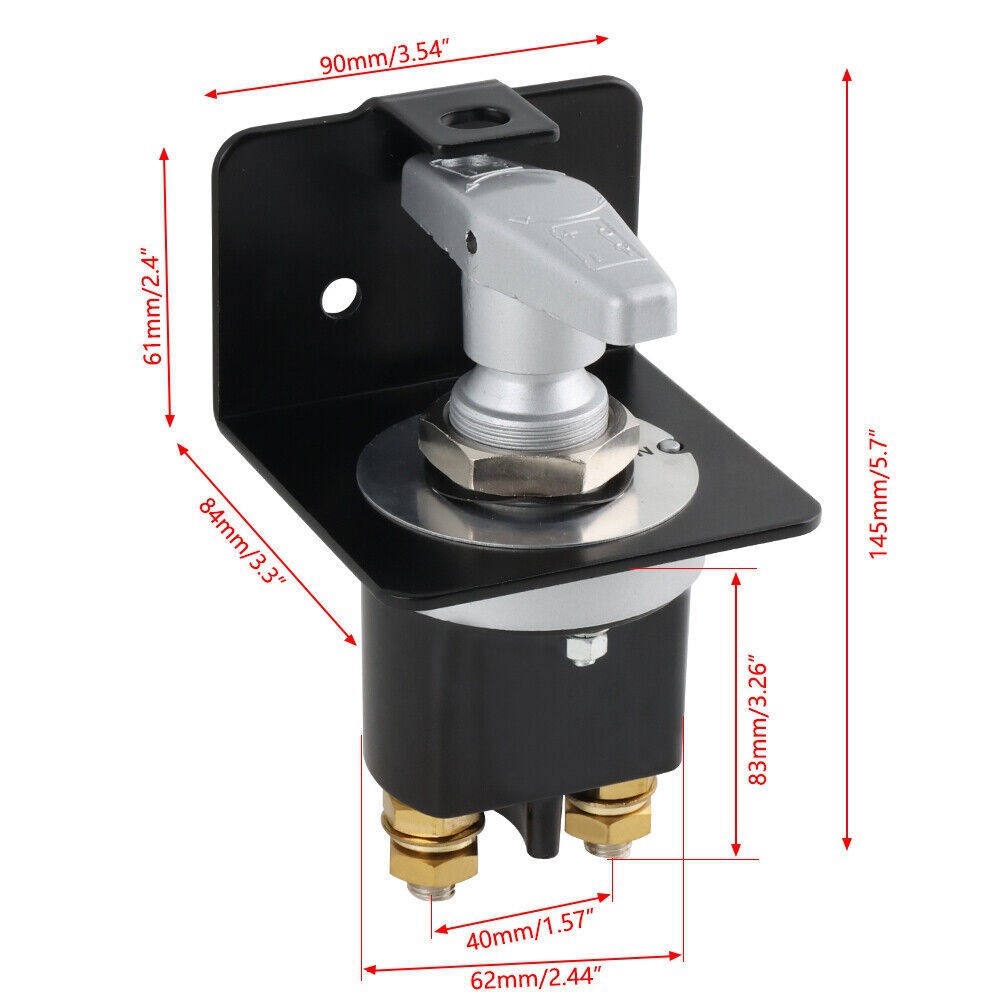

Stud Specifications: 10MM

Polarity: Negative

Material: Metal, Watertightness processing

HIGH CURRENT & WATERPROOF

UNIVERSAL BATTERY DISCONNECT SWITCH

With Lock-Out Plate

SIMPLE OPERATION & INSTALLATION


The heavy duty rotary handle is locked to the panel through a padlock hole.

High Current Battery Cut Off Switch with Lock-Out Plate, turn the knob to turn it on or off. The heavy duty rotary handle is locked to the panel through a padlock hole to prevent accidental opening or closing, as well as tampering or unauthorized use.


Easy to install

Compared to the remote control switch, there is no need for programming or code, just connect the product with wire, the operation is very simple.


Universal battery disconnect switch

Used for 12-36V DC systems to isolate and secure the electrical system. Master battery disconnect switch is widely used for ATVs, Trailers, UTVs, Cars, Marine Outboard, Off-road, RVs, Trucks, Yachts, Tractors, Heavy Vehicles, Agricultural and electrical equipment's switch.

Which protects against electrical fires and theft when equipment is not in use and provides a reliable way to shutdown electrical power during maintenance and protect batteries from excessive battery drain. Disconnect the battery when not in use to ensure your safety.
