Feature:

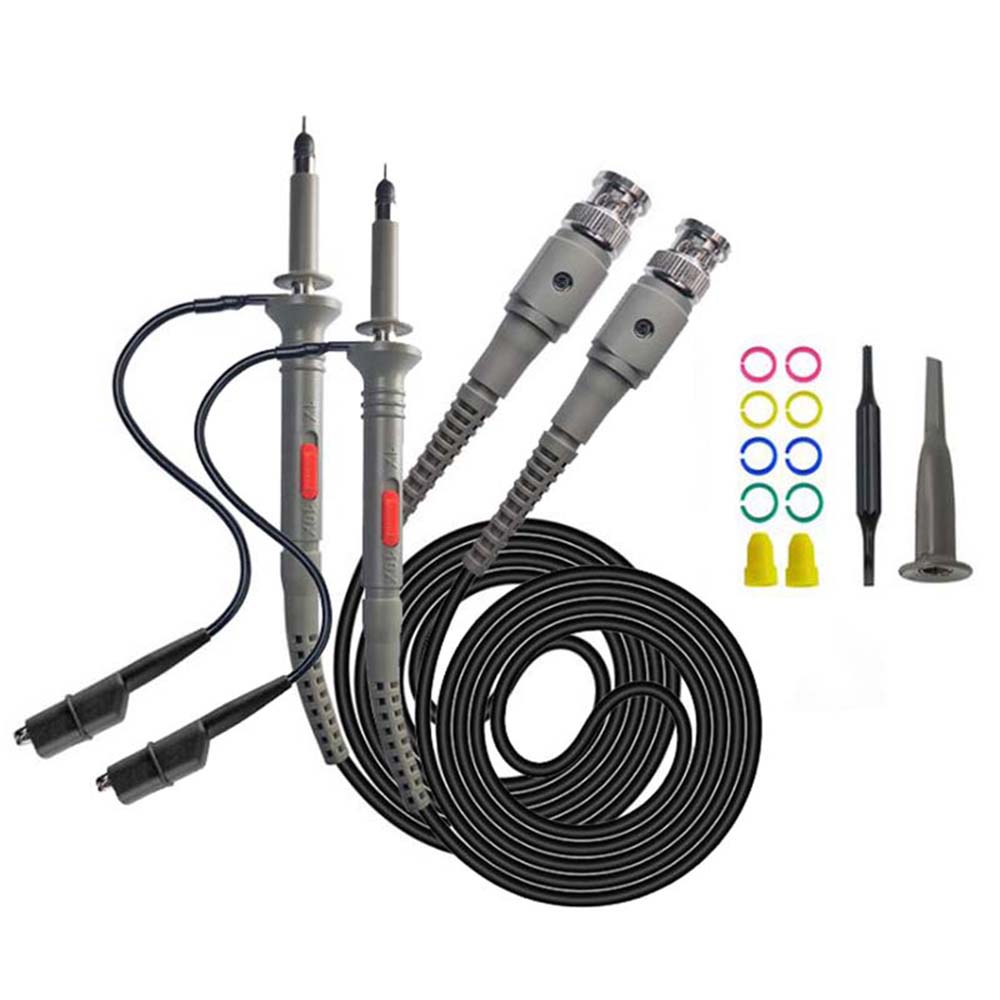

• a pair of 20Mhz Oscilloscope probes with a switch for either 1x or 10x attenuation
• Usable with Scopes having Bandwidth up to 20 MHz
• Interchangeable Probe Tip.High Sensitivity, Excellent Performance and Reliable Function
• Mini-grabber clips color coded in black and red, helps identify different channels, Lead length 48-Inch.
• Suitable for all digital oscilloscopes and analog oscilloscopes voltage detectors to test circuit.



Probe Specifications:
- Attenuation 1:10
- Input Impedance 1MΩ / 10MΩ +-2%
- Input Capacitance 1X:70-90pF;  10X:14-18pF
- CompensationRange 10pF to 45pF
- Bandwidth: 20MHz;
- Working Voltage 1X : < 150V pk; 10X : < 300v pk
- Working temperature - 10~ + 50°C below 85%RH
- Storage temperature - 20~ +75°C below 85% RH
- Humidity Less than 85% (Relative humidity
- Cable length 1.2m
- Net weight 65g/pcs

Package include:
- 2 X Probe
