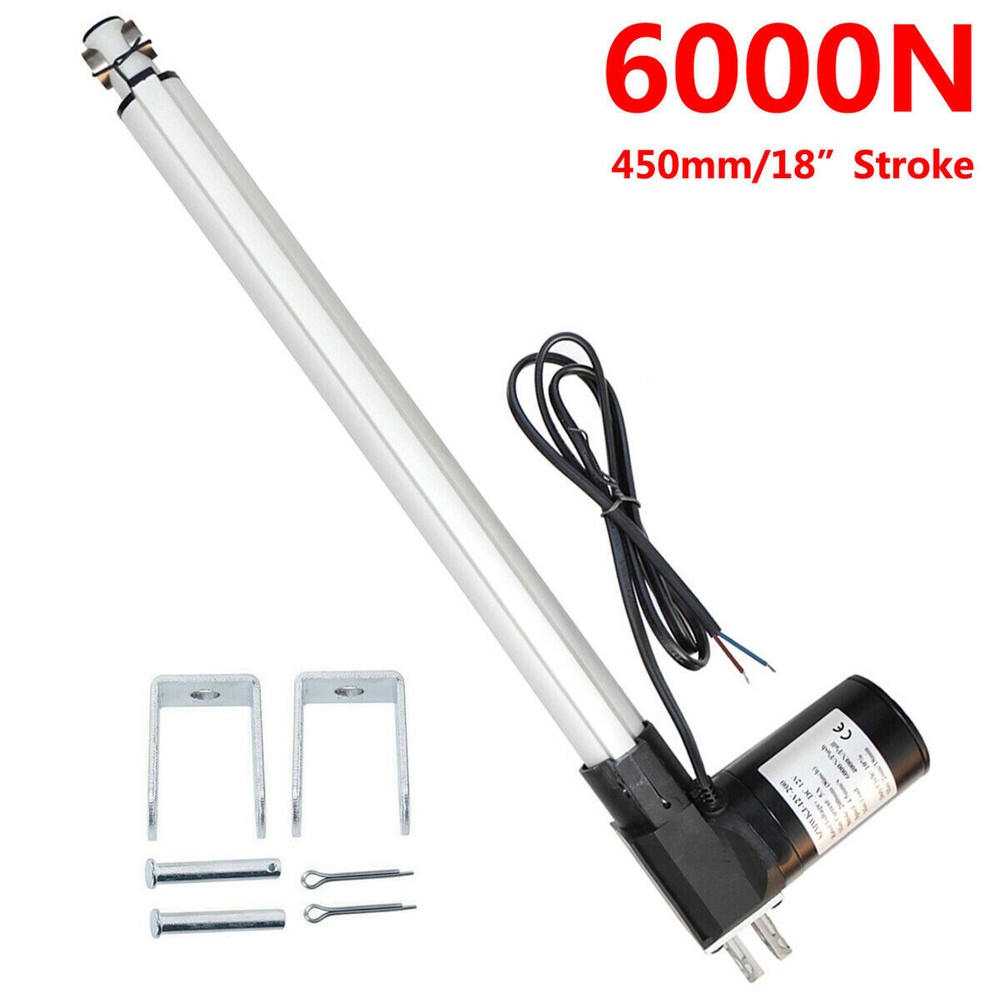

6000N 1320lbs 12V Heavy Duty Linear Actuator
2" - 40inch 1000MM Stroke Electric

Product Description

This is 6000N/1320lbs  DC 12V linear actuator made by high quality aluminum alloy material, it has built-in limit switch. Typical applications include driving electric gates, automatic windows, medical devices, engineering industry and other home automation assemblies. The actuator can provide a pushing force of up to 6000N/1320lbs and a pulling force of up to 4000N/880lbs.


Features:

  • HIGH QUALITY-- The linear actuator is made of high quality metal material, which is equipped with high performance motor and built-in stroke switch. It is ideal for driving electric gates, automatic windows and other home automation assemblies.
  • POWERFUL-- This liner actuator is a good tool to extend stroke relatively. It can provide a pushing force of 6000N/1320lbs and pulling force 4000N/880lbs.The travel speed of up to 4mm/s when under no-load.

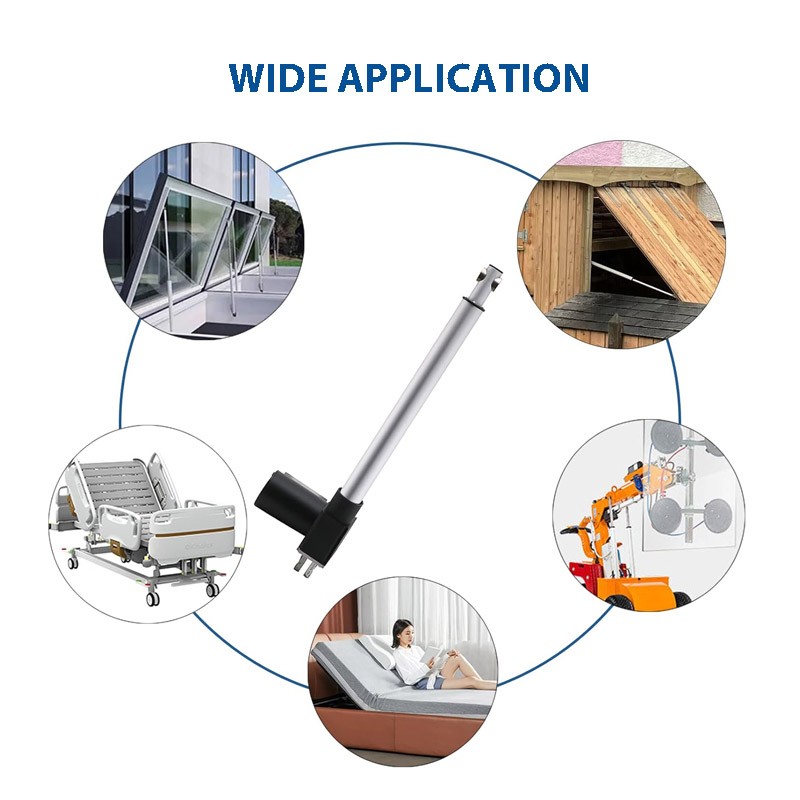

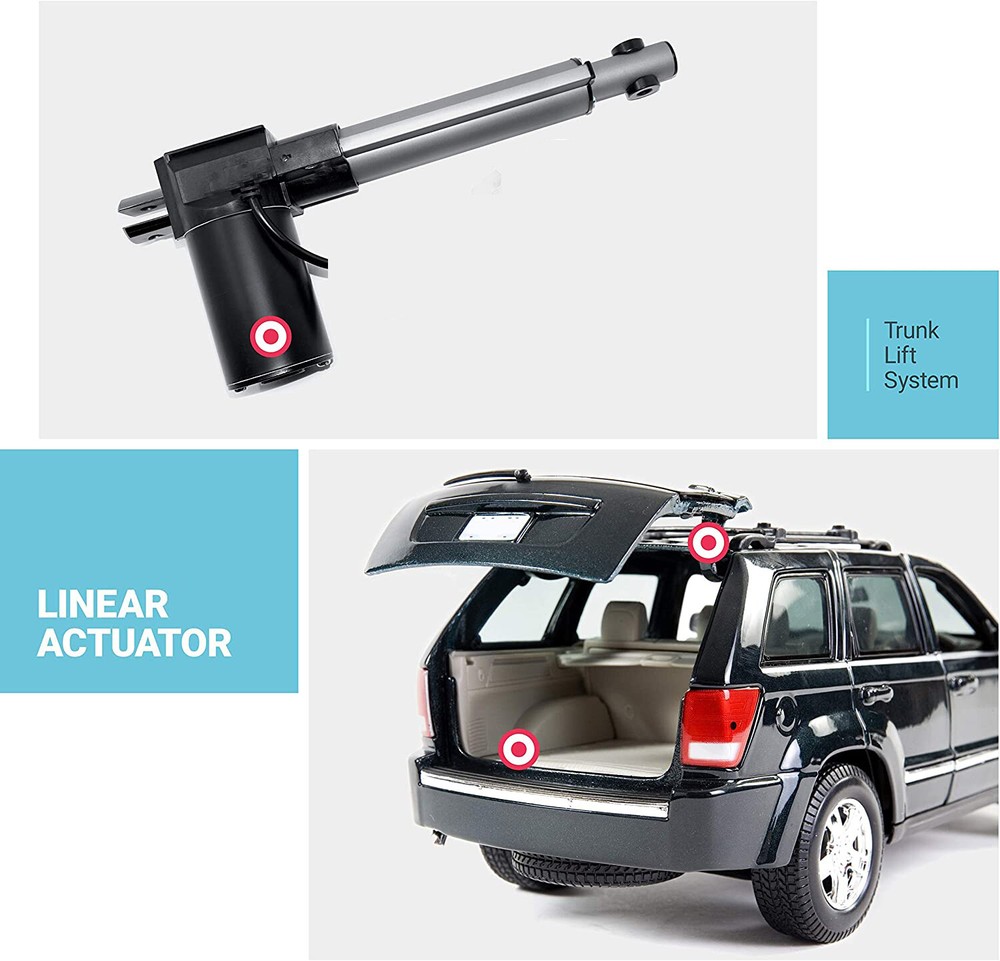

  • WIDE APPLICATION-- Linear actuator can be widely used in automotive, medical devices and engineering industry, agricultural machinery, wedding system, industrial electric lifting system, medical electric bed, surgical bed, traction bed, electric sofa, electric lifting lever, electric booth, electric sunroof, electric wheelchair and more.
  • OPTIONAL STROKE-- There are different kinds of optional strokes: 50MM~1000MM/2inch~40inch, meet your differente requirements.
  • FEATURE-- Standard protection level: IP43, safe to use. It can normally work under the temperature from 0°C to +65°C. It features reliable performance and sensitive action stable running.

Specification:

  • Input Voltage: DC 12V
  • Material: Aluminum Alloy
  • Color: Black, Silver
  • Power Cord Length: 1 Meter / 40inch
  • Load Capacity: 6000N/1320Lbs
  • Max Push Load: 6000N/1320Lbs
  • Max Pull Load: 4000N/880lbs
  • Speed: 4mm/s

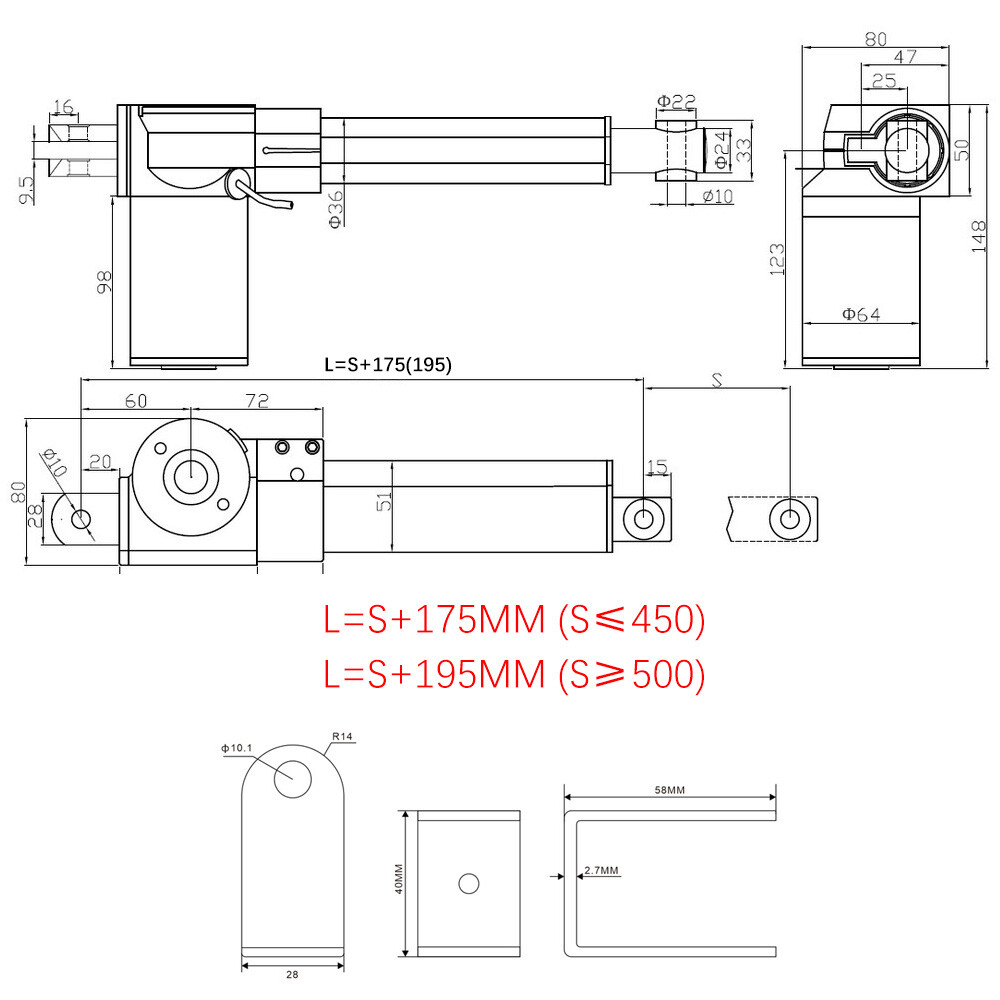

  • Stroke Length: 50-1000mm/2~40inch Stroke Optional
  • No-load Current: 1A
  • Max Load Current: 6A
  • Duty Cycle: 10%
  • Operating Frequency: 2min/18min (Max)
  • Noise Level: 48db
  • Protection Level: IP43
  • Working Temperature: 0°C to +65°C
  • Notice: Built-in limit switches,not adjustable after leave factory.


Package list

  • 1PCS DC 12V Linear Actuator

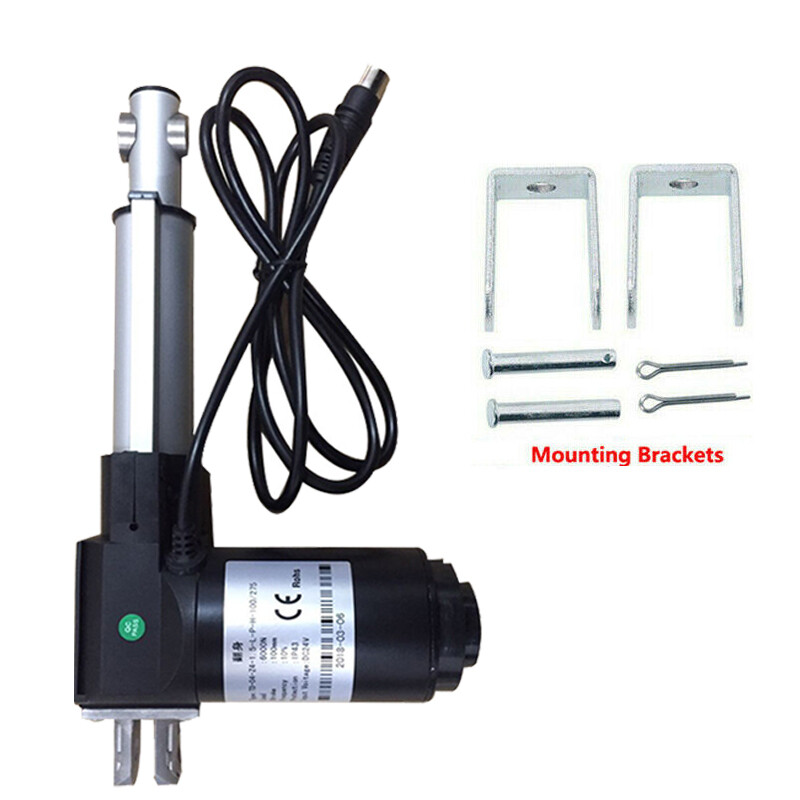

  • 2PCS Mounting Brackets

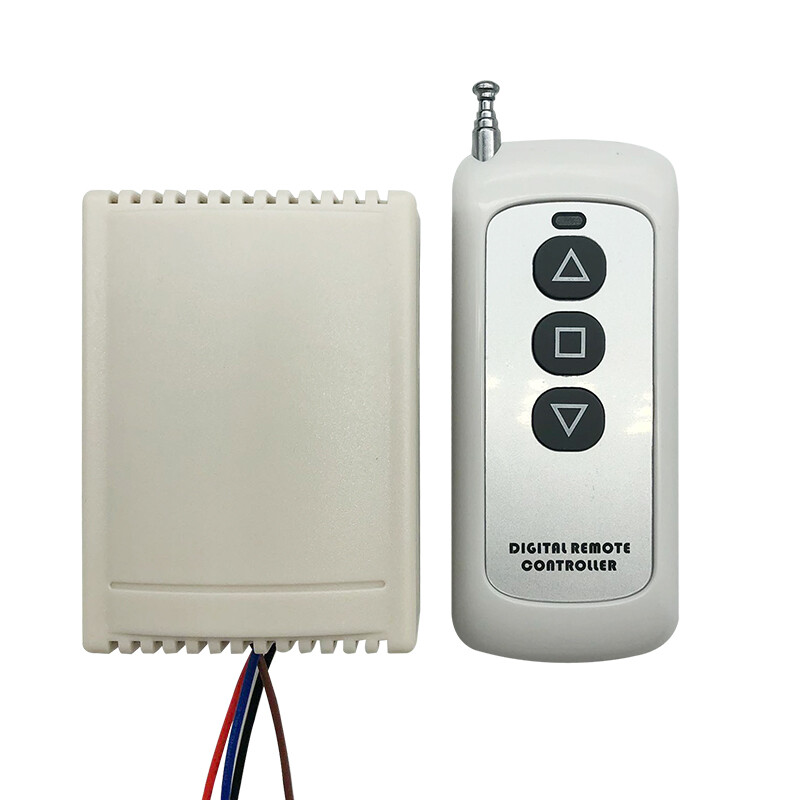

  • 1 Set Motor Controller(OPTIONAL)
