Condition: REFURBISHED TO PERFECT WORKING CONDITION

Warranty: 90 DAY MANUFACTURER

What's in the Box?

• Amplifier

• Bass Remote

• Owner's Manual


Description:

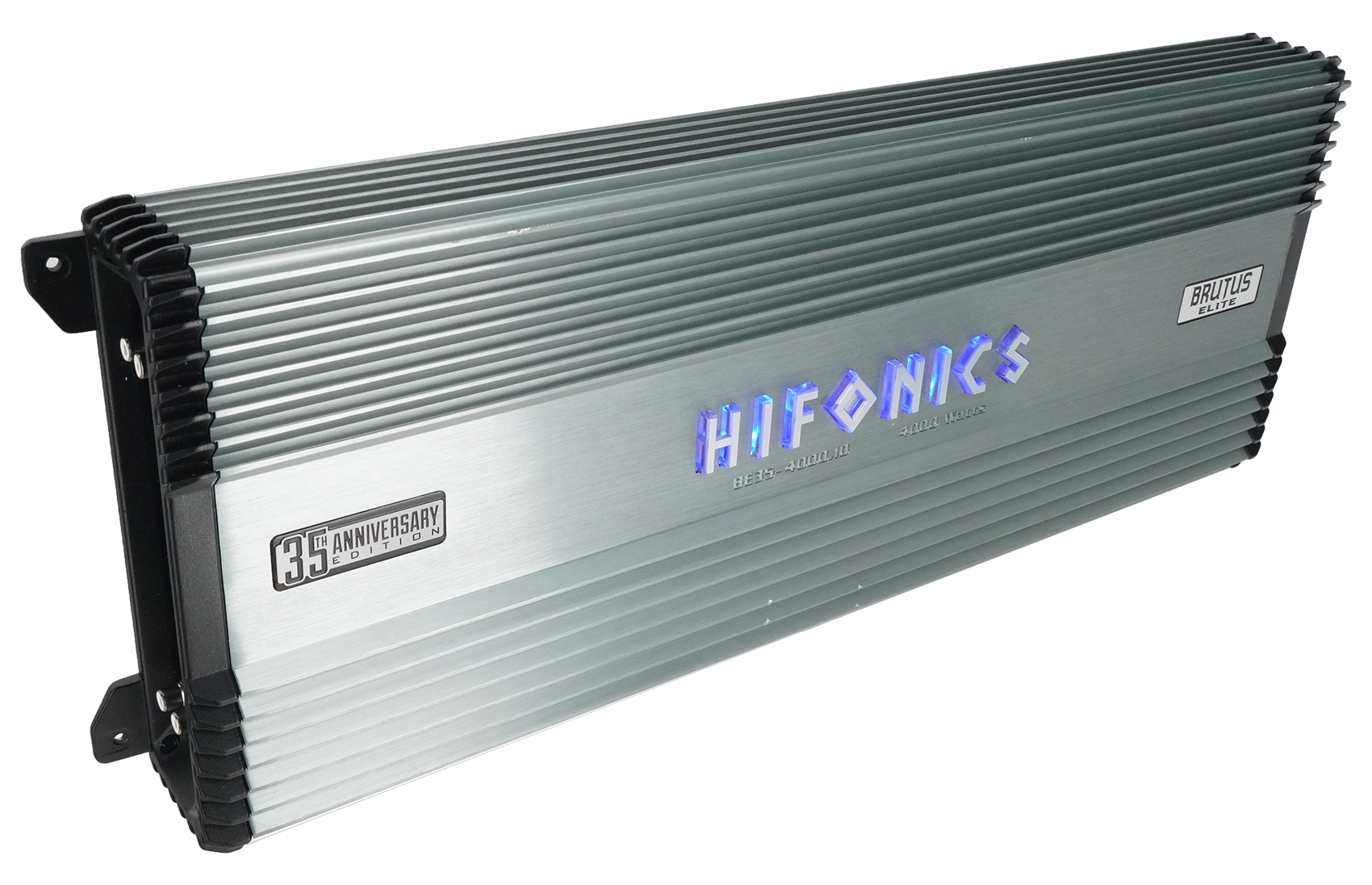

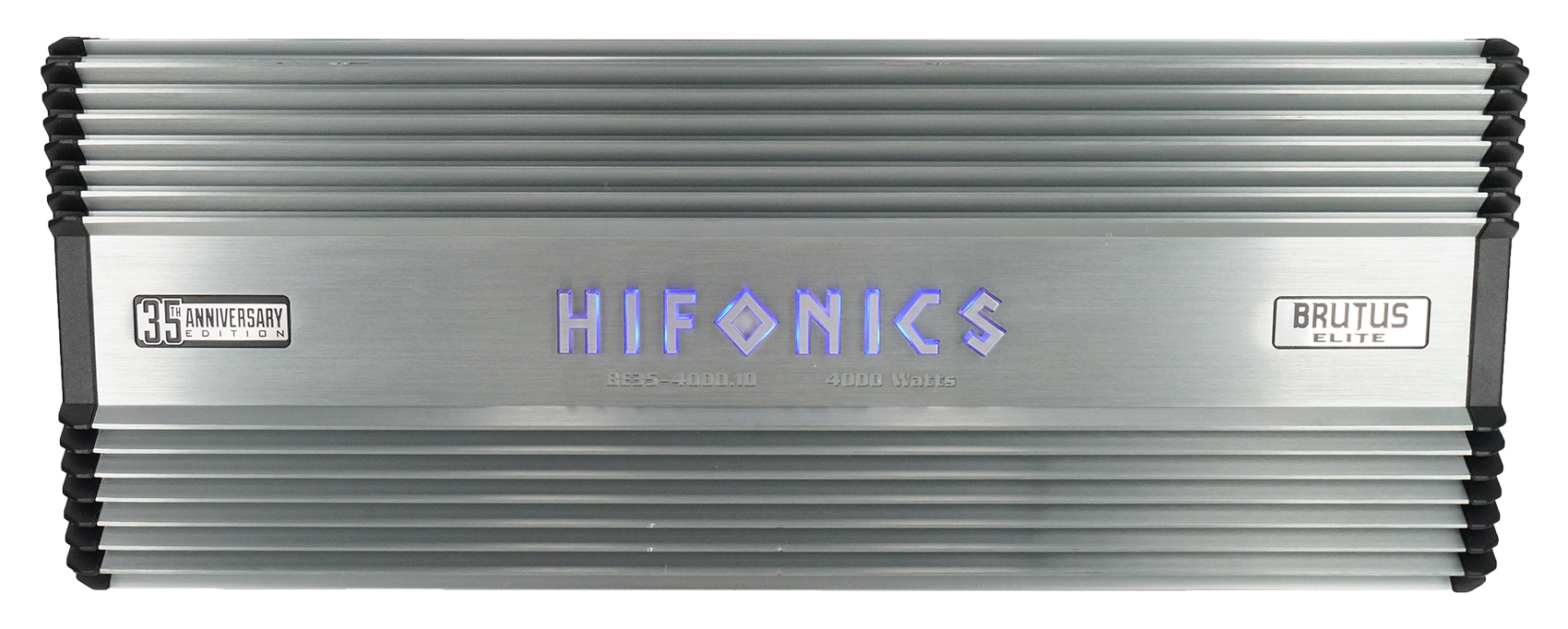

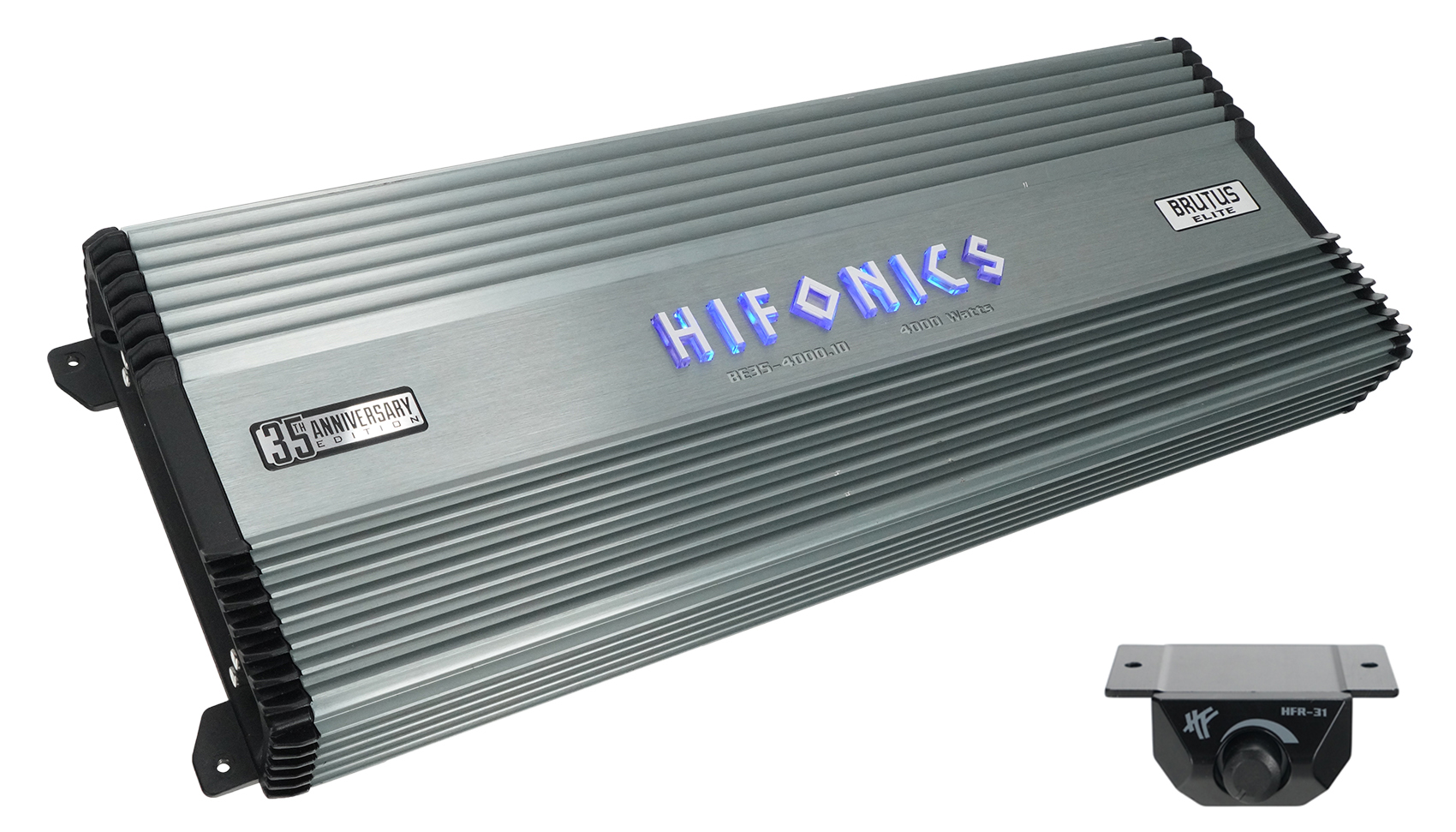

Hifonics 35th Anniversary 4000 watt Super D-Class™ Brutus Elite mono subwoofer amplifier with electronic crossovers, bass equalization and bass remote included.

Hifonics offers Super A/B Class™ full range and Super D-Class™ mono subwoofer amplifiers to continue the 35th Anniversary celebration of Hifonics. The Brutus ELITE or “BE35” offers several 2 and 4 channel full range with several mono amps along with a killer 5 channel that utilizes both Super A/B Class™ and Super D-Class™ in the same amplifier – the best part is the 5th channel is 1 ohm stable, which is unheard of in five channel high performance amplifiers. The big bruiser in the line is the Brutus BE35 4000.1D delivering 4000 watts at 1ohm.

Features:

• Hifonics Elite products are not available for Internet sales

• Accu-Cross crossovers allow complete control of the signal direction to all speakers

• Ultra-Fi™ MOSFETs product high power with high efficiency for coolig and minimal distortion

• Tiffany style RCA connectors for audiophile signal quality with minimum distortion

• Illuminated molded ad angled output connectors

• Super D-Class mono blocks include bass remote

• Low Noise Preamplifier Circuitry

  • Low voltage signal from the source unit comes into the amplifier Preamplifier circuit with minimal distortion

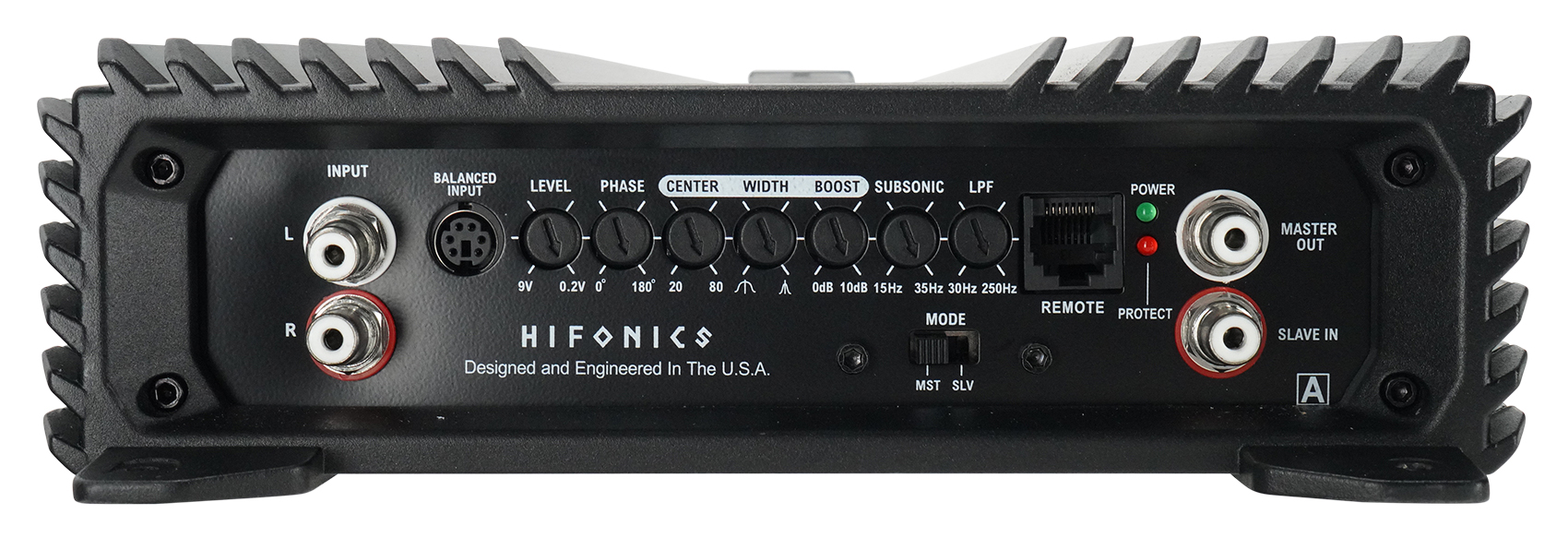

• RCA Inputs

  • Tiffany style RCA connectors for audiophile signal quality and maximum signal throughput with minimum distortion and maximum external noise rejection

• Operation Mode

  • Mono mode is intended for subwoofers only

• Crossover Type

  • Accu-Cross crossovers allow for complete control of the signal directing to all speakers. See specifications section for specific frequencies

• Electronic Equalizer

  • Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier

• Class / Topology

  • Super D-Class™ designs which employ high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels, Hifonics amplifiers with Super D-Class circuitry result in lower distortion, higher current efficiencies and less heat than conventional D-Class amplifier designs

• Output Device Technology

  • The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion

• Heat Sink

  • Heavy duty aluminum alloy heat-sink efficiently moves heat from the MOSFET where it can be cooled

• Power Supply

  • Hifonics T3 (Twin Turbo Toroids) power supply keeps voltage constant through the Ultra-Fi output devices

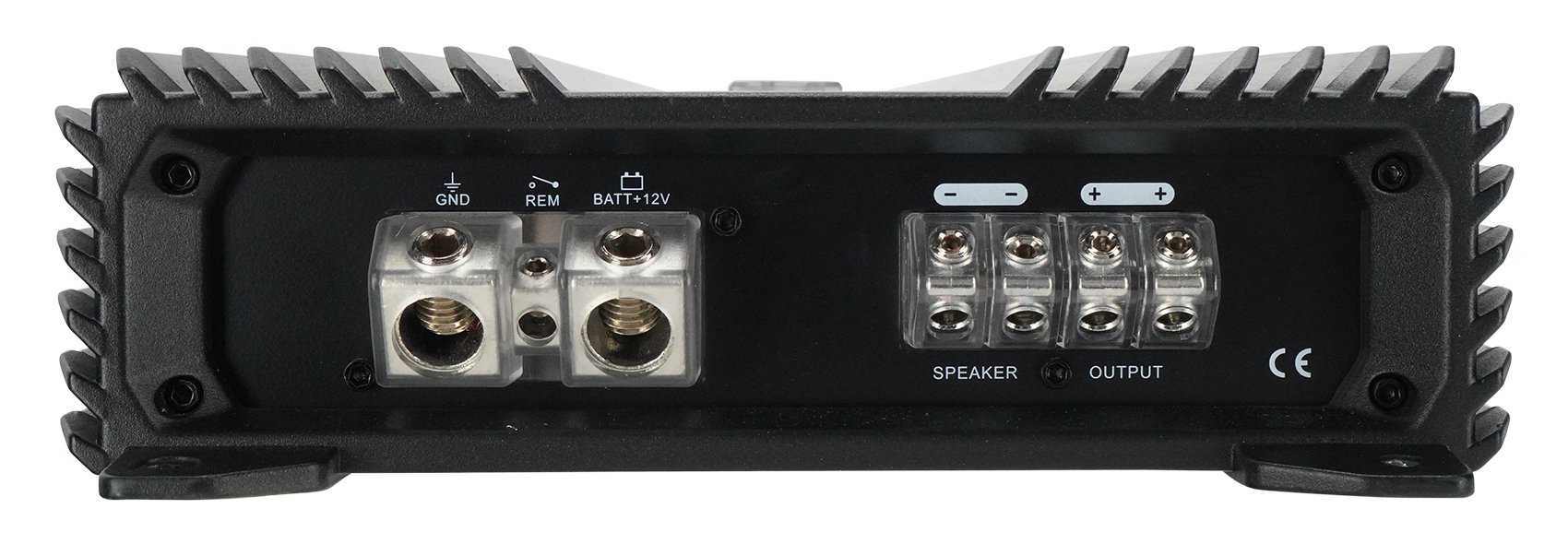

• Output Connections

  • Nickel-plated, high temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant

• Connection Type

  • Secure connection for all power, ground and speaker connections. Angled for ease of access during installation.

• Full-Range RCA Outputs for Signal Pass Through

  • One pair of Tiffany style connectors for a full range, L & R output allow distortion free signal to be passed through this amplifier to feed that signal to other components without the need for noise generating Y cables

• LED System Protection Circuitry Diagnostics

  • Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel

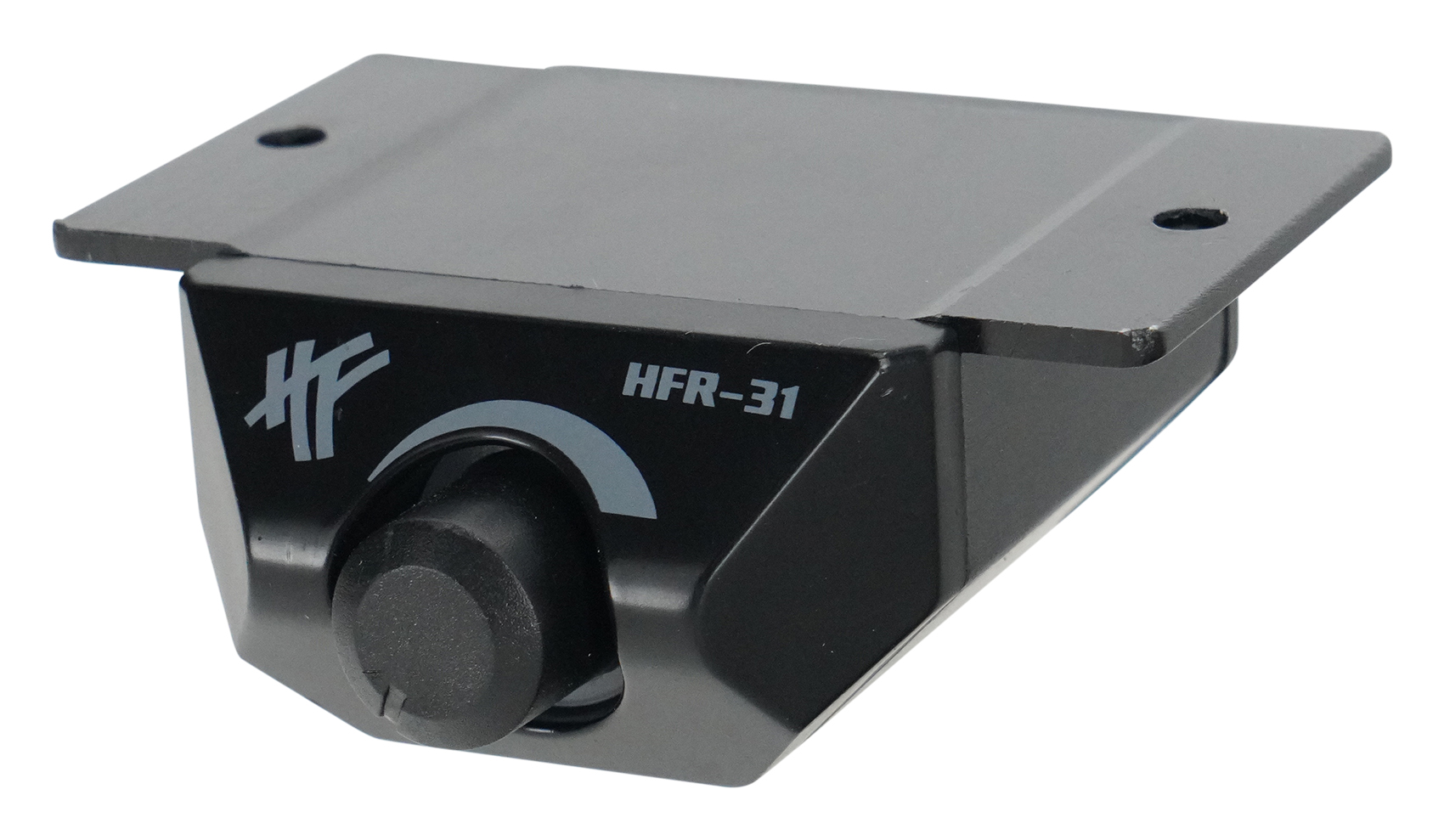

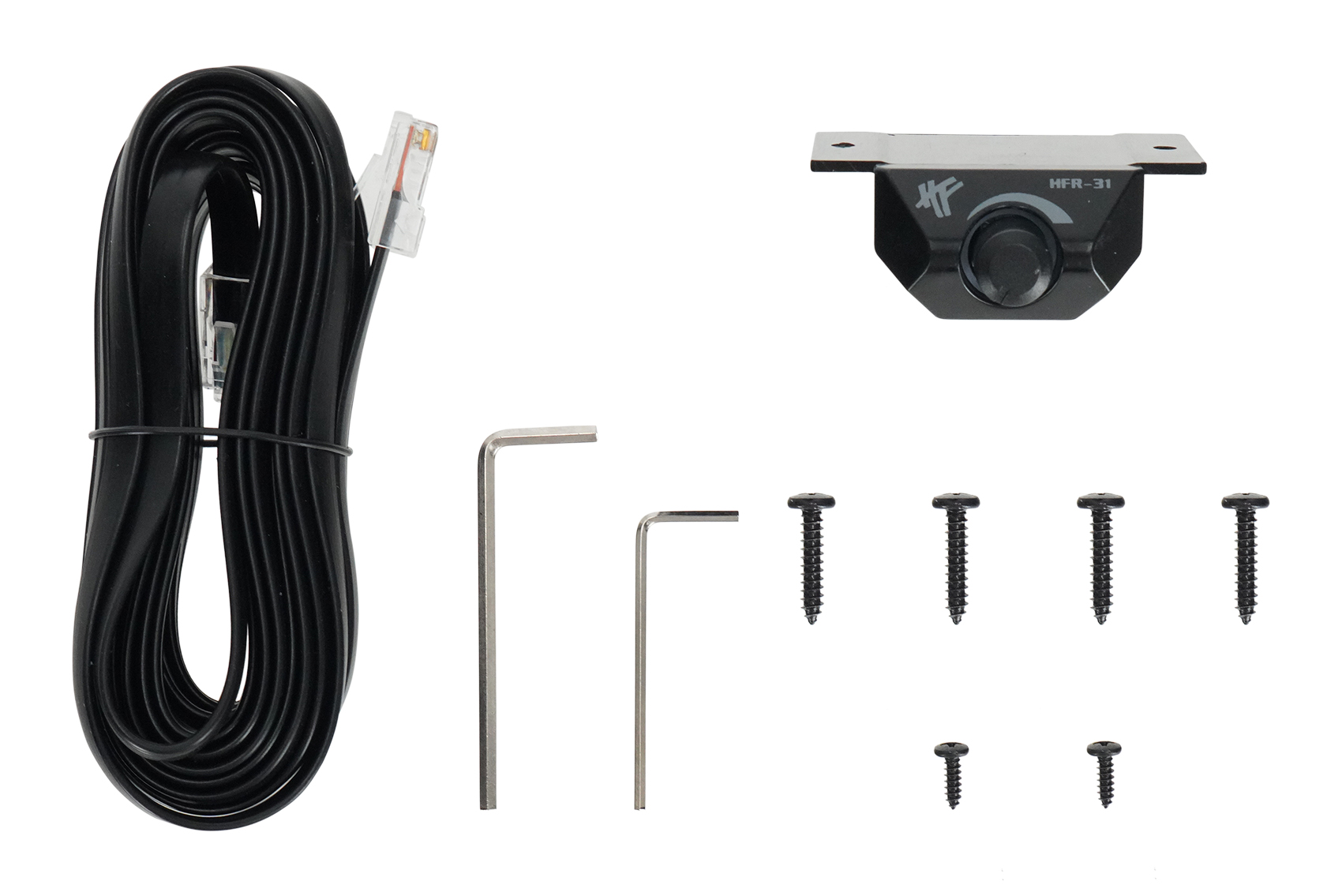

• Bass Remote Included

  • Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle. Smooth potentiometer and ringed illumination in a satin black mount create a custom look

• Parametric / Signal Contouring

  • Parametric Bass EQ with adjustments: Boost 0 - 10dB Width (Narrow - Wide [on Center]) Center Frequency - 30Hz - 100Hz


Specifications:

• Class: Super D Class™

• Variable Voltage: 0.2V - 9V

• Signal to Noise: >95dB

• Frequency Response: 10Hz - 50KHz

• Crossover: Variable Electronic

• Variable Low Pass Crossover 12dB per Octave: 30Hz - 250Hz

• Tone Control/Parametric EQ: ParaQ Bass EQ

• Bass Boost: 0~10dB Variable Center Frequency and Wideth with ParaQ

• Subsonic Filter: 15Hz - 35Hz

• Phase Shift: 0-180 Degrees

• Power @ 1 Ohm: 1 x 4000 Watts

• Power @ 2 Ohms: 1 x 2000 Watts

• Power @ 4 Ohms: 1 x 1000 Watts

• Total Channels: Mono

• Audio Inputs: Yes

• Audio Outputs: Yes

• Power Terminal 12v/GND: 0 AWG

• Speaker Terminal Wire Gauge: 12 AWG

• Fusing: External

• Total Harmonic Distortion (THD): <0.10%

• Warranty: 1 Year


Product Dimensions:

• Product ONLY Weight (pounds): 17.2

• Product ONLY Weight (kilograms): 7.8

• Product Packaging Weight (pounds): 19.3

• Product Packaging Weight (kilograms): 8.75

• Product Packaging Dimensions (LxWxH) - Inches: 27.94 x 10.13 x 3.56

• Product Packaging Dimensions (LxWxH) - CM: 70.97 x 25.73 x 9.04
