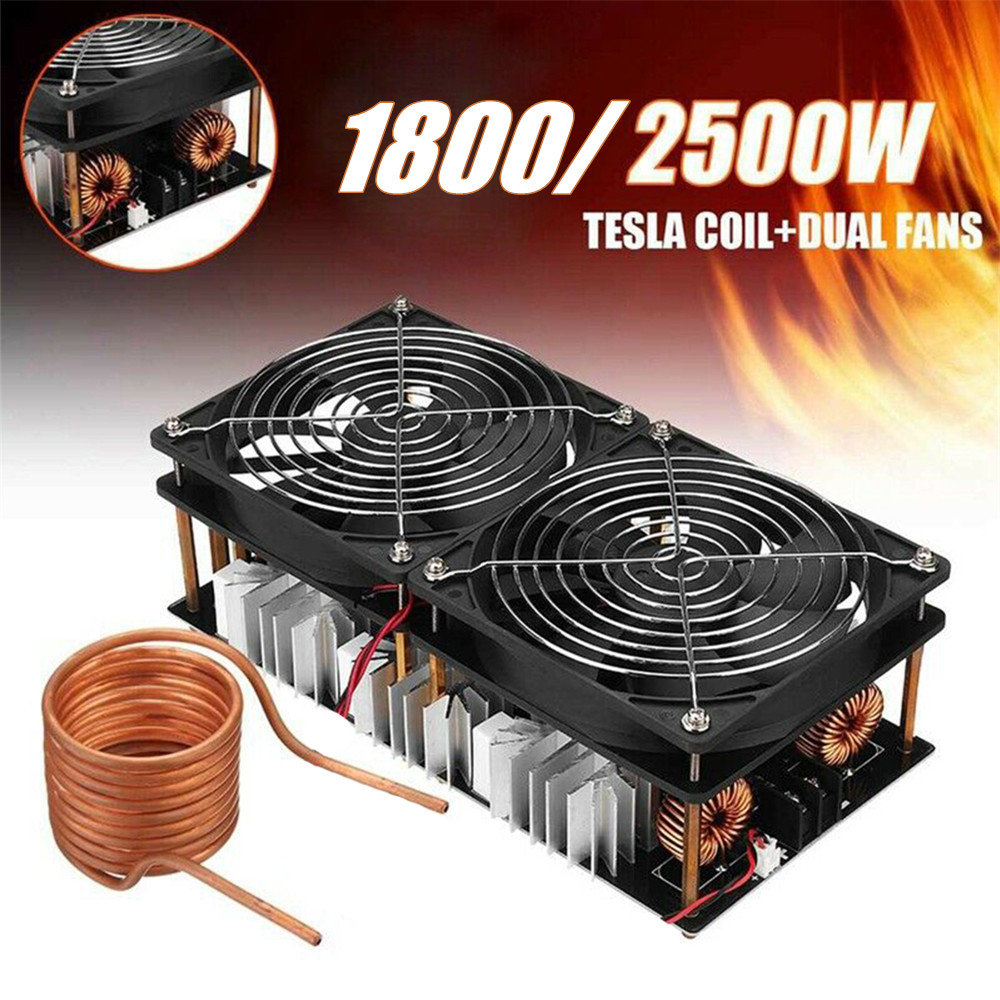

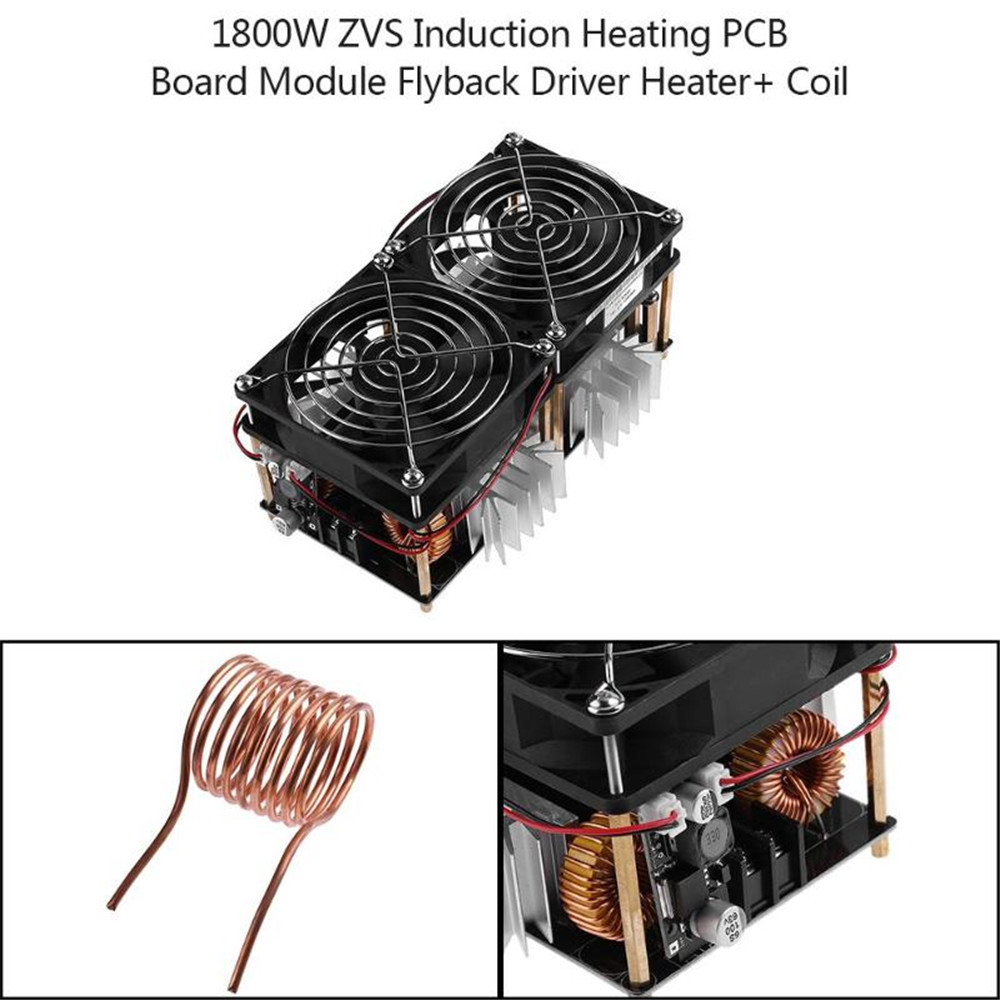

ZVS Induction Heating PCB Board Module Flyback Driver Tesla Coil 1800W / 2500W
1800W
Description:
1, 1800W uses a large PCB layout design and large heat sink, cooling
Good power, self-contained cooling fan interface, can also do Tesla discharge, mark
Think generator, high voltage inverter power supply, etc.
2. The induction heating circuit uses 12-48V low-voltage DC power supply, the maximum current is 50A, and the maximum power is 2000W. It can work continuously under the condition of good heat dissipation condition. Because of its moderate power, it can be used for DIY players to do quenching, annealing and other heat treatment for small parts. It can also be used with graphite crucible to smelt gold, silver, copper, aluminum and other metals. The heating is even and fast, very convenient.
3. The maximum power is close to 2000W and the maximum current is 50A. It can work continuously for several hours under good heat dissipation conditions.
4. When the induction heating is used, it is recommended to use the switching power supply above 48V50A. If the power supply is above 24V, the power supply of 20A or more is required. The higher the voltage, the larger the current, the higher the heating power and the faster the heating speed.
1, 1800W uses a large PCB layout design and large heat sink, cooling
Good power, self-contained cooling fan interface, can also do Tesla discharge, mark
Think generator, high voltage inverter power supply, etc.
2. The induction heating circuit uses 12-48V low-voltage DC power supply, the maximum current is 50A, and the maximum power is 2000W. It can work continuously under the condition of good heat dissipation condition. Because of its moderate power, it can be used for DIY players to do quenching, annealing and other heat treatment for small parts. It can also be used with graphite crucible to smelt gold, silver, copper, aluminum and other metals. The heating is even and fast, very convenient.
3. The maximum power is close to 2000W and the maximum current is 50A. It can work continuously for several hours under good heat dissipation conditions.
4. When the induction heating is used, it is recommended to use the switching power supply above 48V50A. If the power supply is above 24V, the power supply of 20A or more is required. The higher the voltage, the larger the current, the higher the heating power and the faster the heating speed.
Feature:
Model Number: A52357
Material: metal + plastic
Colour: Black
Product size: 80MM, 120MM * 240MM
Input voltage: 12V-48 recommended above 36V
Power requirements: less than 12V ≥ 10A 15V or more ≥ 20A
Maximum power: 1800W
Maximum current: 50A
Model Number: A52357
Material: metal + plastic
Colour: Black
Product size: 80MM, 120MM * 240MM
Input voltage: 12V-48 recommended above 36V
Power requirements: less than 12V ≥ 10A 15V or more ≥ 20A
Maximum power: 1800W
Maximum current: 50A
Characteristics:
[1] The heating plate is made of 240*120mm military grade PCB, and the performance is stable;
[2] The power line is fully covered with copper cover design, which can increase the current and heat generation;

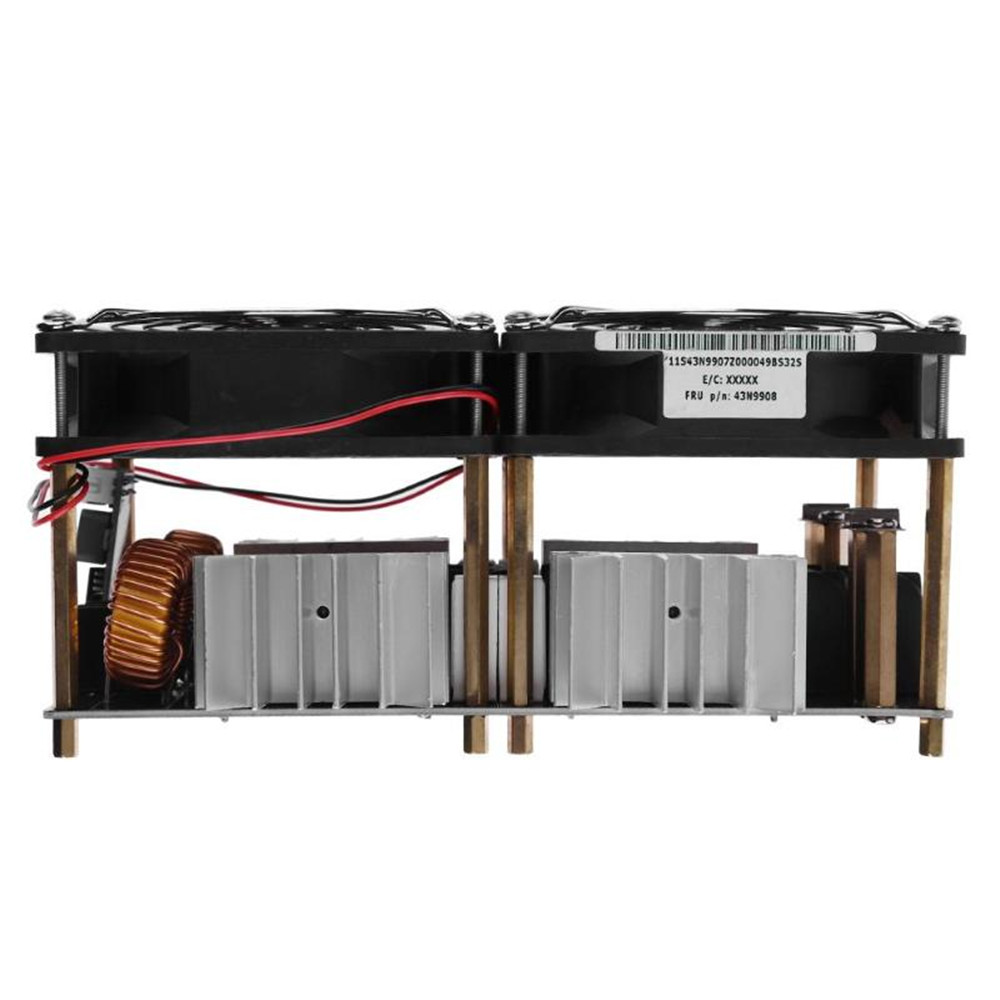

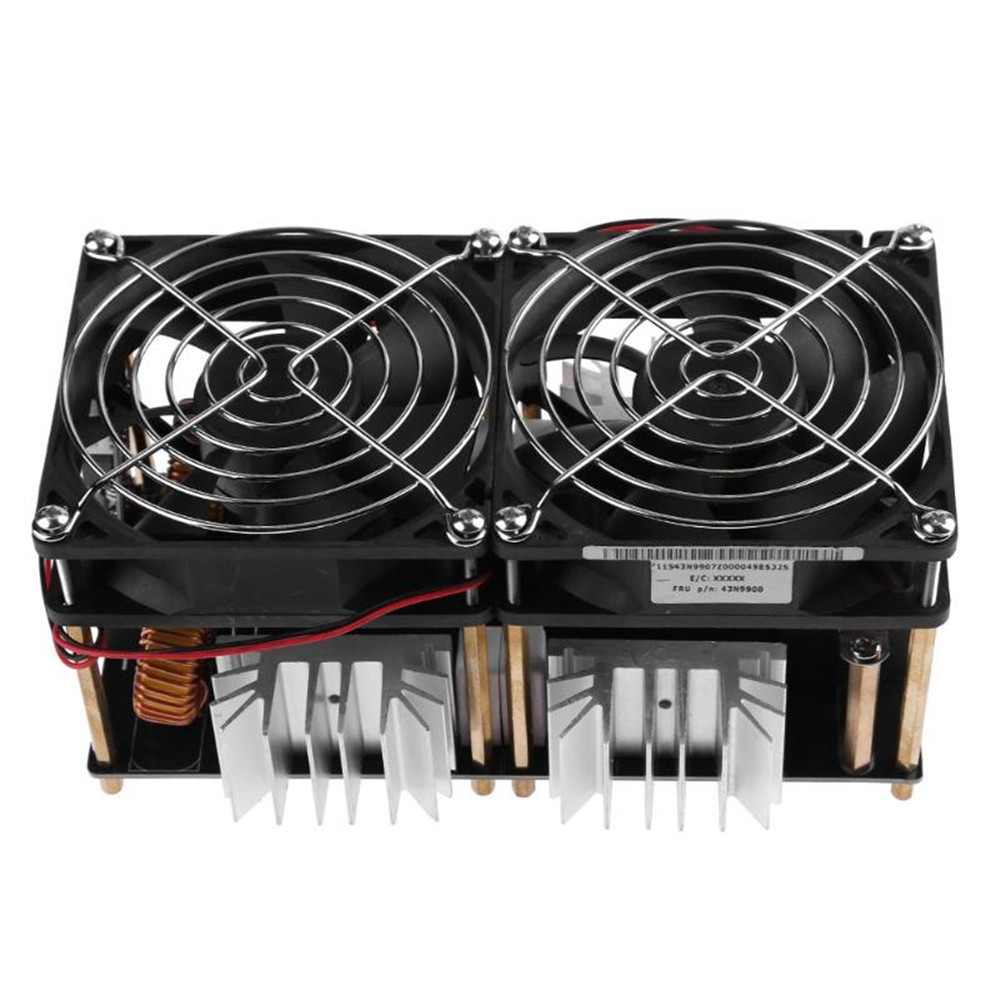

[3] It is better to use the extra large and large power heat sink to dissipate heat;
[4] The output terminal uses three M4 copper columns in parallel, which can be connected to other outputs such as high voltage package;

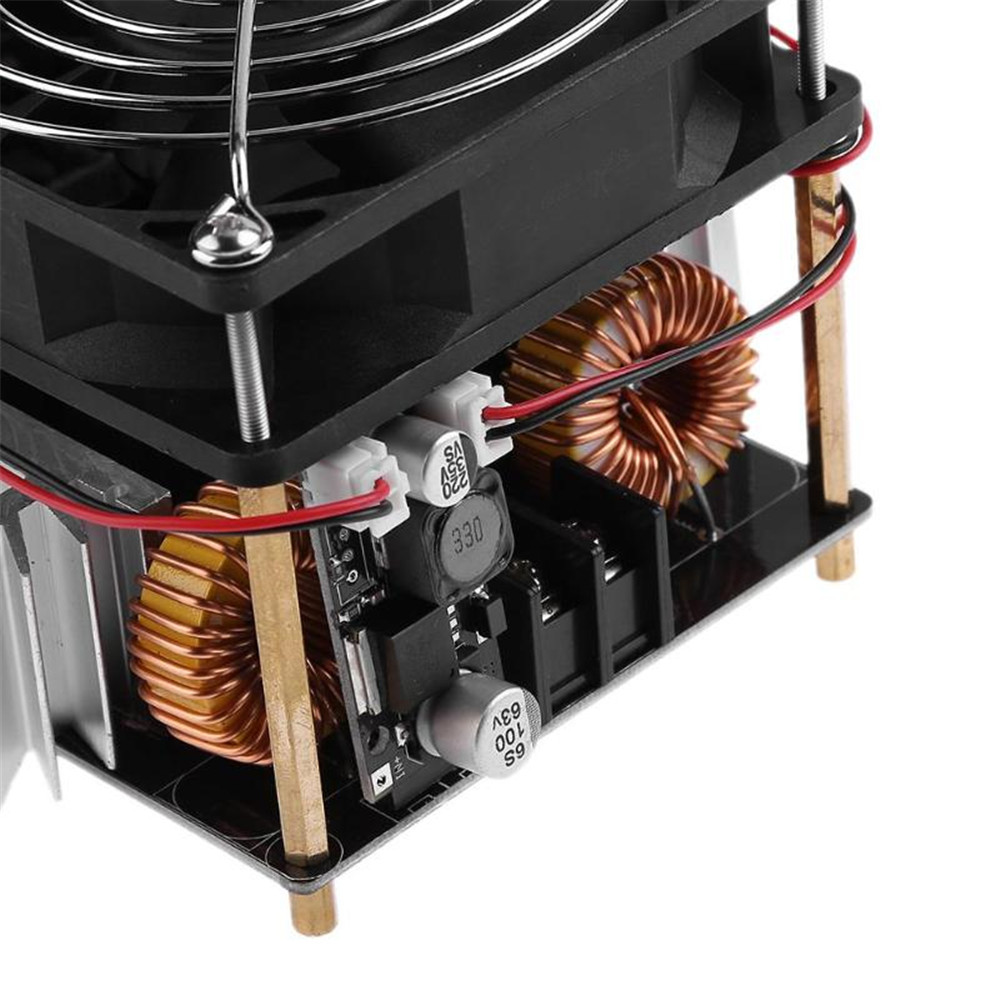

[5] Six IRFP260 and 12 capacitors are used for parallel resonance, which has high power efficiency;
[1] The heating plate is made of 240*120mm military grade PCB, and the performance is stable;
[2] The power line is fully covered with copper cover design, which can increase the current and heat generation;
[3] It is better to use the extra large and large power heat sink to dissipate heat;
[4] The output terminal uses three M4 copper columns in parallel, which can be connected to other outputs such as high voltage package;
[5] Six IRFP260 and 12 capacitors are used for parallel resonance, which has high power efficiency;
Note:
[1] The power of induction heating is very large. In addition to the heat generated by the board and components, the heat generated by the copper tube is also very large. You can bring your own water-cooled cooling system. You can buy a small water pump and a rubber hose with an inner diameter of 4mm or about 2m. You can also purchase a matching water pump.
[2] It must be noted when using a switching power supply, because a high-power switching power supply generally has a slow-start function, that is, it slowly rises at the beginning of the output voltage, and if the voltage rises to 10V, the induction heating circuit is turned on because If the voltage is not enough, the circuit will not vibrate, so that the two MOS tubes are turned on at the same time to burn the components. Therefore, it is necessary to connect the induction heating circuit after the switching power supply voltage is stable;
[3] When heating metal objects, try not to heat the metal with too much volume. Otherwise, the overload may occur due to power overload. It is better to add a 50A fuse or ammeter and air switch when using.
[4] Although this driver board can withstand more than 50A current, it is recommended not to exceed 48V55A in order to prevent accidents and damage for long-term continuous operation.
[5] The heating coil with the diameter of the package is 60mm, and the design voltage is 86V. If the voltage is 40V or more, the heating coil with the inner diameter of 60mm or more must be used. The pump uses 12V DC power supply. Please use the voltage regulator module to supply power separately to avoid burning the fan. And water pump.
[6] For induction heating, the copper tube in the package of this product should be used, or it should be wound according to the standard of 10 mm inner diameter of 60mm, otherwise the buyer will bear the responsibility for any burning problem.
[7] This heating module is designed to be used in an environment of 1800W/2500W or more.
[8] The minimum input voltage of this module is 12V. It does not mean that all 12V power supplies can be used. Some novice buyers use a lower power supply. The specific voltage and current of this module are required. The voltage of 12V must be 10A. The above power supply can be used. If the power of the power supply is too low, the actual output voltage of the power supply will be greatly reduced when the power is output. When the voltage is lower than 12V, the two MOS transistors will be turned on at the same time, and the MOS tube will be burnt out.
[9] Some buyers will not notice the power requirement of the power supply when the MOS tube is heated. If the MOS tube is abnormally heated, first consider whether the output of the power supply meets the requirements.
[10] The board should not be idling, otherwise it will emit high frequency noise, and the MOS tube will burn out.
[11] Induction heating is recommended to use 36V30A power supply, 12V power supply is too small, heating is almost no reaction, and 12V power supply heating is easy to cause the power supply output voltage to drop, below 12V is very dangerous.
[12] The induction heating power is very large, so it is necessary to dissipate heat.
Package include:

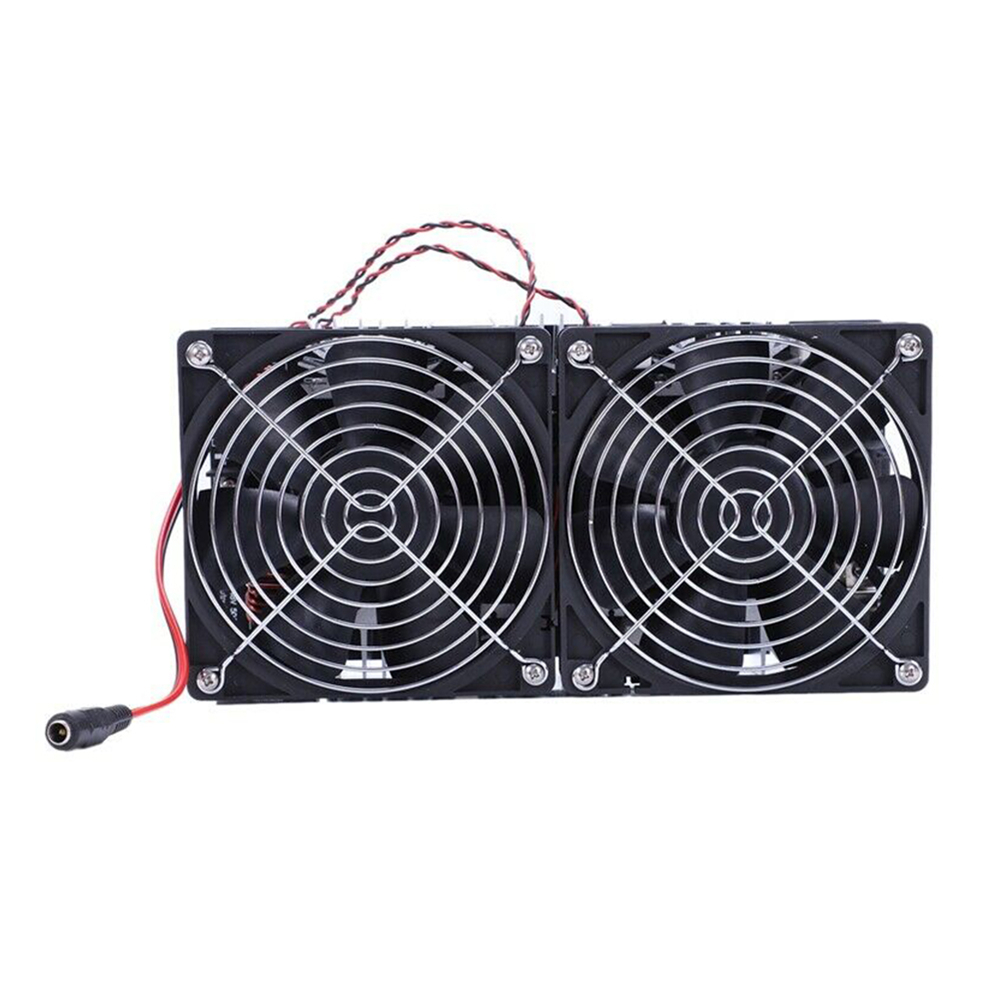

1PC x PCB board (with dual fans)
1PC x 48V copper tube
[1] The power of induction heating is very large. In addition to the heat generated by the board and components, the heat generated by the copper tube is also very large. You can bring your own water-cooled cooling system. You can buy a small water pump and a rubber hose with an inner diameter of 4mm or about 2m. You can also purchase a matching water pump.
[2] It must be noted when using a switching power supply, because a high-power switching power supply generally has a slow-start function, that is, it slowly rises at the beginning of the output voltage, and if the voltage rises to 10V, the induction heating circuit is turned on because If the voltage is not enough, the circuit will not vibrate, so that the two MOS tubes are turned on at the same time to burn the components. Therefore, it is necessary to connect the induction heating circuit after the switching power supply voltage is stable;
[3] When heating metal objects, try not to heat the metal with too much volume. Otherwise, the overload may occur due to power overload. It is better to add a 50A fuse or ammeter and air switch when using.
[4] Although this driver board can withstand more than 50A current, it is recommended not to exceed 48V55A in order to prevent accidents and damage for long-term continuous operation.
[5] The heating coil with the diameter of the package is 60mm, and the design voltage is 86V. If the voltage is 40V or more, the heating coil with the inner diameter of 60mm or more must be used. The pump uses 12V DC power supply. Please use the voltage regulator module to supply power separately to avoid burning the fan. And water pump.
[6] For induction heating, the copper tube in the package of this product should be used, or it should be wound according to the standard of 10 mm inner diameter of 60mm, otherwise the buyer will bear the responsibility for any burning problem.
[7] This heating module is designed to be used in an environment of 1800W/2500W or more.
[8] The minimum input voltage of this module is 12V. It does not mean that all 12V power supplies can be used. Some novice buyers use a lower power supply. The specific voltage and current of this module are required. The voltage of 12V must be 10A. The above power supply can be used. If the power of the power supply is too low, the actual output voltage of the power supply will be greatly reduced when the power is output. When the voltage is lower than 12V, the two MOS transistors will be turned on at the same time, and the MOS tube will be burnt out.
[9] Some buyers will not notice the power requirement of the power supply when the MOS tube is heated. If the MOS tube is abnormally heated, first consider whether the output of the power supply meets the requirements.
[10] The board should not be idling, otherwise it will emit high frequency noise, and the MOS tube will burn out.
[11] Induction heating is recommended to use 36V30A power supply, 12V power supply is too small, heating is almost no reaction, and 12V power supply heating is easy to cause the power supply output voltage to drop, below 12V is very dangerous.
[12] The induction heating power is very large, so it is necessary to dissipate heat.
Package include:
1PC x PCB board (with dual fans)
1PC x 48V copper tube
2500W
Description:
1, 2500W uses a large PCB layout design and large heat sink, cooling
Good power, self-contained cooling fan interface, can also do Tesla discharge, mark
Think generator, high voltage inverter power supply, etc.
2. The induction heating circuit uses 12-48V low-voltage DC power supply, the maximum current is 50A, and the maximum power is 2500W. It can work continuously under the condition of good heat dissipation condition. Because of its moderate power, it can be used for DIY players to do quenching, annealing and other heat treatment for small parts. It can also be used with graphite crucible to smelt gold, silver, copper, aluminum and other metals. The heating is even and fast, very convenient.
3. The maximum power is close to 2600W and the maximum current is 50A. It can work continuously for several hours under good heat dissipation conditions.
4. When the induction heating is used, it is recommended to use the switching power supply above 48V50A. If the power supply is above 24V, the power supply of 20A or more is required. The higher the voltage, the larger the current, the higher the heating power and the faster the heating speed.
1, 2500W uses a large PCB layout design and large heat sink, cooling
Good power, self-contained cooling fan interface, can also do Tesla discharge, mark
Think generator, high voltage inverter power supply, etc.
2. The induction heating circuit uses 12-48V low-voltage DC power supply, the maximum current is 50A, and the maximum power is 2500W. It can work continuously under the condition of good heat dissipation condition. Because of its moderate power, it can be used for DIY players to do quenching, annealing and other heat treatment for small parts. It can also be used with graphite crucible to smelt gold, silver, copper, aluminum and other metals. The heating is even and fast, very convenient.
3. The maximum power is close to 2600W and the maximum current is 50A. It can work continuously for several hours under good heat dissipation conditions.
4. When the induction heating is used, it is recommended to use the switching power supply above 48V50A. If the power supply is above 24V, the power supply of 20A or more is required. The higher the voltage, the larger the current, the higher the heating power and the faster the heating speed.
Feature:
Model Number: A52357
Material: metal + plastic
Colour: Black
Product size: 80MM, 120MM * 240MM
Input voltage: 12V-48 recommended above 36V
Power requirements: less than 12V ≥ 10A 15V or more ≥ 20A
Maximum power: 2500W
Maximum current: 50A
Model Number: A52357
Material: metal + plastic
Colour: Black
Product size: 80MM, 120MM * 240MM
Input voltage: 12V-48 recommended above 36V
Power requirements: less than 12V ≥ 10A 15V or more ≥ 20A
Maximum power: 2500W
Maximum current: 50A
Characteristics:
[1] The heating plate is made of 240*120mm military grade PCB, and the performance is stable;
[2] The power line is fully covered with copper cover design, which can increase the current and heat generation;
[3] It is better to use the extra large and large power heat sink to dissipate heat;
[4] The output terminal uses three M4 copper columns in parallel, which can be connected to other outputs such as high voltage package;
[5] Six IRFP260 and 12 capacitors are used for parallel resonance, which has high power efficiency;
[1] The heating plate is made of 240*120mm military grade PCB, and the performance is stable;
[2] The power line is fully covered with copper cover design, which can increase the current and heat generation;
[3] It is better to use the extra large and large power heat sink to dissipate heat;
[4] The output terminal uses three M4 copper columns in parallel, which can be connected to other outputs such as high voltage package;
[5] Six IRFP260 and 12 capacitors are used for parallel resonance, which has high power efficiency;
Note:
[1] The power of induction heating is very large. In addition to the heat generated by the board and components, the heat generated by the copper tube is also very large. You can bring your own water-cooled cooling system. You can buy a small water pump and a rubber hose with an inner diameter of 4mm or about 2m. You can also purchase a matching water pump.
[2] It must be noted when using a switching power supply, because a high-power switching power supply generally has a slow-start function, that is, it slowly rises at the beginning of the output voltage, and if the voltage rises to 10V, the induction heating circuit is turned on because If the voltage is not enough, the circuit will not vibrate, so that the two MOS tubes are turned on at the same time to burn the components. Therefore, it is necessary to connect the induction heating circuit after the switching power supply voltage is stable;
[3] When heating metal objects, try not to heat the metal with too much volume. Otherwise, the overload may occur due to power overload. It is better to add a 50A fuse or ammeter and air switch when using.
[4] Although this driver board can withstand more than 50A current, it is recommended not to exceed 48V55A in order to prevent accidents and damage for long-term continuous operation.
[5] The heating coil with the diameter of the package is 60mm, and the design voltage is 86V. If the voltage is 40V or more, the heating coil with the inner diameter of 60mm or more must be used. The pump uses 12V DC power supply. Please use the voltage regulator module to supply power separately to avoid burning the fan. And water pump.
[6] For induction heating, the copper tube in the package of this product should be used, or it should be wound according to the standard of 10 mm inner diameter of 60mm, otherwise the buyer will bear the responsibility for any burning problem.
[7] This heating module is designed to be used in an environment of 2500W or more.
[8] The minimum input voltage of this module is 12V. It does not mean that all 12V power supplies can be used. Some novice buyers use a lower power supply. The specific voltage and current of this module are required. The voltage of 12V must be 10A. The above power supply can be used. If the power of the power supply is too low, the actual output voltage of the power supply will be greatly reduced when the power is output. When the voltage is lower than 12V, the two MOS transistors will be turned on at the same time, and the MOS tube will be burnt out.
[9] Some buyers will not notice the power requirement of the power supply when the MOS tube is heated. If the MOS tube is abnormally heated, first consider whether the output of the power supply meets the requirements.
[10] The board should not be idling, otherwise it will emit high frequency noise, and the MOS tube will burn out.
[11] Induction heating is recommended to use 36V30A power supply, 12V power supply is too small, heating is almost no reaction, and 12V power supply heating is easy to cause the power supply output voltage to drop, below 12V is very dangerous.
[12] The induction heating power is very large, so it is necessary to dissipate heat.
Package include:
1PC x PCB board (with dual fans)
1PC x 48V copper tube
[1] The power of induction heating is very large. In addition to the heat generated by the board and components, the heat generated by the copper tube is also very large. You can bring your own water-cooled cooling system. You can buy a small water pump and a rubber hose with an inner diameter of 4mm or about 2m. You can also purchase a matching water pump.
[2] It must be noted when using a switching power supply, because a high-power switching power supply generally has a slow-start function, that is, it slowly rises at the beginning of the output voltage, and if the voltage rises to 10V, the induction heating circuit is turned on because If the voltage is not enough, the circuit will not vibrate, so that the two MOS tubes are turned on at the same time to burn the components. Therefore, it is necessary to connect the induction heating circuit after the switching power supply voltage is stable;
[3] When heating metal objects, try not to heat the metal with too much volume. Otherwise, the overload may occur due to power overload. It is better to add a 50A fuse or ammeter and air switch when using.
[4] Although this driver board can withstand more than 50A current, it is recommended not to exceed 48V55A in order to prevent accidents and damage for long-term continuous operation.
[5] The heating coil with the diameter of the package is 60mm, and the design voltage is 86V. If the voltage is 40V or more, the heating coil with the inner diameter of 60mm or more must be used. The pump uses 12V DC power supply. Please use the voltage regulator module to supply power separately to avoid burning the fan. And water pump.
[6] For induction heating, the copper tube in the package of this product should be used, or it should be wound according to the standard of 10 mm inner diameter of 60mm, otherwise the buyer will bear the responsibility for any burning problem.
[7] This heating module is designed to be used in an environment of 2500W or more.
[8] The minimum input voltage of this module is 12V. It does not mean that all 12V power supplies can be used. Some novice buyers use a lower power supply. The specific voltage and current of this module are required. The voltage of 12V must be 10A. The above power supply can be used. If the power of the power supply is too low, the actual output voltage of the power supply will be greatly reduced when the power is output. When the voltage is lower than 12V, the two MOS transistors will be turned on at the same time, and the MOS tube will be burnt out.
[9] Some buyers will not notice the power requirement of the power supply when the MOS tube is heated. If the MOS tube is abnormally heated, first consider whether the output of the power supply meets the requirements.
[10] The board should not be idling, otherwise it will emit high frequency noise, and the MOS tube will burn out.
[11] Induction heating is recommended to use 36V30A power supply, 12V power supply is too small, heating is almost no reaction, and 12V power supply heating is easy to cause the power supply output voltage to drop, below 12V is very dangerous.
[12] The induction heating power is very large, so it is necessary to dissipate heat.
Package include:
1PC x PCB board (with dual fans)
1PC x 48V copper tube
