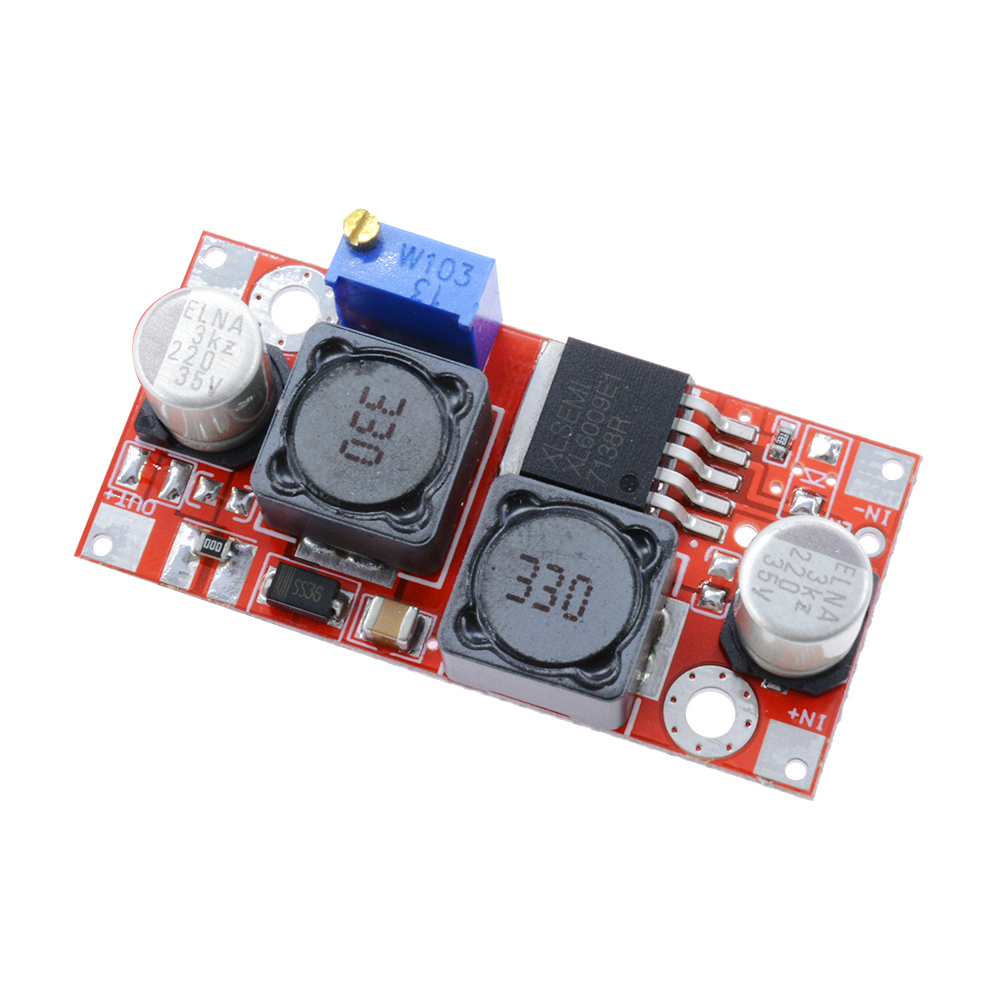

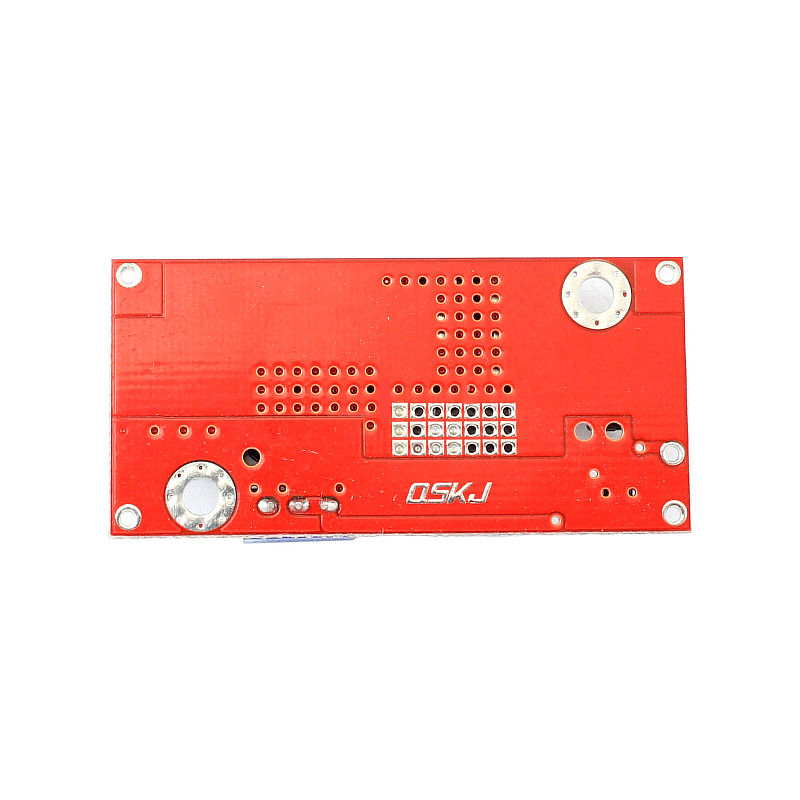

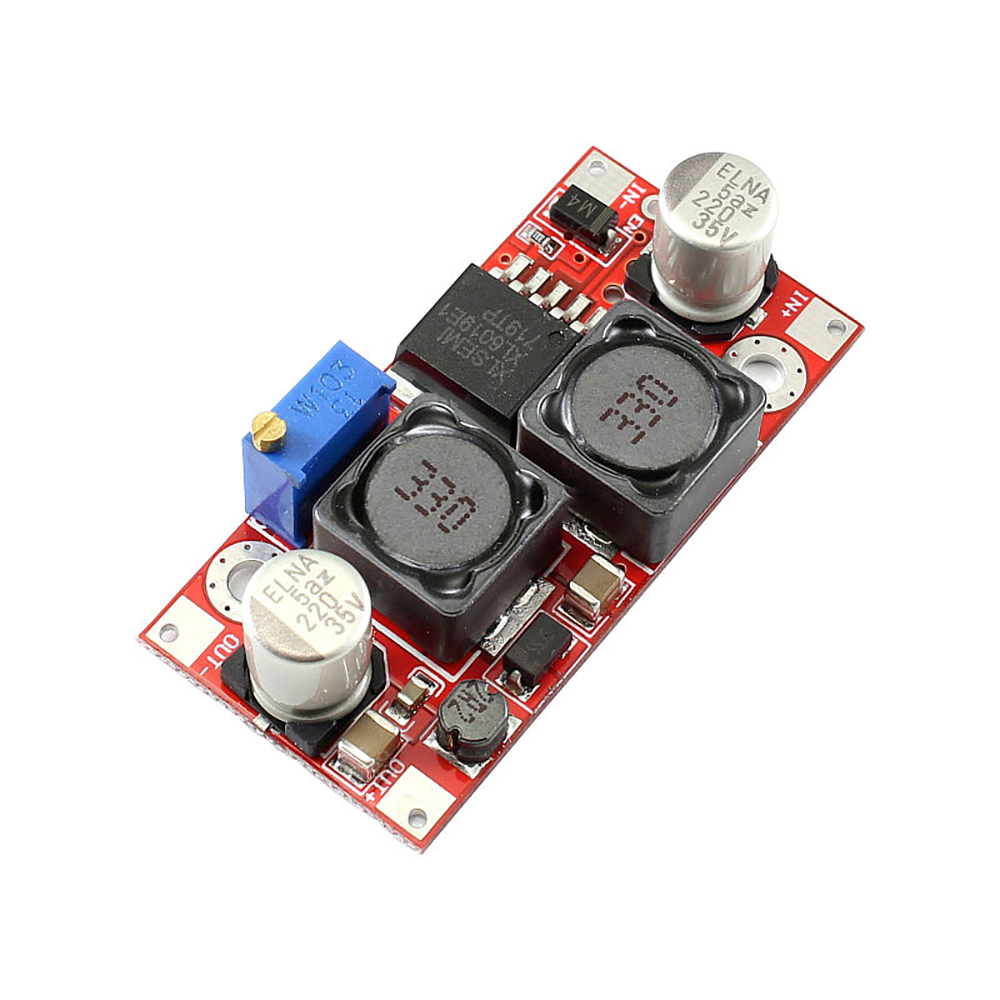

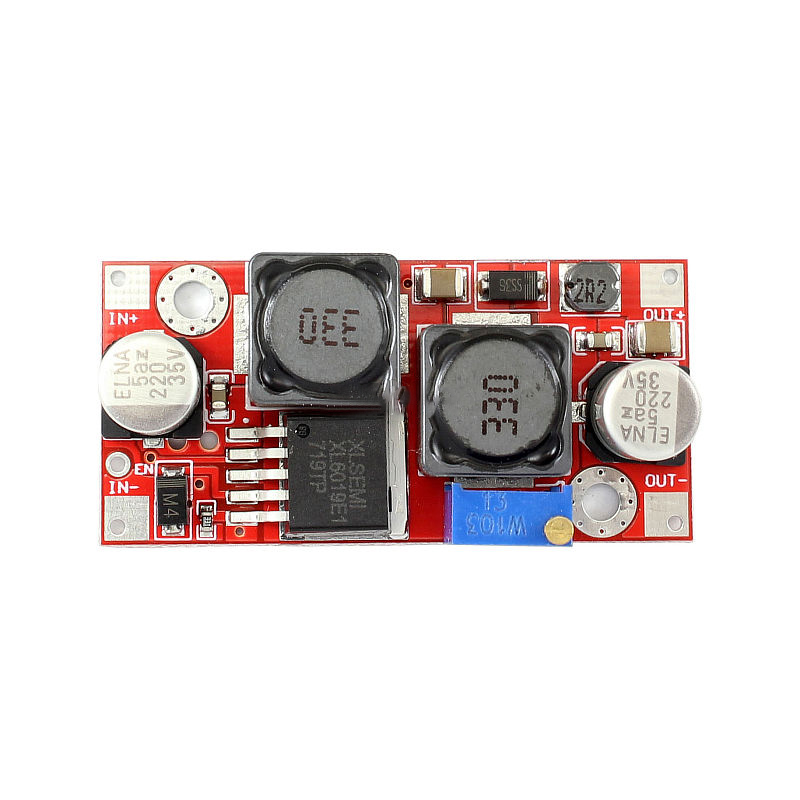

Update Version XL6019 DC-DC Adjustable Buck Boost Step Up Down Converter Module
Module nature: non-isolated buck-boost module
Input voltage: 5-32V
Output voltage: continuously adjustable (1.2-35V)
Output current: 1.5A (MAX)
Input current: 4A (MAX)
Output power: natural cooling 20W, plus heat sink 25W (MAX) actual power
Maximum output power = input voltage * 4A * conversion efficiency
Output ripple: input 12V output 24 0.5A ripple 30MV 20M bandwidth (for reference only)
Working temperature: industrial grade (-40°C to +85°C) (the ambient temperature exceeds 40°C, please reduce the power to use, or strengthen the heat dissipation)
Full load temperature rise: 45℃
Working frequency: 400khz
No-load current: typical 15mA (5V to 12V)
Load regulation rate: ±0.5%
Voltage adjustment rate: ±0.5%
Dynamic response speed: 5% 200uS
Enable control port: Yes, high level 1.4V-VIN (ON), low level 0-0.8V (OFF), default high level
Short-circuit protection: None (please install a fuse or protection circuit in the input)
Input reverse connection protection: No, please cooperate with our reverse connection protection board or connect a diode in series with the input.
Installation method: can be screwed (fixed hole 3 mm), 2 fixed holes
Wiring method: soldering, after adding pins, it can be soldered directly on the PCB
XL6019 Automatic Buck-Boost Module X1
Auto start voltage will be pulled down to 7V less or smaller engine at high speed
when the voltage up to 15V or higher. For 12V electrical work hard at work,
this automatic buck module solves this problem ,
regardless of the input voltage is 5V or 12V or 32V, the output can be stabilized at 12V.
Wide input voltage 5V ~ 32V;
Wide Output Voltage 1.25V ~ 35V ( with automatic buck , scope of work,
any voltage inputs can be arbitrarily regulated voltage output ) ;
Built- 4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A)
high switching frequency of 400KHz, the ripple is smaller and smaller . (LM2577 frequency only 50KHz)
Application:
Car regulator , solar photovoltaic, wind power and other applications of voltage instability .
Technical parameters:
Model Specification：DSN6000AUD Automatic Buck module
Module Properties：Non- isolated boost (BOOST)
Rectification：Non- Synchronous Rectification
Input Range：3.8V ~ 32V
Output Range：1.25V ~ 35V
Input Current：3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA.
Higher the voltage , the greater the load current . )
Conversion efficiency：< 94% ( greater the pressure , the lower the efficiency )
Switching frequency：400KHz
Output Ripple：50mV ( the higher the voltage , the greater the current , the greater the ripple )
Load Regulation：± 0.5%
Voltage Regulation：± 0.5%
Operating Temperature：-40 ℃ ~ +85 ℃
Package Included:
1 x Boost Buck DC-DC adjustable step up down Converter XL6009 Module Solar Voltage
