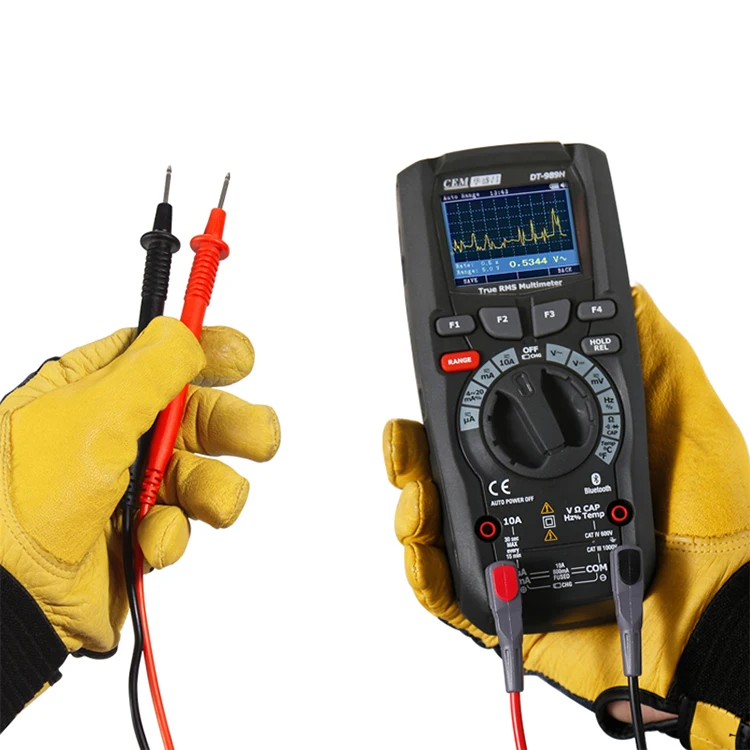

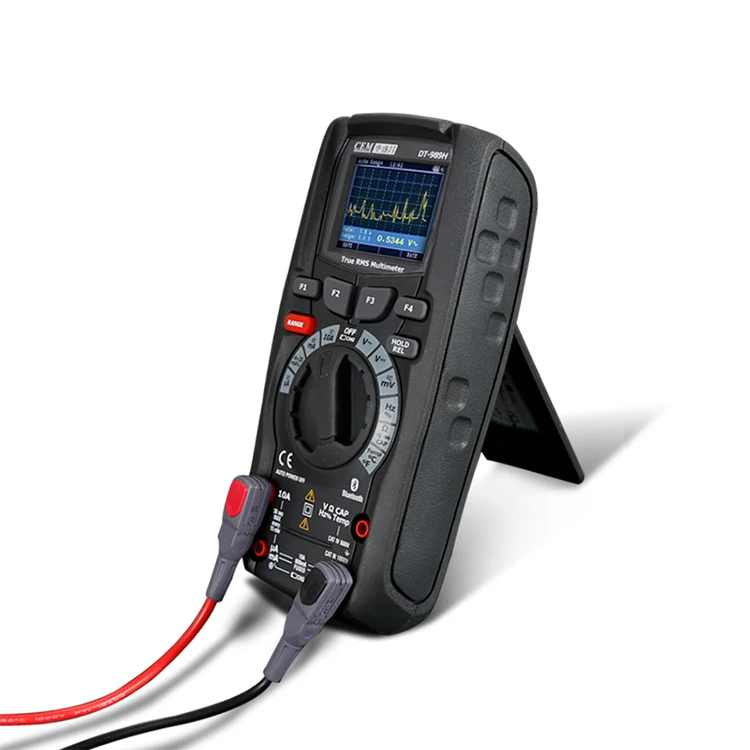

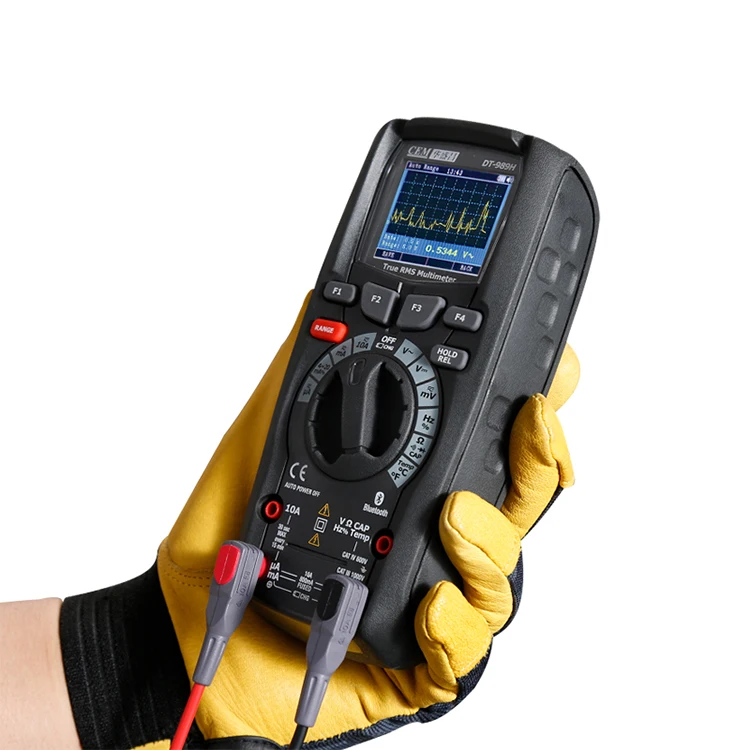

DT-988BT/989/989H Digital Multimeter
Products Description
DT-988\989 is an industrial grade professional color screen RMS digital multimeter series, which is newly designed, developed and produced by CEM Huachenchen. It has double injection molding case, IP67 protection class, color screen design, TRUE RMS measurement, Bluetooth communication, 6000 and 50000 bits optional, and can withstand 3 meters drop. To meet the user needs of high precision and complex environment measurement.
|
Product Information
|
|
|
|
|
||||
|
Parameter specification
|
Maximum range
|
989
|
989H
|
988HBT
|
||||
|
Number of Digits
|
|
50000 bits
|
50000 bits
|
6000 bits
|
||||
|
Continuous voltage
|
1000V
|
±(0.1%+5)
|
±(0.1%+5)
|
±(0.1%+5)
|
||||
|
AC voltage
|
1000V
|
±(0.5%+5)
|
±(0.5%+5)
|
±(0.5%+5)
|
||||
|
AC current
|
10A
|
±(0.2%+5)
|
±(0.2%+5)
|
±(0.2%+5)
|
||||
|
DC current
|
10A
|
±(0.8%+5)
|
±(0.8%+5)
|
±(1.8%+5)
|
||||
|
Temperature Measurement
|
200℃~1350℃
-40℃~1350℃
|
±(1.0%+3℃)
|
±(1.0%+3℃)
|
±(1.5%+3℃)
|
||||
|
Electronic resistance
|
50MΩ
60MΩ
|
±(0.2%+5)
|
±(0.2%+5)
|
±(0.8%+5)
|
||||
|
Capacito
|
10mF
6000uF
|
土(1.0%+8)
|
土(1.0%+8)
|
土(1.2%+8)
|
||||
|
Diode test support
|
＞3V
|
|
|
|
||||
|
Communication mode
|
|
bluetooth
|
bluetooth
|
bluetooth
|
||||
