Specification

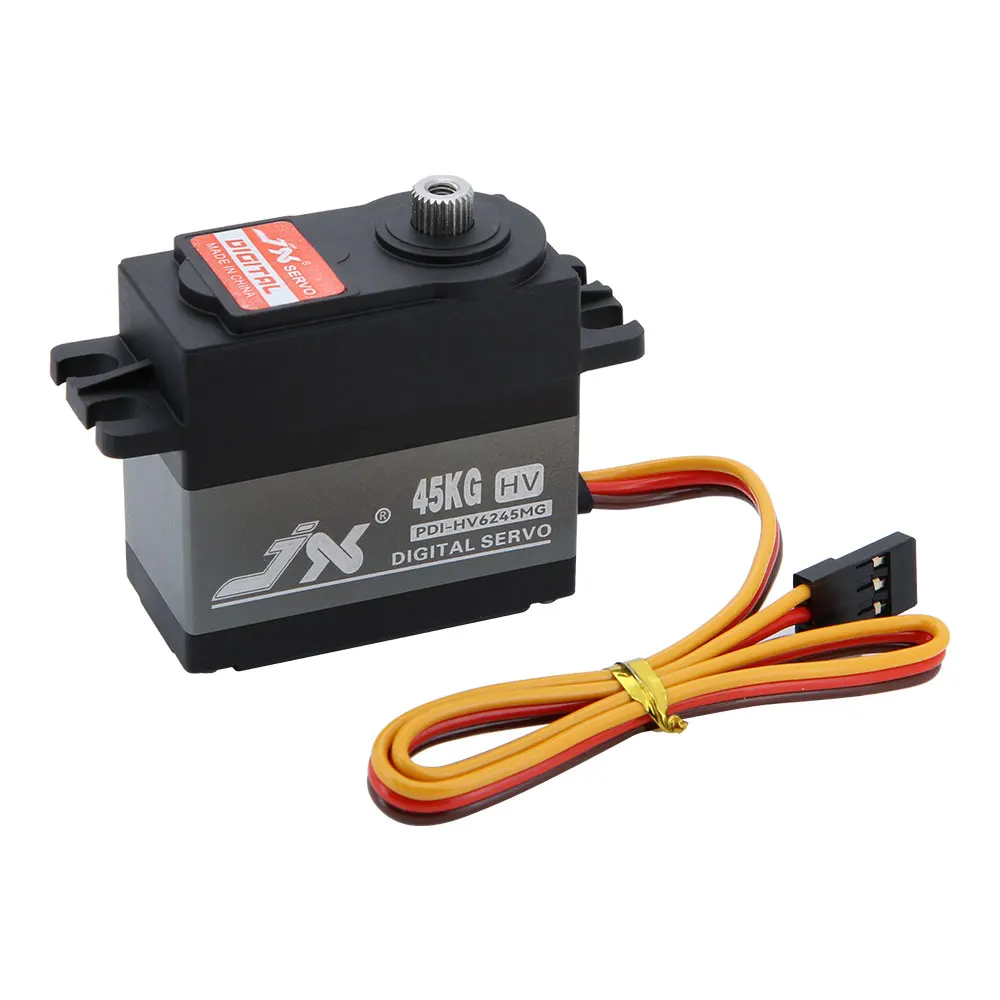

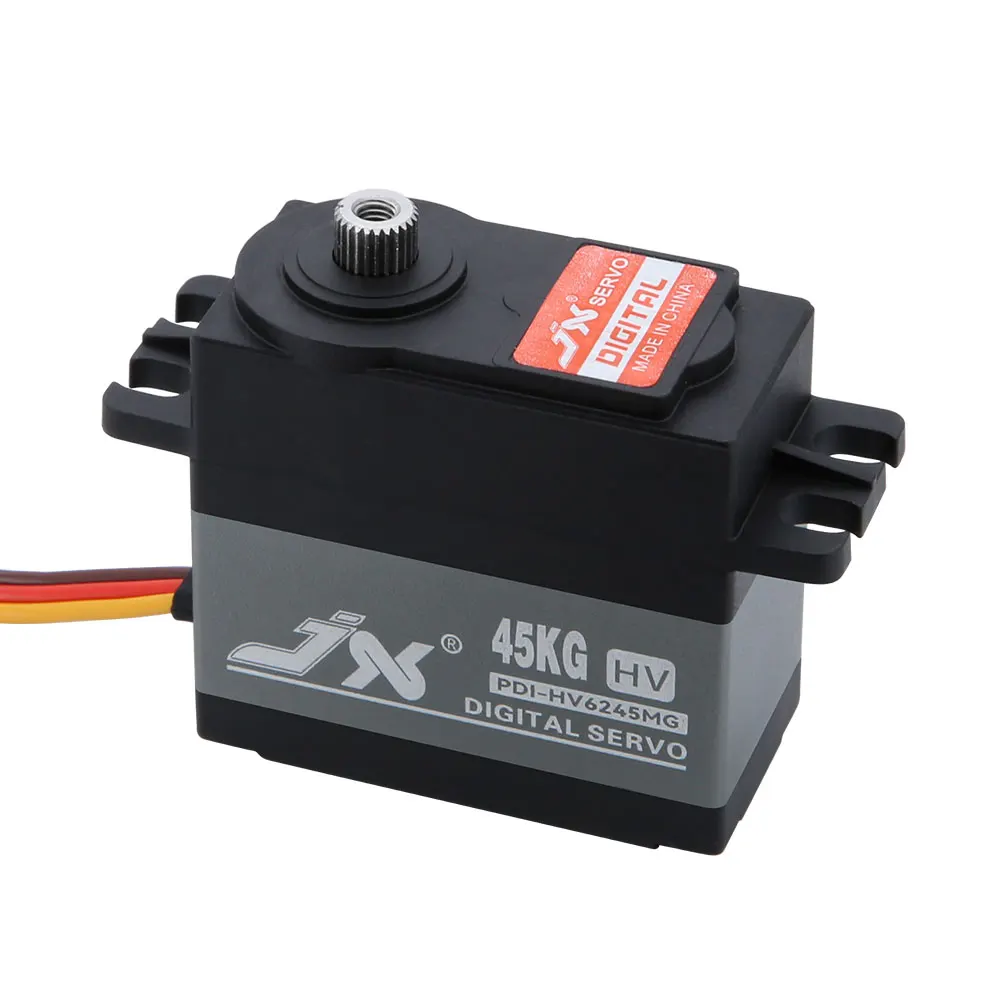

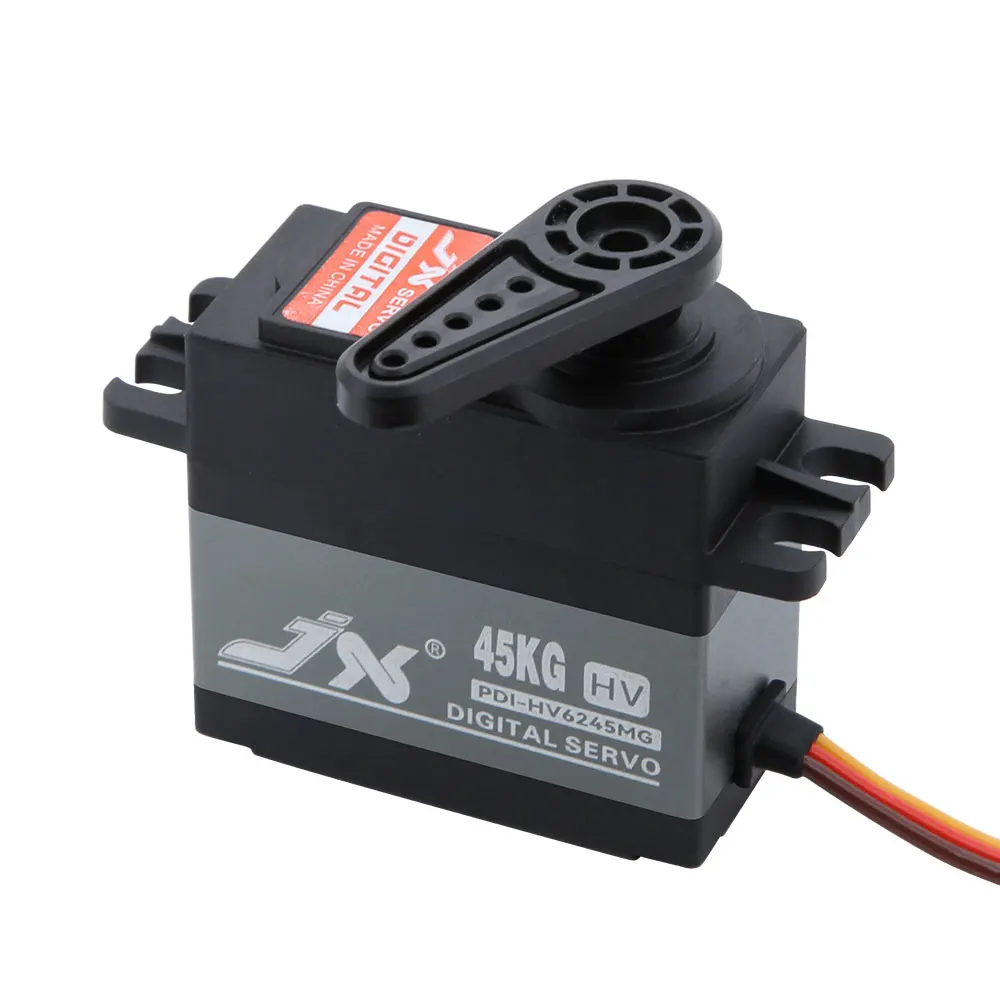

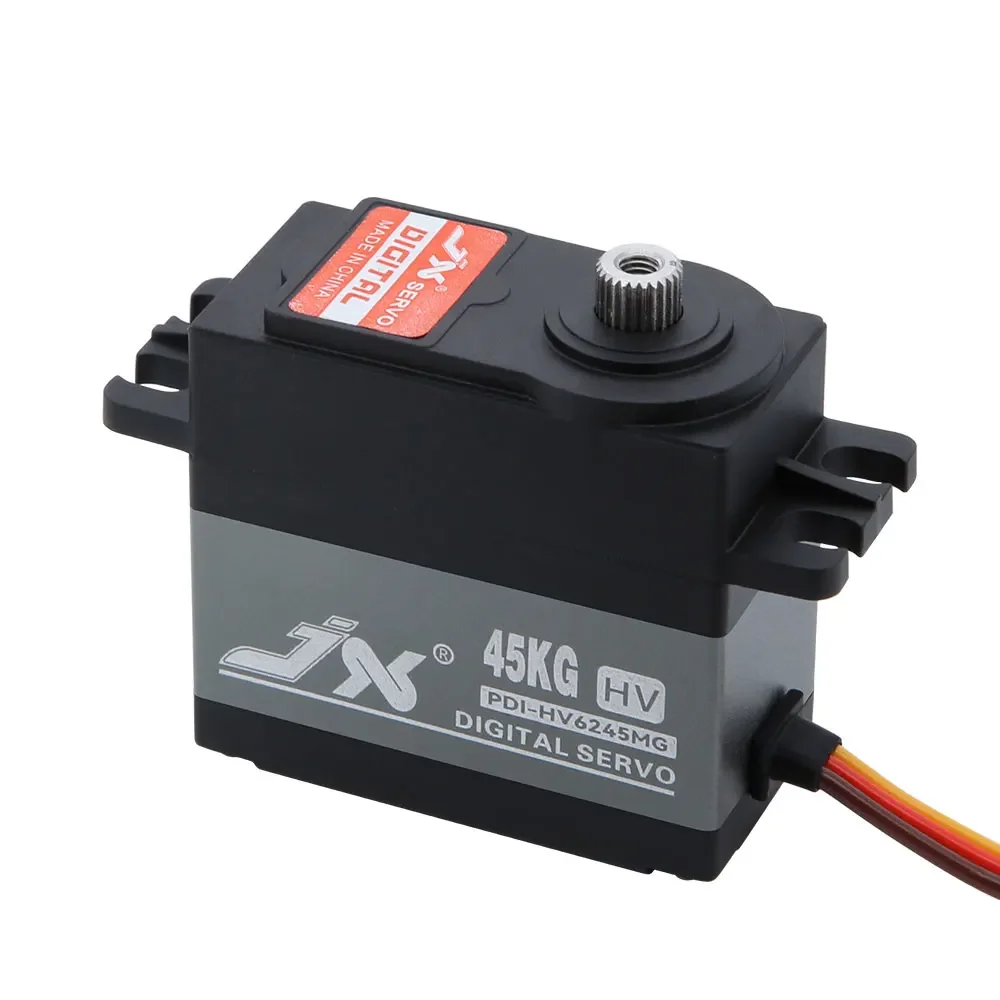

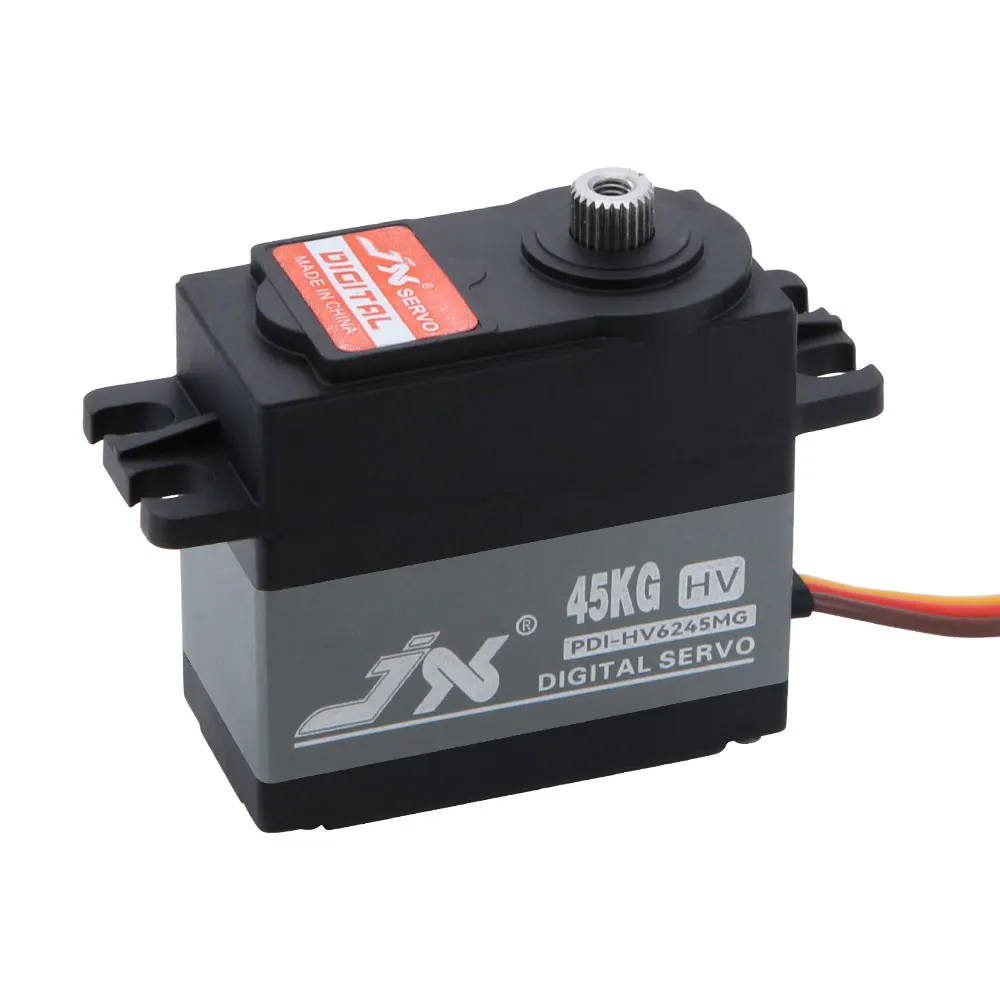

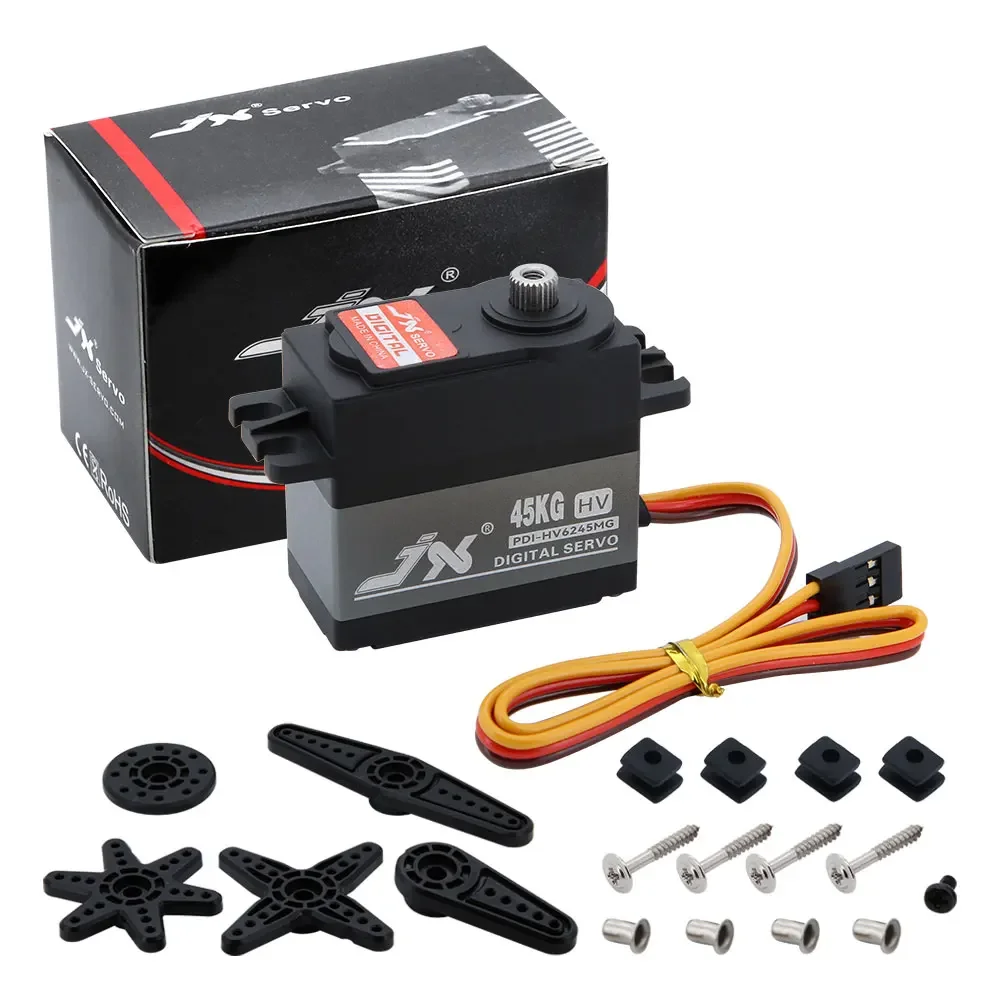

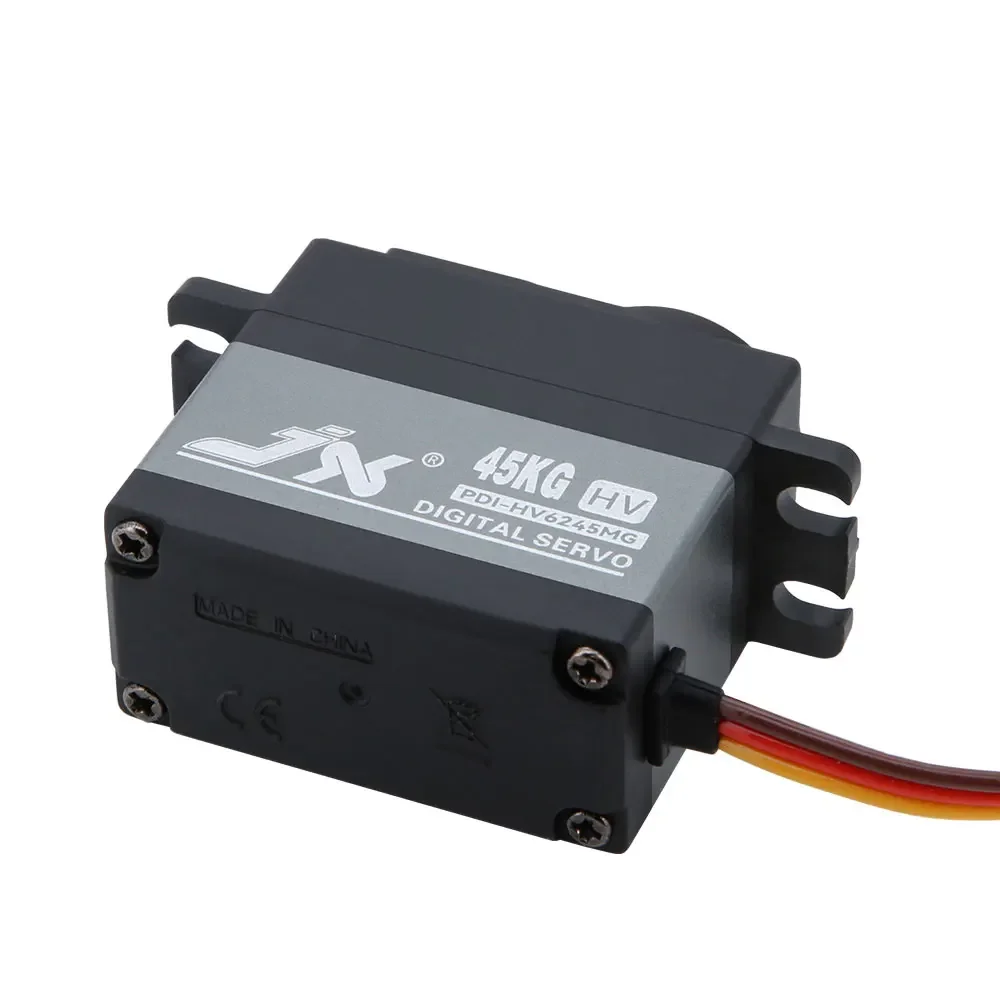

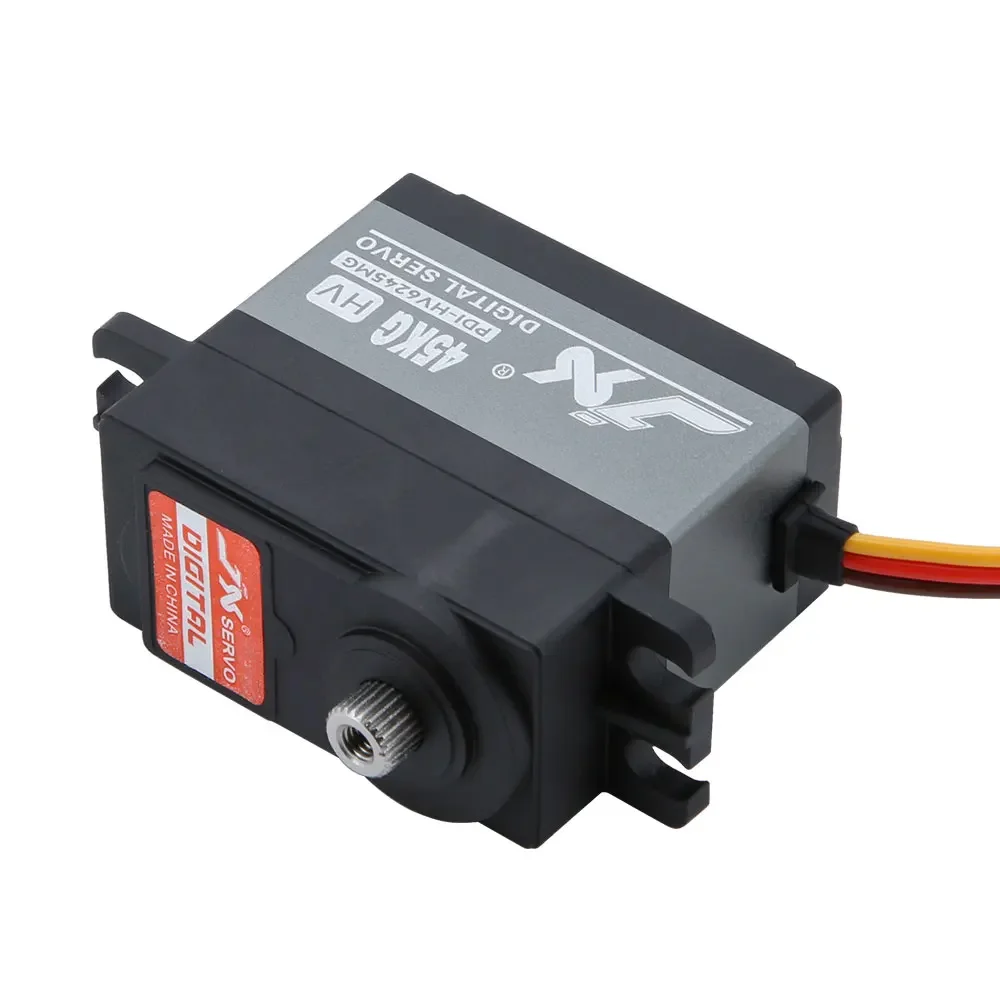

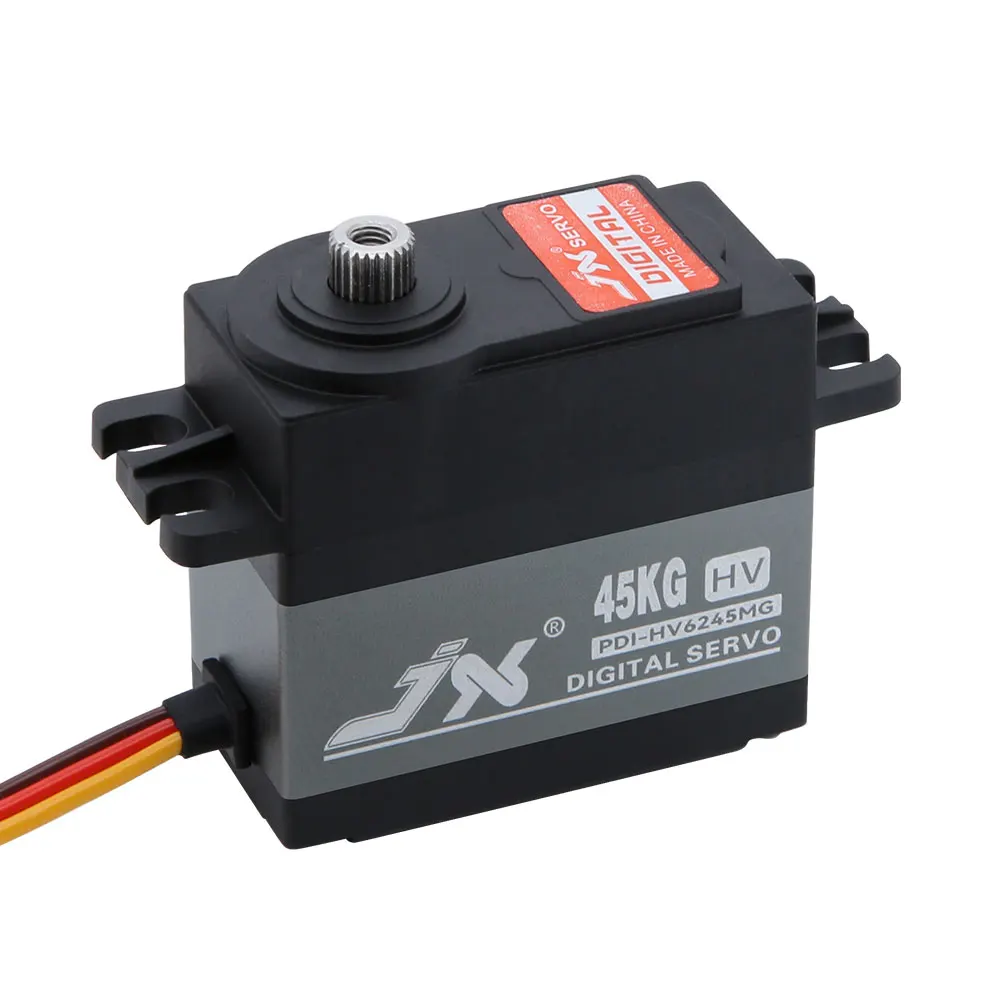

JX Servo PDI-HV6245MG

Dead band: 2μs                                             Working frequence:1520μs / 330hz

Motor: High Quality Core Motor                        Voltage Range:6.0-8.4V

Operating Speed (6.0V): 0.15 sec/60°

Operating Speed (8.4V): 0.13sec/60°

Stall Torque (6.0V): 35 kg.cm

Stall Torque (8.4V): 45 kg.cm

Dimensions: 40.5X20.2X40.3mm

Weight:  62 g

Connector Wire Length: JR  260 mm
Bearing: 2BB
