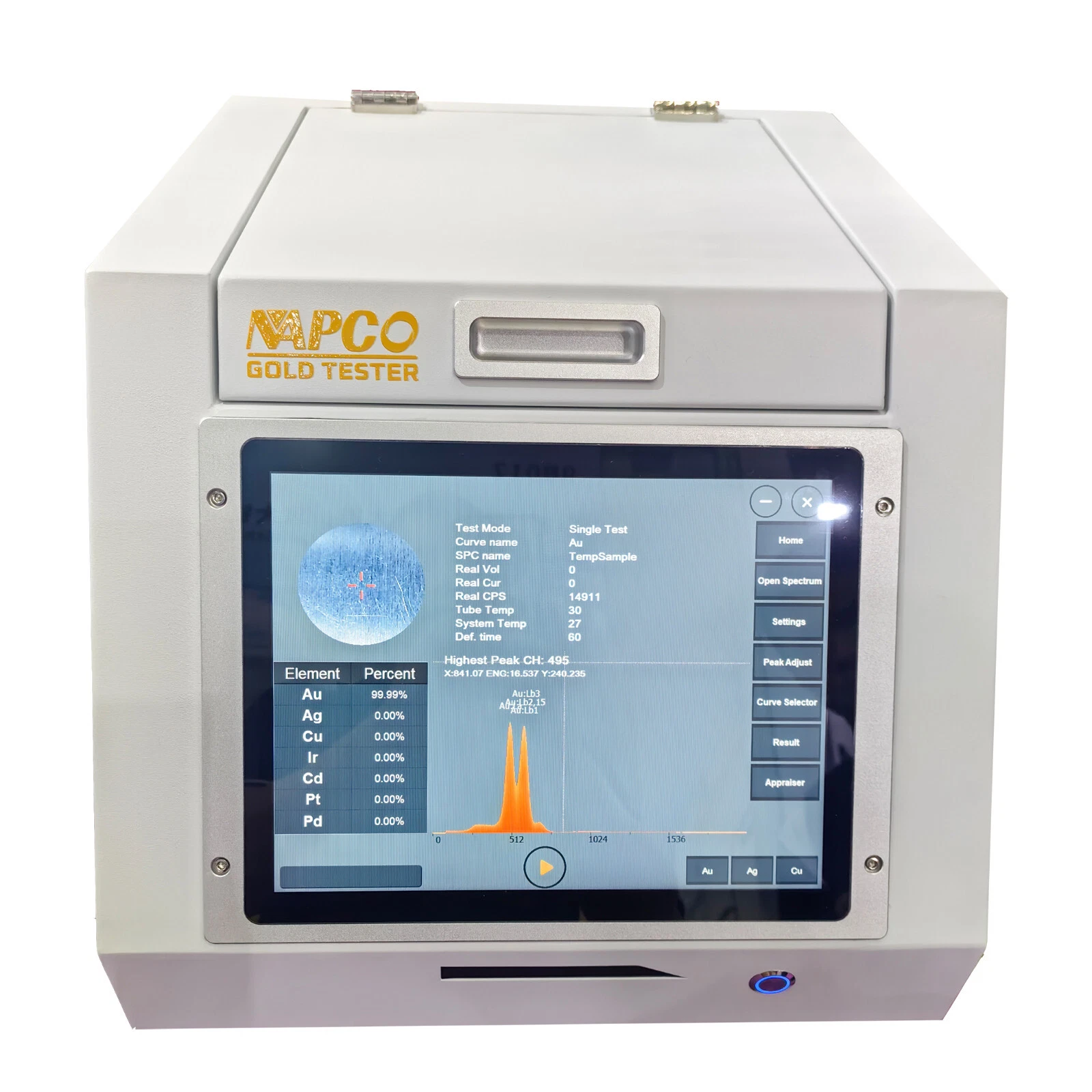

7 Elements XRF Spectrum Analyzer Gold Purity  Tester

precious metal analyzer with printer

• NEW

•

• NAP 8200	Specifications
  Overall Dimensions – Machine	Closed: 46 cm x 39 cm x 40 cm (18.11in.x 15.35 in.x 15.75 in.) Open: 46 cm x 39 cm x 60 cm(18.11in,x 15.35in.x 23.62in.)

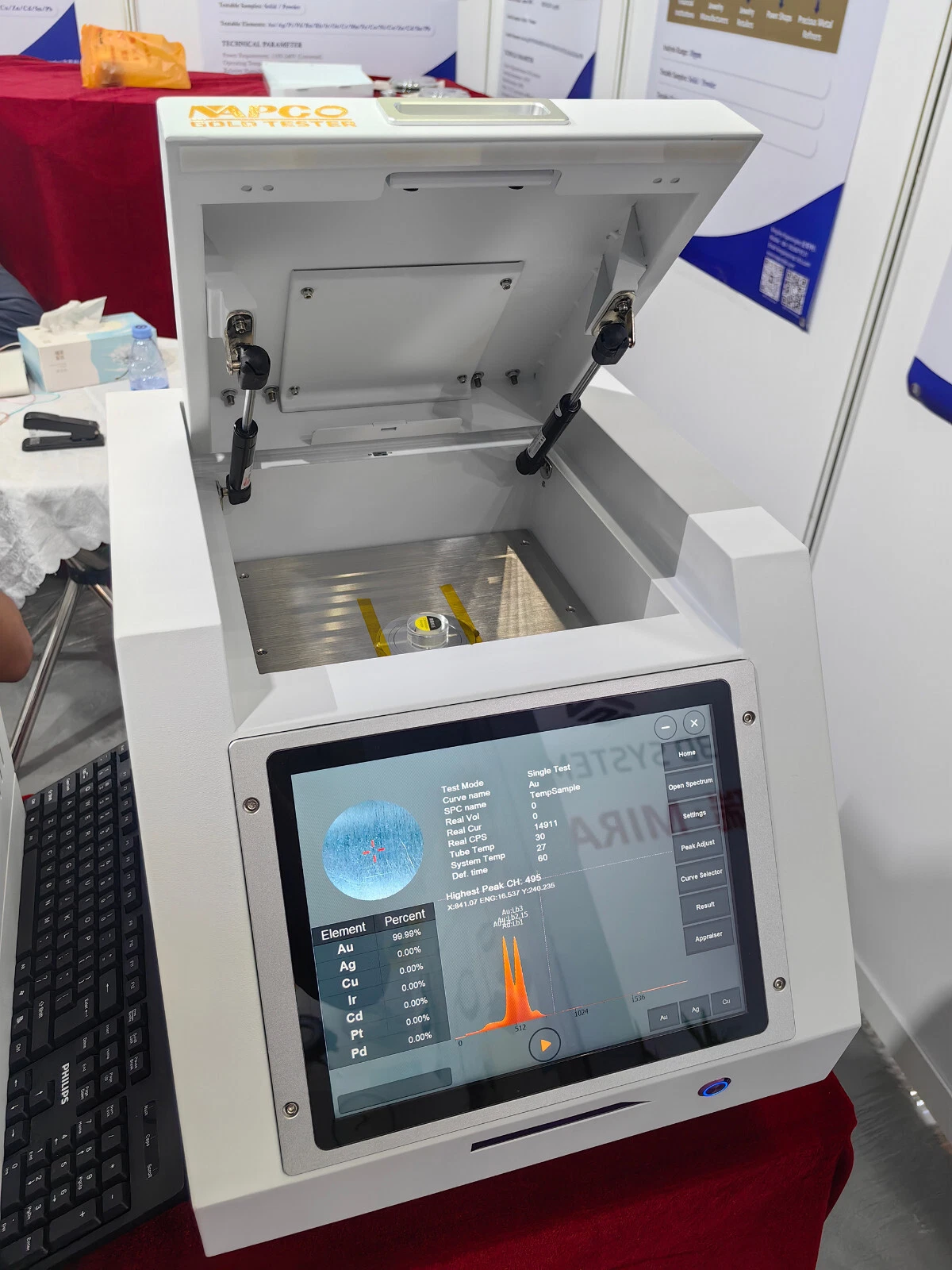

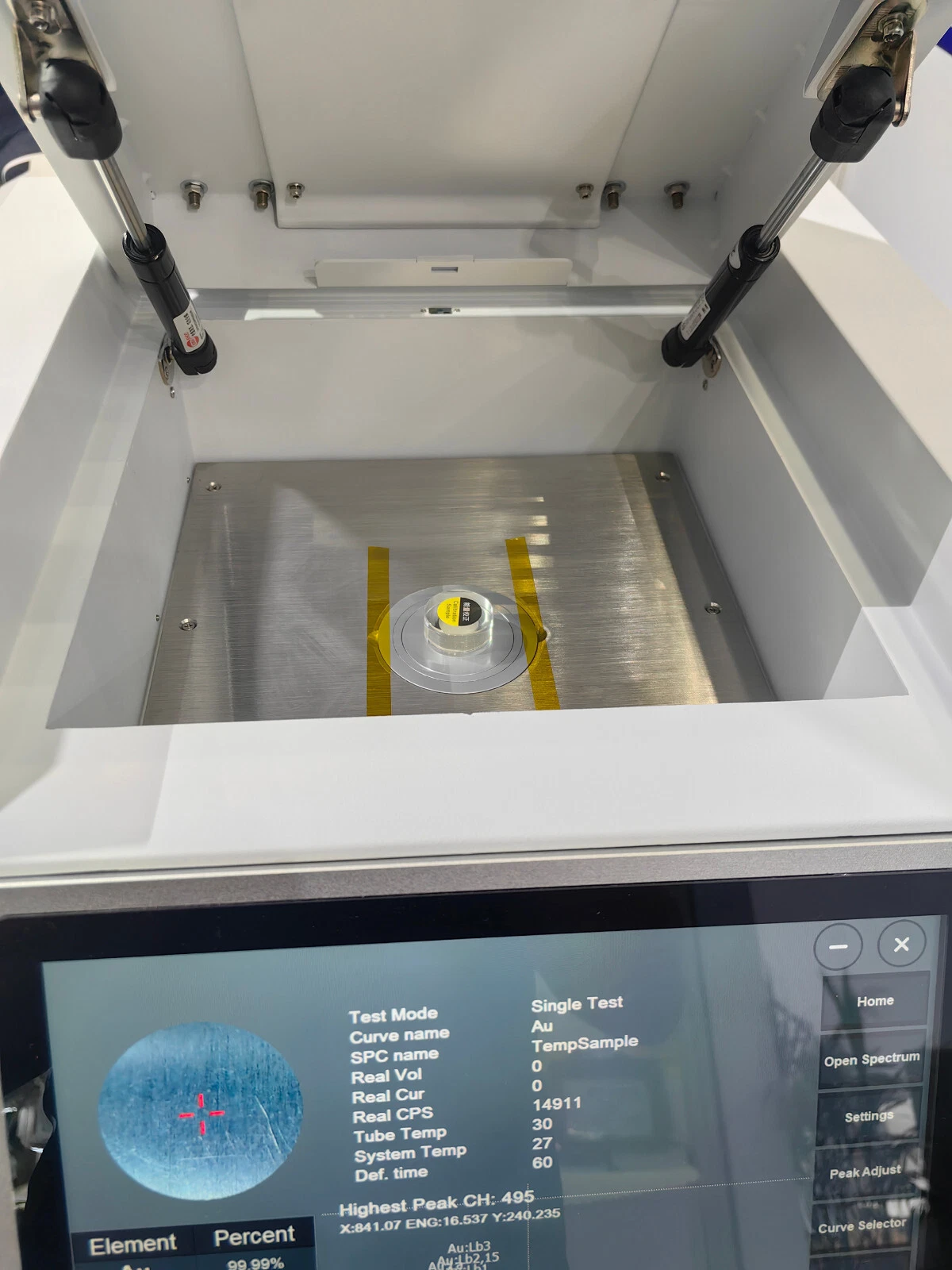

  Sample Chamber Dimensions	25 cm x 25 cm x 7.5 cm (9.84 in.x 9.84in.x 2.95 in.)
  Weight – Machine	33 kg (72.75 lb)
  Working Principle	Energy Dispersive X-ray Fluorescence
  Detector	Gas Proportional Detector
  Precision	+10ppm~0.1%
  Analysis Range	1%-99.99%
  Detection limit	100ppm Best substance effect
  Testable Elements	Au, Ag, Cu, Pt, Pd,lr, Cd
  Power	110V-220
  PC Or Laptop interface	Integrated PC with touch screen, Wireless LAN, USB interfaces, HD camera
  Main Structure	High-strength metal frame and industry plastic shell
  Operating Environment	Temperature 0-28°C Humidity <70%
  Operating System	Windows 10 Application software: Napco Precious Metal Analyzel
  Measurement Time	30 sesion Auto mode
  Camera	Full-color camera
  Warranty	One-year standard warranty with lifetime free software upgrade

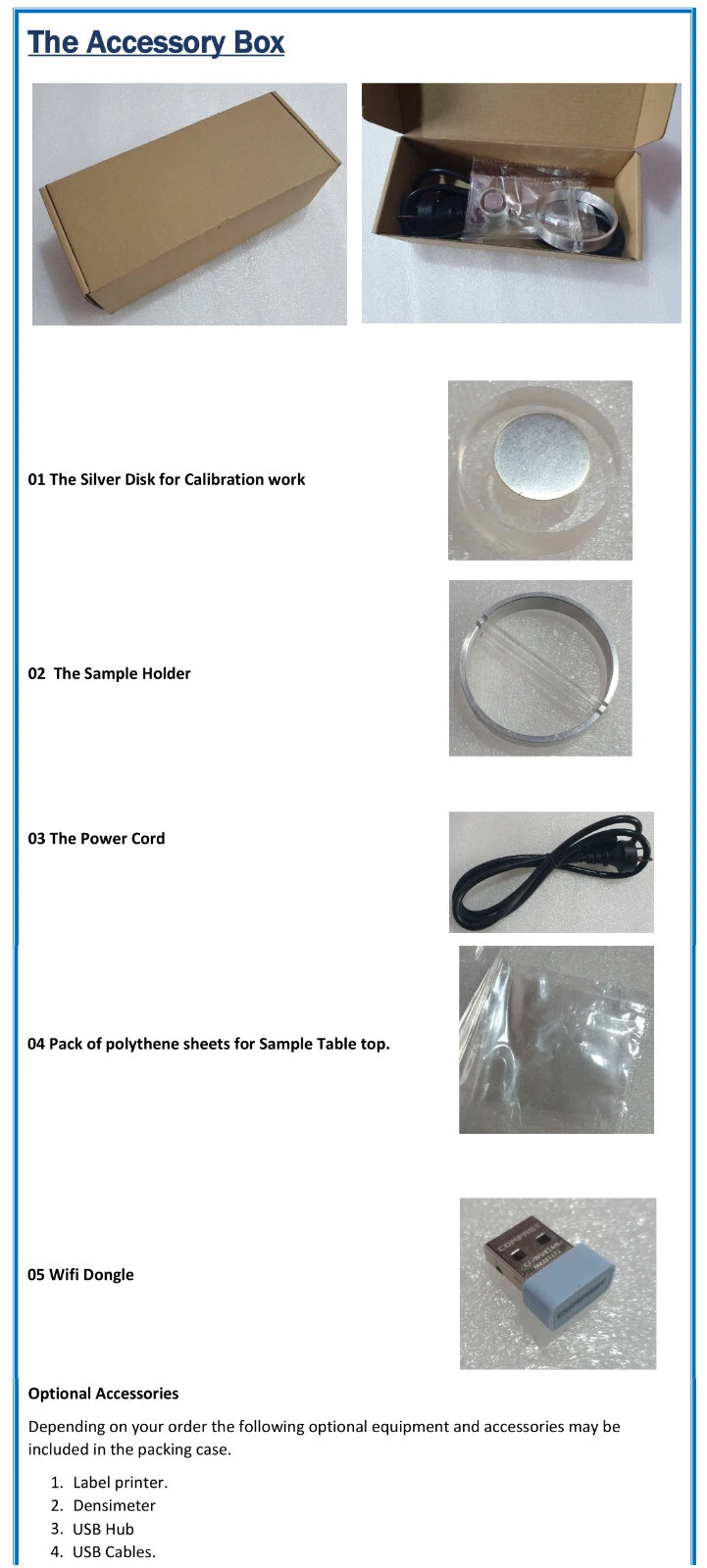

  Standard Accessories	AC power adapter, Silver calibrator, WiFi adapter, Film protective stickers, Ring holdel
  Connectivity	2 USB Ports
  Package Size	59 cm x 55.5 cm x 53 cm (23.23 in. x 21.85 in. x 20.87 in.)
  Package Weight	48 kg(105.82 lb)

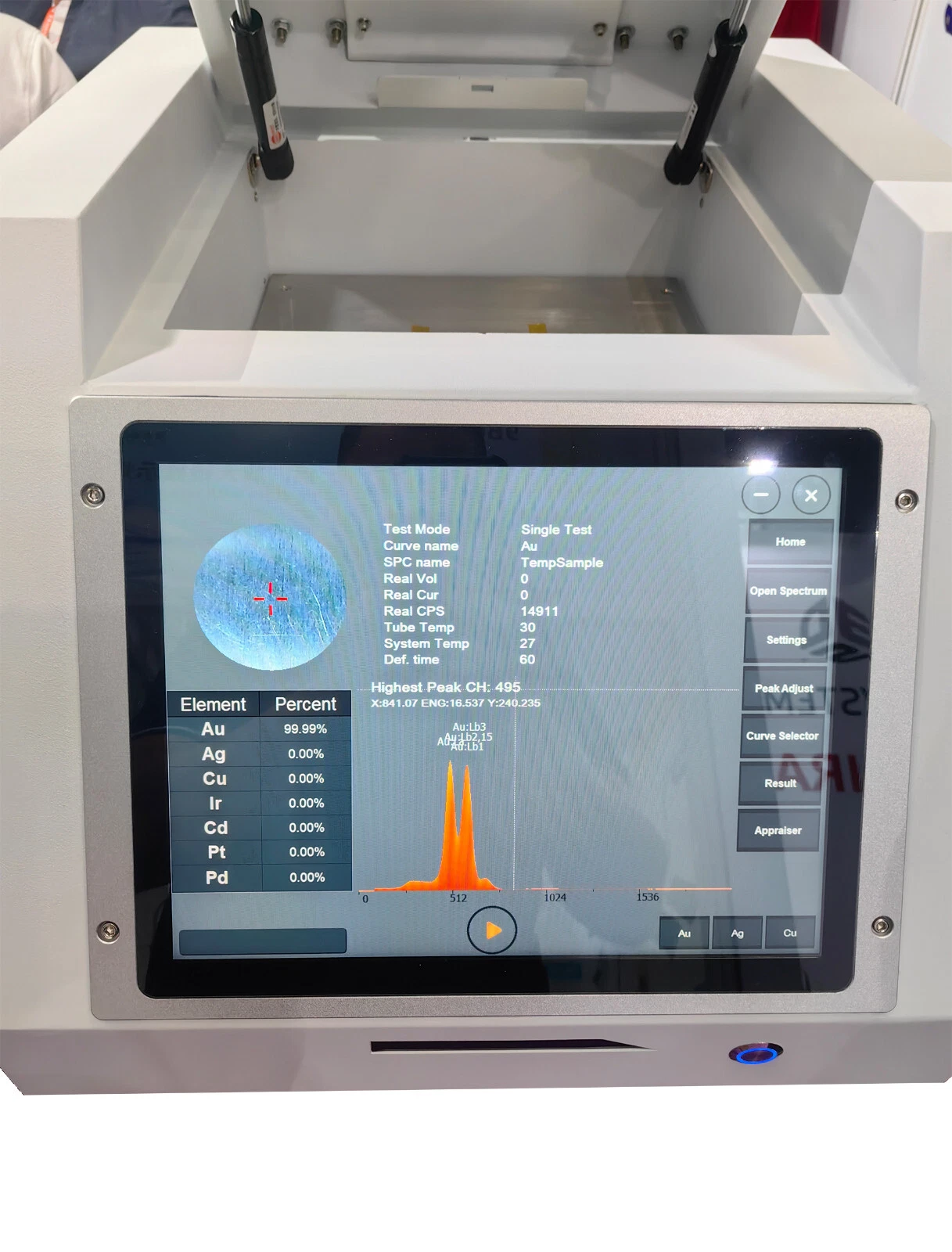

  Display	12.1 inches bigger display with full color touch-screen

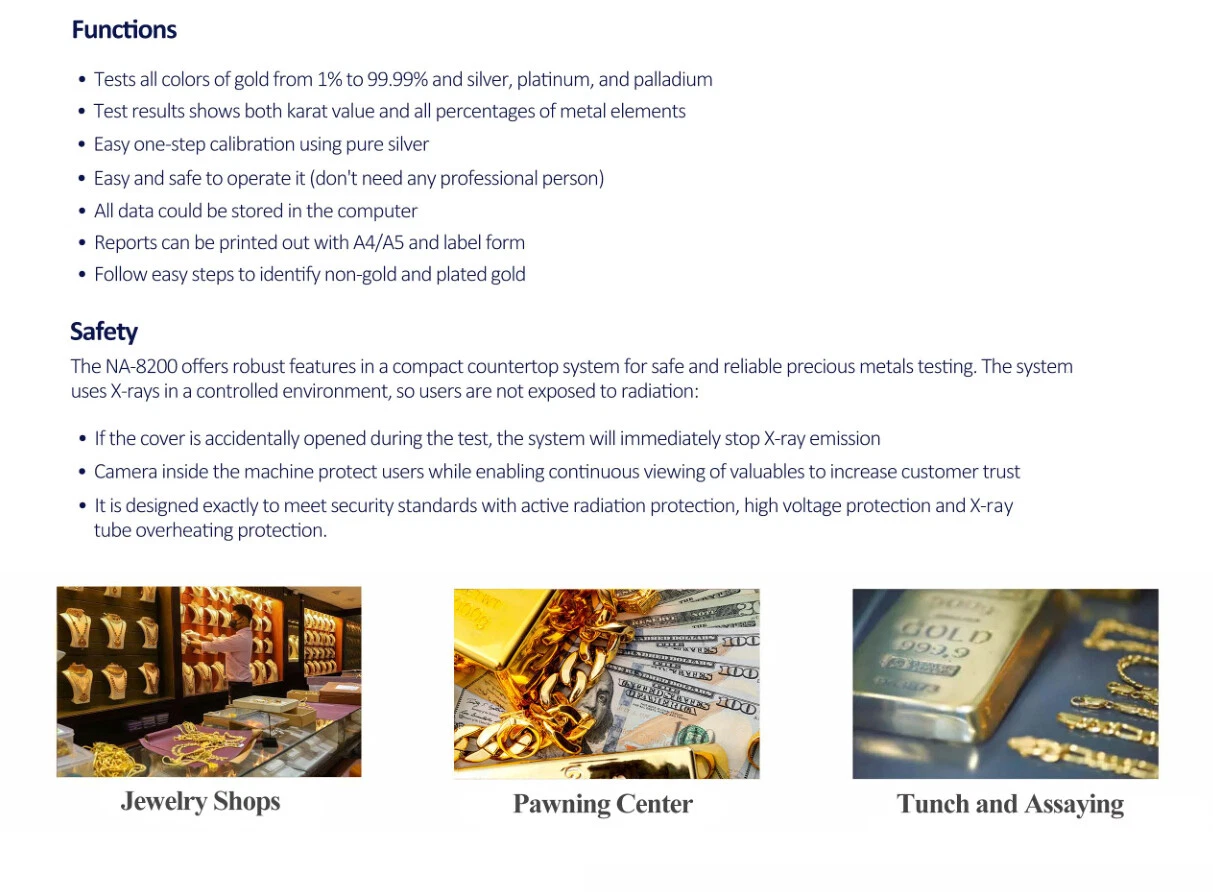

• Function:

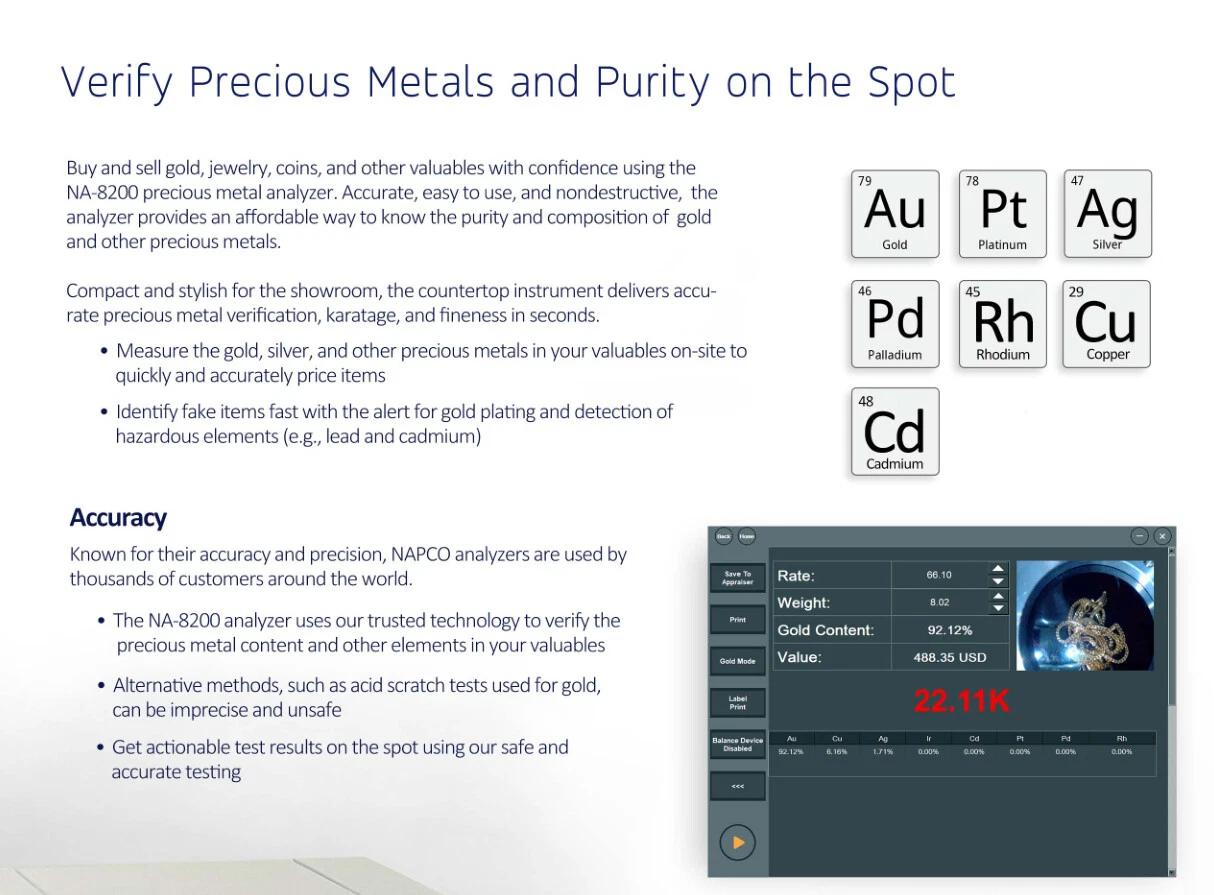

  Tests all colors of gold from 1% to 99.99% and silver, platinum and palladium
  Hand-tough display shows both karat value and all percentages do metals
  Easy one-step calibration using pure silver
  Easy and safe to operate it(don’t need any professional person)
  All data could be stored in the computer

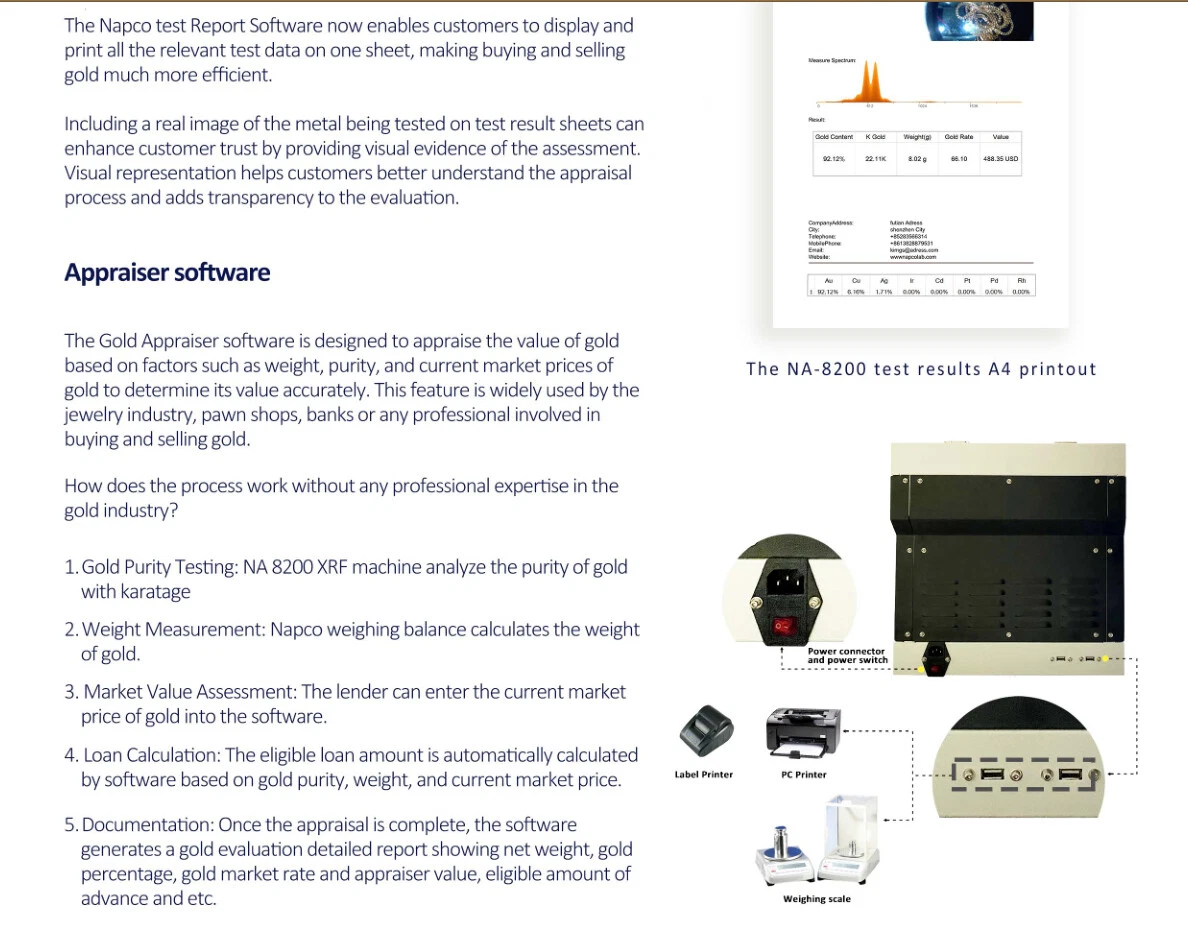

  Reports can be printed out with A4/A5 and label form
  Follow easy steps to identify non-gold and plated gold


  This gold tester is integrated an industrial computer with industrial motherboard & multi-point hand touch. Providing best operation experience. It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating protection. Warm-up and anti interference procedure is controlled by the program, to reduce the interference by the reflected X-ray and the spectrums, to add the accuracy and stability. Optional colors for different elements will help to distinguish the interested elements clearly and conveniently. When the testing is over, the testing report will be shown timely.

  Benefits

  • High speed and accuracy

  • Intuitive interface
  • Autonomous operation as well as connected to a PC
  • Compact, doesn’t take much space on a desk or a counter
  • Ergonomic design looks very nice in a jewelry shop
  • Customer display – Chemical composition can be seen by customer during measurement
  • Radiation protection
  • High Voltage protection
  • X-ray Tube overheating protection
  • Inbuilt industrial motherboard & multi-point hand touch
  • FCC,CE ,RoHS approved
  • Tests jewelry and metal samples of any size, shape or weight

  X-ray fluorescence analysis surpasses the rest of analytical methods in terms of speed, accuracy, and simplicity. It’s a non-destructive method, in which analysis is targeted at the spot of interest. The diameter of an analytical spot can be easily changed.





1.Your valid phone number is very necessary for the shipping, otherwise we can't guarantee that the package would safely arrives.

2. Any Customs tax applied to this package should be covered by buyers.

3.As has been stated on the eBay item description, Import duties, taxes and charges are not included in the item price and shipping charges. These charges be at the buyer responsibility. meanwhile the customs tax depend on the buyer local customs office.

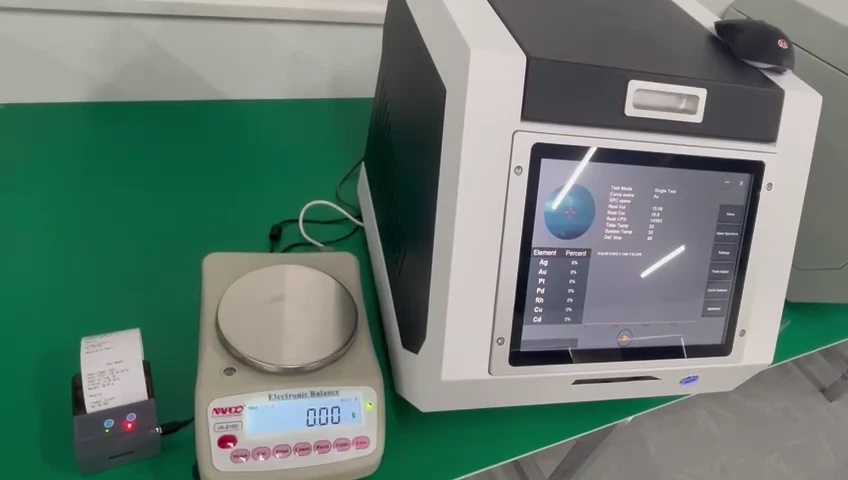

1× XRF Spectrum Analyzer

1X Printer
