YAMAHA ZUMA 125 (YW125) SCOOTER (2009-2015):
• Zuma 125 YW125 125cc Single-Cyl 4-Stroke SOHC 4-Valve (2009-2015)
• Liquid-Cooled / Fuel Injected / CVT Automatic
• Bore x Stroke: 52.4mm x 57.9mm
• Electric Start / 12V System
• Approximately 10HP

YAMAHA ZUMA 125 FEATURES:
• Urban commuter / All-weather scooter
• Rugged off-road inspired styling
• 12-inch wheels for stability
• Under-seat storage / Electric start
• Excellent fuel economy

MODEL YEARS:
• 2009 / 2010 / 2011 / 2012 / 2013 / 2014 / 2015
• All years use the same starter (5S9-H1800-00-00)

NOTES:
• PMDD starter system
• OEM Yamaha part number: 5S9-H1800-00-00
• Note: SMU0340 is a similar but different starter (shorter spline shaft, different battery wire) — verify part number

FITS / Replacement Part Numbers:

OEM PART NUMBERS:
• Yamaha: 5S9-H1800-00-00 / 5S9H18000000

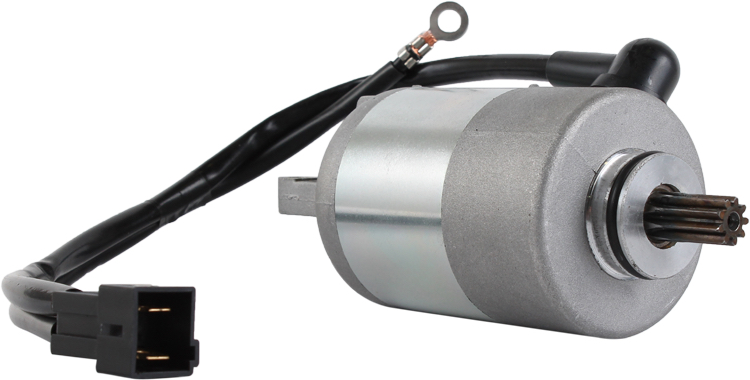

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counterclockwise)
• Teeth: 9
• Weight: 4 lbs
• Condition: New

APPLICATION:
• 2009-2015 Yamaha Zuma 125 YW125 125cc Scooter
