Gigabyte GA-8SQ800 Ultra Socket 478 ATX DDR Retro Motherboard SiS 655FX Chipset

Gigabyte GA-8SQ800 Ultra

Socket 478, ATX, DDR, Retro Motherboard

SiS 655FX Chipset

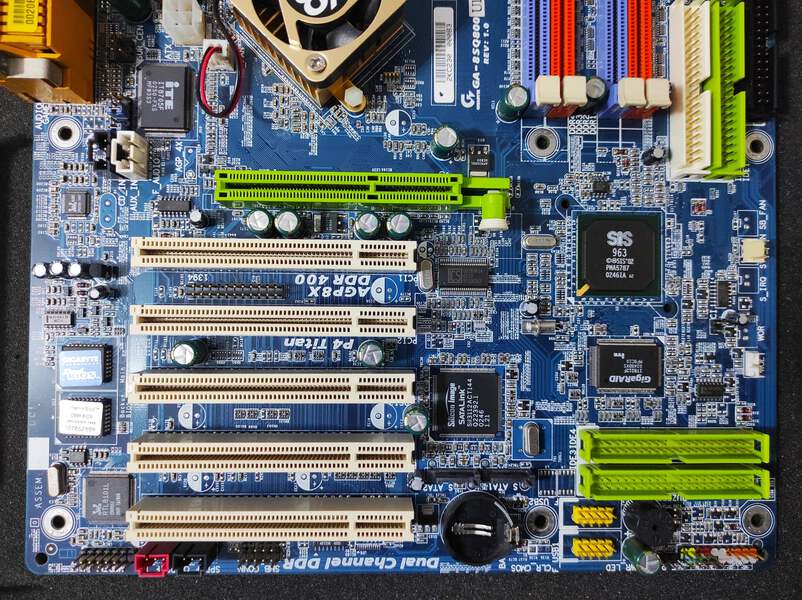

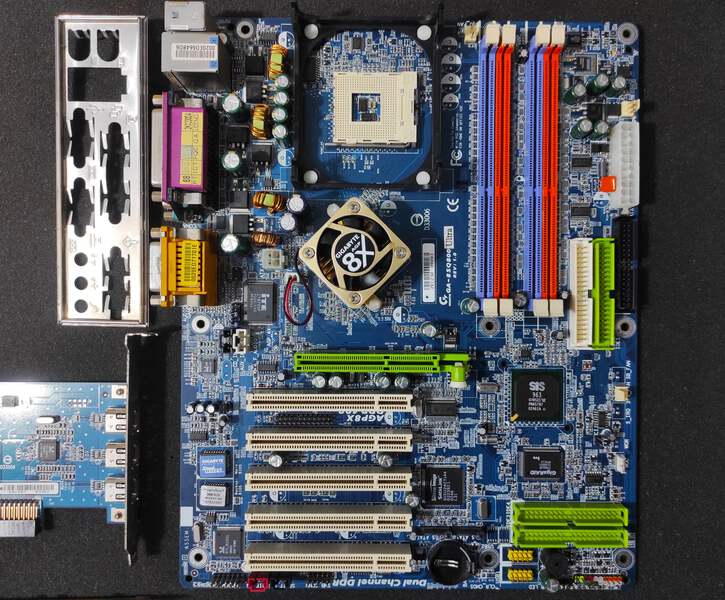

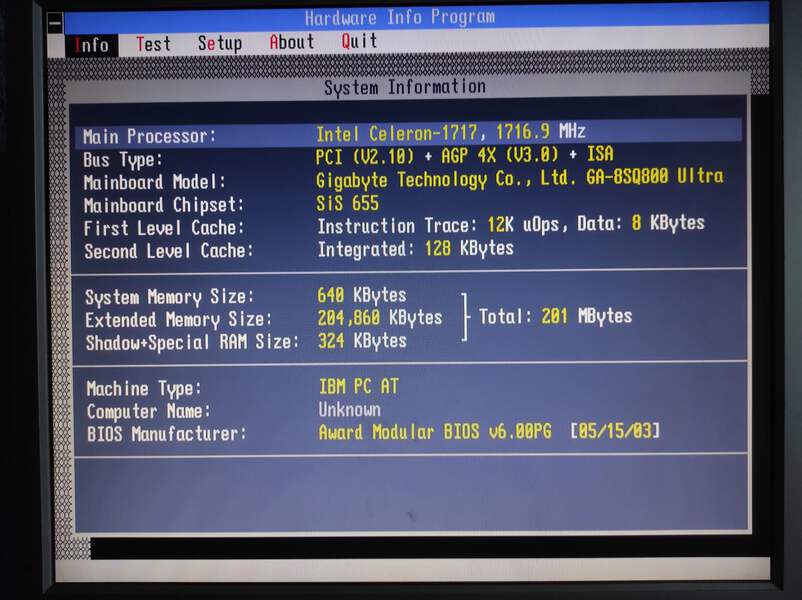

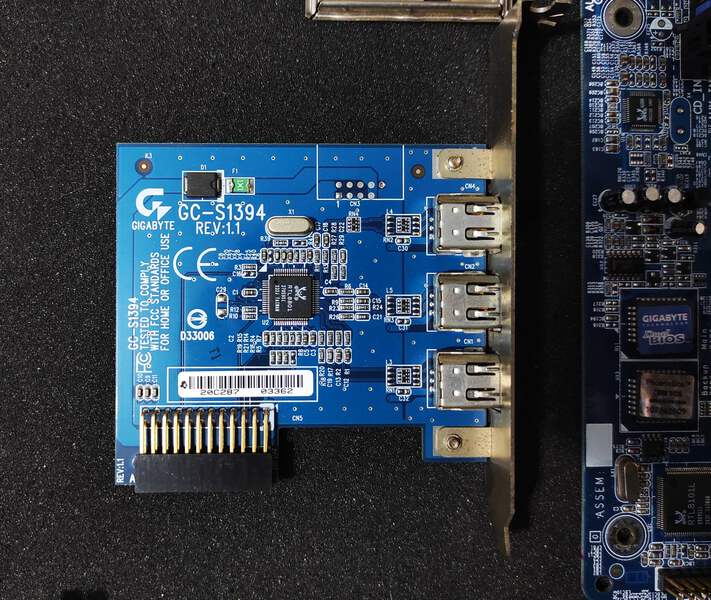

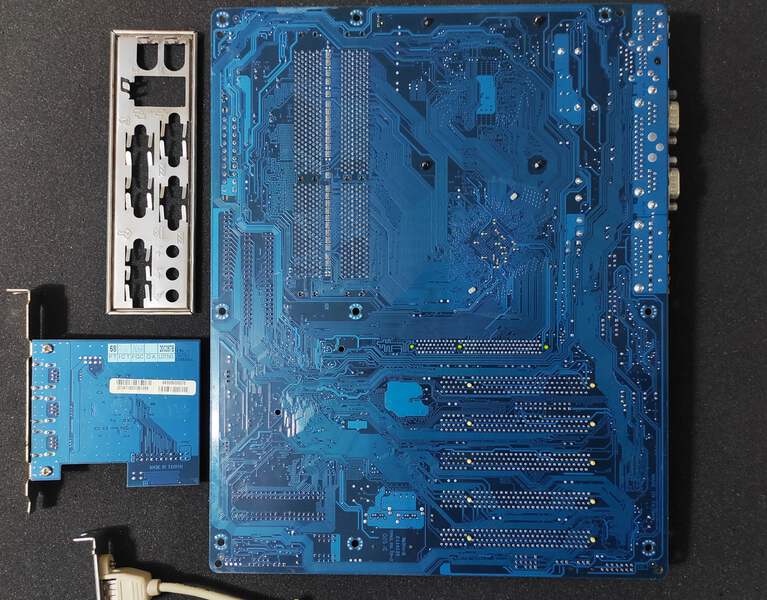

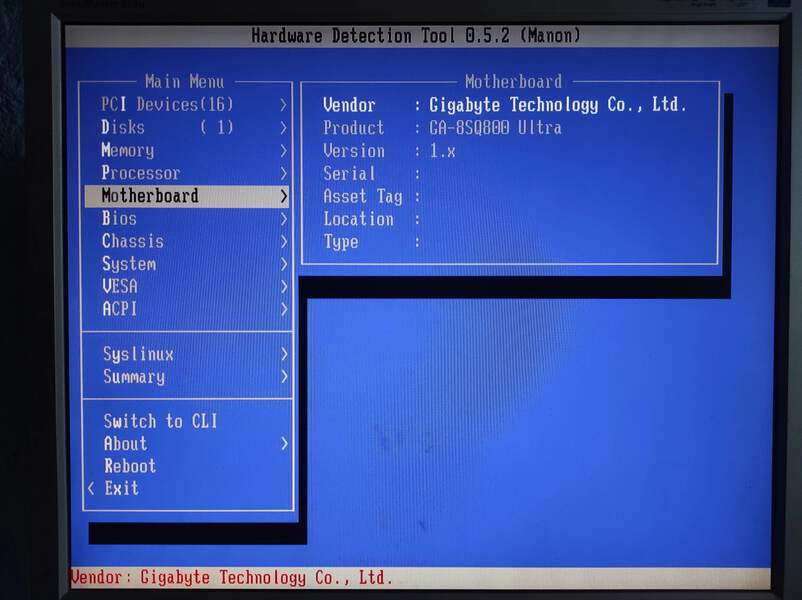

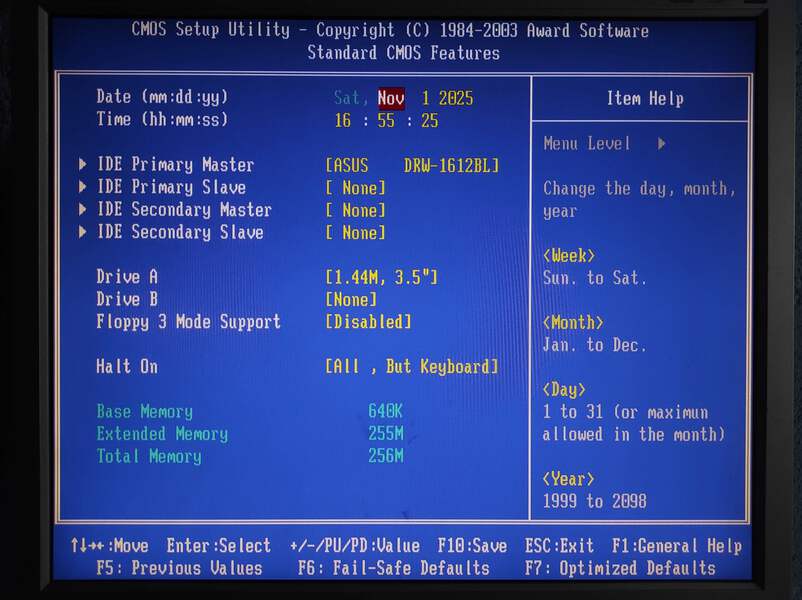

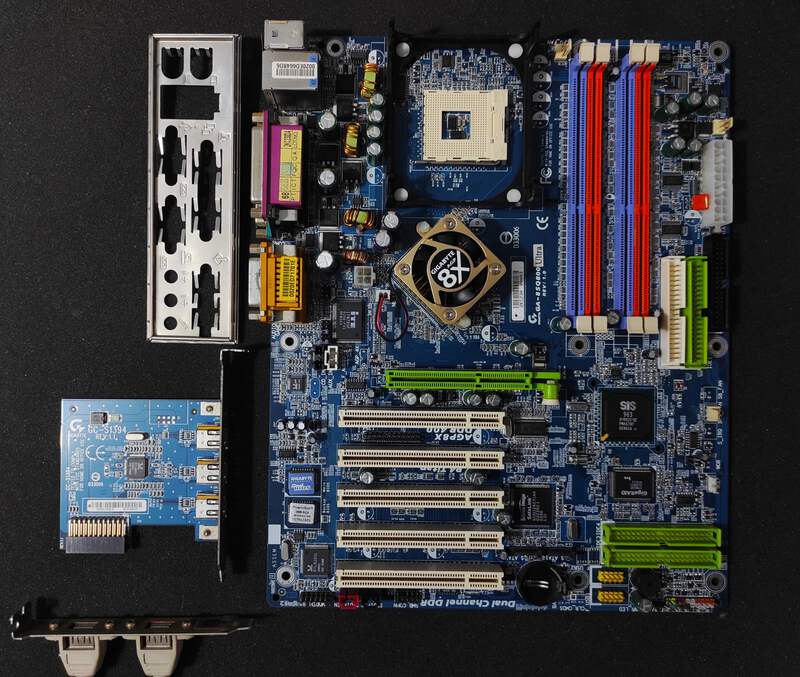

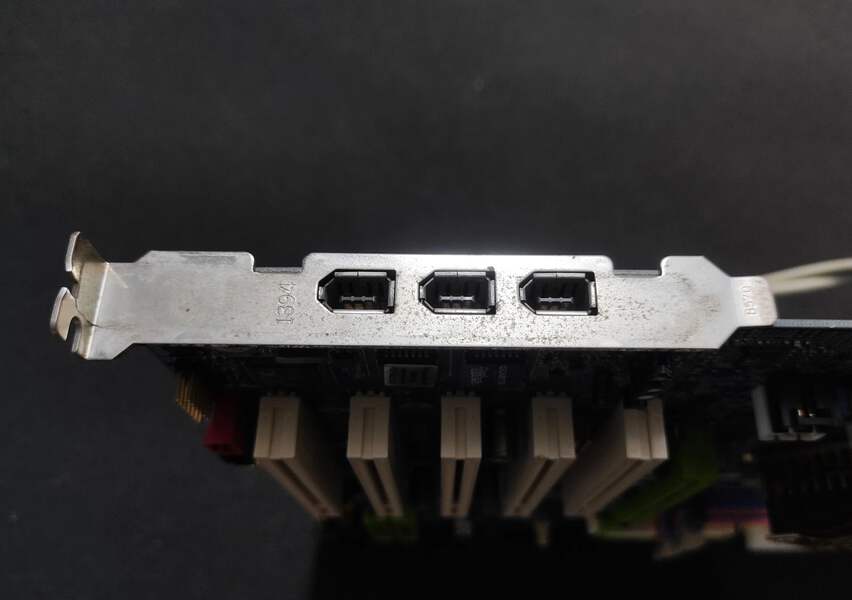

Uséd motherboard, tested working. In good condition! Check out the pics! I/O Shield included. Gigabyte GC-S1394 3 Port Firewire extension card pictured also included.

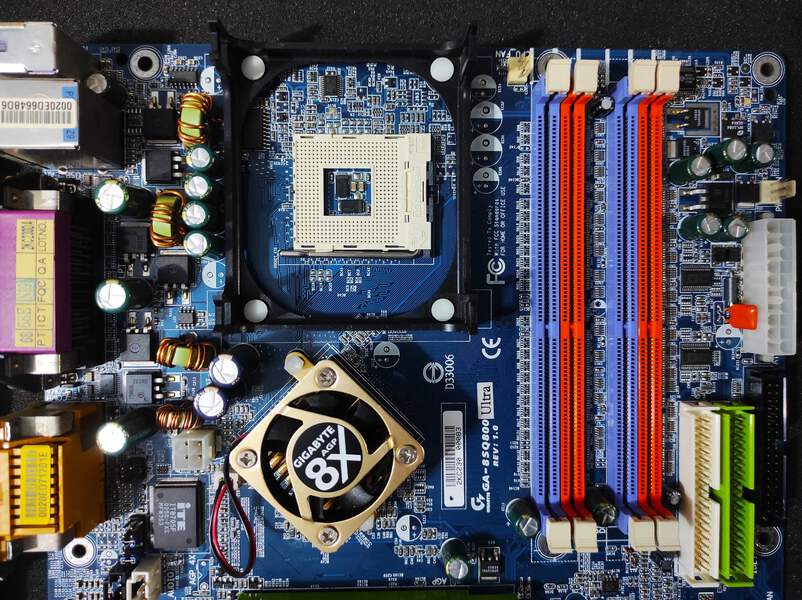

Chipset fan needs to be replaced, it's has a broken blade and doesn't spin.

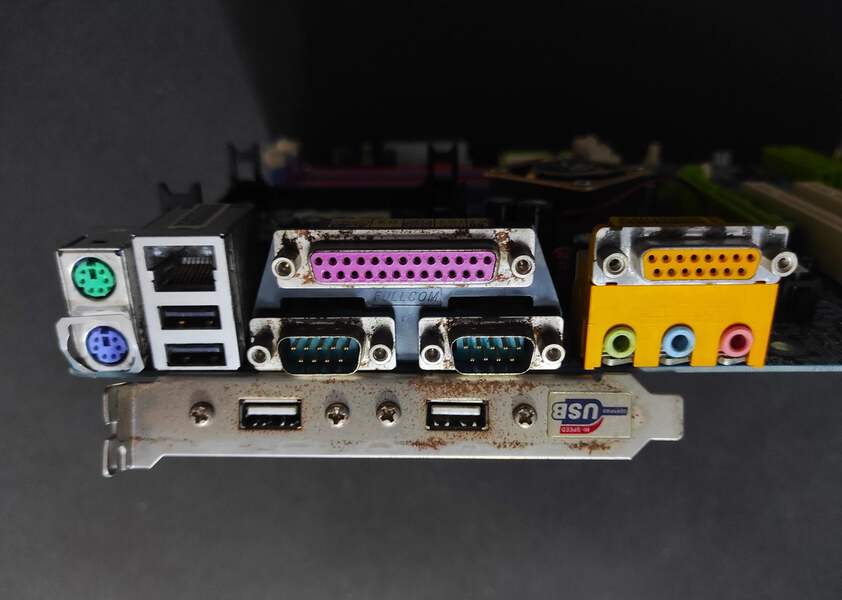

I/O Ports have unfortunately accumulated some rust.

GA-8SQ800 Ultra (rev. 1.x)

CPU
1. Socket 478 for Intel^®new 0.13 micron-process Pentium^®4 processor
2. 533/400 MHz FSB
Front Side Bus
1. 533 / 400 MHz FSB
Chipset
1. North bridge: SiS655 HMAC Host & Memory & AGP Controller
2. South bridge: SiS963 MuTIOL^®Media I/O
3. Super I/O: ITE IT8705F chip
4. Silicon Image Sil3112A chip
5. ITE GigaRAID controller chip
6. Realtek 8101 LAN chip
7. Realtek ALC650E Audio AC'97 CODEC
8. 2 x 2M bit flash ROM
Memory
1. Type:DDR 400(PC3200)* / DDR333 (PC2700) / DDR266 (PC2100) -184pin
2. Max capacity: Up to 4GB by 4 DIMM slots
Expansion Slots
1. 1 x AGP slot (8x/4x-AGP 3.0 compliant)
2. 5 x PCI slots (PCI 2.2 compliant)
Internal I/O Connectors
1. 2 x Serial ATA connector
2. 4 x UDMA ATA 133/100/66 Bus Master IDE connectors
3. 1 x FDD connector
4. 2 x USB 2.0/1.1 connectors (support 4 ports by cable)
5. 1394 pin header (support 3 ports via daughter card S1394)
6. S/P DIF input/output pin header
7. 3 x cooling fan pin headers
8. WOL pin header
9. CD/AUX in
Back Panel Connectors
1. PS/2 Keyboard / Mouse
2. 2 x USB 2.0/1.1 ports
3. 1 x RJ45 LAN port
4. 2 x COM ports
5. 1 x LPT
6. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
7. 1 x Game/Midi port
H/W Monitoring
1. System health status auto-detect and report by BIOS
2. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed
BIOS
1. 2X2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/ CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
Form Factor
1. ATX form factor, 4 layers PCB (30.5 x 24.4 cm)
CPU/AGP/DIMM setting
1. CPU FSB / Multiplier / Vcore Voltage adjustable via BIOS
2. AGP Voltage / Clock adjustable via BIOS
3. DIMM Voltage / Clock adjustable via BIOS
Other Features
1. Suspend to RAM (STR)
2. Supports USB KB / MS wake up from S3
3. Poly fuse for keyboard over-current protection
