Fixaball sells lengths of M14 x 1.5mm, fine pitch, cap head, allen screw/ bolts.
Description: M14 socket cap screw/ bolts.
Material: High Tensile Steel Grade 12.9
Coating/ Finish: Self Colour/ Black.
Thread: Threads are metric fine M14 x 1.5mm pitch.
Head diameter: 21mm.
Head height: 14mm.
Allen key size: 12mm.
Standard: DIN 912.
Note: Bolt lengths do not include the head.
What is a socket cap screw/ bolt?
The, ‘Socket Cap Screw/ Allen Bolt,’ term is uséd to describe a fastener that is either fully or partially threaded. A screw is fully threaded and a bolt is partialy threaded. Some engineers may call them screws if the person uses the shorter length range of sizes. The thread stays the same length as the fastener gets longer and the maximum length of thread is equal to 2.5 times the diameter (or thereabouts). ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head. Here, you can use a hexagon key (Allen Key) to tighten and loosen the fastener. 'Cap' refers to the cylindrical shaped head.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
M14 x 1.5P (fine pitch) Allen Socket, Cap Head, Bolt/ Screw lengths available:
| M14-1.50x30 MM,(FT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR |
| M14-1.50x35 MM,(FT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR |
| M14-1.50x40 MM,(FT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR |
| M14-1.50x50 MM,(FT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR |
| M14-1.50x55 MM,(FT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR |
| M14-1.50x60 MM,(PT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR |
| M14-1.50x80 MM,(PT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR |
| M14-1.50x100 MM,(PT) SOCKET HEAD CAP SCREW 12.9 FINE ISO 4762 / DIN 912 SELF COLOUR |
Material:
Materials: High Tensile (12.9 Grade) - Self-colour.
Grade 12.9 Steel has a higher carbon content than your regular 8.8 high tensile steel and is therefore better for hardness and rigidity.
|
Material/ Finish |
Appearance |
Level of Corrosion Resistance |
Typical Application |
|
High Tensile Steel (12.9) |
Self-Colour (black with no surface treatment) |
Low, without further surface treatment |
No exposure to moisture. Often Greased/ Oiled |
|
FIXABALL – Specialist Fixings and Fasteners Suppliers Hexagon/ Allen Key Sizes METRIC – Allen Socket, Cap Head, Screw Bolts |
|
|
Allen Socket, Cap Head Screw Size Diameter |
Allen/ Hex/ Hexagon Key Required to tighten and loosen |
|
M14 |
12 |
Metric Fine threads are in millimetre (mm) units and were developed to simplify the imperial systems. A fine thread has more helicoils over length and is uséd for lighter loads prone to vibrations.

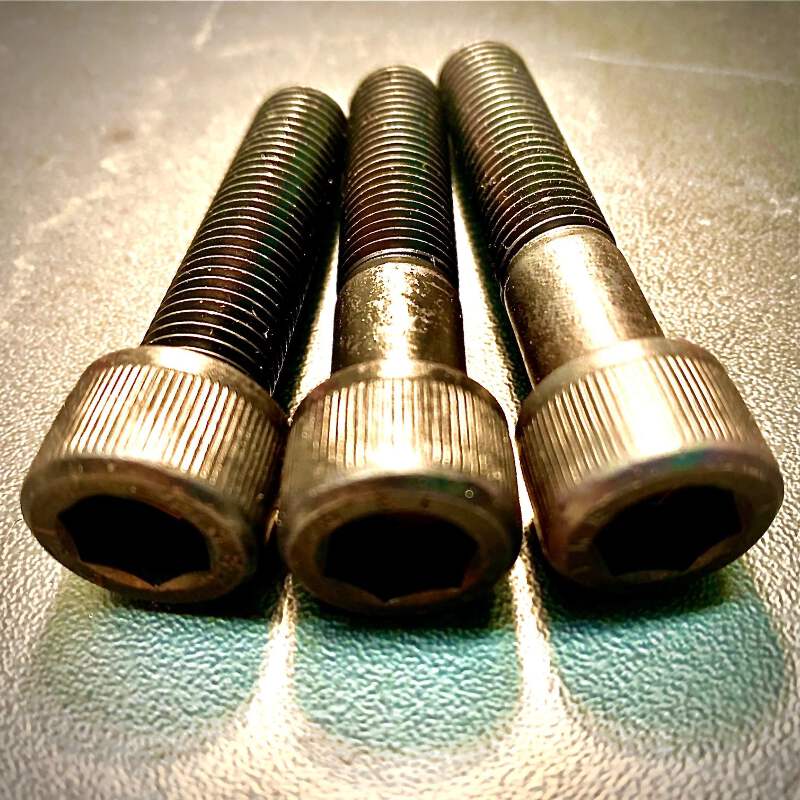

Image is for illustrative purposes only.
