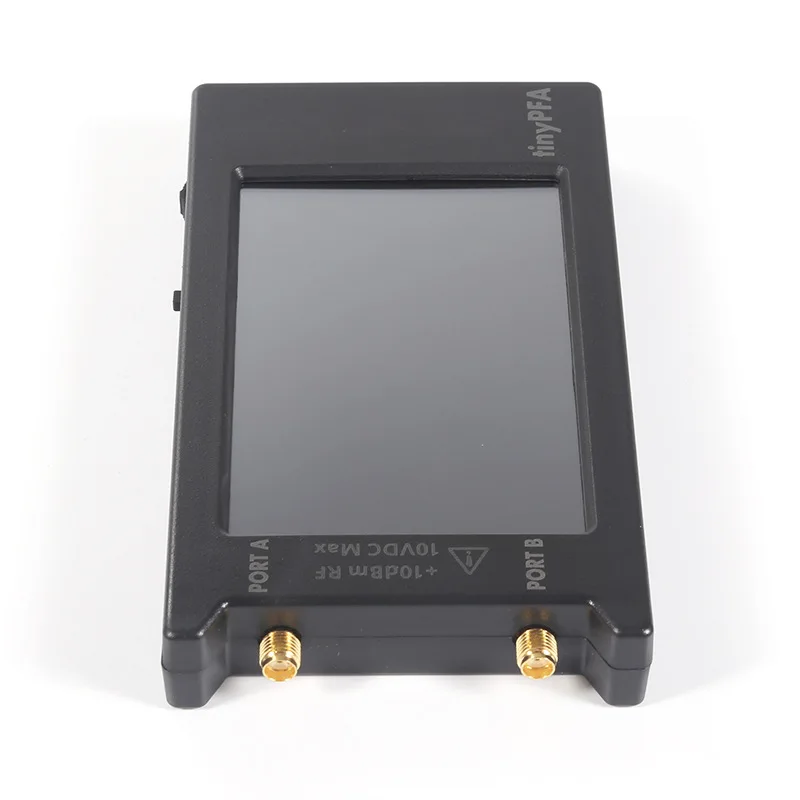

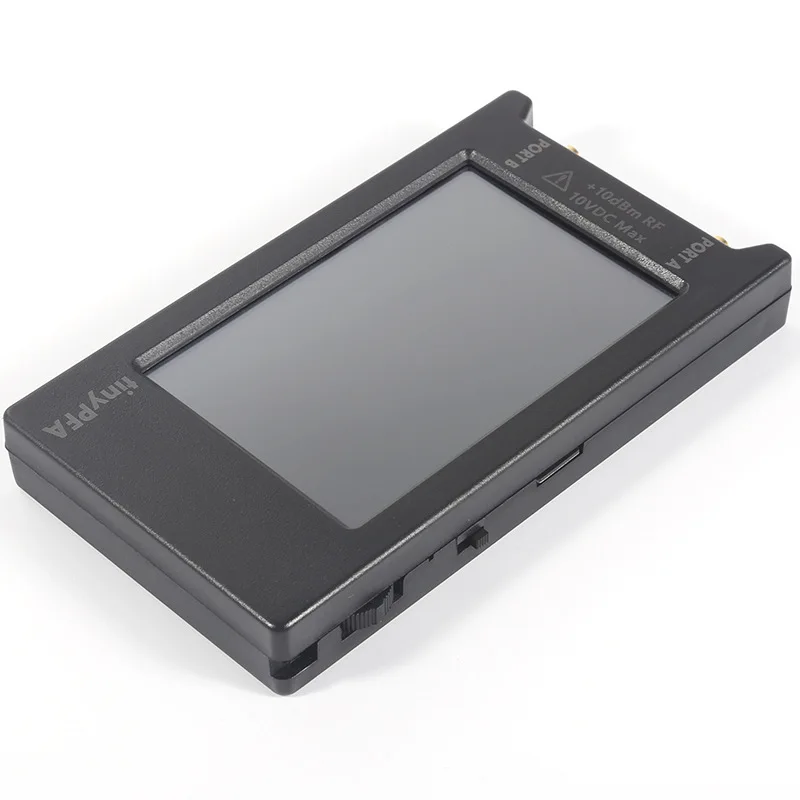

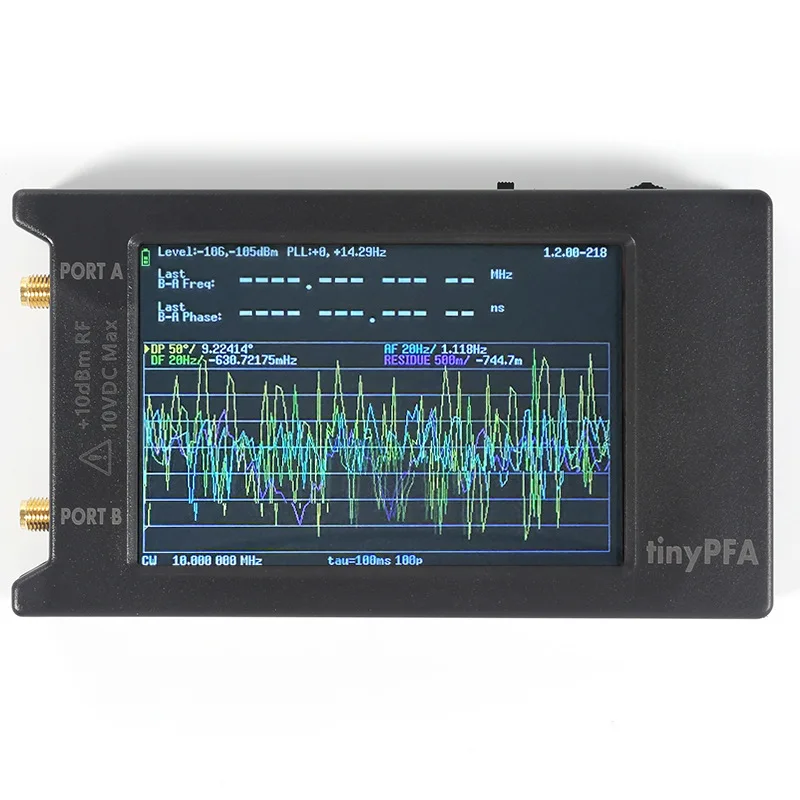

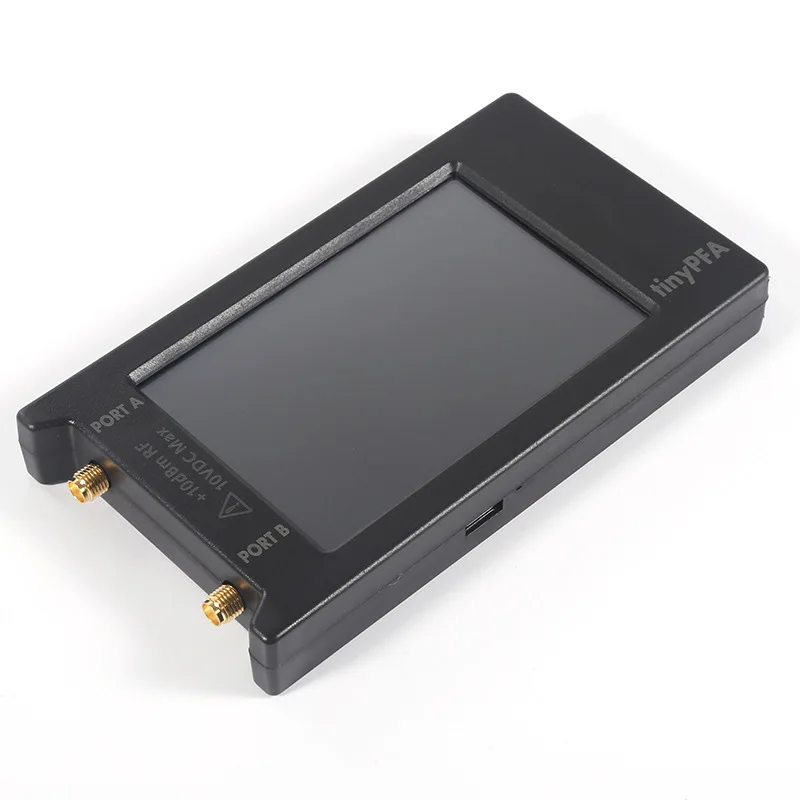

InyPFA is a phase frequency analyzer that can accurately measure the frequency and phase difference between signals applied to two input terminals. The input frequency can be any frequency between 1 MHz and 290 MHz. A typical use is to measure the difference between two 10 MHz clocks. TinyPFA can display phase and frequency differences digitally, and display the relationship between measurement results and time in a graph. The measurement results can be stored on an SD card inserted into the SD card slot, or sent to a PC via USB, and programs such as TimeLab can be run for further display and processing. The phase and frequency measurement accuracy is better than 1 e-12 per second. Please note that the maximum frequency difference that can be displayed depends on the measurement time (Tau), which is approximately 200 Hz/s. Therefore, for Tau of 1 s, the maximum frequency difference is 200 Hz. TinyPFA is a portable battery powered device that uses a USB port for charging and comes with a 4-inch display screen, making it very convenient to carry and operate.
TinyPFA is based on the hardware of NanoVNA-H4 and runs customized software to measure small deviations between two signals with similar frequencies. If you already have NanoVNA-H4 and do not need tinyPFA for long-term measurement, you can use NanoVNA-H4 to flash in the tinyPFA firmware and use it without the need for repeated purchases.
TinyPFA is not a frequency meter and its internal reference is inaccurate and unstable. It is only used for measuring the deviation of two signals with similar frequencies. It can be used to compare a signal with a very accurate reference signal.
TinyPFA is not a phase noise analyzer.
TinyPFA is only available for specific users who require very precise frequency analysis. Please read the relevant instructions on tinydevices.org to confirm if it is suitable for your use. Our store does not provide usage guidance. If you are unsure of the purpose of tinyPFA, please do not purchase it.

Gain: 10
Frequency range: 1 MHz to 290 MHz (MHz)
Output impedance: 50 (Ω)
Working voltage: 5 (V)
Maximum power: 5 (W)
Weight: 0.6 (kg)
Length: 100 (mm)

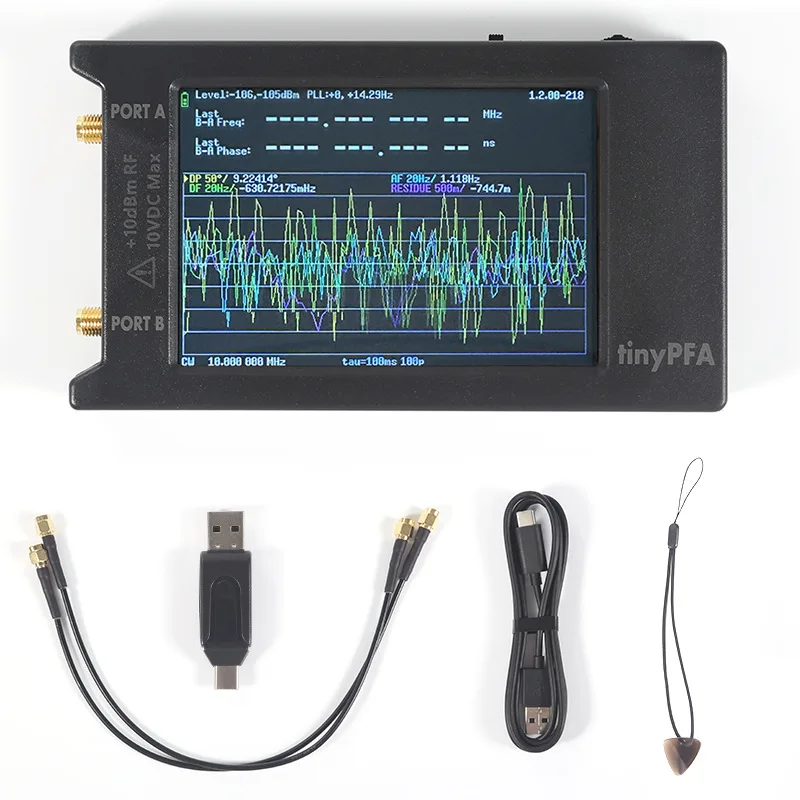

Packaging List
1. TinyPFA host * 1 (including 4-inch touch screen and 2000mAh battery)
2. 30cm SMA male to male ALSR100 RF cable * 2
3. MicroSD storage card * 1 inserted into the host
4. MicroSD card reader * 1
5. USB Type-C data cable * 1
6. Touch Paddle
