Socket Shoulder Cap Screw M12 Thread 16mm Shoulder DIN9841

M12 Thread, 16mm Shoulder Socket Cap Screw/ Bolts, High Tensile, Grade 12.9, DIN 9841, BS 4168, ISO 7379

Fixaball sells all sizes of M12, Metric, Shoulder, Cap Screw/ Bolts in high tensile, grade 12.9.

Shoulder Socket Cap Screw/ Bolt Description

Shoulder Socket Cap Screws are high tensile and hardness strength fasteners with an Internal Hex or Allen key drive style head. The shoulder is a cylindrical unthreaded area before the thread, allowing for rotation of parts and are uséd in moving parts and other mechanical applications.

Material

Blackened alloy steel, high tensile 12.9 (Hardness 38 HRC, tensile strength 1200 N/mm²)

Technical Notes

ISO 7379. Temperature range -50°C to +300°C.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'No. of Items in Pack' and 'Shoulder Diameter x Shoulder Length' and 'Quantity' of packs selection from the drop down menus.


Metric M12 Thread, 12.9 Grade, Shoulder Cap Screw Bolt Descriptions

Socket Shoulder Caps Description Thread Type Shoulder Diameter (mm) Thread Diameter (mm) Shoulder Length (mm)
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 16
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 20
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 25
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 30
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 40
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 45
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 50
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 55
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 60
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 65
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 70
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 80
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 90
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 100
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 110
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 120
Socket Shoulders | Standard Range METRIC Coarse Thread M16 M12 130



Table: To show metric socket, shoulder bolt dimensions

Fixaball – Specialists in Fixings and Fasteners

METRIC Socket, Shoulder Bolt Dimensions

All dimensions in mm

Thread Diameter

Thread Length

(Max)

Length of Shoulder

Diameter of Shoulder

(Max)

Socket Head Diameter

Hex/ Allen Key Size

M12

18.4

16, 25, 30, 40, 50, 60, 70, 80, 90, 100

15.98

24

8



Torque to:

M12 = 120 Nm.

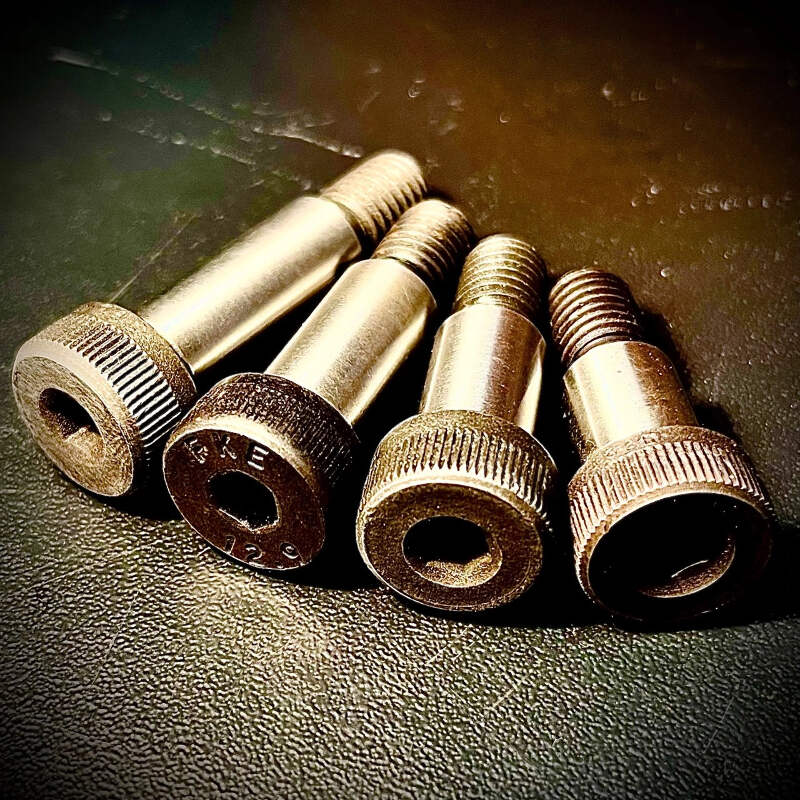

Image is for illustrative purposes only.
