High-Precision DC Electronic Load 400W Aging Test Battery Capacity and Internal Resistance Testing

Product parameter

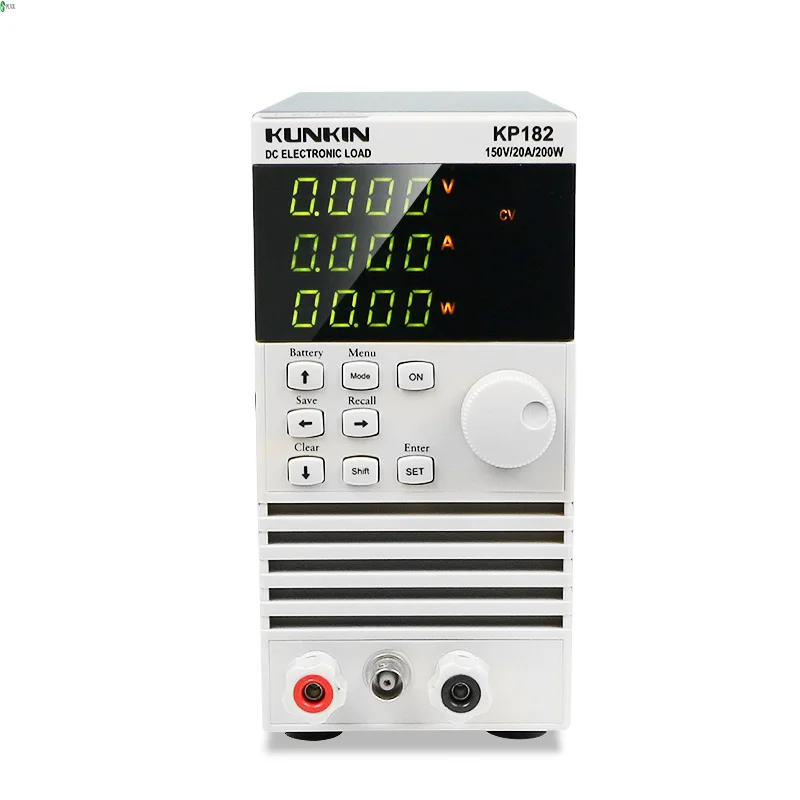

Model:KP182
Product name:Multifunctional electronic load four
Voltage:AC 110V/220V ± 10%, 50 ± 2Hz
Power consumption:<20 W
Load voltage:DC 1 -150V
Load current:0-20A
Load power:0-200W
Current:±0.1%+5mA
Voltage:±0.1%+5mA
Current:±0.1%+5mA
Voltage:±0.05%+5mA
Communication method:Does not support communication
Overvoltage (OV):More than 152V, turn off load
Over temperature (OT):85℃
Over Power (OP):210W per channel
Power input fuse 0.5A
Operating environment temperature range:0-50℃
Operating environment humidity range:10-90%RH
Withstand voltage of DC input terminal to chassis:±500VDC
Insulation resistance of DC input terminal to chassis:>20MQ, when 500VDC
Insulation resistance of AC input terminal to chassis:>20MQ, when 500VDC

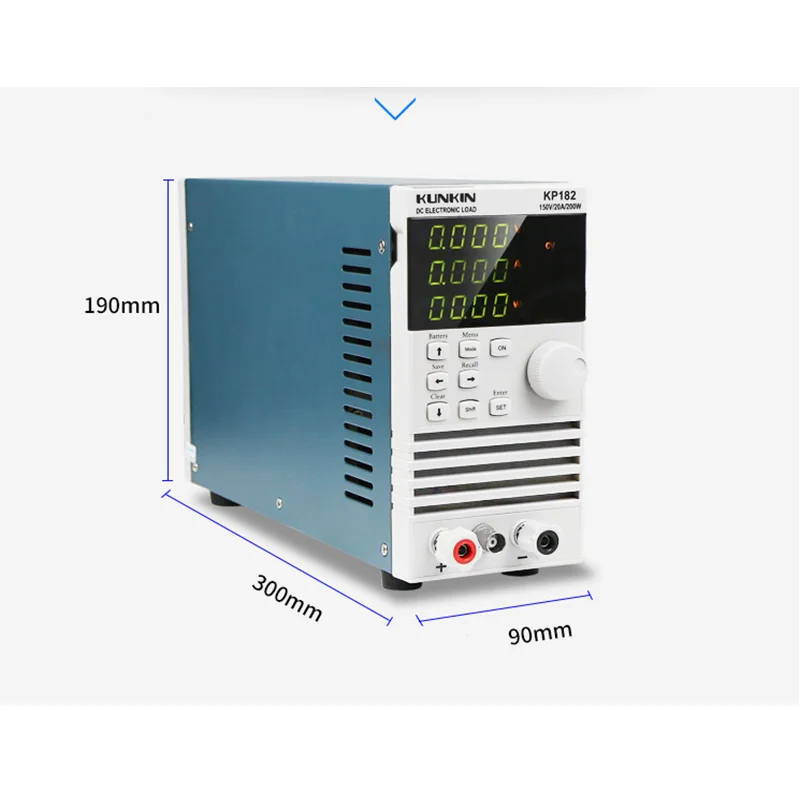

Dimensions (mm) L*B*H:300* 90*190
Weight (approximately):3.5KG

Model: KP184
Voltage:AC 110V/220V ± 10%, 50 ± 2Hz
Power consumption:<20 W
Load voltage:DC 1 -150V
Load current:0-40A
Load power:0-400W
Current:±0.05%+5mA
Voltage:±0.05%+5mA
Current:±0.05%+5mA
Voltage:±0.05%+5mA

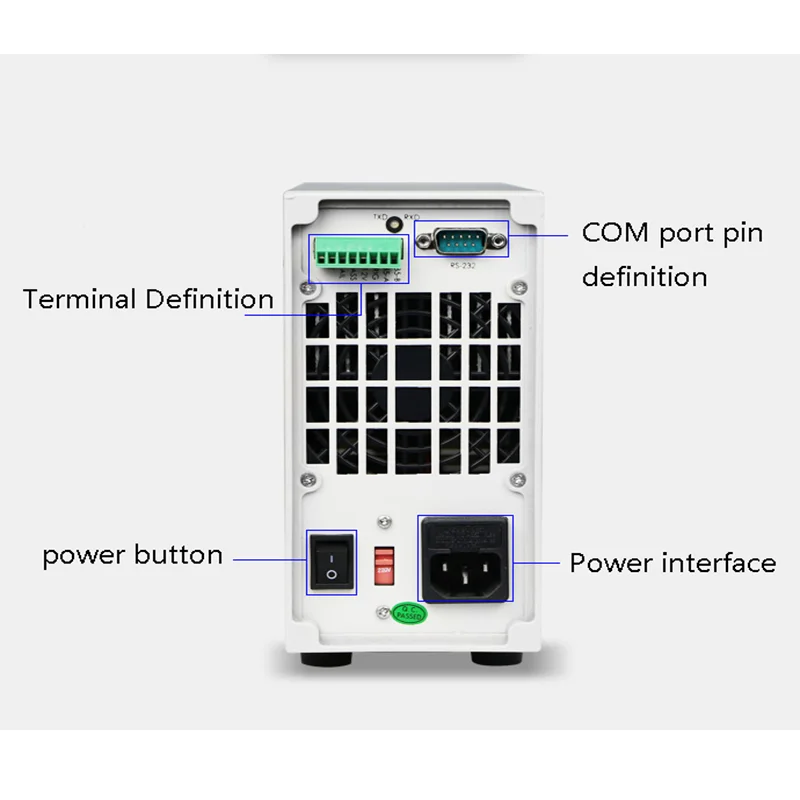

Communication method:RS232/RS485
Overvoltage (OV):more than 152V, turn off load
Over temperature (OT):85℃
Over power (OP):Single channel 410W
Power input fuse 0.5A
Operating environment temperature range:0-50℃
Operating environment humidity range:10-90%RH
Withstand voltage of DC input terminal to chassis:±500VDC
Insulation resistance of DC input terminal to chassis:>20MQ, when 500VDC
Insulation resistance of AC input terminal to chassis:>20MQ, when 500VDC
Dimensions (mm) L*B*H:300* 90*190
Weight (approximately):4KG
