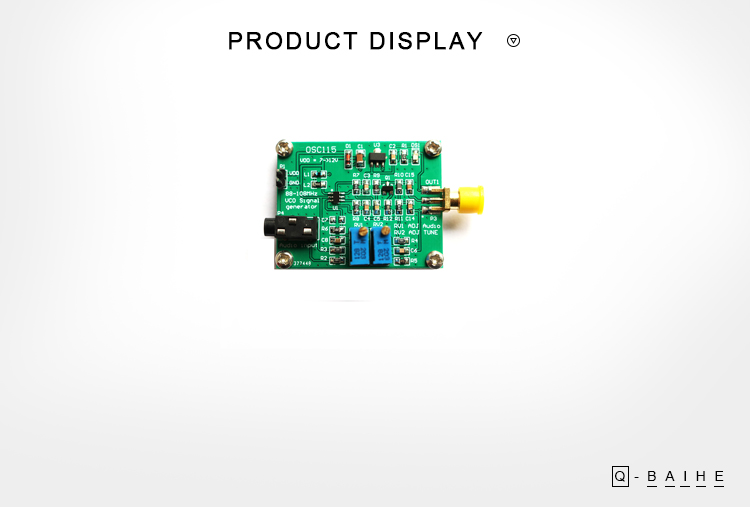

| Title： | OSC115 88~108MHz FM Audio Signal Generator Module | ||
| Specification： | Output frequency range: 88~108 MHz Maximum output amplitude: <2dBm dBm Working voltage: 7~12 V Size :42*35 mm |
||
| Interface Description And Related Operations | P1 interface: VDD: positive power supply; GND: negative pole of power supply; P4 interface: audio signal input. P3 interface: FM radio frequency output signal. (RP SMA KE KHD outer screw inner hole) RV1: adjust the volume; RV2: adjust the VCO frequency; |
||
| Package: | 1*FM Audio Signal Generator Module | ||
