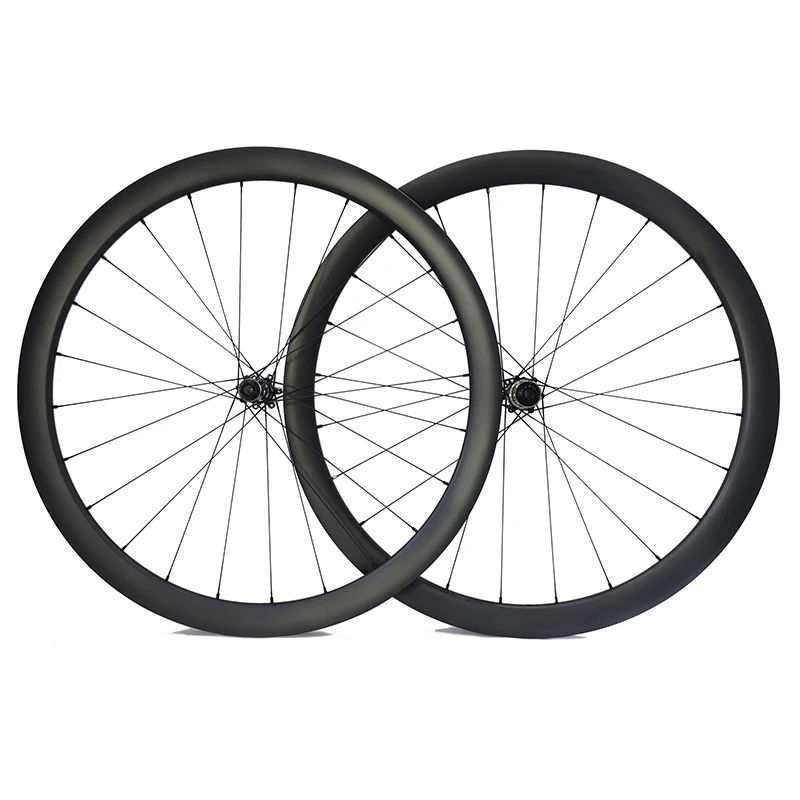

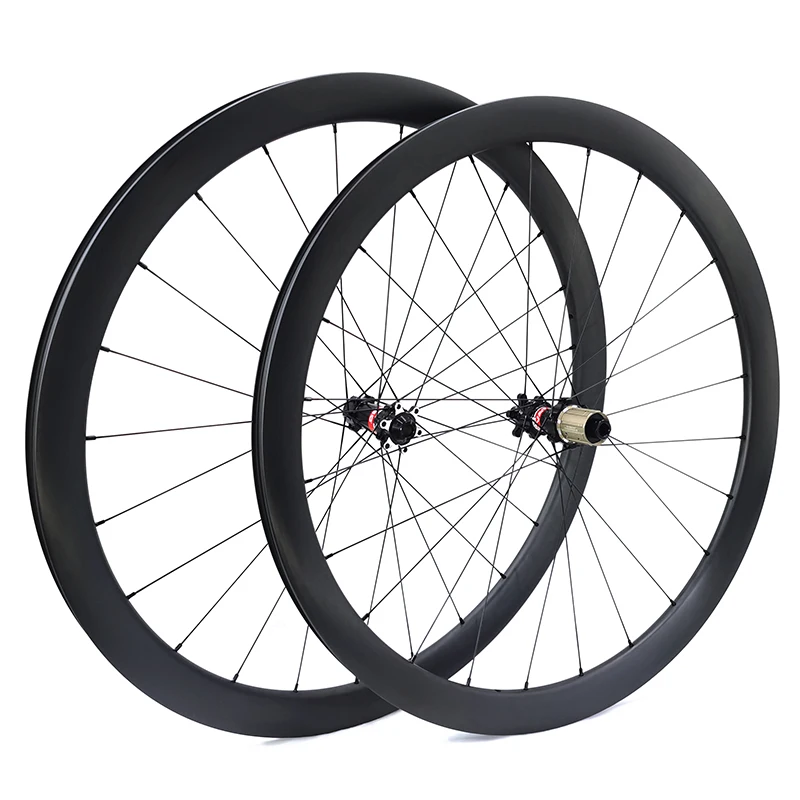

Asymmetric Gravel Bike Wheel 700c 45mm/29mm Road Disc Brake Carbon Tubeless Wheel


Options

  • Weave Finish: UD 3K 12K ; matte glossy

  • Nipple position: external / internal

  • Nipple color: black/red/gold/blue/silver/green

  • Cassette body: HG / XDR/ CAMPY

Decal: custom / no log / our logo

Size:

700C

Outer Width:

29mm

Inner Width:

22mm

Depth:

45mm

Spoke Holes:

F24/R24

Weight:

1430±30g/wheelset

Type:

Clincher

Weave:

UD

Finish:

matte

Tubeless:

compatible

Braking System:

Disc

Nipple Position:

External

Material:

Toray T800 carbon

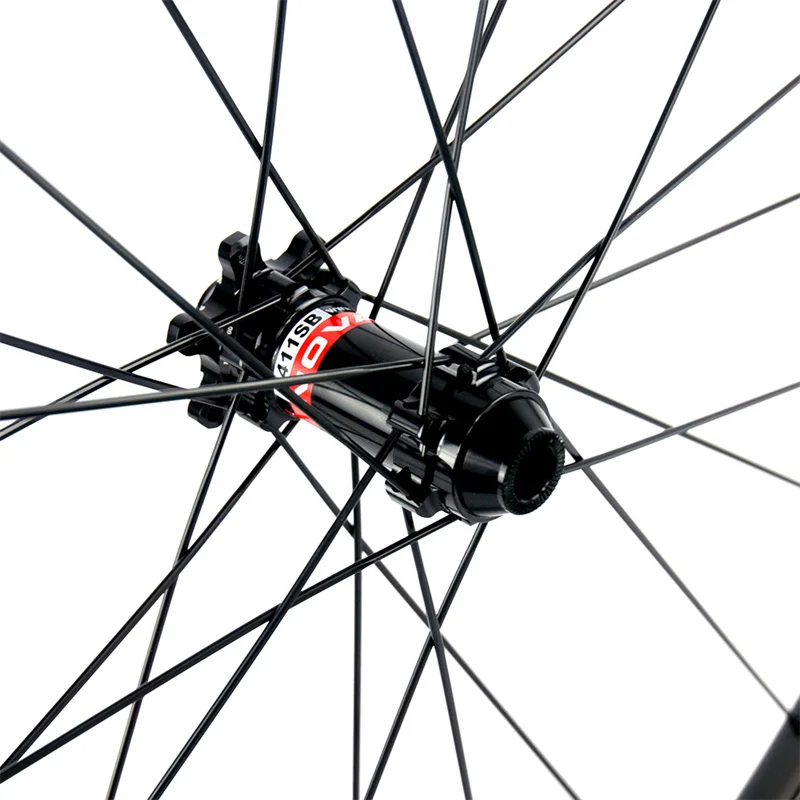

Hub Front:

Novatec D411SB 12x100

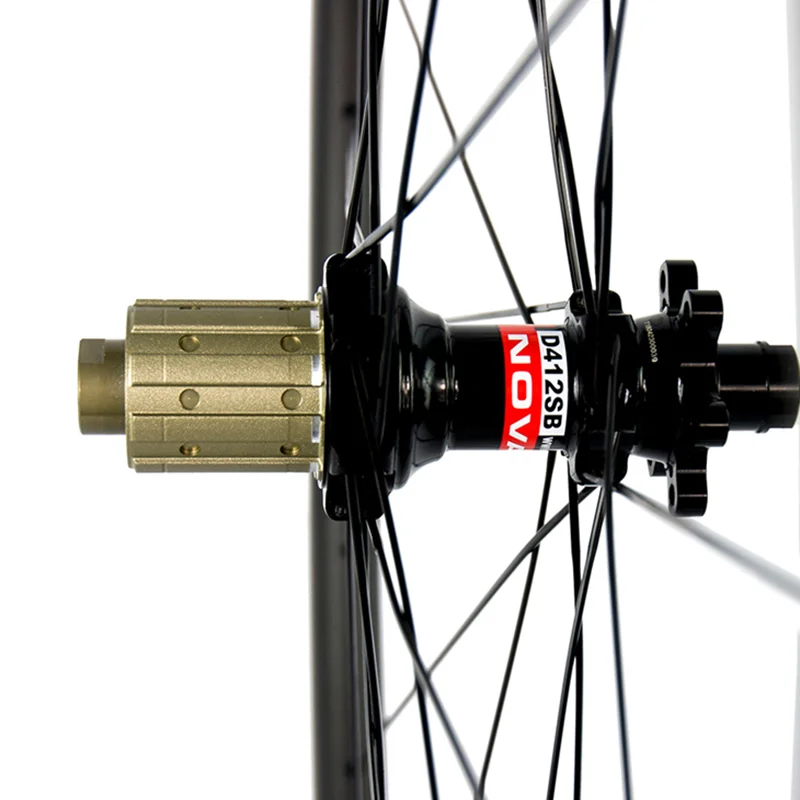

Hub Rear:

Novatec D412SB 12x142

Spokes:

Pillar PSR X-TRA 1420

Nipples:

Alloy

Cassette body:

Shiman 9 10 11s

Tire pressure:

120psi max

Max spoke tension:

180kgf

Weight limit:

120kg

Warranty:

12 Months

Standard:

EN

Application:

Road Disc/CX/Gravel


NOTE: choose the hub specification from below options:


  • Front:

QR 9mm x100mm (strandard quick release type)

12mm x 100mm TA

15mm x 100mm TA


  • Rear:

QR 10mm x 135mm (standard quick release type)

12mm x 135mm TA

12mm x 142mm TA


  • Cassette body:

HG Shiman 9/10/11s compatible

XD 11 12s compatible

XDR 12s

Camp.10/11/12/13s

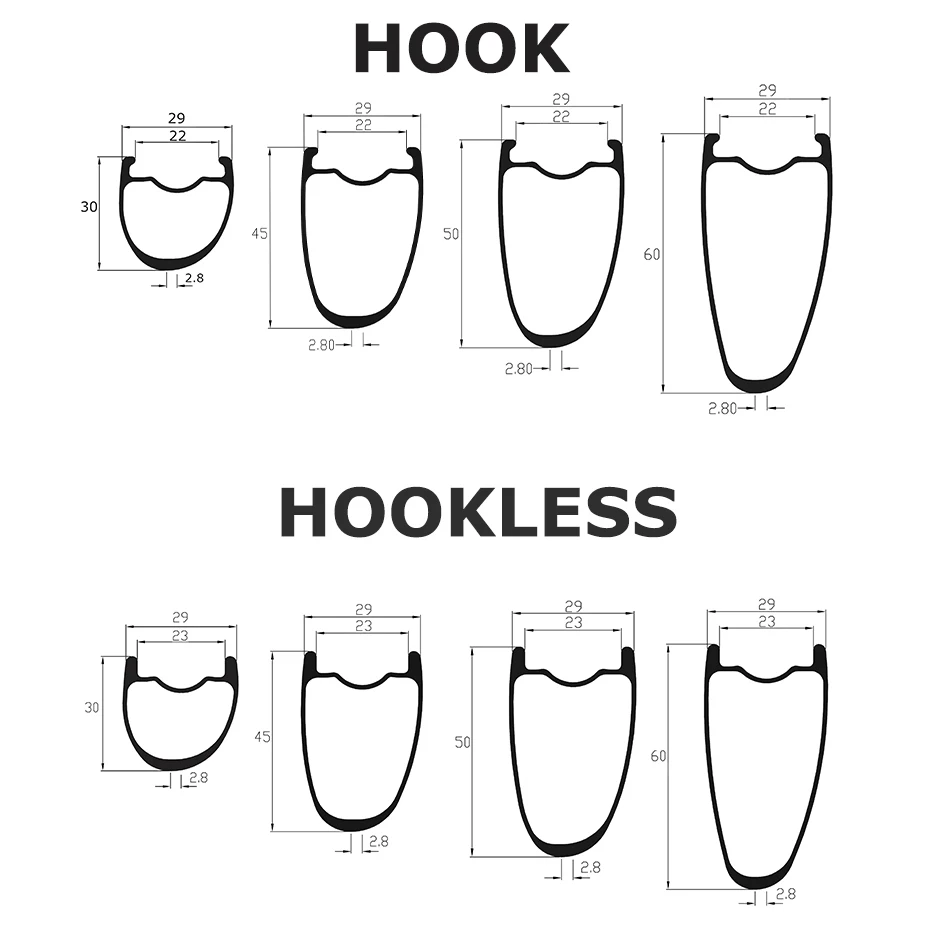

Cross Section
