5 in 1 Instrument: 4CH Oscilloscope, 1CH Waveform Generator, Spectrum Analyzer, Digital Voltmeter, Frequency Counter

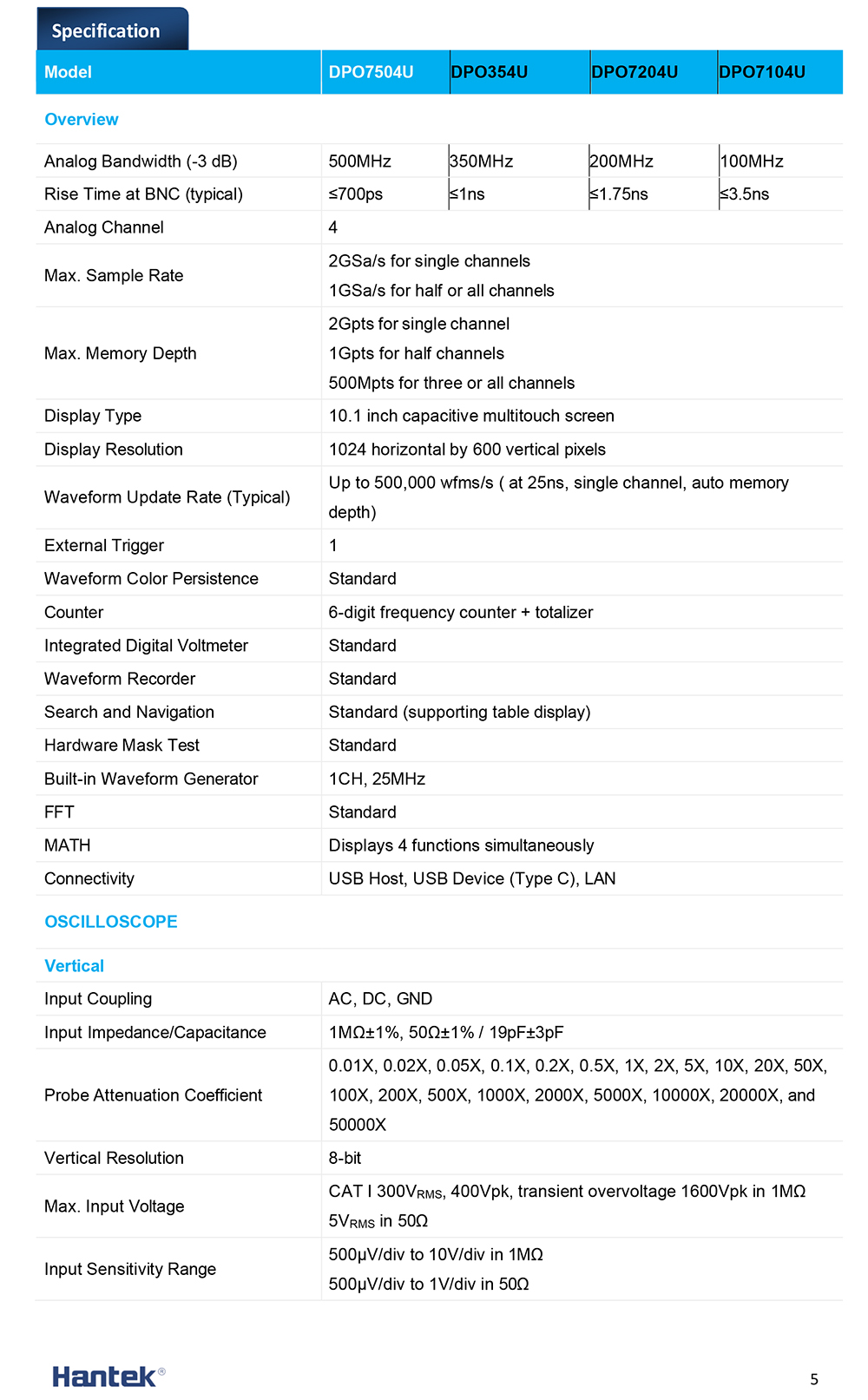

• 4 analog channels, 500MHz bandwidth, and 1 EXT channel.
• C
• Waveform capture rate up to 500,000 wfms/s.
• Low noise, vertical minimum range 500μV/div.

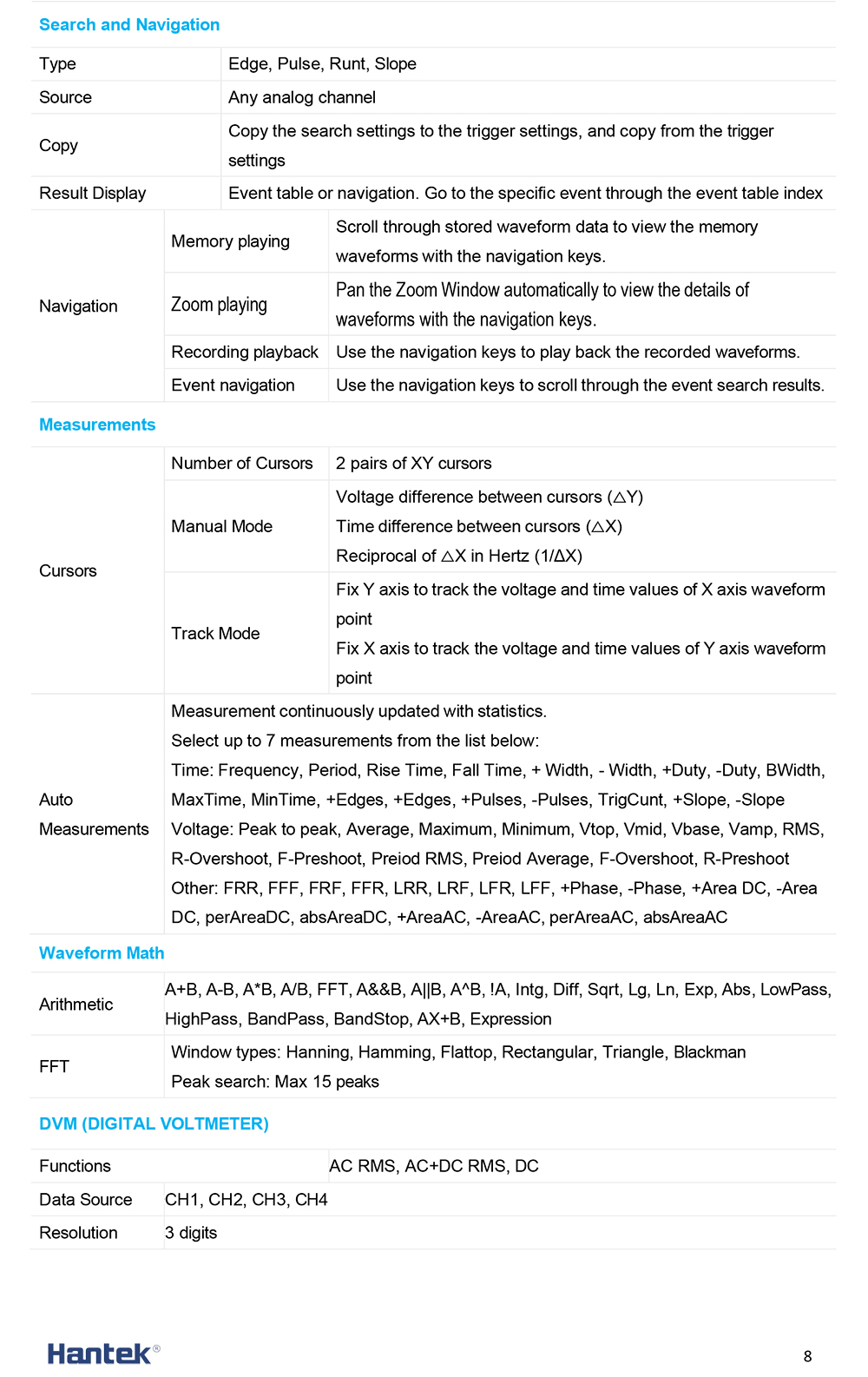

• 51 auto measurements and a statistics display.
• 20 basic math and advanced math functions, including FFT standard.

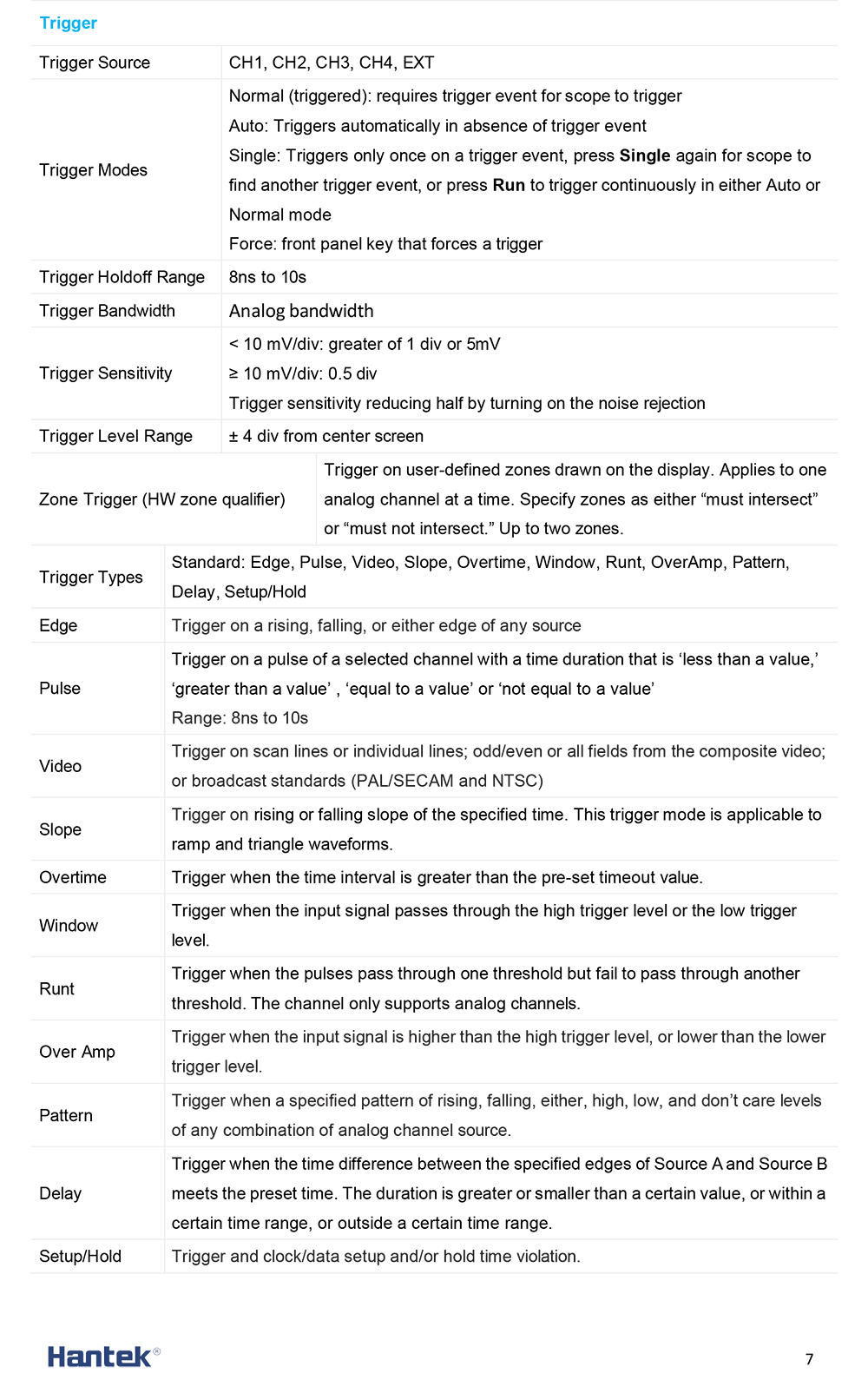

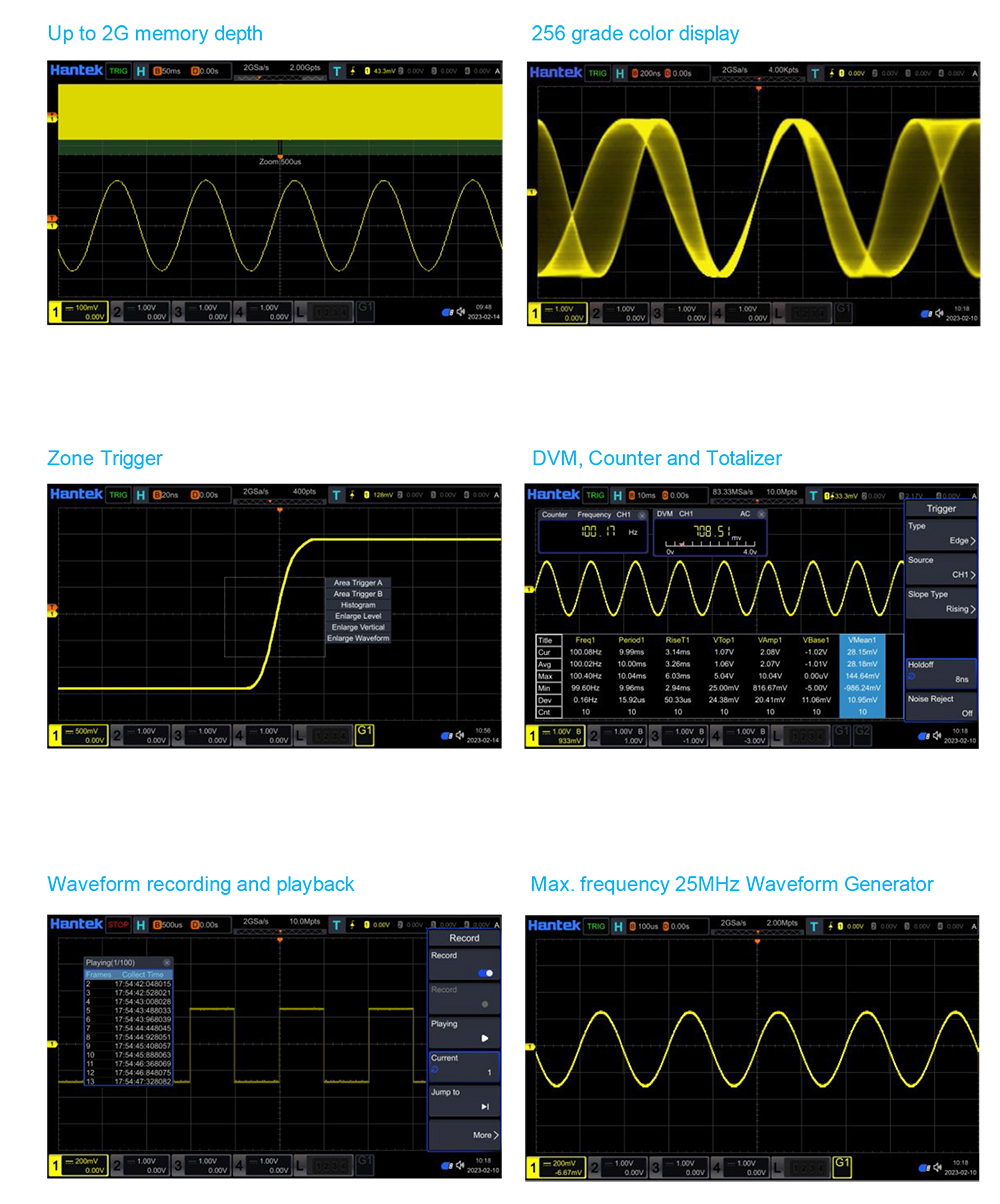

• With zone trigger function.
• Reference waveform for comparing with other channel or math waveforms.
• Analysis features including counter, digital voltmeter (DVM)
• With Search, Zoom, Navigate, Pass/Fail, Waveform Recorder function.
• 5-digit digital voltmeter (DVM) and 6-digit counter with totalizer.

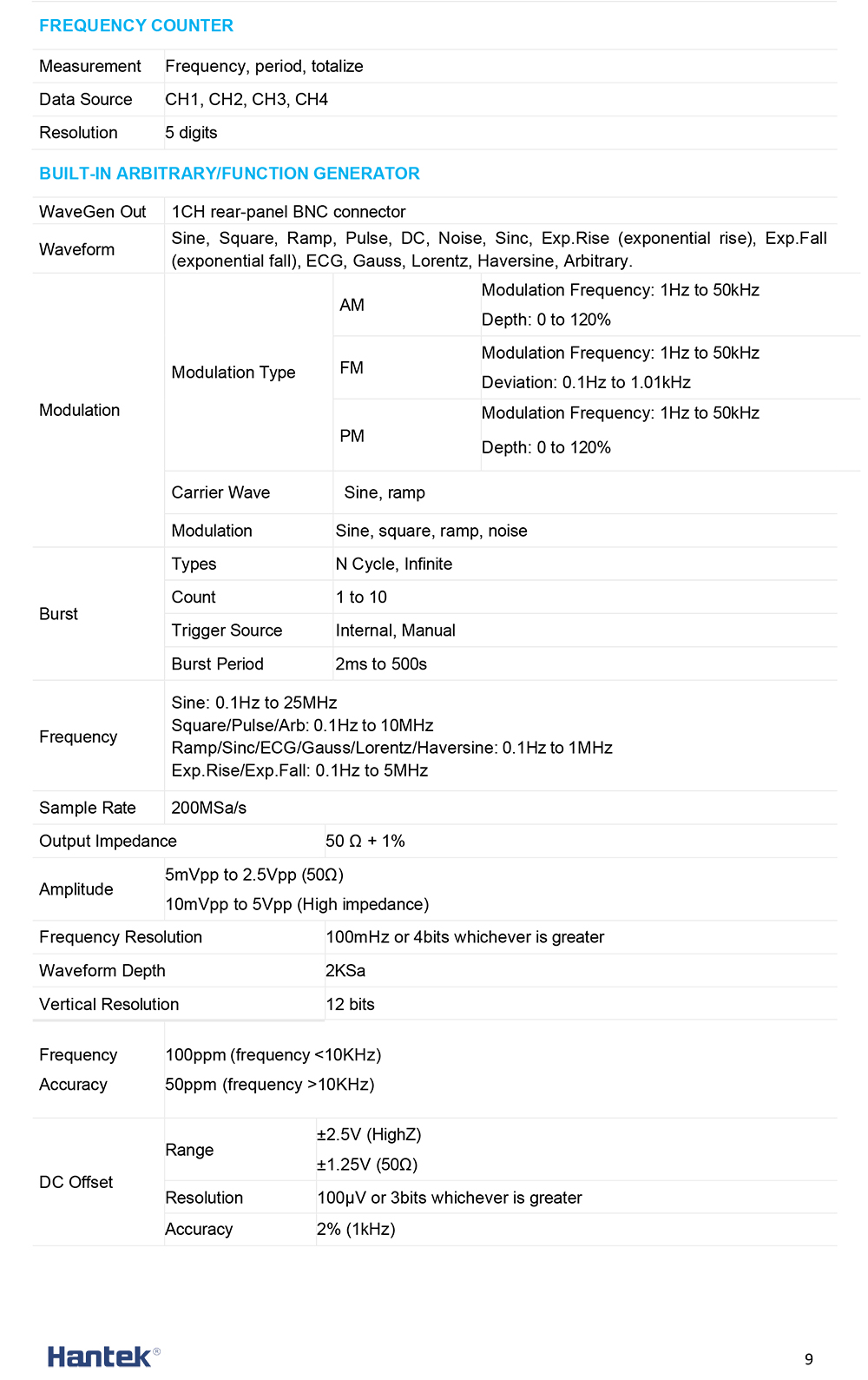

• Built-in 1 channel, 25MHz waveform generator with: sine, square, ramp, noise, pulse, DC, sine cardinal, exponential fall, haversine, lorentz, dual tone, gause, ECG, arbitrary.
• Standard USB Host, USB Device (Type C), and LAN port.
• Large (10.1-inch) capacitive touchscreen, 256 level intensity grading display, color persistence.
• Supports SCPI remote command control.
