Features

1. The controller and display intelligently identify the voltage, compatible with 36V/48 lithium battery((By setting the "P03" parameter)

2. The controller has a headlight function, long press the "UP" button of the meter to turn on the backlight of the meter, and at the same time the front lights and rear tail lights of the bicycle will be turned on, making it more convenient and safe for you to ride at night

3. A total of 16 parameters of the display can be customized (there is a manual in the display box), which can be perfectly matched with your motor, PAS, throttle

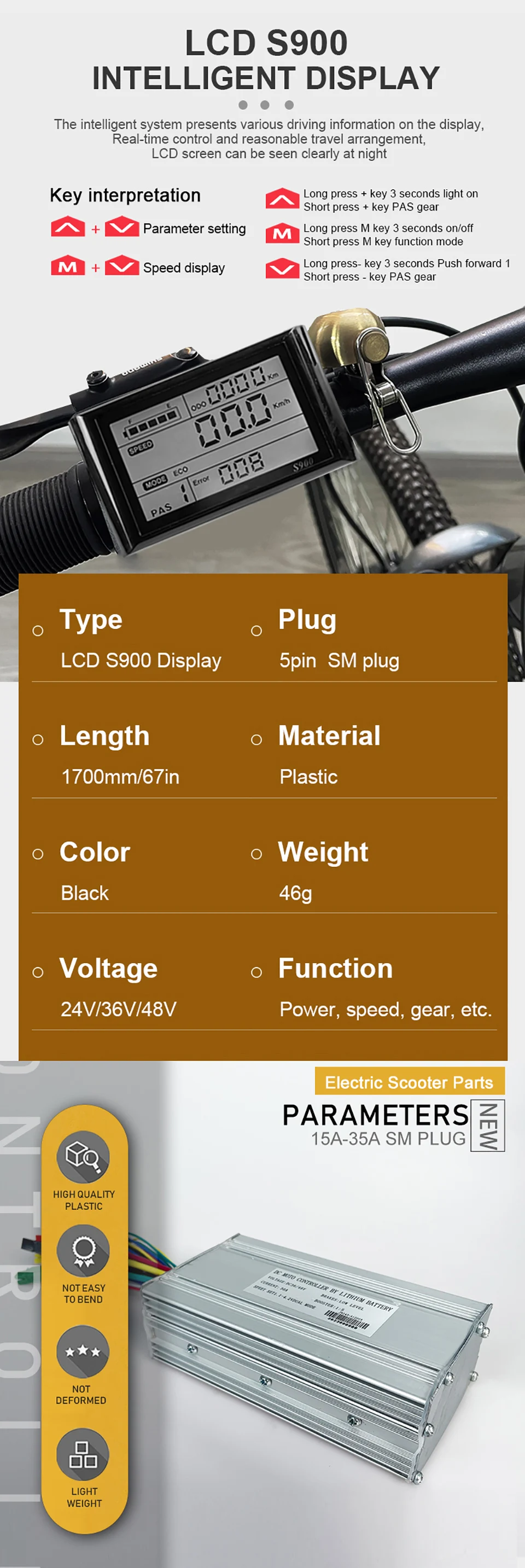

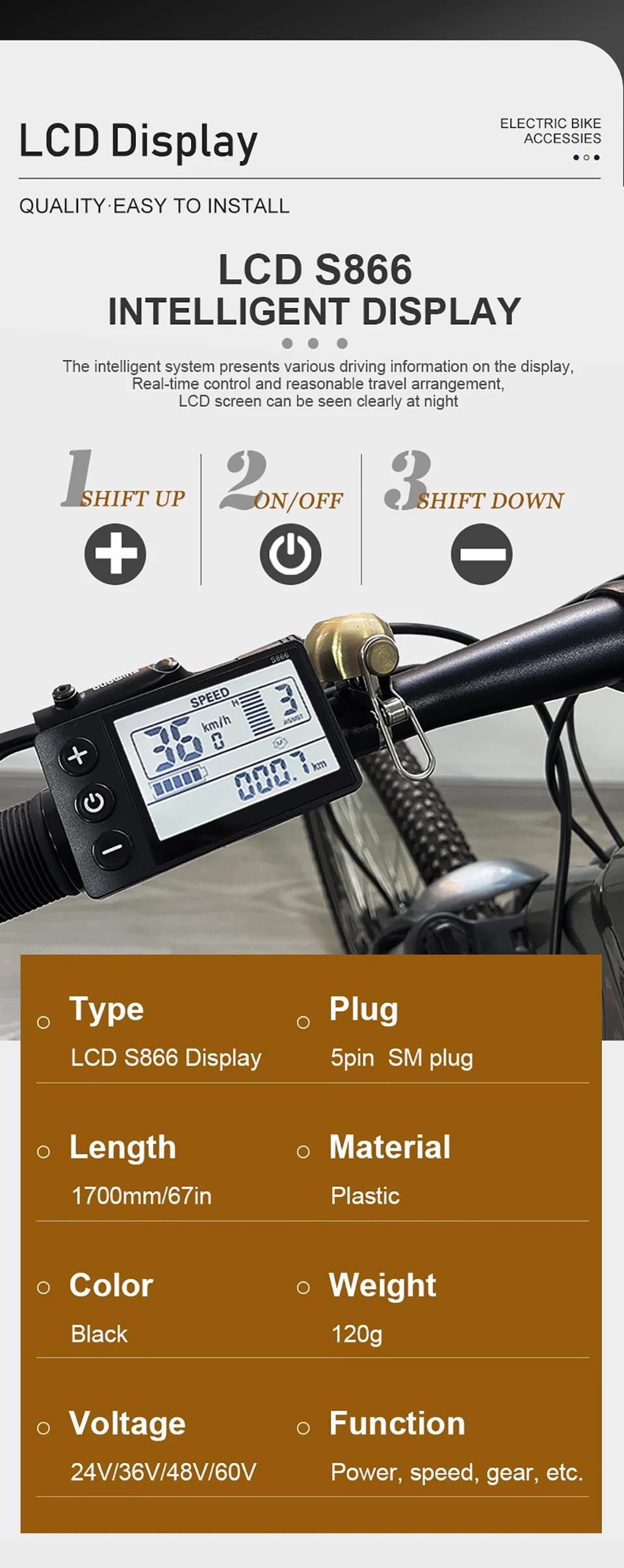

4. The S866 Display is easy to install, with clear screen display and powerful functions

5. Brushless Hub Motor for 250W-500W, Electric Bike, Electric Bike Kit

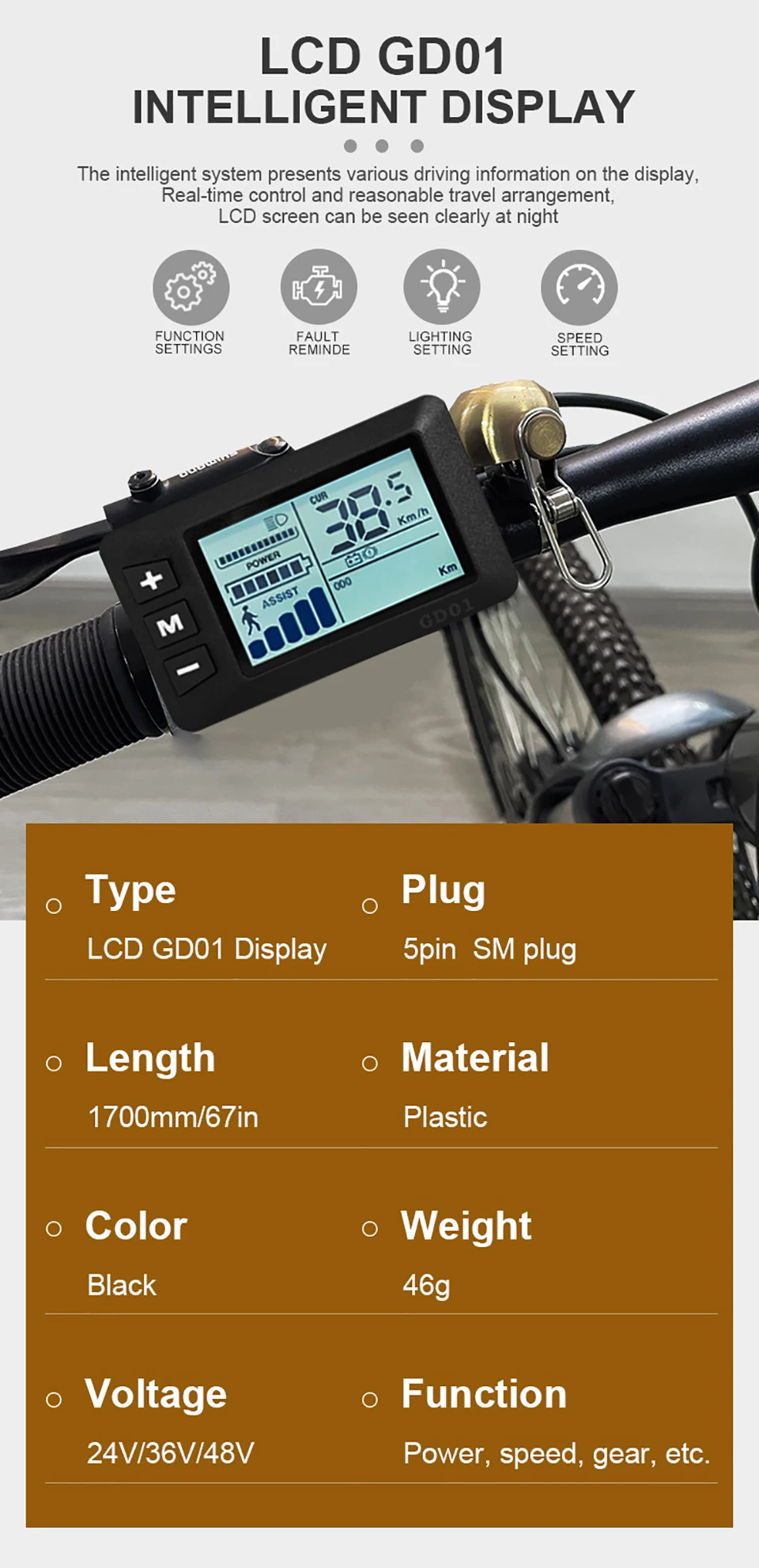

  GD01 S900 S866 LCD Display Display Parameter

Voltage : 24V 36V 48V 60V

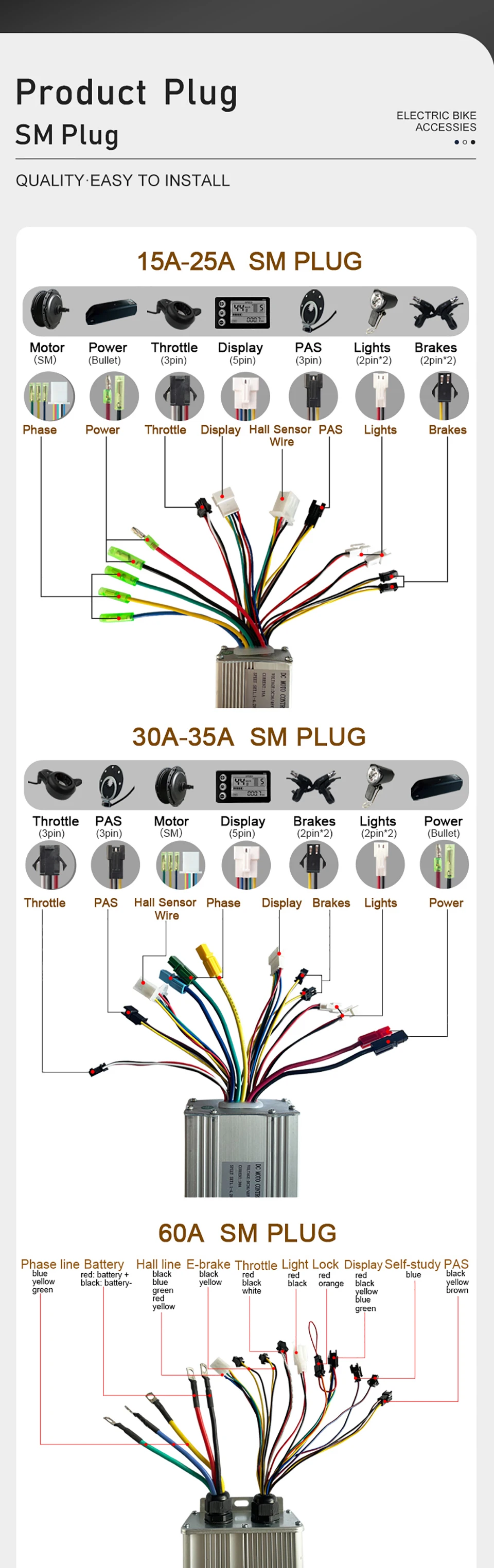

Plug : 5Pin Female SM Plug

Size: 80.5*47.5*49.5(mm)

Cable Length: 170cm ( SM )

Holder Diameter : φ22mm

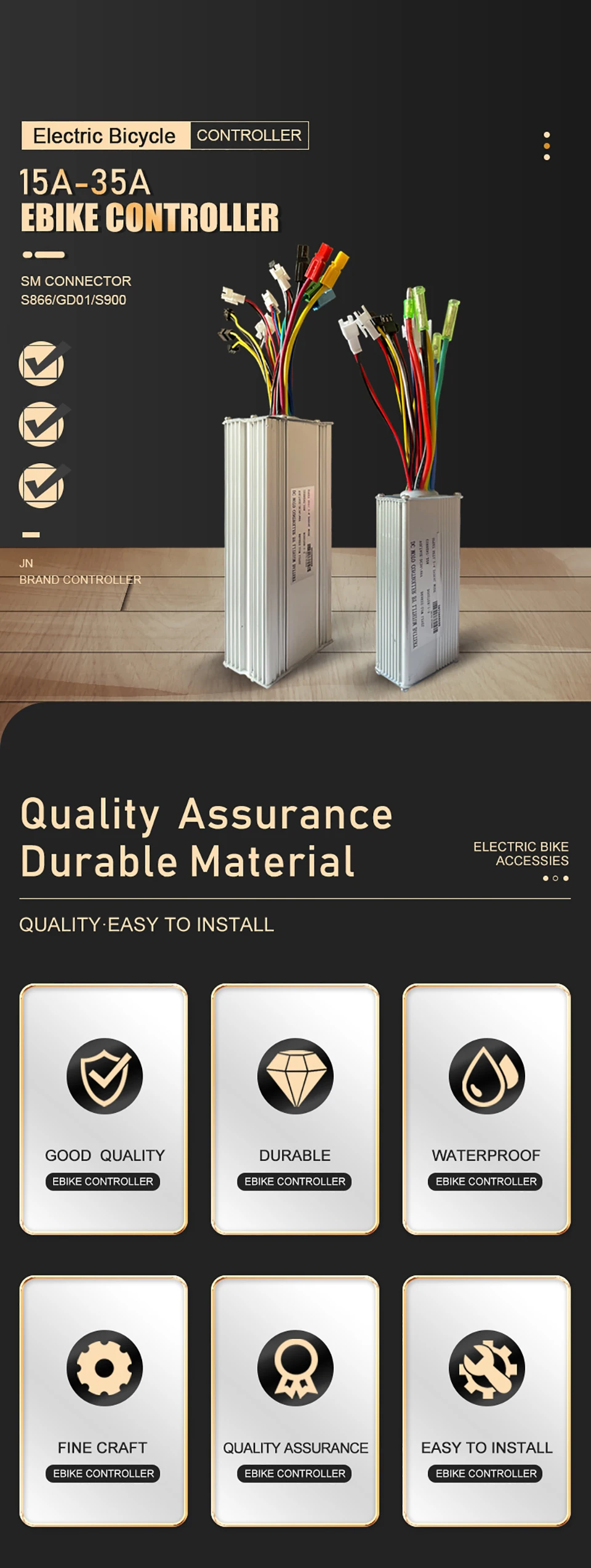

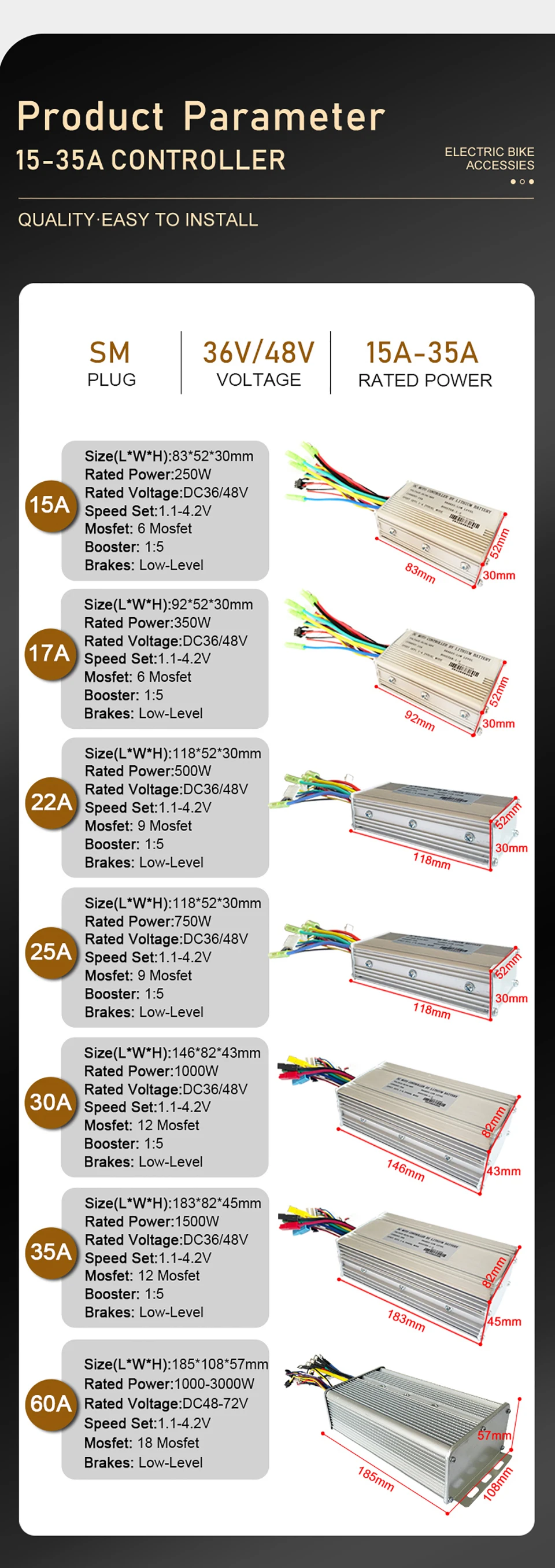

  15A Controller Parameter

Size(L*W*H):50*30*83mm

Rated Power:250W/350W

Speed Set:1.1-4.2V

Mosfet:6 Mosfet

Booster:1:5

Brakes: Low-L evel

Rated Voltage: DC36/48V

  17A Controller Parameter

Size(L*W*H):50*30*92mm

Rated Power: 250W/350W

Speed Set: 1.1-4.2V

Mosfet: 6 Mosfet

Booster:1:5

Brakes: Low-L evel

Rated Voltage:DC36/48V

  22A Controller Parameter

Size(L*W*H): 52*32*113mm

Rated Power: 500W

Speed Set:1.1-4.2V

Mosfet: 9 Mosfet

Booster:1:5

Brakes:Low-Level

Rated Voltage:DC36/48V

  25A Controller Parameter

Size(L*W*H):52*30*118mm

Rated Power: 750W

Speed Set:1.1-4.2V

Mosfet: 9 Mosfet

Booster:1:5

Brakes:Low-Level

Rated Voltage:DC36/48V

  30A Controller Parameter

Size(L*W*H): 82*43*146mm

Rated Power: 1000W

Speed Set:1.1-4.2V

Mosfet: 12 Mosfet

Booster:1:5

Brakes: Low-Level

Rated Voltage: DC36/48V

  35A Controller Parameter

Size(L*W*H): 82*45*183mm

Rated Power: 1500W

Speed Set:1.1-4.2V

Mosfet: 12 Mosfet

Booster: 1:5

Brakes: Low-Level

Rated Voltage: DC36/48V

  60A Controller details:

●Brand :JN 60A Controller

●Color :Silver

●Dimension :185 * 108 * 57 mm

●Mosfet :18 Mosfets

●Maximum current :60±1A

●Rated current :30A

●Rated voltage :DC48V-72V

●Speed set :1-4.2V

●Brake input :Low-Level

●Low voltage protection :DC48±0.5V

●Cable length :all about 13-18cm

●Weight :about 1025g
