Tuya WiFi/ZigBee Smart Human Presence Detector Millimeter Wave Radar Detection Sensor for Home Security and Energy Conservation

Product sellpoints

Energy Efficient Design:Offers energy-conscious features like light-sensing, enabling automated room illumination based on occupancy.

Advanced Detection Technology:Features 24G radar with ± 10cm accuracy, ensuring quick and precise detection of human presence.

Wide Installation Options:Offers both ceiling and wall mount options, providing flexibility in installation for various settings.

Smart Home Integration:Seamlessly integrates with Tuya Smart Home platform, enabling easy control and compatibility with Zigbee2mqtt.

Radar Sensor|Zigbee Sensor|Millimeter Wave Radar Detection:Utilizes millimeter wave radar for precise human presence and motion detection, ensuring reliable sensing.

1.Please choose the correct version.

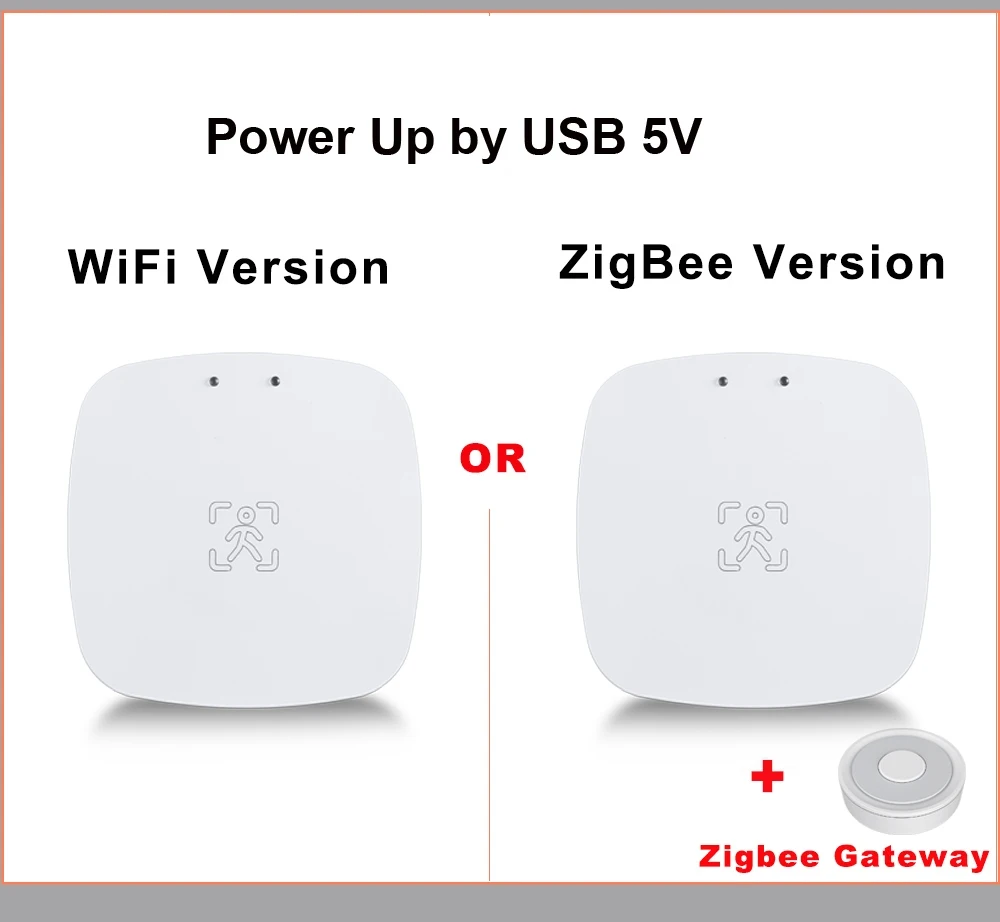

Wifi version doesn't need tuya zigbee hub to operate.

zigbee version need TUYA Zigbee Hub to operate.

You can choose the power by USB or By AC 80-220V.

Wall mount version have wifi and zigbee ,it is power by USB 5V

Ceiling mount version have wifi and zigbee,it is power by AC 80-220V

2.What is difference between 5.8G and 24G?

Compared to 5.8G radar, 24G radar has a shorter detection distance (which basically meets the distance requirements of daily household use). However, 24G radar has higher range detection accuracy (± 10cm); The delay time is relatively accurate; Higher recognition accuracy; Higher unmanned preprocessing speed; And the unique FMCW variable frequency modulation wave fast algorithm.

Product Discription:

The Micro motion sensor can be widely used in lighing,security,home appliance.hotels,garages,buildings.transportation.LOT internet of things and other industries that need to detect human micro motion,motion and control detection distance

Smart Human Presence Detector:the human presence sensor adopts millimeter wave radar,sensing human movement and static presence.It can detect the tiniest movement,even breathing and heatbeat.

Home Security :With human presence detection,you can used to detect intruders,whether it's in your personal home,an office or retail setting or even an industrial environment.

Energy Conservation:It can not only be used to detect moving,but also non-moving people.it enables seamless background features,like the litchen light turns on once you enter the room and off once you leave.

APP Remote Control:It detect micro/macro motions enables you to detect human presence within a configured distance.and get alerts in real time via app.

History Record View:User can check the history record via app.

ZigBee Hub needed:Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.

Specifications:

Product name:Human presence sensor

Wireless technology:ZigBee/Wifi

Working voltage:

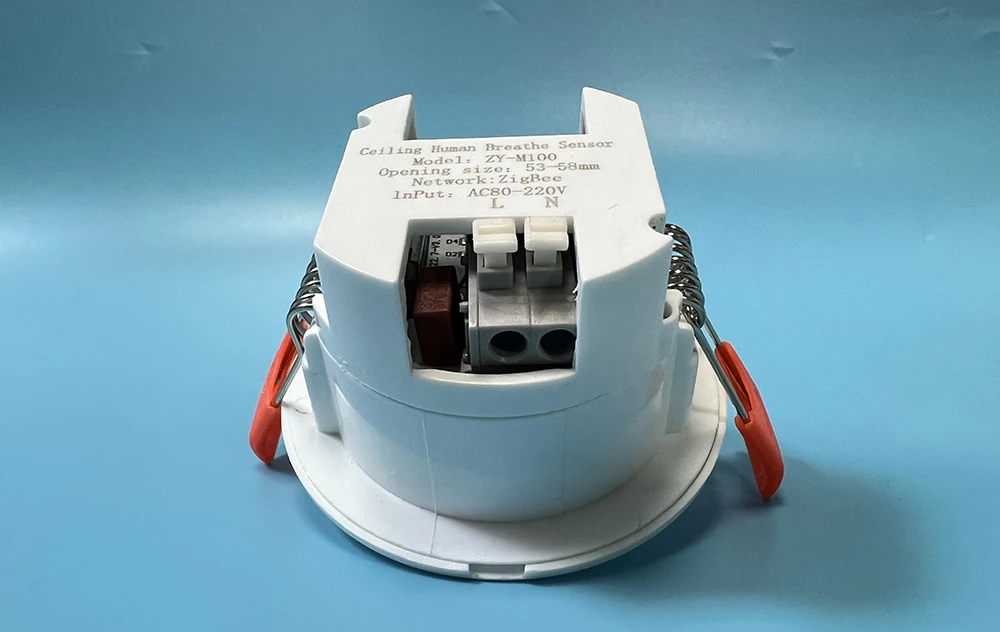

Ceiling mount Version:AC80-250V

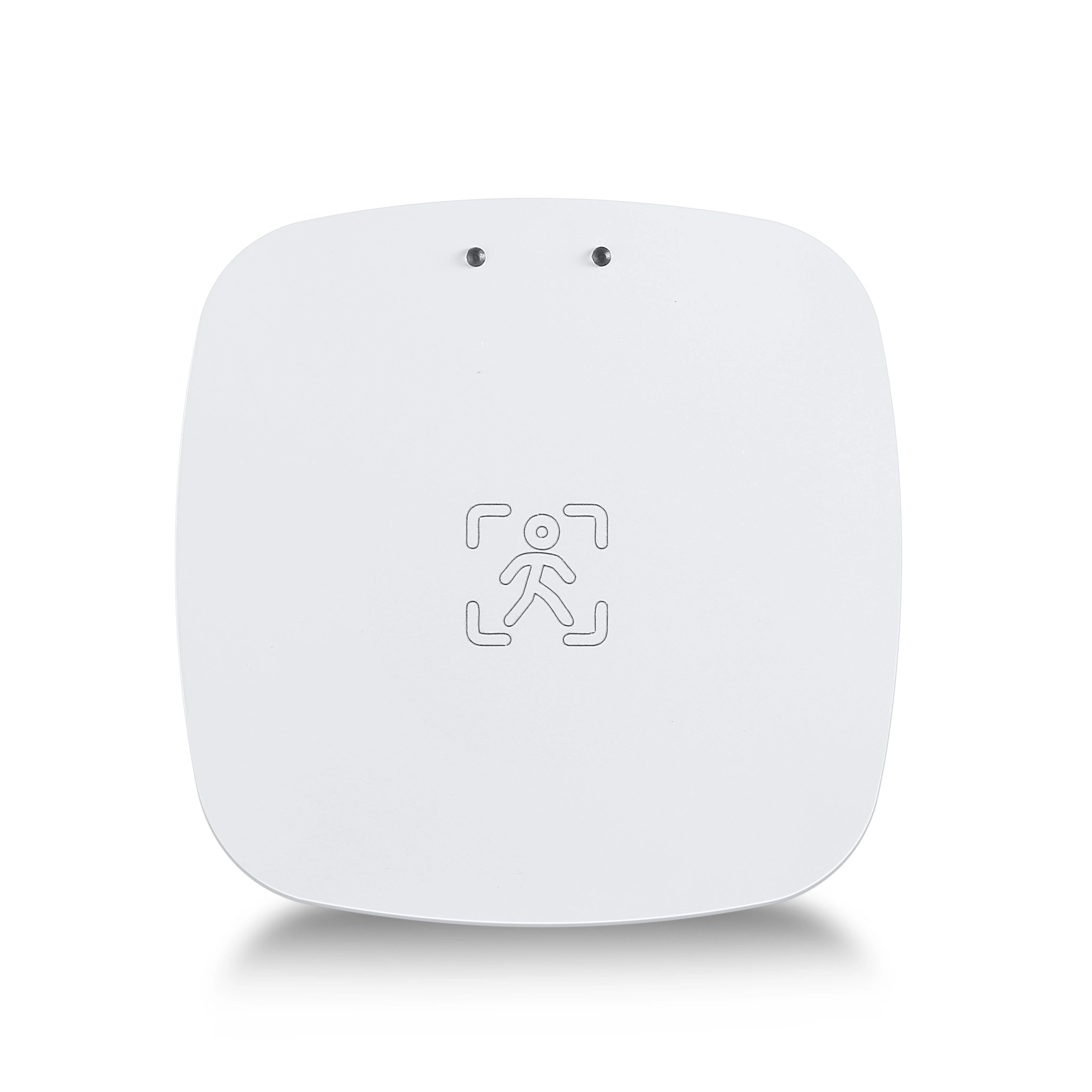

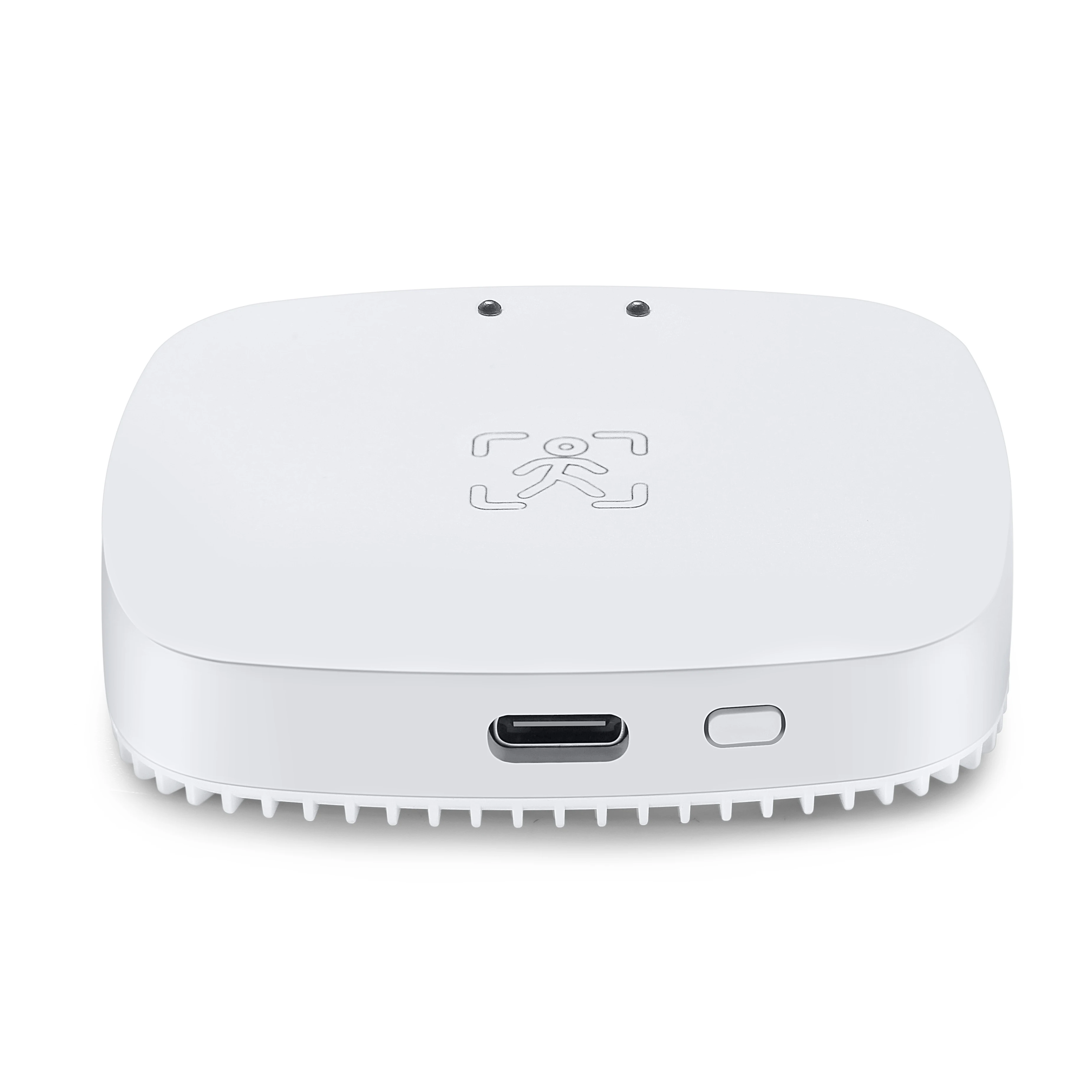

Wall mount version:Powered by USB 5V

Working current:≤70mA

Working temperature:-20℃~+70℃

Sensitivity:0-9(default 7)

Detect distance:0.3-9m(default 6m)

Delay time:1.target detection confirmation time:0-10s

2.target disappearance delay time:0.5s-25min.

It is recommended not to be less than 15s.It is too short to miss the human motion.

Light sense:0-2000Lux

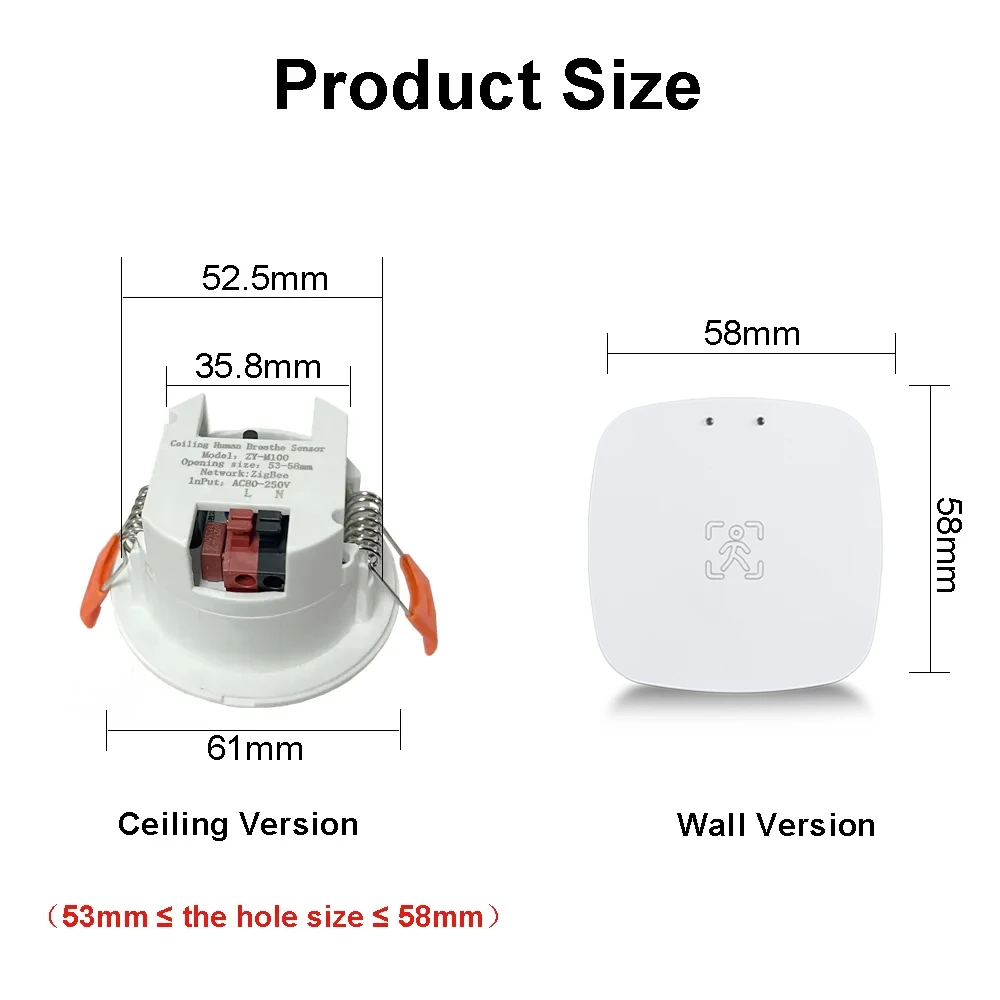

Installation mode:ceiling/wall

Package list:

Human presence sensor*1

User manual*1

USB Cable*1（Wall Mount）
